Automated Case Erectors & Sealers: High-Speed Carton Packaging Systems

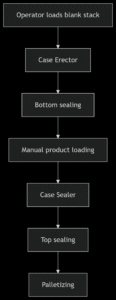

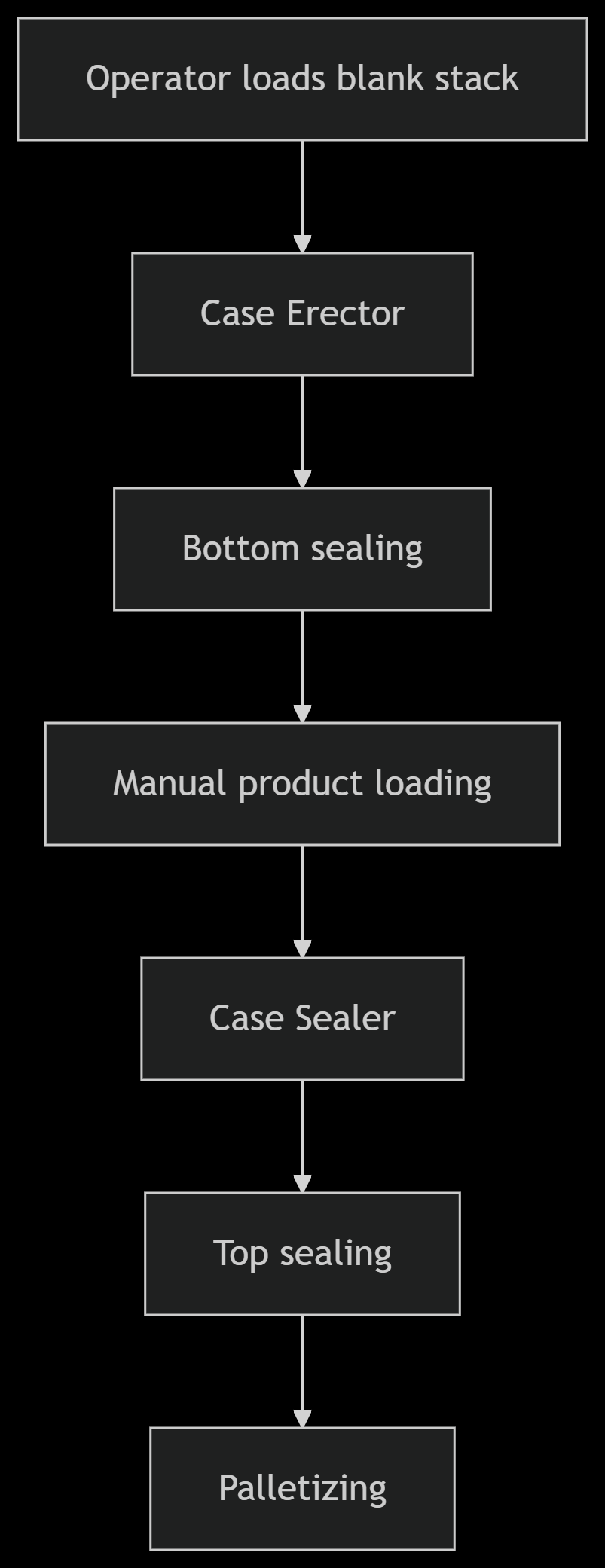

Positioned after primary packaging and labeling – but before palletizing – case erectors and sealers handle the critical final packaging stage:
Case Erectors: Automatically form flat corrugated blanks into boxes and seal the bottom flaps (using hot-melt glue or pressure-sensitive tape)
Case Sealers: Secure top flaps after manual product loading
These semi-automatic systems bridge the gap between manual packing and full automation, delivering 45% higher throughput than manual operations while maintaining flexibility.
Robotic systems forming RSC/HSC trays from flat blanks. Handles B/C/E/F-flute corrugation. Adjustable for 200-600mm box sizes. 20-60 cases/min throughput.

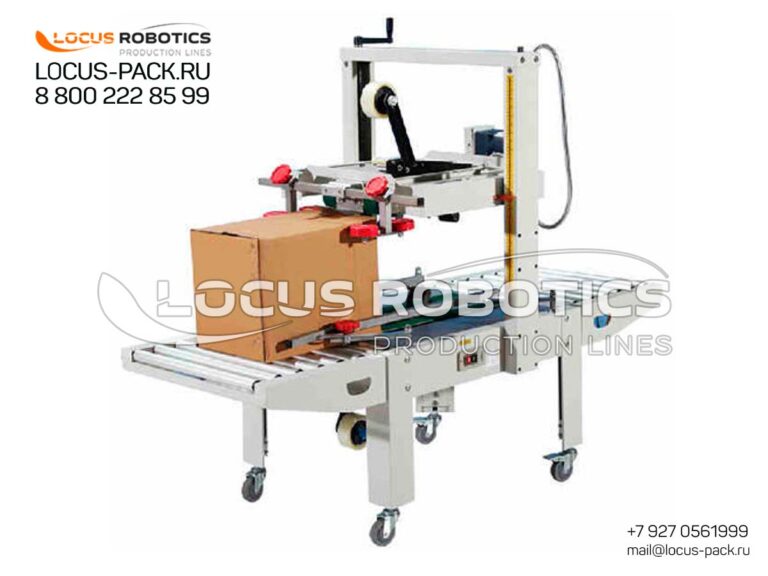

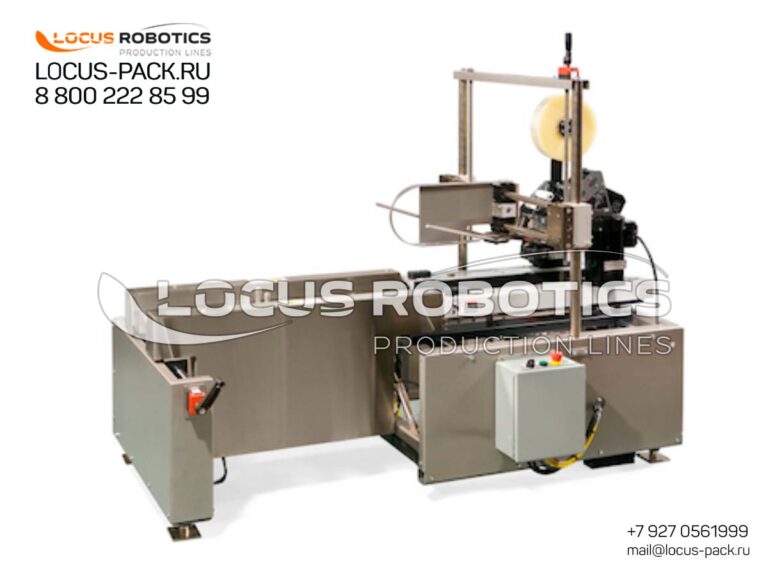

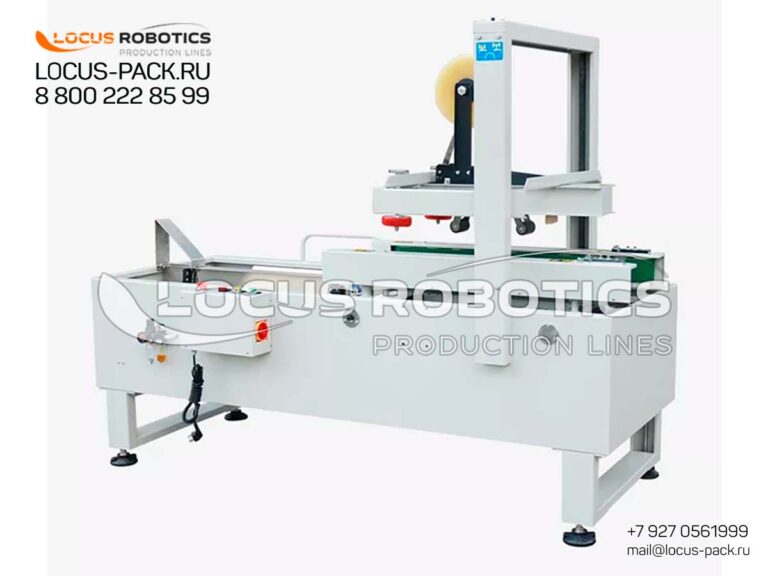

Top/bottom seal applicators: Hot-melt glue or pressure-sensitive tape. Optional print-and-apply label integration. Seals 10-50 boxes/min.

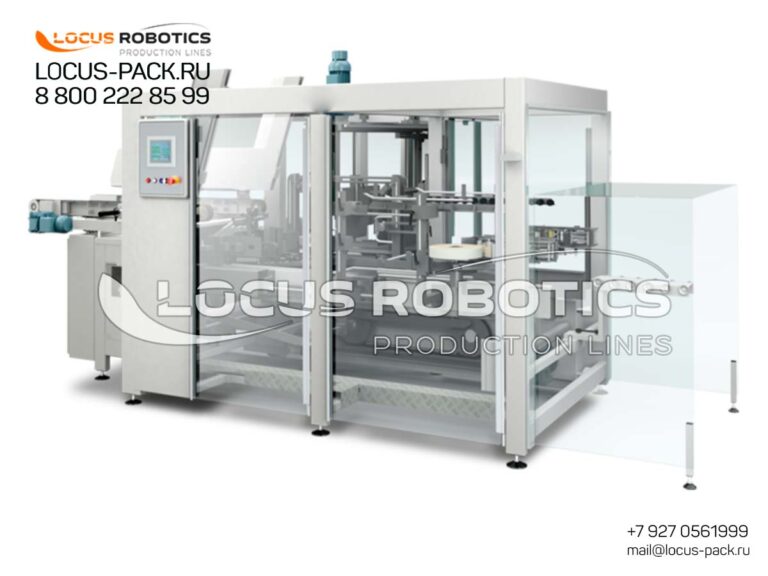

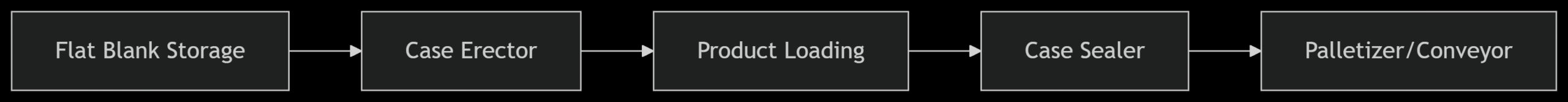

All-in-one systems: Blank feeding → forming → loading → sealing. Servo-electric drives for 35% energy savings vs. pneumatic.
| Parameter | Range | Industry Application |
|---|---|---|
| Box Dimensions | 150×100×100mm – 600×500×500mm | Pharma kits → chemical drums |
| Speed | 10–60 cases/min | High-volume FMCG lines |
| Corrugation | B-flute to double-wall | Export shipping |
| Sealing Method | Hot-melt glue, PSA tape | Food-safe/pharma compliance |
Key Specifications:
Throughput: 10-60 boxes/hour (operator-dependent)
Box Sizes: 200x100x100mm to 600x400x400mm
Materials: B/C/E-flute corrugated, 2-5 ply
Sealing Methods: Hot-melt adhesive or PSA tape
Quick Changeover: <5 min size adjustment (memory presets)
Pharma-Ready: GMP-compliant, IP55 washdown protection
Smart Features:
Jam sensors with auto-reverse.
Inkjet coding integration.
ERP connectivity (batch tracking).
Hybrid Operation: Processes regular/die-cut boxes
| Feature | Benefit | Industry Use Case |
|---|---|---|
| Quick Setup | <5-minute size changeovers with adjustable guides | E-commerce multi-SKU facilities |
| Labor Optimization | 1 operator handles both machines (vs 3+ manual packers) | Cost-sensitive markets |
| Process Control | Standardized cycle times enable accurate production planning | Pharma batch documentation |
| Space Efficiency | Compact footprint (1.5m²) fits small facilities | Urban micro-fulfillment |
| Sector | Special Features | Compliance |
|---|---|---|
| Pharma | Cleanroom-grade SS, serialization ports | FDA 21 CFR Part 11 |
| Food/Bev | Food-safe adhesives, moisture-resistant electronics | HACCP, ISO 22000 |
| Chemicals | EX-proof motors, solvent-resistant components | ATEX/IECEx |
| E-commerce | Random-size handling, void fill reduction | ISTA-6A testing |
| Factor | Semi-Auto Systems | Automatic Case Packers |
|---|---|---|
| Investment | $10K-$30K | $100K-$400K+ |
| Changeover Flexibility | Instant product swaps | 15-30 min retooling |
| Ideal Production | 500-5,000 boxes/day | 10,000+ boxes/day |
| Product Variability | Unlimited (operator handles odd shapes) | Standardized packs only |
Pharma: Sealed RSC boxes for medication bundles (GMP-compliant adhesives).
E-commerce: Custom-sized boxes for mixed SKU orders.
Food & Bev: Case sealing for bottled goods before cold storage.
Chemicals: Solvent-resistant tape sealing for hazardous materials.
Supported Upstream Equipment:
Filling monoblocks.
Checkweighers.
Label applicators.
Ideal for growing brands needing:
Budget-friendly automation: 65% lower cost vs robotic case packers
Production traceability: Integrated barcode scanning ports
Emerging market suitability: Handles unstable power (110V-220V-380V-480V)
Pharma compliance: GMP-grade stainless steel options
| Market | Configuration |
|---|---|
| Southeast Asia | 220V/50Hz + humidity-resistant components |
| Middle East | Arabic/English HMI + 55°C ambient cooling |
| Africa | Diesel-compatible generators + dust-proofing |
| EU/UK | CE-marked + EN 415 safety compliance |
| Region | Voltage | Key Certification | Special Features |
|---|---|---|---|
| EU/UK | 400V/50Hz | CE, EN 415 | Multilingual HMI |
| Middle East | 380V/60Hz | GSO | 50°C ambient cooling |
| Southeast Asia | 220V/50Hz | GMP | Monsoon-proof panels |
| Africa | 220V/50Hz | SONCAP | Dust-proof servos |
Upgrade your packaging line with:
Semi-auto systems: For 300-3k boxes/day facilities

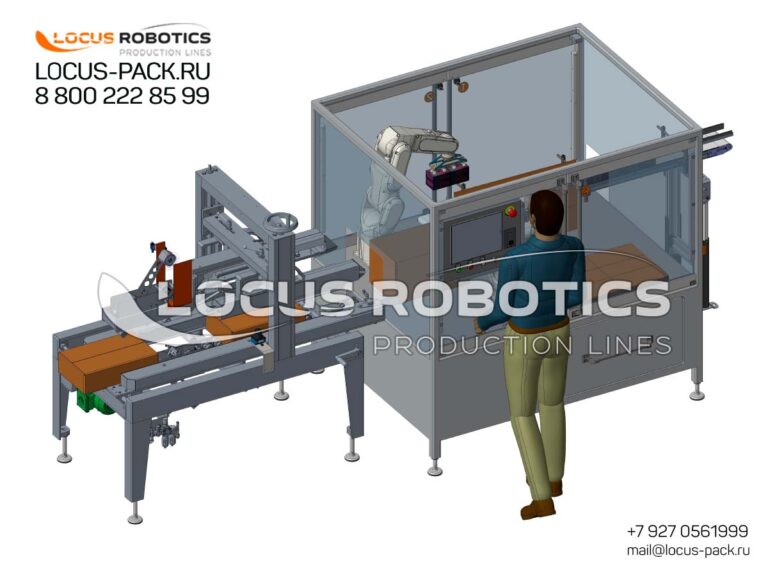

Robotic case packers: For high-volume FMCG plants
Contact our engineers for ROI calculations
🌐 Request Compliance Audit: Free gap analysis with throughput simulation.
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Free line configuration for your products, throughput validation testing!
Contact Specialists for Packaging Equipment:
Compliance Roadmap:
