Precision Sealing for Flexible Production Environments
Cost Efficiency
Premium performance at 40-60% lower cost than automated systems
Compact Productivity
Up to 1,800 BPH in benchtop footprint (24″×36″)
Unmatched Versatility
<2-minute changeovers between cap types
Plug-and-Play Mobility
Wheeled bases for line-to-line redeployment
| Model Type | Throughput | Cap Compatibility | Power |
|---|---|---|---|
| Benchtop Screw Cappers | 1,200-1,800 BPH | PET, plastic, dispensing caps | Pneumatic |
| Roll-On Sealer (ROPP) | 800-1,500 BPH | Aluminum screw caps 28-43mm | Electro-pneumatic |
| Crimping Stations | 600-1,000 BPH | Flip-off caps (K1-K3), perfume seals | Hydraulic |
| Vacuum Cappers | 400-800 BPH | Tamper-evident closures | Servo-electric |
Benchtop Torque Controllers
Manual bottle placement + automated torque application
Throughput: 100-500 bottles/hour
Accuracy: ±0.1 Nm
Suspended Capping Stations
Ergonomic pneumatic/hydraulic heads
Cap compatibility: Screw, snap-on, spray pumps
Quick-change jaws: 15-120mm diameter
Specialized Systems
ROPP (Roll-On Pilfer Proof) sealers
Press-fit stopper inserters
Trigger sprayer actuators
| Parameter | Entry-Level | Industrial Grade | Pharma-Grade |
|---|---|---|---|
| Torque Range | 0.5-5 Nm | 0.2-10 Nm | 0.02-6 Nm |
| Cycle Time | 5-8 seconds | 3-5 seconds | 2-4 seconds |
| Power Source | Pneumatic | Electro-pneumatic | Servo-electric |
| Compliance | CE | ATEX/IP54 | cGMP, 21 CFR Part 11 |

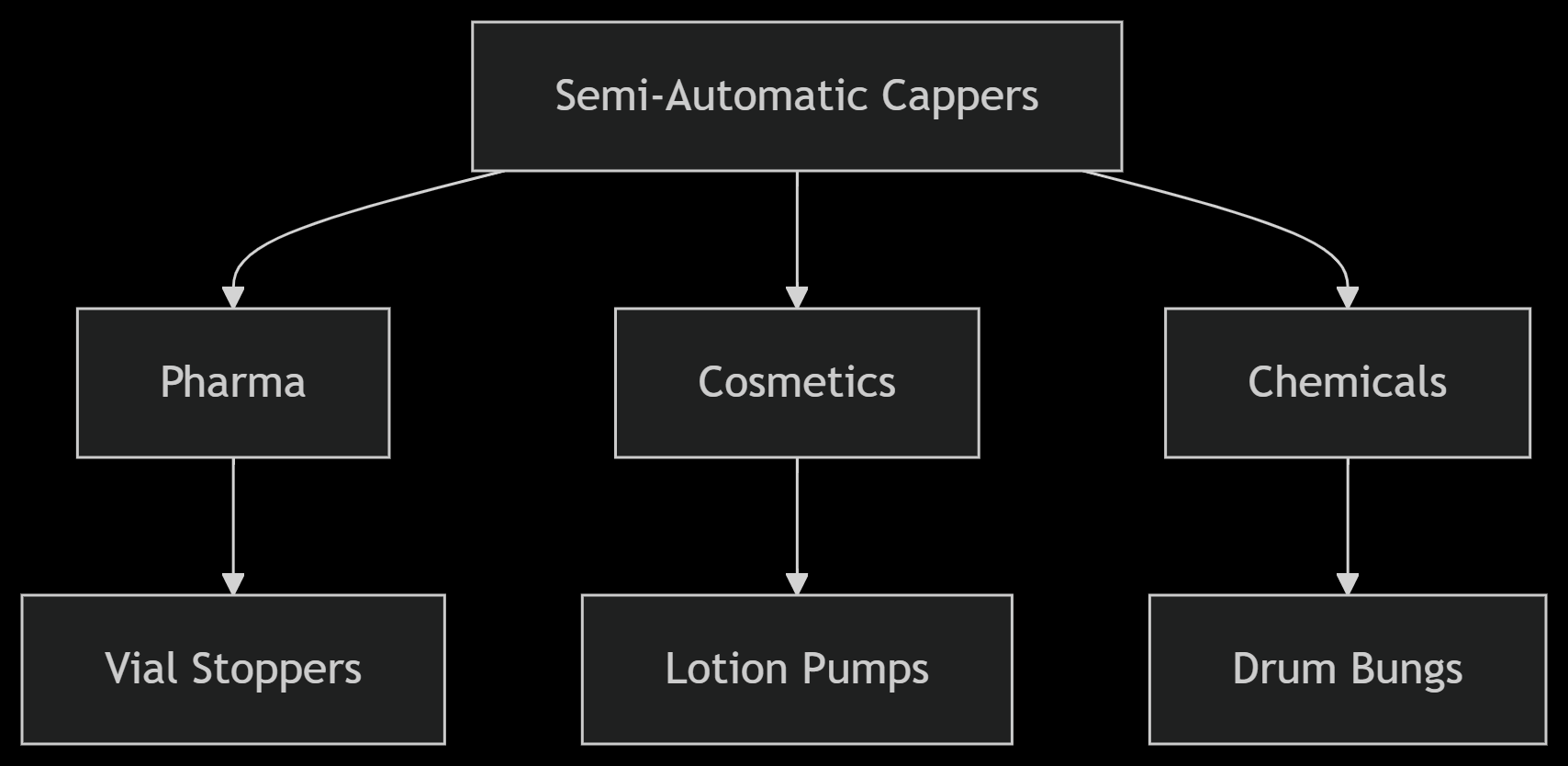

💊 Pharma
🧴 Cosmetics
🍷 Beverages
🔬 Chemicals
🌱 Agrochemicals
🛢️ Industrial
💨 Vape
Integration Flexibility:
Standalone operation on small-batch lines
Paired with semi-auto fillers/labelers
Modular expansion to full automation
| Scenario | Semi-Auto Solution | Automated Alternative |
|---|---|---|
| Output <2,000 BPH | ✅ Ideal | ⚠️ Overkill |
| Frequent SKU Changes | ✅ Optimal | ❌ Costly changeovers |
| Budget <$25k | ✅ Perfect | ❌ Prohibitive |
| Output >2,000 BPH | ⚠️ Limited | ✅ Linear/Rotary Capper |
Industry-Specific Features:
Pharma: Cleanroom-compatible, documentation kits
Food: USDA-grade materials, quick CIP
Chemicals: Explosion-proof models, acid-resistant coating
Flexibility: Switch between cap types in <2 minutes
Labor Savings: 3× faster than manual capping
Quality Control: Digital torque verification logs
Ergonomics: Height-adjustable workstations reduce fatigue
«Our suspended capping stations cut seal rejection rates by 45% while allowing operators to handle multiple bottle formats without tool changes.»
Why LocusPack Semi-Auto Cappers?
+ Integrated torque validation sensors
+ Tool-free format changeovers
+ GMP-compliant data recording
- Generic benchtop units require manual calibration
Our CM-100 suspended capping station delivers pharmaceutical-grade accuracy (±0.05 Nm) with 3-second cycle times. Features tool-free changeover between vial stoppers, cosmetic pumps, and chemical drum closures. Includes OPC-UA connectivity for Industry 4.0 integration.

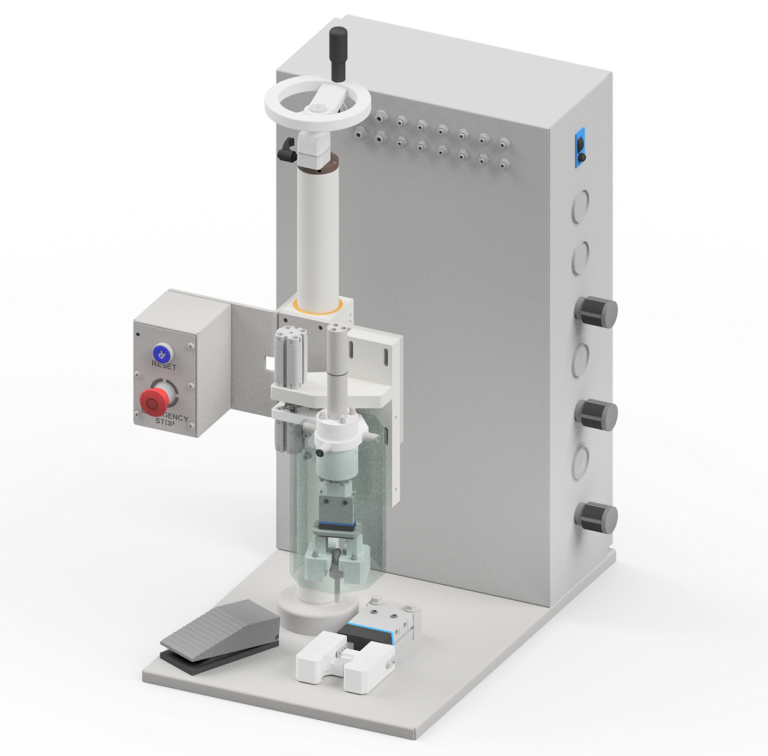

Our CM-100 benchtop capper delivers:
3-Second Cycle Times: Fastest in class
Zero-Tool Changeovers: 28-43mm cap range
GMP-Ready: Validation documentation included
Plug-and-Produce: Operational in <15 minutes

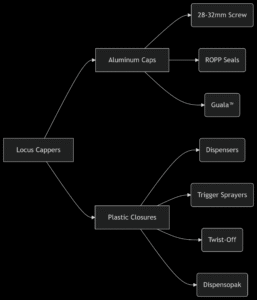

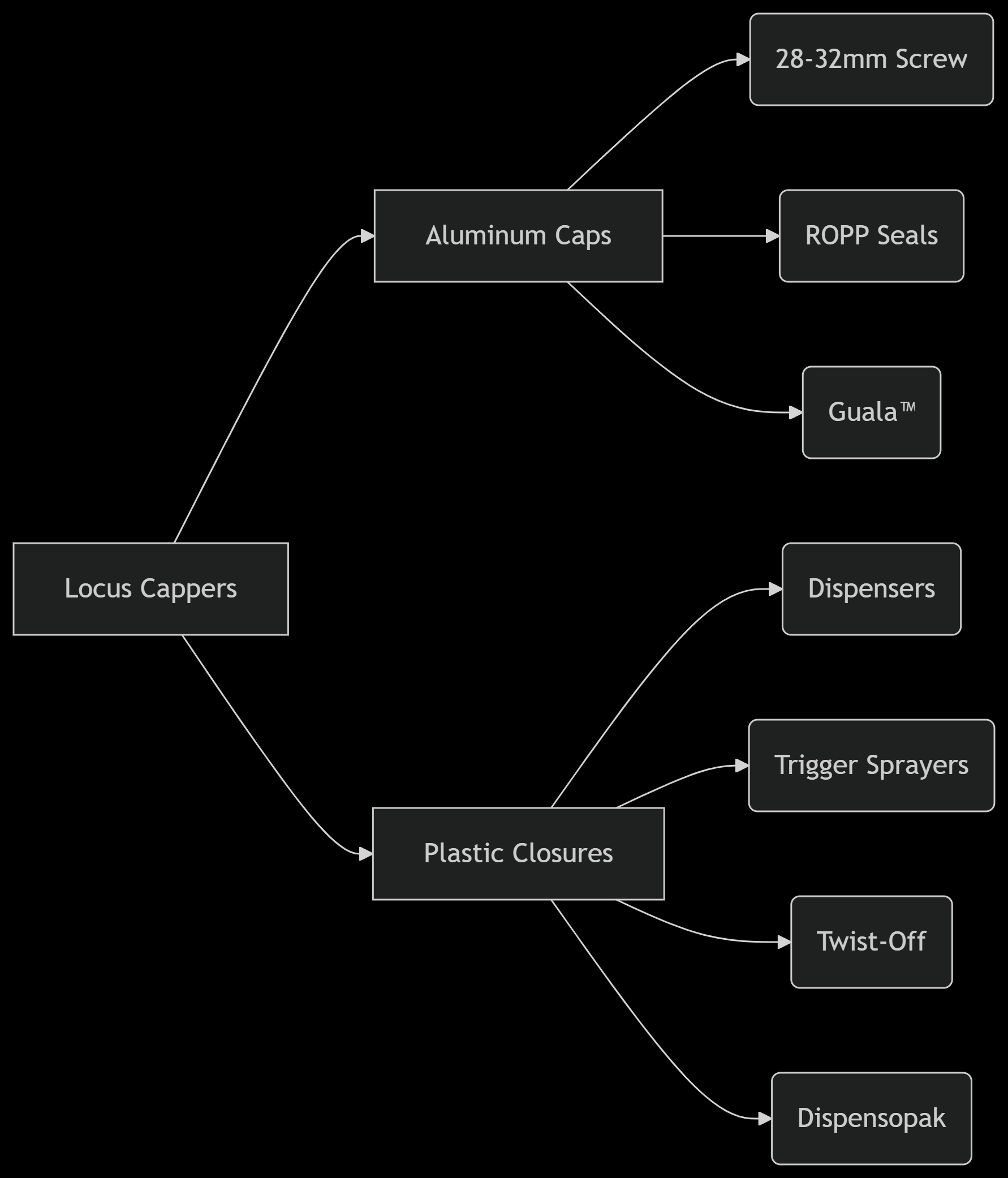

Supported Closure Types:
ROPP aluminum caps (28/32mm)
Flip-off seals (K1, K2, K3 series)
Guala™ security closures
Bericap® plastic caps
Dispenser pumps
Trigger sprayers
Dispensopak systems
Twist-Off caps
For High-Volume Operations:
Output exceeding 2,000 BPH? Explore our linear automatic cappers — seamlessly integrable with your existing semi-auto fillers for hybrid automation.
