LOCUS ROBOTICS delivers complete carbonated drink solutions – from compact semi-auto fillers to 24,000 BPH rotary lines.
LOCUS FILLING designs high-speed carbonated drink fillers for sparkling water, beer, soda, and hard seltzers with <0.2% CO₂ loss.
✔ CO₂ Preservation – Maintains 1.5-3 bar pressure during filling (<0.3% gas loss)
✔ Foam-Free Bottling – Laser-adjusted fill heights (±0.5mm)
✔ Temperature Control – Integrated chillers (1-5°C for optimal carbonation)
| Type | Output | Key Features |
|---|---|---|
| Semi-Auto | 200-1,500 BPH | Ideal for craft breweries, startups |
| Linear Automatic | Up to 3,500 BPH | Modular design, easy expansion |
| Rotary Systems | Up to 24,000 BPH | Full triblocks (rinse-fill-cap) |

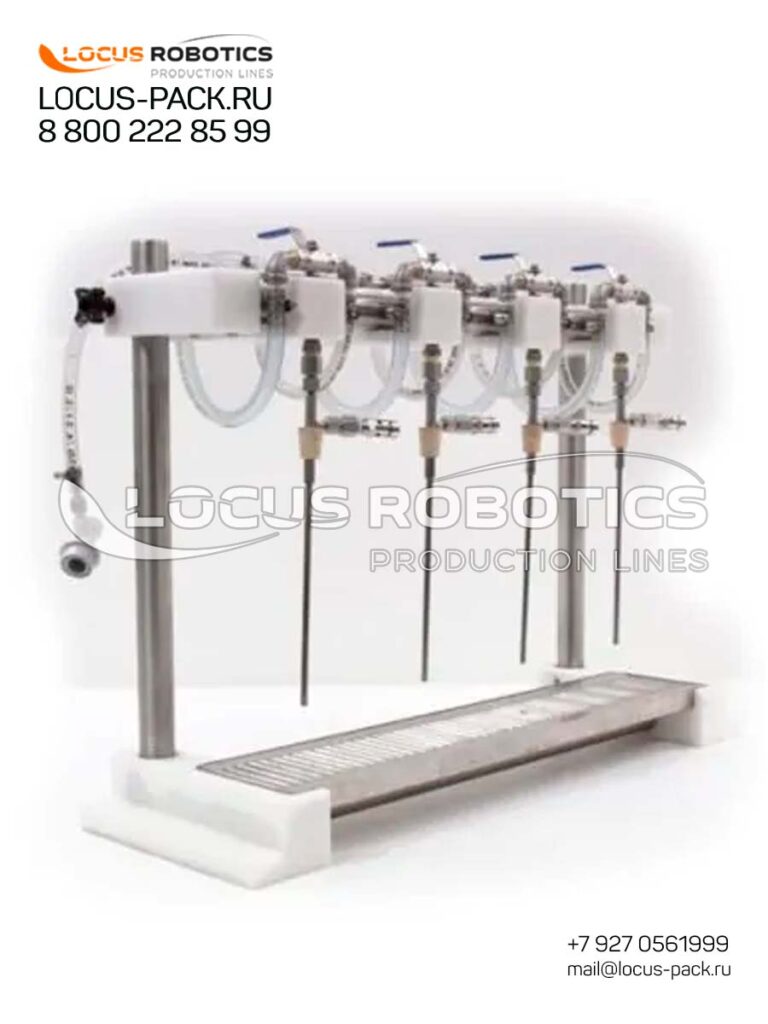

2-8 Nozzles: Small-batch flexibility
16-32 Nozzles: High-volume production
Essential Modules:
Pre-Treatment
Bottle rinsers with air knives
UV sterilization (optional)
Filling
Isobaric fillers with CO₂ purging
In-line carbonators (adjustable 3-8g CO₂/L)
Post-Fill
Crown cap/thread cappers
Pressure-sensitive labelers
Case packers & palletizers
Optional:
Syrup dosing systems for flavored drinks
AI-powered fill level inspection
| Parameter | Specification |
|---|---|
| Container Types | Glass/PET bottles (200ml-2L), aluminum cans |
| Carbonation Levels | Low (1-3g/L) to high (5-8g/L) |
| Accuracy | ±0.5% volume, ±0.1g CO₂/L |
✔ CO₂ Preservation – Patented valve system maintains 1.5-3 bar head pressure
✔ Foam Control – Laser-adjusted fill heights (±0.5mm)
✔ Speed Options:
Standard: 6,000 BPH (12-head rotary)
High-Speed: 15,000 BPH (32-head linear)
| Model | Type | Containers | Temp Range | CO₂ Precision |
|---|---|---|---|---|
| LCIF-20M | Rotary | Glass/PET (200-1000ml) | 1-25°C | ±0.1g/L |
| LCIF-20D | Linear | Cans (250-500ml) | 1-30°C | ±0.15g/L |
| LCIF-20B | EX-Proof | Aluminum bottles | 1-20°C | ±0.2g/L |
Dry Zone Separation – Electronics stay above filling area
CIP/SIP – 3D-printed nozzle heads with <0.5μm surface finish
Material Options:
Standard: 316L SS
Lightweight: Titanium-coated (30% less energy use)
✅ Craft Beverages:
Kombucha, cold brew coffee (low-foam profiles)
✅ Alcoholic Drinks:
Beer, cider (anti-oxidation nitrogen purge)
✅ Functional Waters:
Electrolyte-enhanced sparkling drinks
| Parameter | LOCUS CBF | Standard Gravity |
|---|---|---|
| CO₂ Retention | 99.8% | 85-90% |
| Fill Height Accuracy | ±0.5mm | ±3mm |
| Bottle Compatibility | 50+ formats | <10 formats |
Pre-Rinser – Ionized air blast
Filler – Counter-pressure probes
Capper – Magnetic torque control
Pasteurizer – Tunnel or flash options
Optional:
In-line carbonation (up to 6g CO₂/L)
AI-powered bubble inspection
CSD Producers: Soda, tonic water
Breweries: Beer, hard seltzers
Functional Drinks: Energy drinks, kombucha
✅ Turnkey Solutions – From standalone fillers to complete lines
✅ Compact Options – Monoblocks for small spaces
✅ Energy Efficient – 20% lower CO₂ consumption vs. competitors
✅ 5% Less Product Waste vs. industry average
✅ Quick-Change Kits – Switch formats in <15 mins
✅ Global Certifications – CE, NSF, 3-A Dairy
Specify Needs:
Primary container (bottles/cans)
CO₂ volume (1-6g/L)
Target output (BPH)
Container types/sizes
Carbonation level
