Optimized Container Handling for Automated Production Lines

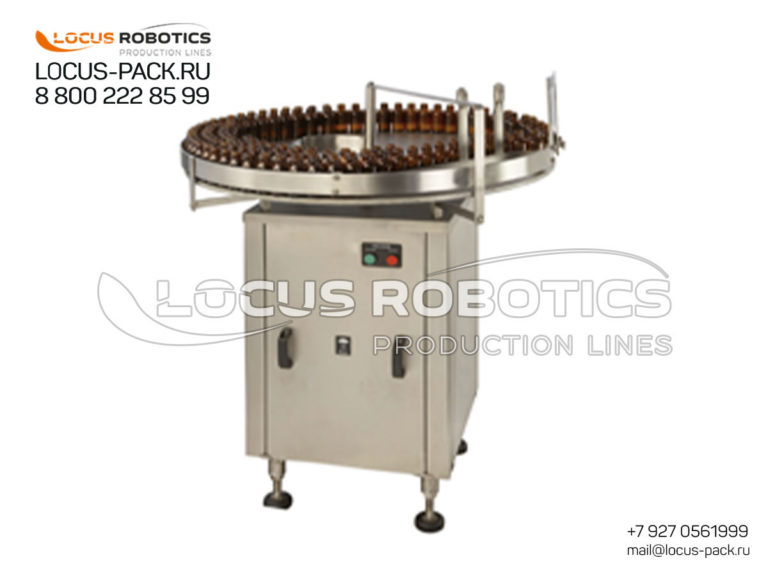

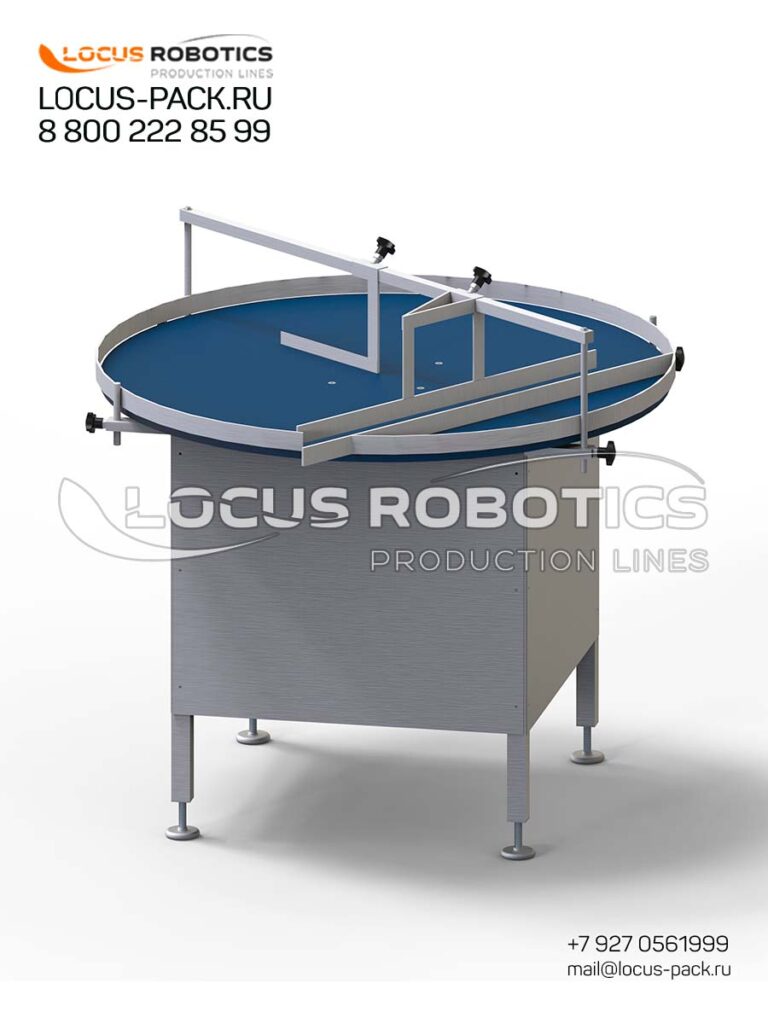

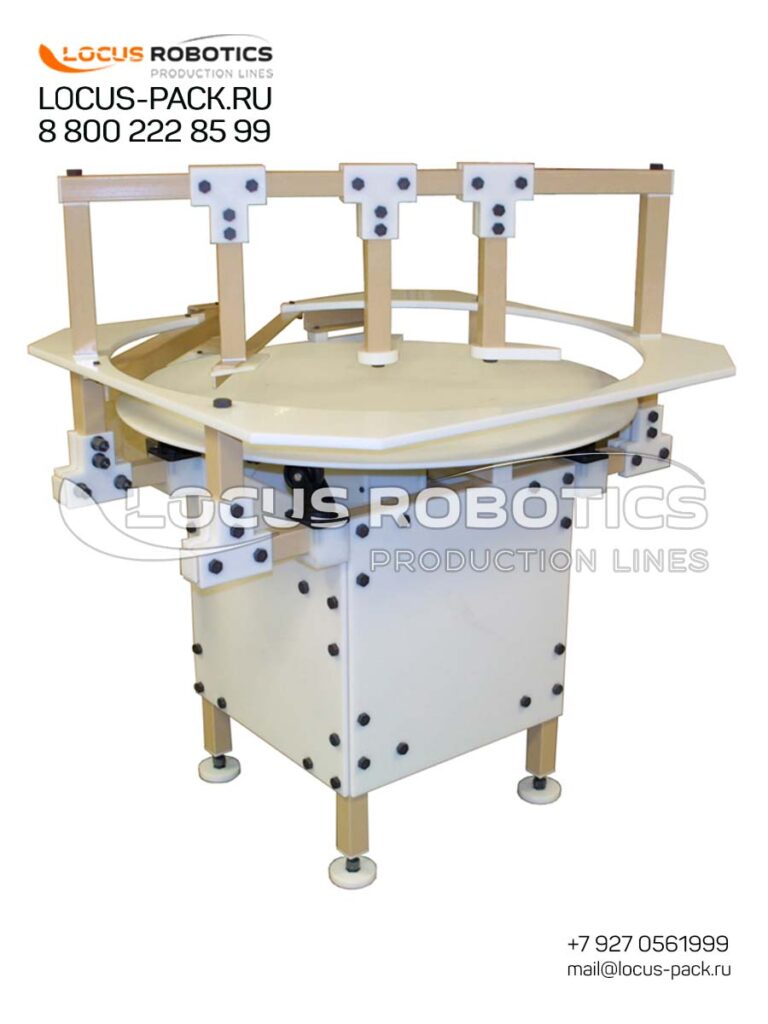

Rotary Disc Accumulation Tables.
Locus-Robotics engineers high-capacity rotary accumulation tables that provide temporary buffering and controlled release of containers, ensuring seamless flow between production stages. Industrial-grade rotary accumulation tables designed for efficient buffering of empty containers and finished products throughout bottling, filling, and packaging processes. Our systems eliminate bottlenecks while reducing manual handling by 55%.
Synchronized Buffering Operation
1. Container Infeed: Containers enter via conveyor or manual loading
2. Radial Distribution: Centrifugal force spaces containers evenly
3. Temporary Storage: Holds 50-200+ containers (diameter-dependent)
4. Controlled Release: Timed discharge to downstream processes
| Parameter | Standard Models | Custom Options |
|---|---|---|
| Table Diameter | 500mm, 1000mm, 1500mm | Up to 3000mm |
| Surface Material | Caprolon® (FDA), PP, POM | 316SS, Anti-static coatings |
| Load Capacity | 5-500 kg | 1000 kg+ |
| Drive System | Conveyor-coupled | Independent servo drive |
| Rotation Speed | 2-10 RPM | VFD-controlled (0-20 RPM) |
| Height Adjustment | Manual (50-150mm range) | Motorized lift system |
| Control Integration | Relay logic | PLC/HMI with OPC-UA |
Critical Components:
- Reinforced aluminum frame with leveling feet
- Replaceable wear strips (UHMW-PE)
- Photoelectric level sensors
- Safety perimeter guard
Radial distribution ensures uniform container spacing.
| Industry | Recommended Configuration | Special Features |
|---|---|---|
| Beverages | 1500mm PP table | Drainage channels, CIP capability |
| Pharmaceuticals | 1000mm POM table | GMP-compliant, <0.8µm Ra surfaces |
| Chemicals | 1500mm 316SS table | Spill containment, ATEX option |
| Cosmetics | 1000mm Caprolon® table | Scratch-resistant surface |
| Feature | Locus-Robotics | Conventional Solutions |
|---|---|---|
| Buffer Capacity | 5x linear equivalent | Limited by footprint |
| Container Damage | 0.5% | 3-8% |
| Changeover Time | <5 min (no tools) | 15-30 min |
| Footprint | 40% space saving | Large rectangular area |
Seamless Line Synchronization
- Speed Matching: Auto-sync with conveyors via encoder feedback
- Monoblock Interface: Direct coupling to filling/capping systems
- Safety Systems: Light curtains, emergency stop buttons
- Communication Protocols: Modbus TCP, Ethernet/IP
Supported Equipment:
• Rotary fillers • Linear cappers • Labeling machines • Case packers
Engineered for Challenging Environments
- SE Asia: Humidity-resistant electronics (IP65 enclosures)
- Africa: Voltage-tolerant motors (220V-380V-480V ±20%)
- Eastern Europe: -25°C cold-start package
- LATAM: Spanish/Portuguese HMI interfaces
- Coastal Areas: Salt-spray certified 316SS models
| Type | Position | Primary Function |
|---|---|---|
| Loading Tables | Line entry | Accumulate & feed empty containers |
| Intermediate Tables | Between operations | Buffer during process transitions |
| Unloading Tables | Line exit | Collect & stage finished products |
| Parameter | Options |
|---|---|
| Table Diameter | 300mm, 500mm, 1000mm, 1500mm (custom available) |
| Surface Materials | AISI 304/316L SS, Caprolon®, Food-Grade PP, Polyacetal |
| Load Capacity | 5-500 kg |
| Rotation Control | VFD-driven (2-20 RPM adjustable) |
| Height Adjustment | 50-150 mm range |
| Control Interface | Start/Stop buttons + VFD controller |
| Protection Rating | IP54 (standard), IP65 (optional) |
| Material | Best For | Certifications |
|---|---|---|
| AISI 316L SS | Pharma, Chemicals, Corrosive environments | GMP, FDA, EHEDG |
| Caprolon® | Heavy-duty industrial use | High impact resistance |
| Food-Grade PP | Beverages, Dairy, Food processing | FDA 21 CFR, ISO 22000 |
| Polyacetal | Precision applications, Low friction | USP Class VI |
Seamlessly connects with:
Filling/capping monoblocks
Rinsing-filling-capping trimodules
Automatic labeling systems
Vision inspection machines
Checkweighers & leak detectors
Case packers and palletizers
Control Integration:
OPC-UA/EtherNetIP protocols
24V DC I/O connections
Remote speed synchronization
Our T-10X handles 200+ containers in 1.5m² — perfect for space-constrained urban facilities needing GMP-compliant buffering.
Certifications: CE, GMP, ISO 9001, EHEDG
| Model | T-10 | T-10C | T-10B |
|---|---|---|---|
| Capacity | 50 containers | 120 containers | 200 containers |
| Power | 0.4 kW | 0.75 kW | 1.2 kW |
| Rotation | 2-8 RPM | 2-10 RPM | 2-12 RPM |
| Weight | 85 kg | 150 kg | 240 kg |
| Lead Time | 3 weeks | 4 weeks | 5 weeks |
Engineered for Challenging Environments
- Voltage Flexibility: 220V-380V ±20% (Africa/SE Asia)
- Climate Resilience:
- Humidity-resistant drives (80% RH)
- Cold-start capability (-25°C)
- Corrosion Protection:
- Salt-spray tested SS316L (coastal regions)
- Chemical-resistant coatings
| Sector | Use Case | Recommended Model |
|---|---|---|
| Pharmaceuticals | Vaccine vial buffering | Ø1000mm, 316L SS |
| Beverages | Glass bottle accumulation | Ø1500mm, Food-Grade PP |
| Chemicals | Jerrycan staging | Ø1500mm, Caprolon® |
| Cosmetics | Finished product collection | Ø500mm, Polyacetal |
Our Ø1500mm tables handle 200+ containers in 2m² — solving space constraints while maintaining GMP compliance in pharma facilities.
✅ Space Optimization: 35% smaller footprint vs linear conveyors
✅ Zero Product Damage: Gentle radial distribution
✅ Quick Changeover: Tool-less height adjustment
✅ Smart Monitoring: IoT-ready for predictive maintenance
Remote Diagnostics: Real-time performance tracking.
Regional Spare Kits: Critical components stocked globally.
Multilingual Manuals: English/Spanish/Arabic documentation.
Lifetime Spare Guarantee: Critical parts stocked globally.
Onsite Training: Multilingual technical teams.
Space-Optimized Buffering Technology.
Beverage Line Integration • Sanitary Engineering.
Optimized Container Handling for Automated Bottling Lines.
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Free line configuration for your products, throughput validation testing!
