Pharmaceutical Glass Ampoule Filling & Sealing Systems.

GMP Glass Ampoule Machines: Fill & Seal Systems Aseptic Processing

Precision Dosing Technologies, Lyophilization Integration, Grade A Compliance.

Aseptic Processing Technology, Sealing Method Options, Turnkey Validation.

LOCUS GROUP delivers GMP-validated glass ampoule systems for fillers sterile injectables, vaccines, diagnostics, sterile pharmaceuticals, veterinary products, and cosmetic injectables. Equipment production LOCUS PHARM supports critical processes including lyophilization (freeze-drying) while meeting stringent Grade «A» cleanroom requirements. Our machinery meets stringent requirements for aseptic processing with:

• Material Compliance: AISI 316L electropolished surfaces (Ra ≤0.4 µm)

• Seal Integrity: ≤10⁻⁶ mbar·L/s leak rates

• Precision Dosing: ±0.3% accuracy with servo-controlled systems

• Environmental Control: ISO Class 5 integration capability

---

GMP ampoule filling line laser sealing.

Pharmaceutical nitrogen purging system.

GMP glass ampoule monobloc line.

Lyophilization integration port.

---

Equipment Classification & Specifications

Pharmaceutical Glass Ampoule Filling and Sealing Systems.

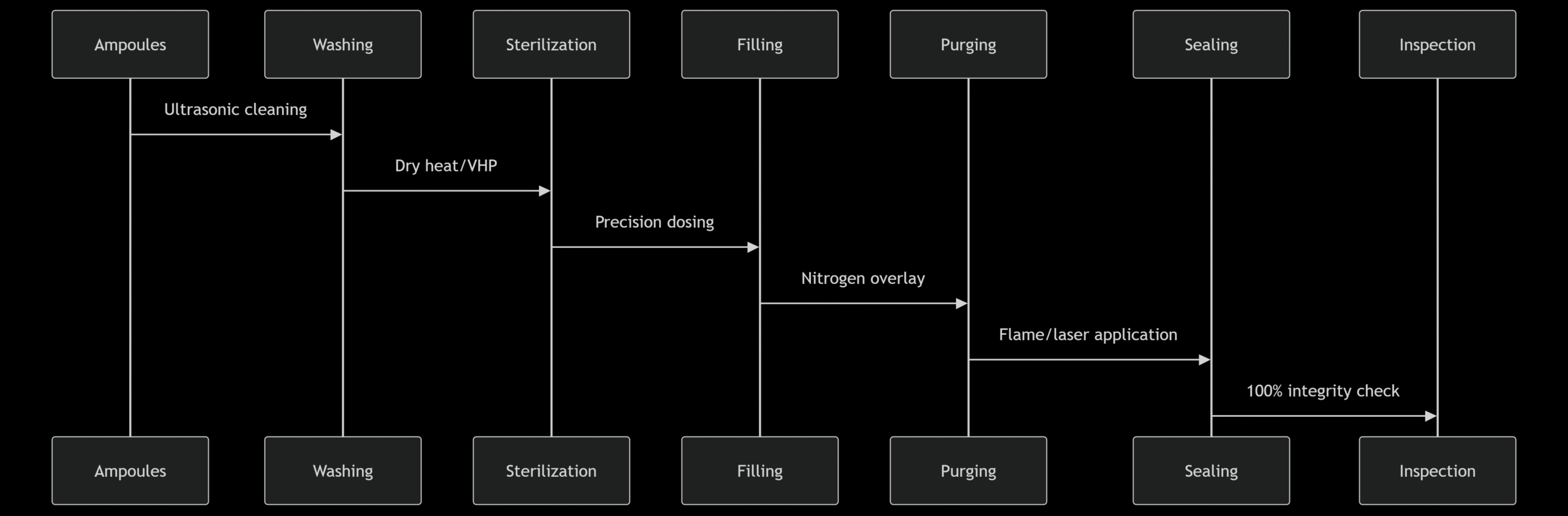

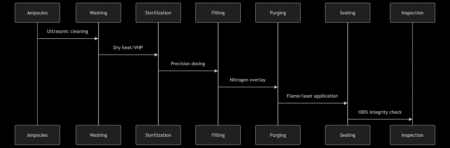

Technical Process Flow

Dosing Technology Matrix

Sealing Technology Comparison

GMP Critical Features

• Material Traceability: Full documentation per ICH Q7

• Surface Finish: Electropolished 316L (Ra 0.38 µm)

• Sterilization: SIP/CIP validated (121°C/30 min)

• Data Integrity: 21 CFR Part 11 compliant logging

• Change Control: Tool-less format adjustment (1-20ml)

• Material Compliance: Electropolished AISI 316L (Ra ≤0.4µm)

• Sterility Assurance:

  • SIP/CIP validation

  • Isolator compatibility (ISO 14644-1 Class 5)

• Process Control:

  • Nitrogen injection (pre/post-fill)

  • Lyophilization chamber integration

• Documentation: IQ/OQ/PQ protocols for:

  • FDA 21 CFR Part 211

  • EU Annex 1

  • WHO TRS 1033

Auxiliary Integration Options

---

Technical Specifications

Filling Accuracy

±0.3% (servo piston), ±0.1% (peristaltic)

Utilities

380V/3-phase, 0.6 MPa air, N₂ supply

Validation Support

Precision Engineering:

Our laser-sealing modules maintain ±1% power stability — ensuring hermetic seals for oxygen-sensitive biologics through 24-month stability studies.

Aseptic Assurance:

Integrated laminar airflow (0.45 m/s ±10%) and ISO 14644 particle monitoring create Grade A microenvironments for critical vaccines.

Efficiency:

Reduce ampoule breakage to <0.3% with our vibration-dampened feeding system — 5X lower than industry averages.

Monobloc Advantages

+ 40% faster format changeover (20 min vs 55 min industry avg)
+ Integrated leak detection (helium mass spec optional)
+ ≤0.1% filling loss with anti-drip nozzles
+ 40% smaller footprint vs vial lines
+ Direct lyophilizer integration
+ Grade A microenvironment
- No compressed air required for operation

Regional Adaptation Packages

Market	Configuration	Special Features
Southeast Asia	High-humidity package	• Dehumidified control cabinets • Salt-spray certified components
Africa	Power-stable configuration	• 90V-110V-220V-380V-480V stabilizer • 2hr UPS backup
Middle East	Dust-proof systems	• IP65 electronics • Positive pressure HMI
Eastern Europe	Cold-climate package	• Ambient heaters • Low-viscosity lubricants

Precision Dosing:

Our ceramic micro-dosing systems achieve ±1% accuracy with hyaluronic acid fillers — critical for aesthetic medicine applications.

Lyophilization Ready:

Integrated freeze-drying ports maintain sterility during transfer to lyophilizers — eliminating contamination risks for vaccine production.

Compact Efficiency:

Monobloc systems reduce cleanroom space requirements by 55% compared to vial lines — ideal for facility expansions.

Technical Comparison
