Industrial-Grade Systems for 2,000+ Bottles/Hour.
1. Machine Types & Operation

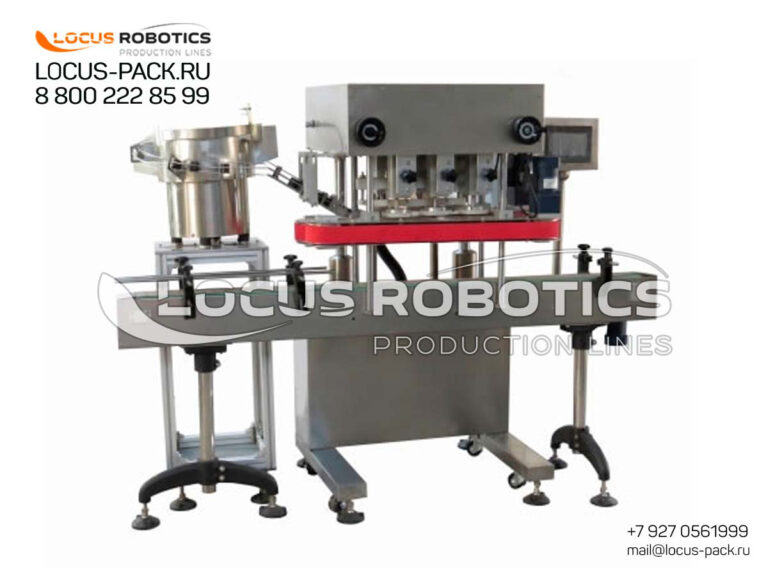

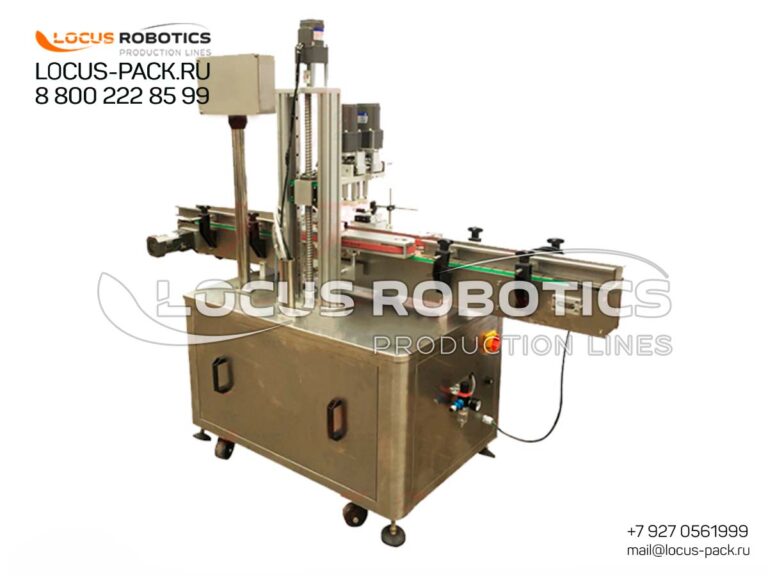

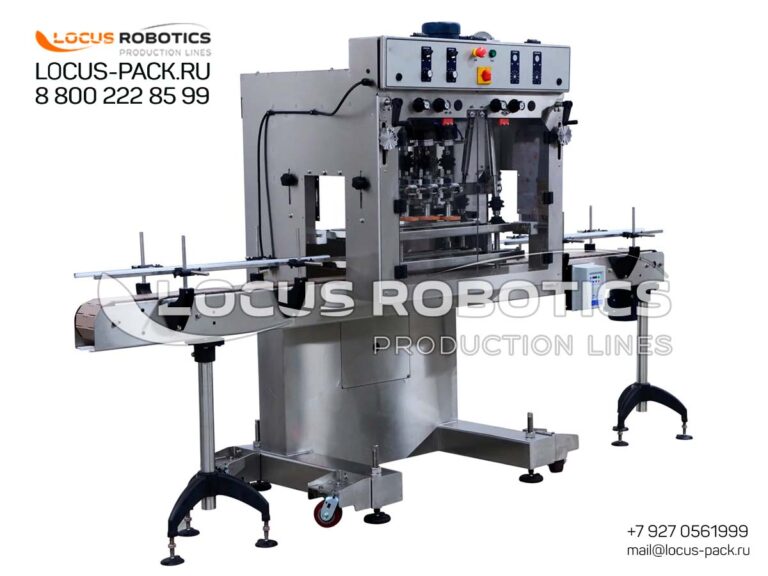

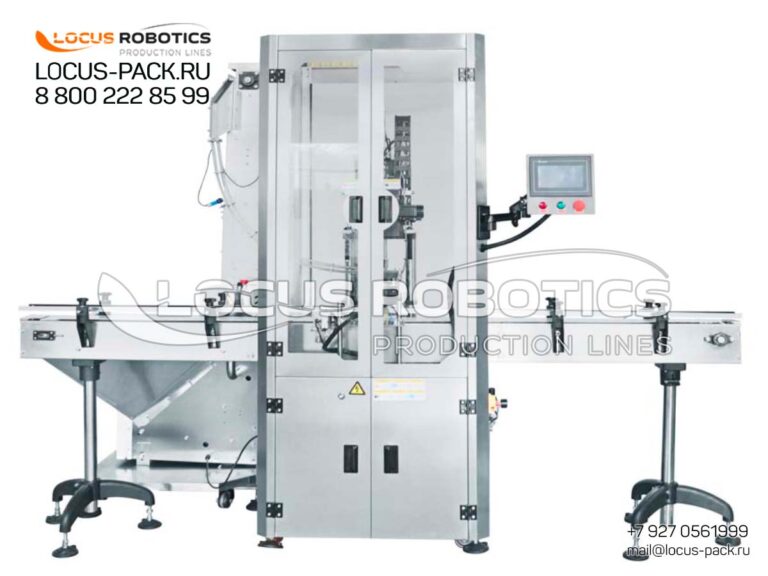

Inline Cappers:
Plate/belt conveyors seal containers in-motion. Ideal for integration into semi/fully automated filling lines.

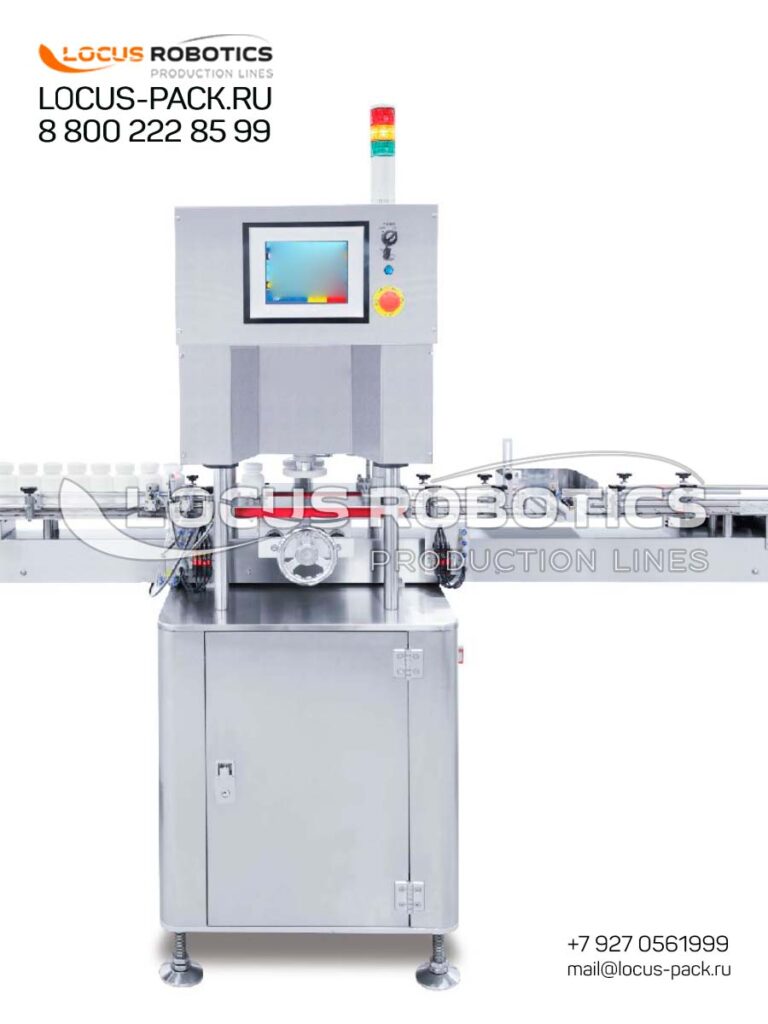

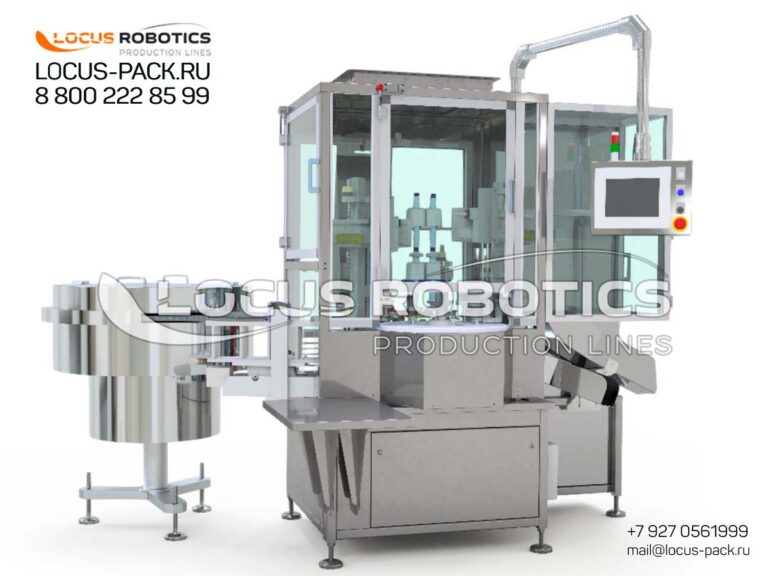

Rotary (Carousel) Cappers:
Starwheel with precision nests securely positions containers during sealing. Operates with/without conveyor systems.
2. Performance Range
| Type | Output Capacity | Typical Integration |
|---|---|---|
| Inline Cappers | 1,000-5,000 BPH | Semi-auto filling lines |
| Rotary Cappers | 1,000-5,000 BPH | Standalone or inline |
| High-Speed Rotary | 5,000+ BPH | Full automation lines |

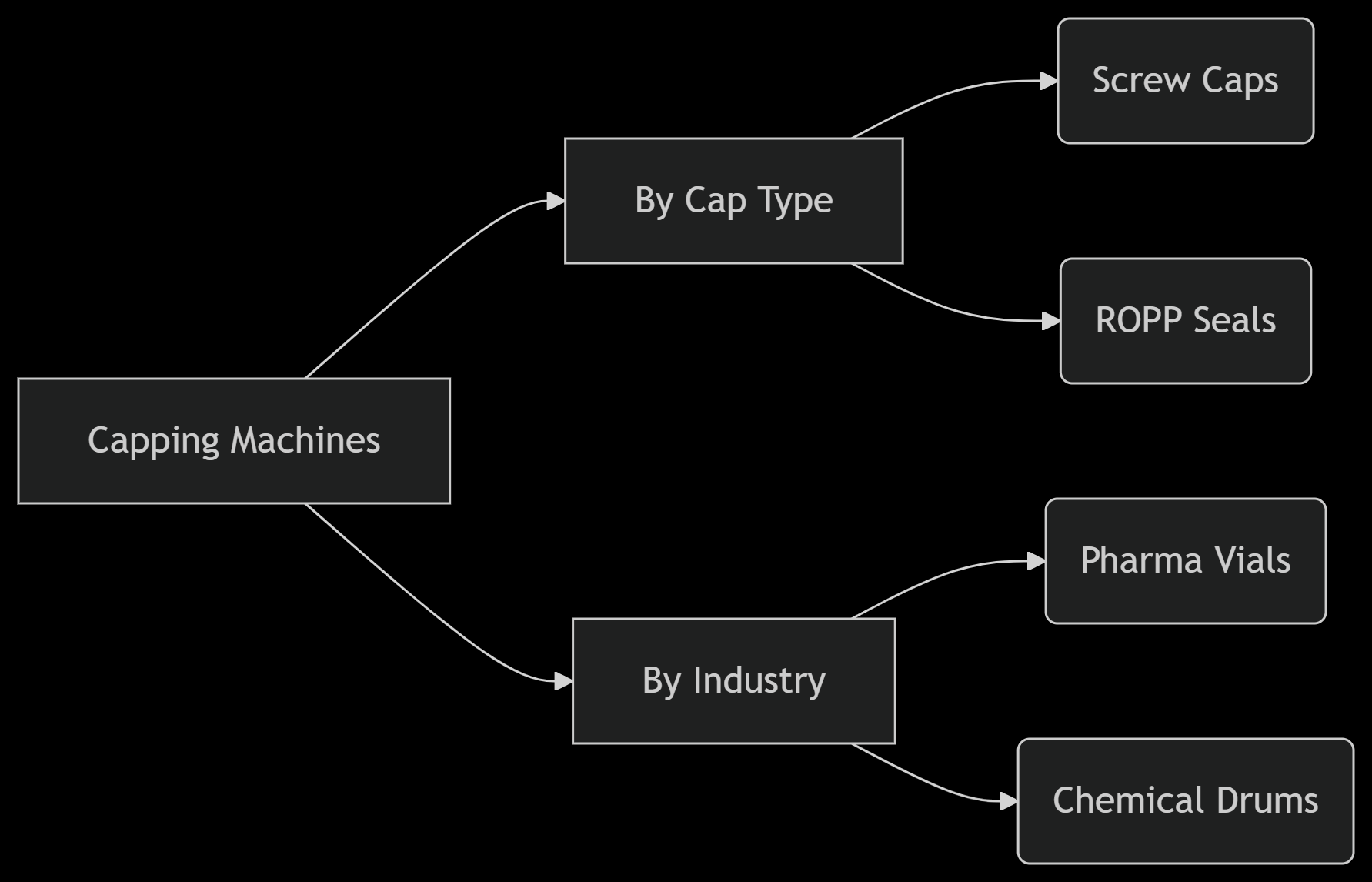

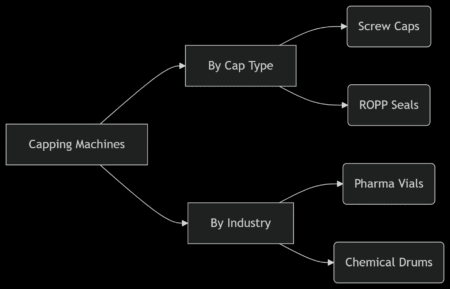

3. Cap Compatibility & Sealing Technologies
Torque Control: Precision screw capping (plastic/metal)
Roll-On Pilfer Proof (ROPP): Aluminum thread forming
Press-On: Crimping for flip-off caps (pharma vials)
Press-Fit: Cork/stopper insertion (wine, chemicals)
Vacuum Sealing: Oxygen-sensitive products
Specialized Systems:
Dispenser pumps (cosmetics)
Trigger sprayers (cleaning products)
Dispensopak® caps (pharma/liquids)
4. Line Integration Requirements
Semi-Auto Lines: 2m+ conveyor gap between filler/capper for manual cap placement

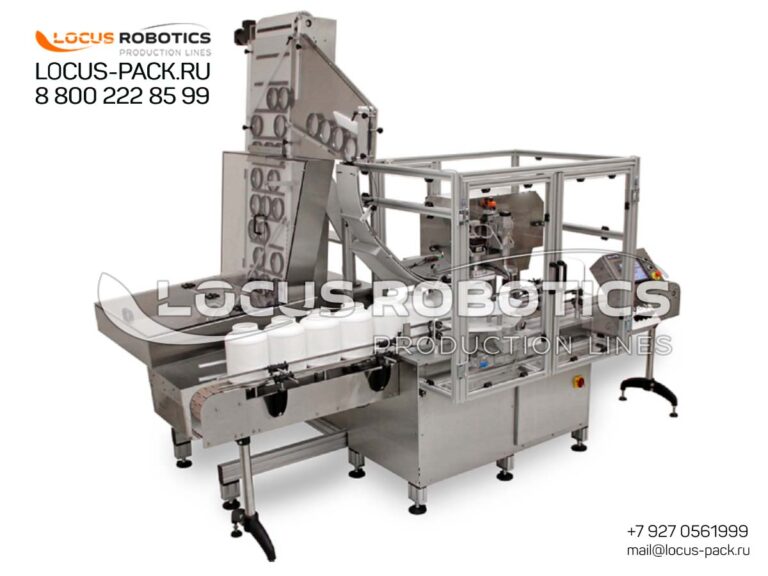

Full Automation: Requires cap orienters:

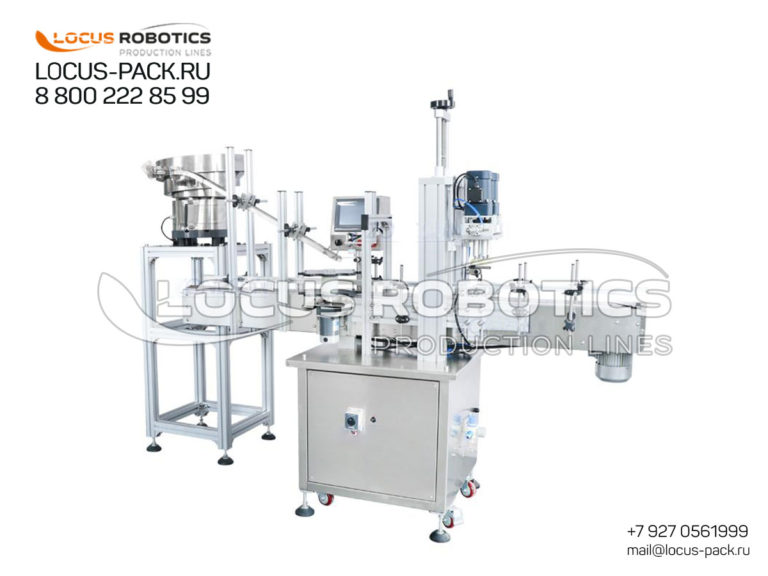

Vibratory bowl feeders

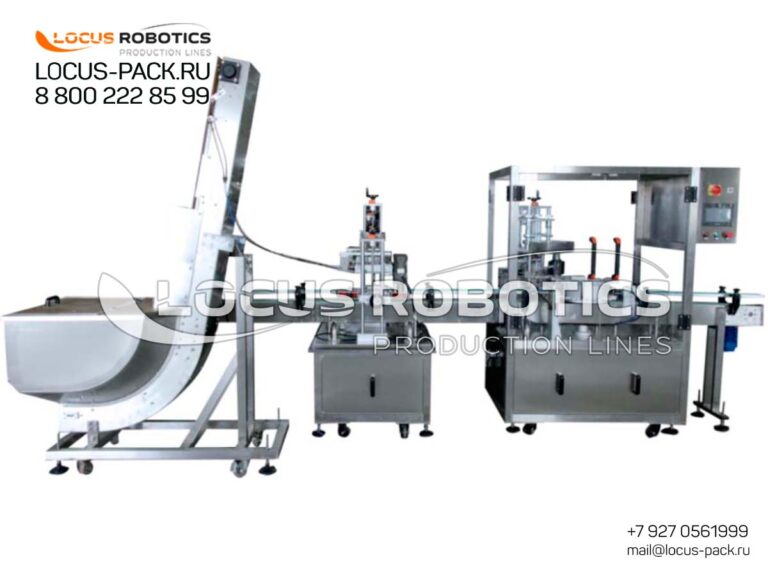

Elevator systems
Robotic pick-and-place
5. Cap Expertise & Tooling
Proven compatibility with:
Pharma: Flip-off caps (K-1, K-2, K-3 series), ROPP 28-43mm
Chemicals: Guala™ seals, PET press-fit caps
Cosmetics: Dispenser pumps, CRC closures
Specialty: Vape/e-liquid nozzles, dispensopak

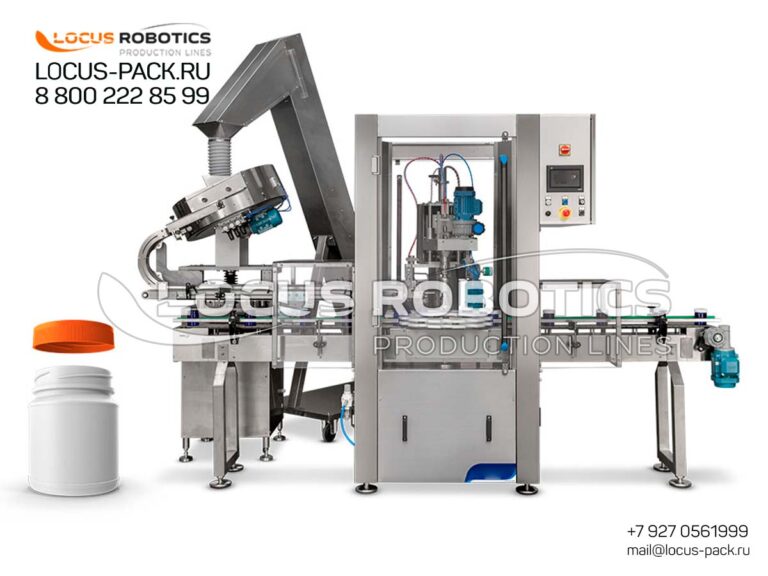

Our servo-driven rotary cappers deliver leak-proof seals at 4,500 BPH with <±0.1 Nm torque accuracy. Configured for your caps – from pharmaceutical flip-offs to chemical ROPP seals. Includes integrated cap orienters for zero-downtime automation.
