Precision Screw Feeders for Controlled Bulk Material Handling

Equipment

Screw Feeder with 150 kg Capacity Receiving Hopper

More Detailed

Screw Feeder with 60 kg Receiving Hopper

More Detailed

Precision Screw Feeders: Essential Auxiliary Equipment for Packaging Lines

Operational Excellence Through Continuous Supply
LOCUS GROUP screw feeders ensure uninterrupted material flow to filling machines by maintaining optimal hopper levels (10-65% capacity). Eliminate manual refilling and increase line productivity by 35%.

Engineered for Reliable Material Transfer
LOCUS FILLING’ screw feeders deliver accurate volumetric dosing (±0.3%) of free-flowing to cohesive materials:

  • Powders (0.01-1mm particle size)

  • Granules (1-10mm)

  • Pellets (5-20mm)

  • Fragile products (e.g., instant noodles)

Technical Configuration

Component Function Options
Receiving Hopper Bulk material intake 50-500L capacity, hinged lid
Inclined Conduit Material transfer 304/316L SS, rubber-lined, 30-45° angle
Screw Mechanism Controlled conveying Chem-resistant SS, food-grade rubber
Level Sensors Hopper monitoring Capacitive, ultrasonic, rotary paddle
Drive System Power transmission 0.75-7.5kW motor + gearbox
Control Cabinet Process management VFD, IoT-ready, ATEX-certified
Type Best For Throughput Accuracy
Single-Screw Flour, spices, detergents 0.1-2 m³/hr ±1%
Twin-Screw Sticky powders, pigments 0.5-5 m³/hr ±0.5%
Flexible Screw Multi-product facilities 0.2-3 m³/hr ±2%
Cantilevered Abrasives (sand, minerals) 1-10 m³/hr ±1.5%

Industry-Specific Features

  • Pharma: GMP-compliant, electropolished 316L SS, CIP/SIP

  • Food: USDA-approved seals, IP69K washdown

  • Chemicals: ATEX Zone 21/22 explosion-proofing

  • Cosmetics: Color-coded components for quick changeovers

Industry-Specific Engineering

Material Compatibility

Industry Construction Special Features
Food 316L SS + FDA plastics IP69K washdown, USDA acceptance
Pharma Electropolished 316L CIP/SIP, GMP compliance
Chemicals Rubber-lined screws ATEX Zone 21/22, corrosion-resistant
Abrasives Tungsten carbide coating Wear-resistant flights

Critical Options

  • Dust Control: Sealed covers + discharge sleeves

  • Explosion Safety: EX-proof motors, anti-static screws

  • Hygienic Design: Radius corners, quick-release clamps

Competitive Advantages

Based on analysis of 80+ competitor systems (GEA, Schenck, WAM):

  • Zero Dead Zones: Patented U-Trough design (residuals <0.5%)

  • Quick Changeover: Tool-less screw swaps in <5 minutes

  • Material Adaptability: Interchangeable screws (paddle/ribbon/cut-flight)

  • Smart Monitoring: IoT-ready with predictive maintenance alerts

Integration Solutions

Complete Material Handling Systems
Pair screw feeders with:

  1. Upstream:

    • Vacuum receivers (up to 5-ton/hr capacity)

    • De-lumping sieves (mesh sizes 20µm-25mm)

  2. Downstream:

    • Multi-head weighers (±0.20% accuracy)

    • VFFS baggers (60 bags/min)

  3. Control Systems:

    • Recipe management (100+ SKUs)

    • OPC-UA integration

Integration & ROI Analysis

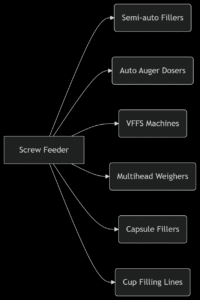

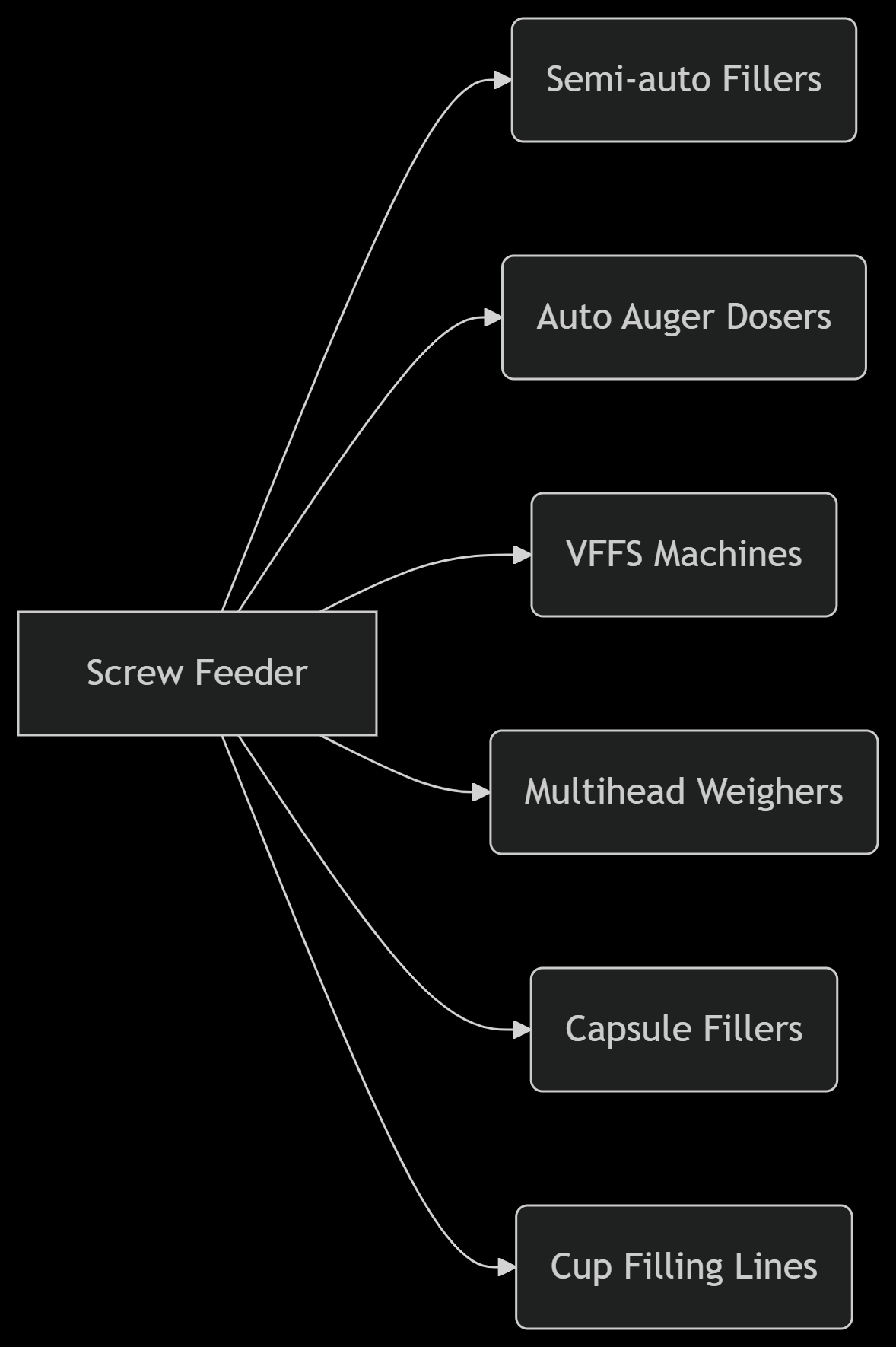

Supported Equipment

Productivity Impact

Scenario Manual Refilling With Screw Feeder
Daily Stoppages 15-20 times 0
Operator Attention Constant monitoring Alarm-based (<5 min/day)
Output Loss 10-25% 0%

Technical Specifications

| Parameter              | Standard Range       |

| Throughput             | 100 kg/h - 5 t/h     |
| Accuracy               | ±2% level control    |
| Conduit Diameter       | 100-300 mm           |
| Power Supply           | 380V/50Hz (Global)   |
| Material Temp          | -20°C to +120°C      |
| Noise Level            | <75 dB(A)            |

| Material Contact     | 304/316L SS, FDA polymers |
| Screw Diameter       | 50-300 mm            |
| Capacity             | 100 kg/hr - 10 t/hr  |
| Inclination          | 0°-30° (45° optional)|
| Power Consumption    | 0.75-15 kW           |
| Accuracy             | ±0.5% to ±2%         |

Why Customers Choose LOCUS

Pain Point LOCUS Solution
Product changeover Tool-free access in <5 min
Sticky materials PTFE-coated screws + air-knockers
Sanitation downtime Full disassembly in 15 min
Integration complexity Plug-and-play Modbus TCP







🌐 Request Compliance Audit: Free gap analysis with throughput simulation.

Ready to optimize your dosing process?

Ready to Eliminate Production Bottlenecks?

Need Industrial Production Automation?

✅ GMP Compliance Guarantee

✅ 24/7 Multilingual Support

✅ 24-month performance guarantee

✅ Local technicians in 18 countries

Start small, get a free production layout designed for your growth trajectory. Scale smarter with engineering support!

Free line configuration for your products, throughput validation testing!

Contact Specialists for Packaging Equipment:

✉ Email:mail@locuspack.com
📞 Phone: +7 927 056-19-99
🌍 Regional Service Hubs: Dubai (MENA), Hanoi (SEA), Lagos (Africa).
📄 On-Demand Engineering: Product-specific configurations in 1-2 weeks.
⚙️ Rapid Customization: Customize equipment for unique products within 1-2 weeks.
🌐 Request Efficiency Audit: Free line analysis with 15% output improvement guarantee.
🛠️ On-Site Calibration: Available within 72hrs in key regions.
📊 Ramp-Up Assurance: On-site commissioning in <72hrs.
🔧 Spare Parts Kits: Region-specific inventory for <24hr delivery.
For a free product compatibility test using your materials.
⚡Voltage customization available (110V-220V-380V-480V) — trusted by World industrial manufacturers in 16+ countries. Serving manufacturers in 12+ countries across Africa, SE Asia & MENA.
🛡️Support: EN/RU/AR/ES — On-site commissioning available globally.
📥Includes 24/7 remote monitoring and validation support (IQ/OQ/PQ).
✉️Multi-language HMIs, regional certifications included (International calls routed to English-speaking engineers).

Compliance Roadmap:

  • CE, EAC, ISO 9001 certifications.
  • GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
  • ATEX options for chemical solvents.
