Integrated Packaging Solutions for Tablets, Granules & Powders.
Space-Saving Integration for Packaging Lines
Combined filling and capping in a single footprint — eliminating transfer conveyors while maintaining 98.2% OEE for cosmetics, food, pharma, and chemical applications.
Space-Saving Integration for Dry Products
Combined dosing, capping, and sealing in a single footprint — eliminating line transfers while maintaining ±0.5% accuracy for pharmaceuticals, food, and chemicals.
Core Capabilities:
Engineered for Your Product Characteristics
| Dosing System | Best For | Accuracy | Capacity |
|---|---|---|---|
| Multi-Head Fillers | Irregular solids (candies, nuts) | ±1% | 5g-2kg |
| Auger Fillers | Powders & granules | ±0.5% | 10g-5kg |
| Vibratory Feeders | Tablets & capsules | Count exact | Up to 500 units/min |
| Combined Systems | Pastes/complex mixes | ±0.8% | 50g-1kg |
Engineered for Your Product
| Industry | Filling Method | Capping Style | Special Features |
|---|---|---|---|
| Pharmaceuticals | Peristaltic pump | Tamper-evident screw | CIP/SIP • 316L SS • GMP validation |
| Cosmetics | Piston filler | Snap-on caps | Anti-drip nozzles • Viscous kits |
| Food & Beverage | Overflow filler | ROPP seals | FDA-grade materials • Hot-fill ready |
| Chemicals | Double-diaphragm | Threaded closures | EX-certification • Solvent resistance |
Performance-Driven Design
| Parameter | Standard Range | Premium Options |
|---|---|---|
| Throughput | 50-300 BPM | 400+ BPM (servo) |
| Accuracy | ±0.5-1% | ±0.25% (gravimetric) |
| Container Types | Bottles • Jars • Tubes | Vials • Ampoules |
| Changeover Time | 10-15 minutes | <5 min (quick-release) |
| Power | 380V/50Hz or 480V/60Hz | 220V/60Hz available |

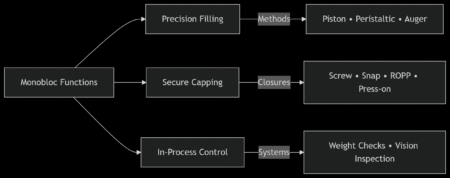

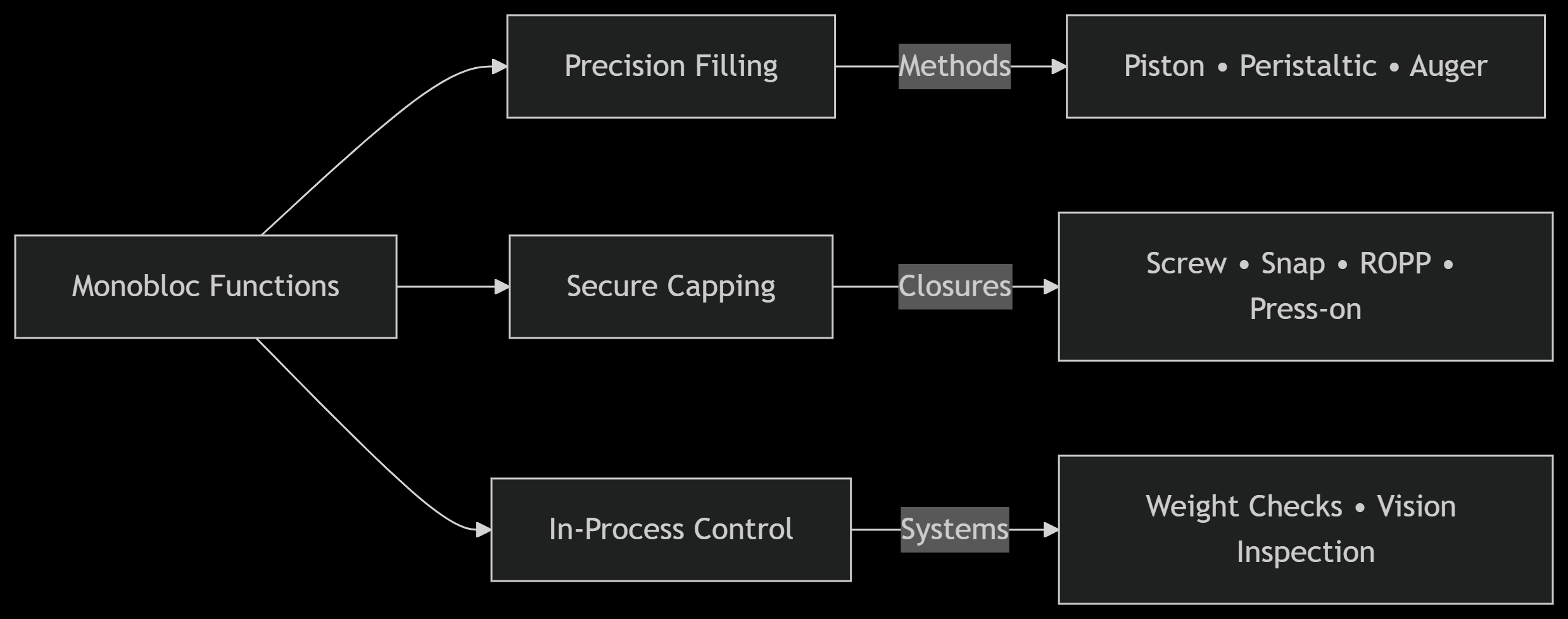

Precision-Engineered Modules
Filling Systems:
Piston fillers (10ml-5L)
Peristaltic pumps (shear-sensitive)
Auger fillers (powders/granules)
Capping Technologies:
Servo torque cappers (1-30 Nm)
Snap-on cap pressers
ROPP spindle sealers
Control Systems:
HMI with recipe storage (100+ formulas)
OEE monitoring • Remote diagnostics
Tailored Processing Solutions
| Application | Special Features | Compliance |
|---|---|---|
| Pharmaceuticals | Isolated counting chambers, de-dusting | GMP, 21 CFR Part 11 |
| Food & Nutraceuticals | Nitrogen flushing, metal detection | HACCP, FDA |
| Chemical Powders | EX-certified, anti-static systems | ATEX, IECEx |
| Cosmetic Granules | Gentle handling, cosmetic-grade materials | ISO 22716 |
Performance-Driven Design
| Parameter | Standard Range | Premium Options |
|---|---|---|
| Throughput | 50-150 BPM | 300 BPM (servo-driven) |
| Container Range | Jars • Tubes • Bottles | Vials • Canisters |
| Dosing Range | 1g — 5kg | 0.1g — 10kg |
| Changeover Time | 10 min | <5 min (QCD system) |
| Power | 380V/50Hz or 480V/60Hz | 220V/60Hz available |

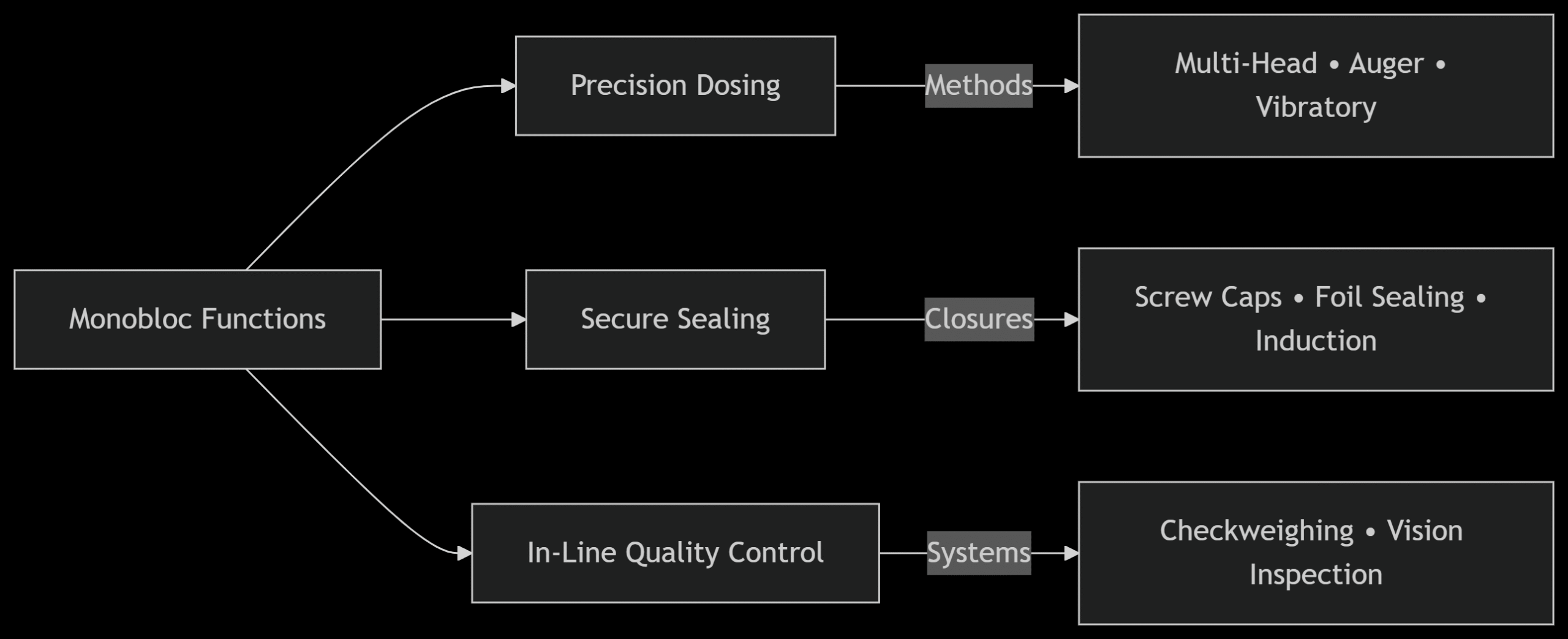

Integrated Workflow
Container Feeding: Automatic unscrambling
Pre-Conditioning: Dust removal/Ionizing air blast
Precise Dosing: Multi-head/auger/vibratory filling
Cotton Insertion: For pharmaceuticals (optional)
Sealing: Foil induction sealing (1-5kW)
Capping: Servo torque application (1-20Nm)
Quality Control: Checkweighing ±0.5g
Labeling: Wrap-around or front/back labeling
Application-Specific Solutions
Aseptic Monoblocs: ISO Class 5 cleanroom compliance
EX-Certified Units: ATEX/IECEx for solvent-based products
High-Viscosity Systems: 50,000 cP capability with heated paths
Nano-Filling: Peristaltic pumps for 1-50ml precision
Why Locus Monoblocs?
✅ 35% Space Reduction vs separate machines
✅ Zero Transfer Rejects: Inline weight/vision checks
✅ Quick-Change Tooling: Color-coded format parts, <5 min format adjustments
✅ Data Integrity: Batch reporting + OEE tracking, 21 CFR Part 11 compliant software

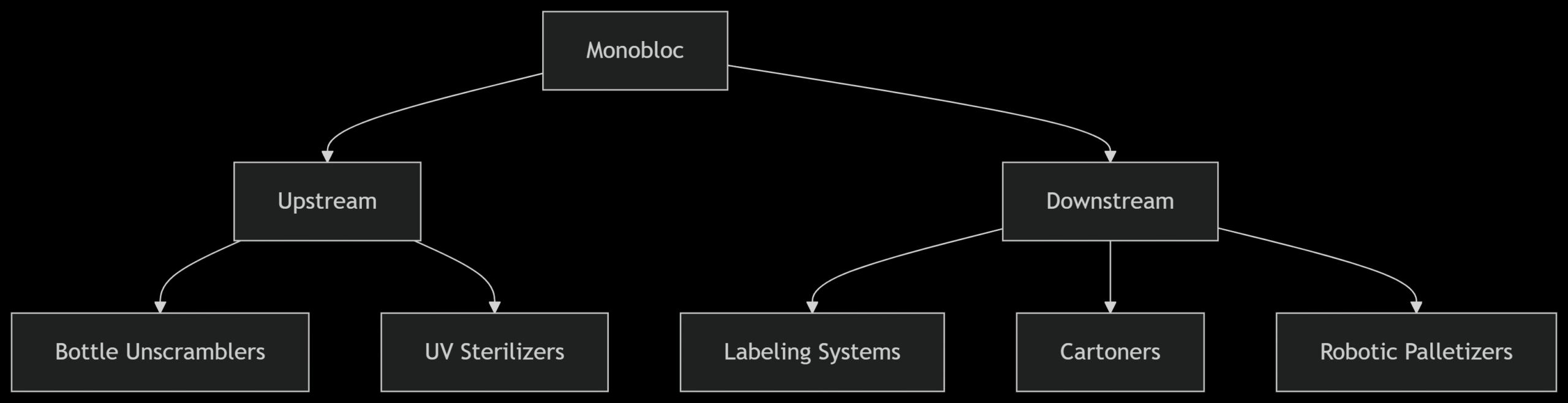

Complete Line Solutions
Advanced Component Options
De-dusting Modules: HEPA-filtered vacuum systems
Anti-Static Systems: Ionized air bars + grounding
Nitrogen Flushing: <50ppm O₂ residual for oxidizable products
Vibration Stations: Anti-bridging for cohesive powders
EX-Certification: Full ATEX/IECEx compliance for combustible dusts
Application-Specific Solutions
| Model Type | Primary Use | Key Feature |
|---|---|---|
| Tablet/Capsule | Pharma counting | Vibration-free gentle handling |
| Powder Auger | Food & chemical powders | CIP-capable stainless steel |

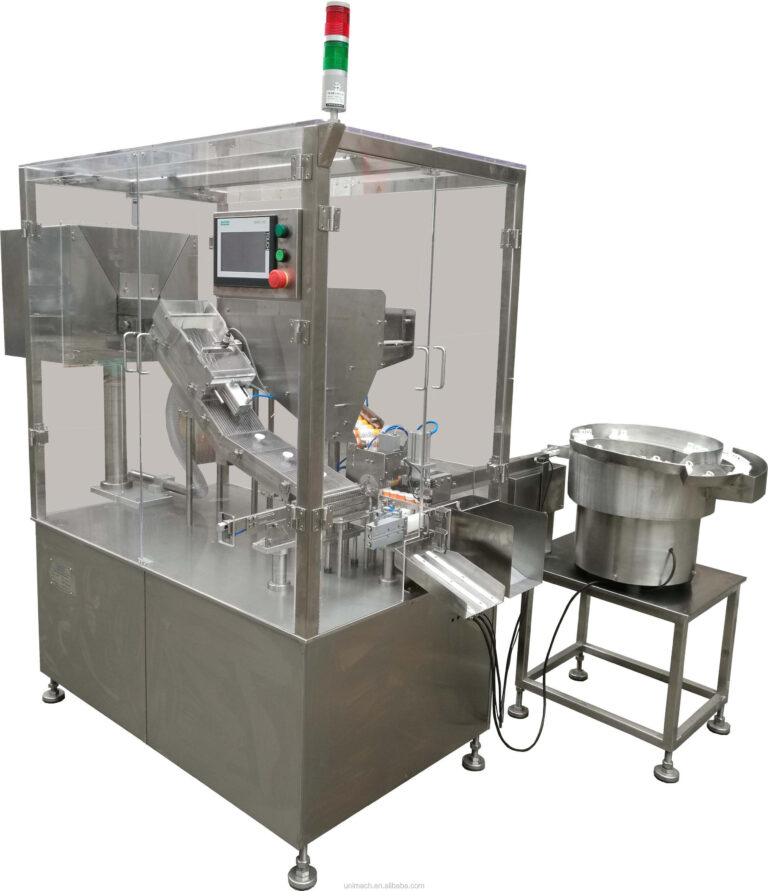

| Effervescent Tablet | Tube filling | Moisture-controlled environment |
| Multi-Product | Small batch production | Tool-less changeovers |
Configure your monobloc:
