Full-Body Container Branding for Impactful Shelf Presence.
Core Technology & Process

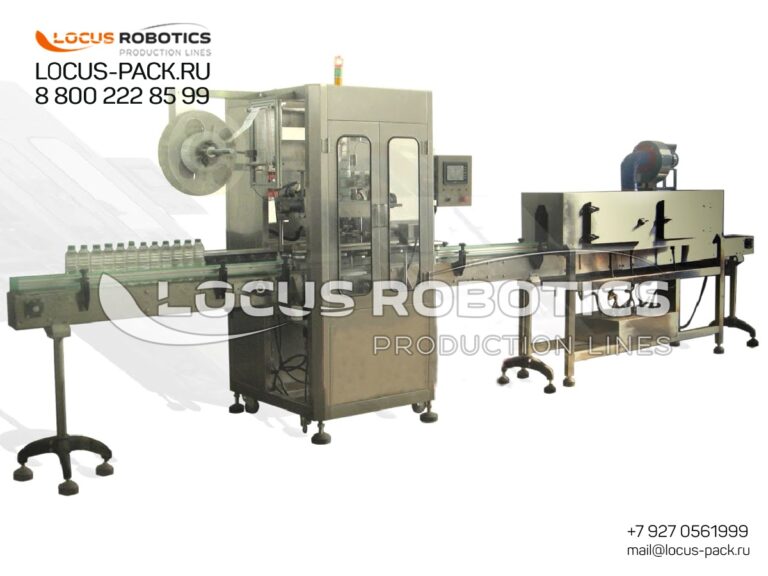

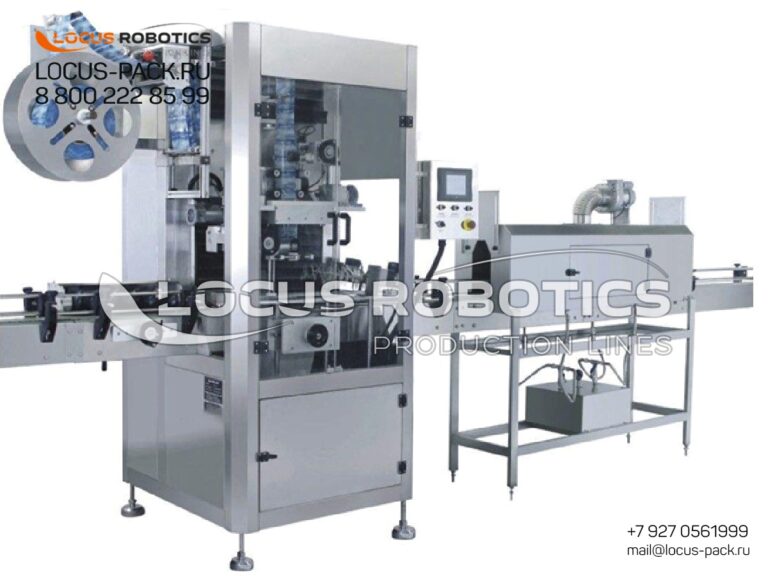

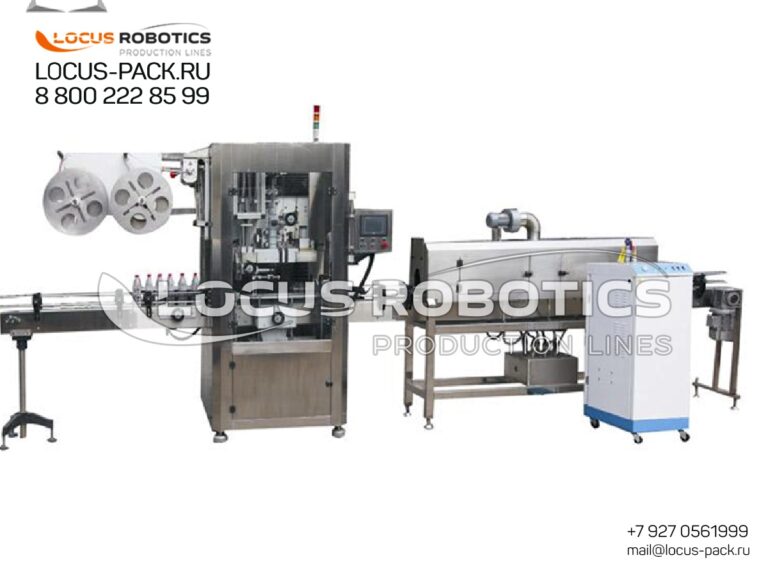

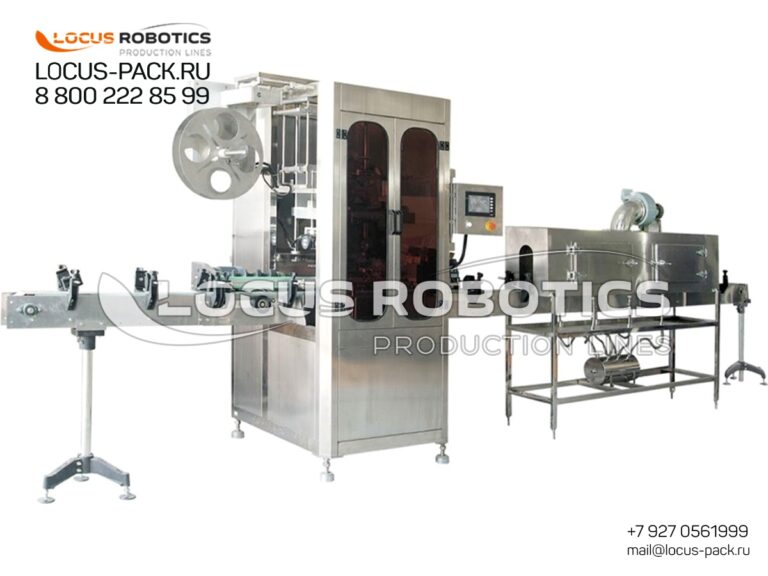

Automated Sleeve Application
Speed: 600-4,000 containers/hour
Process Flow:
Film Unwinding → Mandrel Formation → Container Sleeving → Precision Cutting → Brush Smoothing → Heat Shrinking
Cutting Methods: Photoelectric sensor detection or timer-based interval cutting

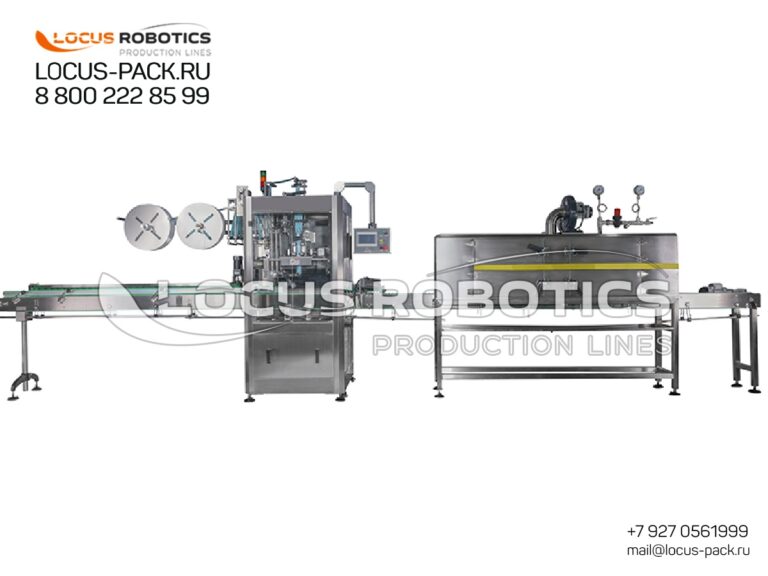

Heat Shrinking Systems
| Type | Requirements | Best For |
|---|---|---|
| Electric IR Tunnels | Standard power | General-purpose applications |
| Steam Tunnels | External steam generator | Complex shapes, high humidity environments |
Core Technology

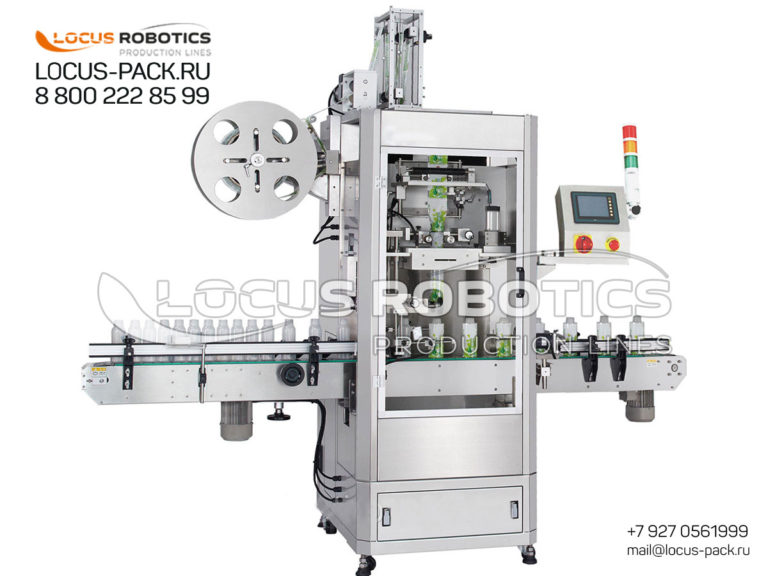

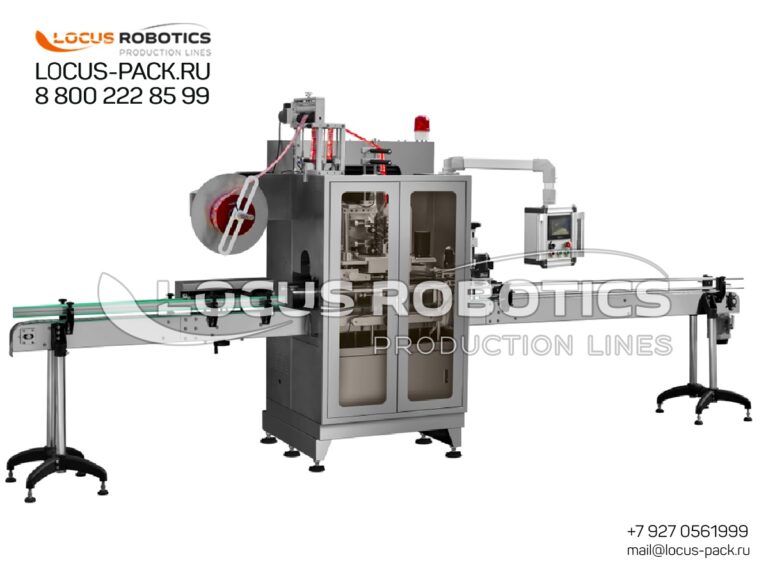

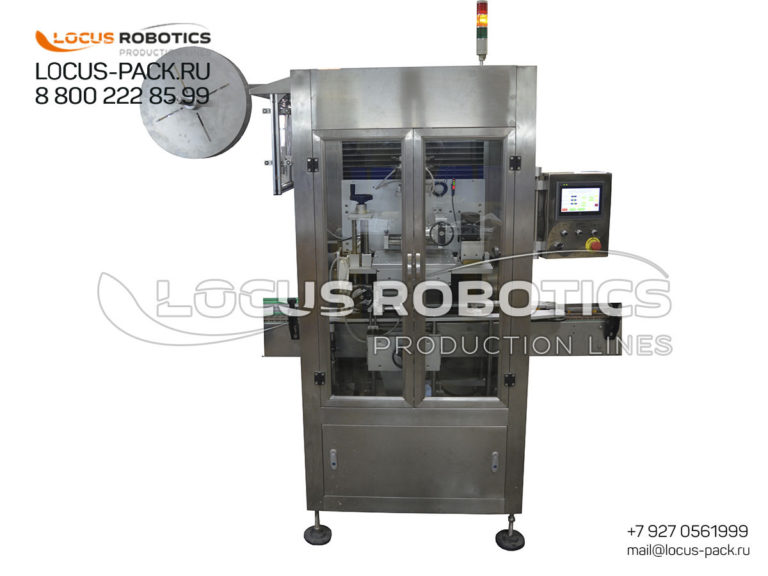

Automatic Sleeve Applicators: Precision placement of pre-cut sleeves
Steam/IR Heat Tunnels: Controlled shrinkage for complex geometries
Vision Inspection: 100% print/detection verification (optional)
Key Capabilities
| Parameter | Specification |
|---|---|
| Container Types | Round, oval, square & custom shapes |
| Speeds | Up to 300 containers/min |
| Materials | PVC, PETG, OPS films (40-120 micron) |
| Min/Max Ø | 15mm — 300mm |
High-Speed Container Sleeving for Impactful Packaging.
Perforation Unit: Programmable perforation patterns pre-application
Container Stabilization: «Boat-style» carriers for unstable/variable-contour containers
Edge-to-Edge Application: Ensures sleeves cover from base to neck
360° Brand Coverage
Seamless film application on curved surfaces (e.g., cosmetic jars, beverage contours)
Material Efficiency
±1mm registration accuracy reduces film waste by 18% vs. industry average
Regulatory Compliance
Pharma-grade models with GMP construction (SS316L, IP65 sealing)
Beverages: PET bottles for CSD, juices, craft beer
Cosmetics: Luxury jars, serum droppers
Pharma: Tamper-evident vials, medicine bottles
Chemicals: Anti-counterfeit canisters
Add-On Modules:
Automatic film splicing
Static elimination bars
Leak detection for filled containers

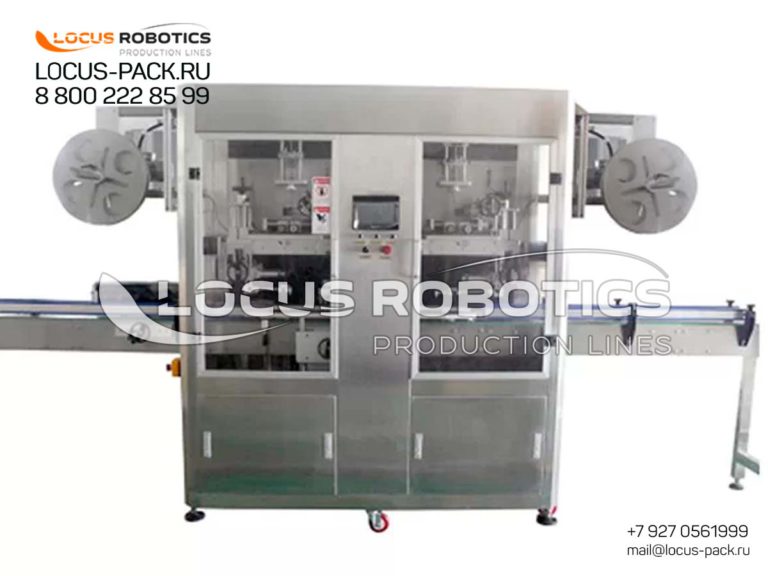

Locus SleeveMaster™ 300
300 containers/min
Handles ±15% container dimension variance
Syncs with fillers/cappers via Ethernet/IP
VAPE liquid bottles with holographic security sleeves
| Sector | Use Cases |
|---|---|
| Food & Beverage | Juice bottles, dairy containers |
| Cosmetics | Luxury serum droppers, cream jars |
| Chemicals | Detergent cans, anti-counterfeit packaging |
| Vaping | VAPE liquid bottles, holographic sleeves |

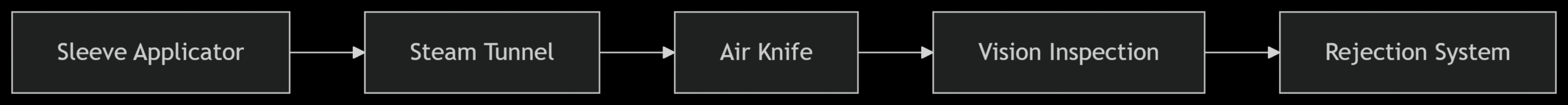

Inline Configuration: Seamless connection with:
Filling monoblocs
Rinse-Fill-Cap tri-blocks
Modular Design: Add vision inspection/rejection systems post-shrink tunnel
