Description
LSSC-50 sealing produce boxes in factory line
Dual servo-driven tape heads.
Tool-free width adjustment mechanism.
Key Features
-
Industrial Endurance: Welded steel frame withstands 24/7 operation; 1,500+ boxes/hour capacity.
-
Precision Taping: Servo-controlled tension applies 48-72mm tape (3M™-compatible) with ±1mm accuracy.
-
Plug-and-Produce: Pre-wired for 220V/380V; integrates with existing conveyors via photo-eye.
-
Humidity Defense: Seals reliably at 80% RH with anti-slip tape paths (critical for SEA/coastal regions).
Technical Specifications
| Parameter | Value |
|---|---|
| Throughput | 10-25 boxes/min |
| Box Dimensions | L: 200-600mm × W: 150-500mm × H: 100-450mm |
| Tape System | Dual-head (top/bottom); 3″ core rolls |
| Power | 1.5 kW (220V/380V) |
| Noise Level | ≤72 dB (factory-compliant) |
Industry Applications
-
Food Processing: Seals wax-coated produce boxes; FDA-compliant tapes.
-
E-commerce Hubs: Handles Amazon/Walmart FEFCO 0201 cases; 99.0% seal integrity.
-
Pharma SMEs: GDP-compliant for clinical supply chains.
-
Export Workshops: Processes 500+ boxes/day with 1 operator.
Operational Advantages
| Feature | Benefit |
|---|---|
| Auto-Detection | Laser sensors trigger sealing – no manual start |
| Tool-Free Adjustment | Change box sizes in <3 mins (hand wheel controls) |
| Tape Optimization | Pre-cut segments reduce waste by 35% vs manual systems |
| Safety Shield | Interlocked guards meet ISO 13849 PLc |

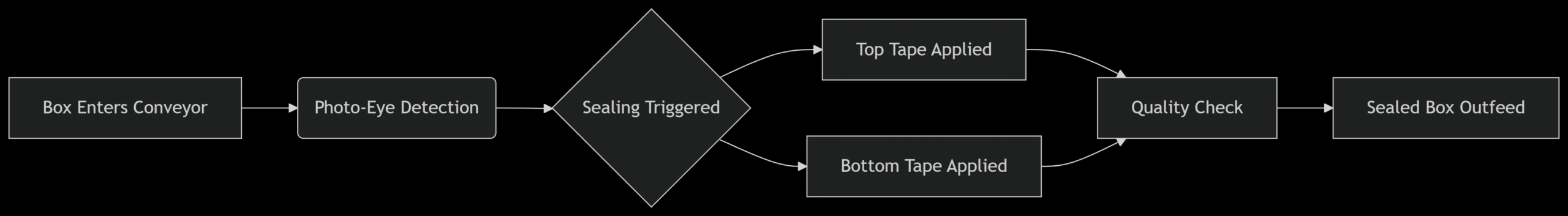

Workflow Integration
Maintenance: Weekly belt inspection | Tape replacement: 60 sec
Regional Adaptation
-
Tropical Climates: Anti-corrosion coating; humidity-resistant adhesives.
-
Dusty Environments (Africa/M.East): Sealed bearings; IP54-rated electronics.
-
Voltage Flexibility: 220V single-phase / 380V three-phase models.
Compliance & Standards
-
Safety: CE, ISO 13849 PLc.
-
Tape: FDA 21 CFR 175.125, REACH.
-
Construction: ISO 9001 welded frame.
Technical Support
-
Hotline: 24/7 multilingual support (EN/ES/FR/AR).
-
Spare Kits: Global stock for belts/sensors/rollers.
-
Upgrades: Retrofit kits for glue systems.
