Description
LSSC-50 Semi-Automatic Carton Sealer with Integrated Strapping module
LSSC-50 applying tape and straps to produce crate.
Criss-cross PP straps securing 70kg automotive box.
Tool-free tension adjustment dial.
Core Technology
-
Dual-Action System: Seals box seams with 48-72mm pressure-sensitive tape while applying 12-16mm PP/PET straps (1,500N tension) in one pass.
-
Heavy-Duty Performance: Secures boxes up to 600×500×400mm (L×W×H) and 80kg – handles engine parts, produce crates, machinery.
-
Tropical Resilience: Operates at 40°C/90% humidity with anti-corrosion components (critical for SEA/Africa).
-
Quick-Change: Switch tape/strap rolls in <90 sec; tool-free box size adjustment.
Technical Specifications
| Parameter | Value |
|---|---|
| Throughput | 8-20 boxes/min |
| Max Box Dimensions | 600×500×400mm |
| Max Load | 80kg |
| Strapping Material | PP or PET (12-16mm width) |
| Tension Force | 1,500N (adjustable) |
| Power | 2.2 kW (220V/380V) |
Industry Applications
-
Agriculture Export: Secures vented tomato/berry crates for ocean freight (withstands 2G vibration).
-
Automotive: Bundles engine components; MIL-STD-810G compliant.
-
E-commerce: Protects high-value electronics during last-mile delivery.
-
Building Materials: Straps tile/faucet boxes – eliminates bulge damage.

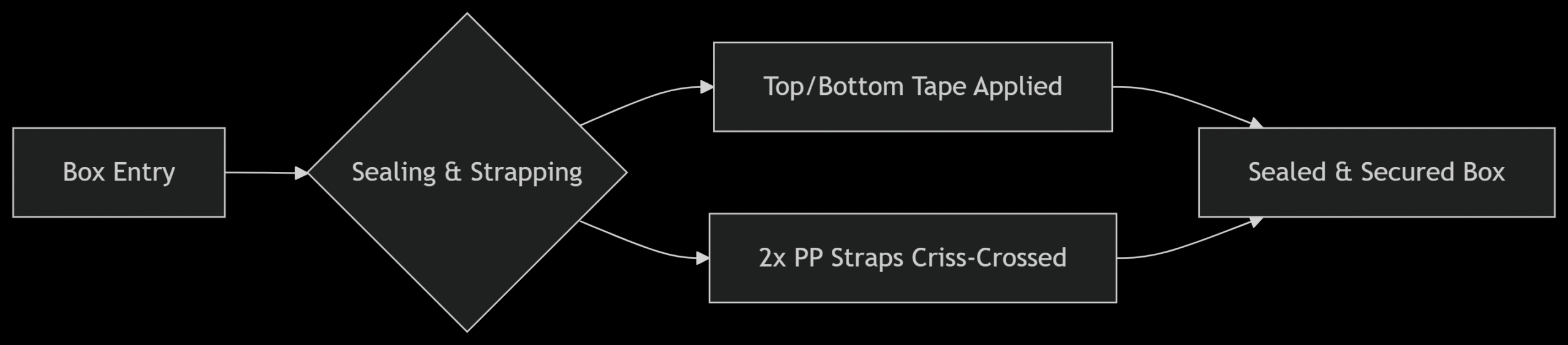

Workflow Process
Compliance & Standards
-
Safety: CE, ISO 13849 PLc.
-
Strapping: ASTM D3950, ISO 9001.
-
Sealing: FEFCO 0201 compliant.
Technical Support
-
Global Kits: Pre-packed tape/strap consumables (48hr delivery).
-
IoT Monitoring: LocusConnect app tracks tension/temperature.
-
Training: Multilingual SIM modules (EN/ES/FR/AR).
Compliance & Standards
-
Safety: CE, ISO 13849 PLc.
-
Strapping: ASTM D3950, ISO 9001.
-
Sealing: FEFCO 0201 compliant.
Technical Support
-
Global Kits: Pre-packed tape/strap consumables (48hr delivery).
-
IoT Monitoring: LocusConnect app tracks tension/temperature.
-
Training: Multilingual SIM modules (EN/ES/FR/AR).
