Engineered for Limited Footprints Without Compromising Performance.
Our modular compact lines redefine small-scale automation with industry-first space-saving features:
Transformative Layouts: Parallel or L-shaped configurations (55% smaller than linear systems)
Scalable Automation: Semi-auto to full-auto with micro-sized vibratory feeders
Dual-Dosing Options: Peristaltic (0.1-500ml) or piston (10ml-5L) technologies
Container Flexibility: Up to 1L capacity at 2,000 UPH throughput
L-shaped design reduces footprint by 65% vs. traditional lines.
Modular Design Philosophy
Adopts flexible module combinations allowing separate speed adjustment per module.
Footprint reduction up to 65% vs. traditional lines.
Throughput & Precision
| Model Type | Output Range | Accuracy | Power Consumption |
|---|---|---|---|
| Entry-Level | 3,000 BPH | ±1.5ml | 0.75 kW |
| High-Capacity | 16,000 BPH | ±1.5ml | 3.0 kW |
Container Compatibility
Handles diverse formats:
Pharma/Cosmetics: Vials (20-100mm neck diameter)
Beverages: Glass/PET bottles (100-360mm height)
Food: Jars for sauces/jams
Gentle Product Handling
Liquid-pressure filling minimizes foaming in sensitive products like wines and serums.
Quick-Change Tooling
Tool-free format adjustments in <20 minutes via slip-on neck guides.
Integrated Quality Control
Photoelectric sensors enable «no container, no fill» error prevention.
Sanitary Construction
AISI 316L stainless steel contact surfaces + CIP capability (alcohol injection systems optional).

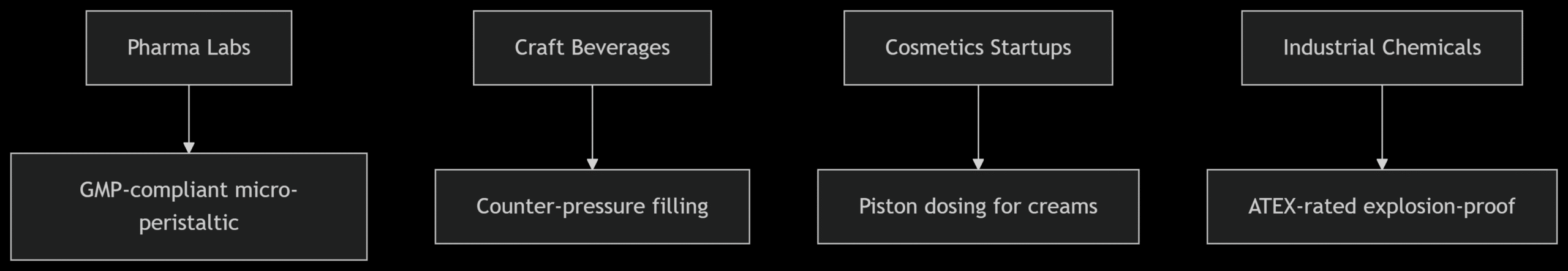

| Sector | Critical Adaptations | Example Applications |
|---|---|---|
| Beverages | Counter-pressure fillers for carbonated drinks | Wine, vodka, juice lines |
| Pharma | USP Class VI tubing paths | Vaccine serums, tinctures |
| Chemicals | ATEX-certified explosion-proof motors | Solvents, automotive fluids |
| Food | 3A-sanitary seals + particulates handling | Ketchup, oils, pulpy sauces |
| Parameter | Benchtop Model | Floor Model |
|---|---|---|
| Footprint | 0.6m × 1.2m | 1.5m × 3m |
| Throughput | 400 UPH (1L containers) | 2,000 UPH (1L containers) |
| Power | 220V/15A | 220V/3-phase |
| Height | 0.9m | 1.8m |
| Weight | 130kg | 720kg |
Automation Options:
Basic: Manual cap placement + torque capping
Advanced: Mini vibratory bowl (Ø300mm) + servo capper
Premium: Integrated vision inspection + rejection

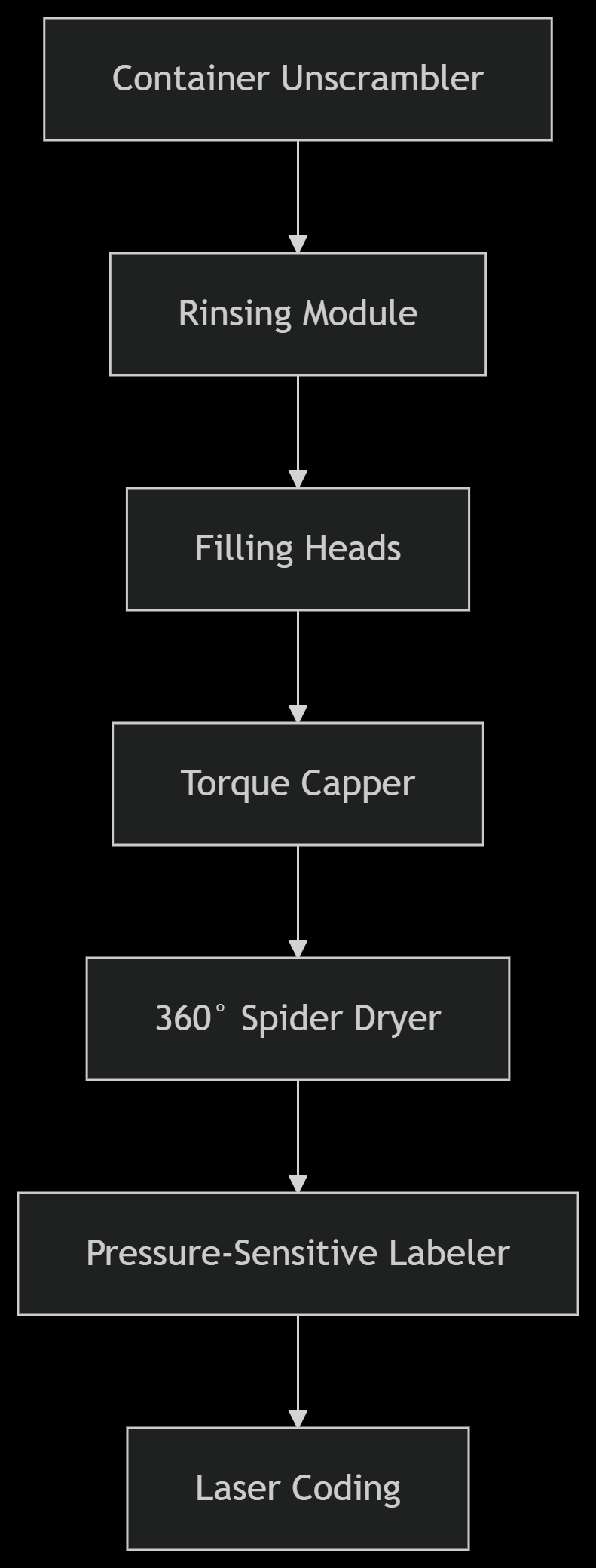

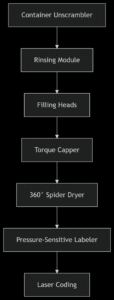

Features like the «spider dryer» ensure 360° moisture removal.
Space Efficiency: 2.2m width vs. 3.3m in standard lines
Energy Savings: 2.2kW average consumption vs. 5kW+ in rotary systems.
Scalability: Start with 2-head semi-auto → upgrade to 16-head full automation.
Maintenance: 72% fewer wearing parts vs. piston fillers (no seals/cylinders to replace).
Limitations: Max viscosity 5,000 cP (requires gear pumps for thicker products).
Automation Tradeoffs: Basic models lack integrated cap orienters (operator loading needed).
Throughput Ceiling: 2,000 BPH vs. 12,000 BPH in industrial canning lines.
Technical Support & Compliance
24-month warranty with 24/7 remote diagnostics.
CE, ATEX, and FDA 21 CFR Part 11 compliance options.
Factory acceptance testing (FAT) included.
| Layout | Floor Space | Max Throughput | Ideal For |
|---|---|---|---|
| Linear | 12m² | 1,200 UPH | Standard facilities |
| L-Shaped | 4.5m² | 800 UPH | Corner installations |
| Parallel | 6m² | 2,000 UPH | Narrow rooms |
| Vertical Stack | 2.8m² | 400 UPH | Micro-labs |
✅ Zero Factory Modifications: Installs in existing spaces as small as 3m × 3m
✅ Pharma-Grade Precision: ±0.3% accuracy in ISO 5 cleanrooms
✅ Rapid ROI: 65% lower CAPEX vs. traditional lines
✅ Future Scalability: Add modules as production grows
We automated vaccine filling in our 16.2m² lab without renovations — impossible with standard equipment.
– Head of Production, Innovations Ltd.
| Constraint | Technical Limit | Engineering Workaround |
|---|---|---|
| Container Size | Max 1L capacity | Dual-lane processing |
| Throughput | 2,000 UPH ceiling | High-speed servo cappers |
| Viscosity | 50,000 cP max | Optimized flow paths |
| Particulates | 3mm max size | Large-bore nozzles |
