Precision Application at 12,000+ Bottle/Vial.
Core Technology

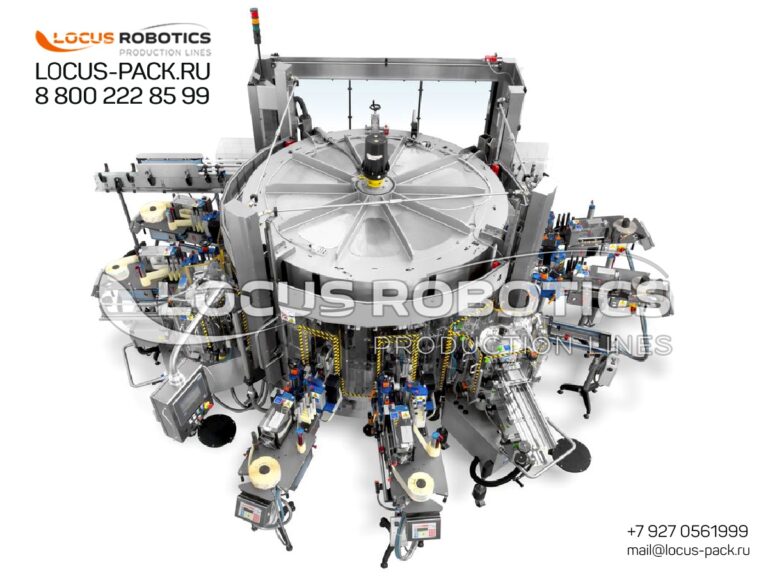

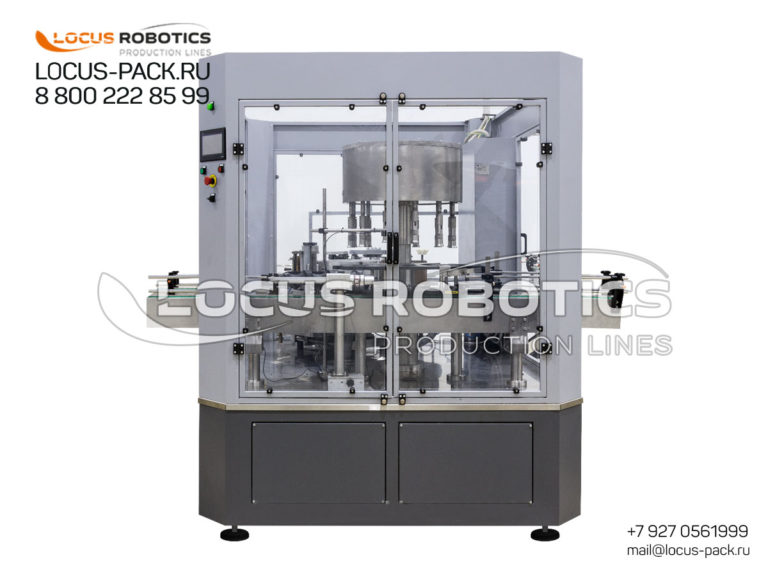

Continuous-Motion Carousel: Servo-driven turret with 4-32 application heads

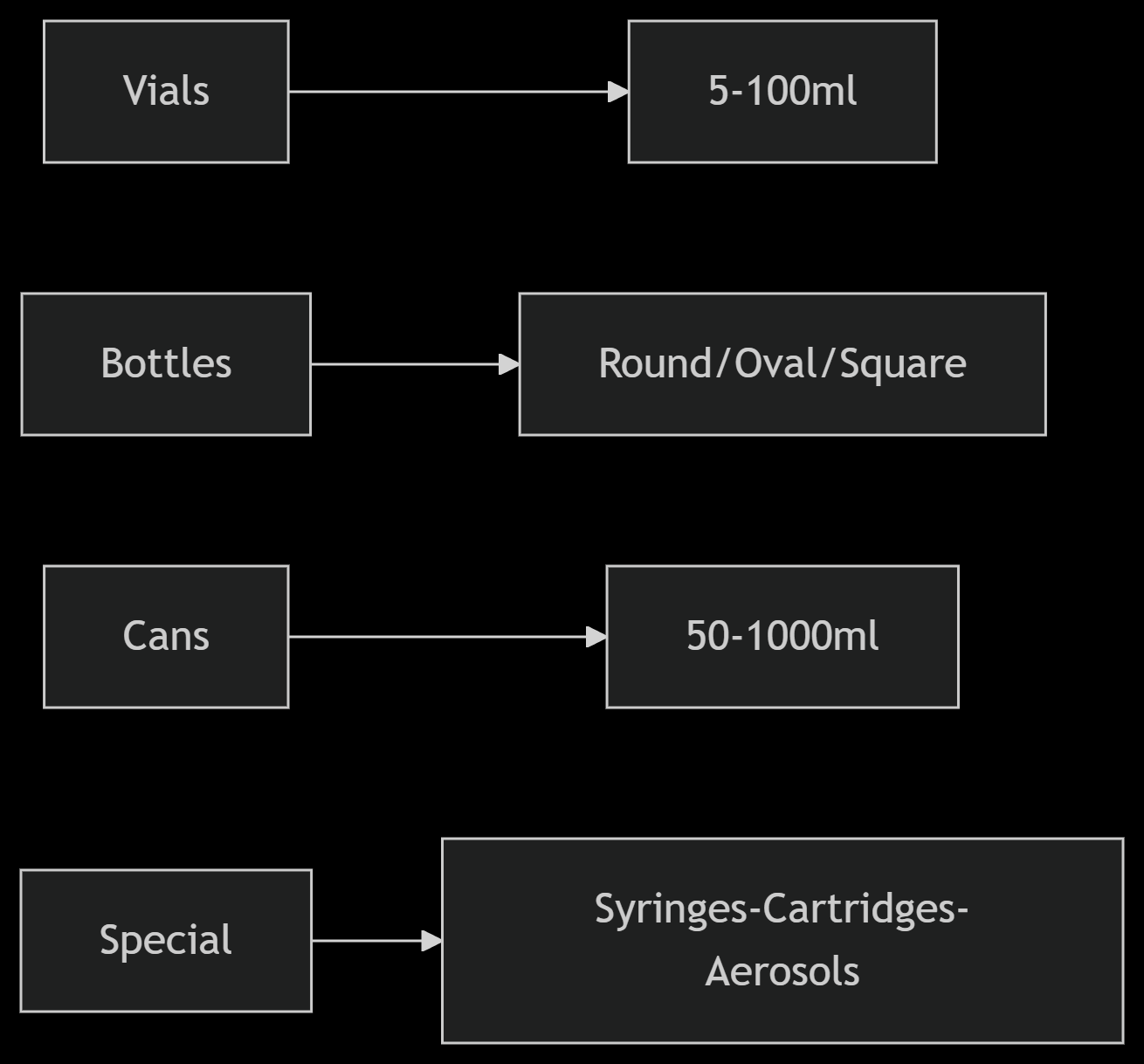

Container Handling: Starwheel systems for vials, bottles, cans & irregular shapes
Vision-Guided Placement: ±0.5mm accuracy with real-time rejection
Performance Specifications
| Parameter | Entry-Level | Premium Model |
|---|---|---|
| Speed | 6,000 cph | 24,000 cph |
| Min/Max Ø | 15-150mm | 10-300mm |
| Materials | Paper, PP, PE films | Metallic, textured, security labels |
| System Type | Throughput | Optimal Applications |
|---|---|---|

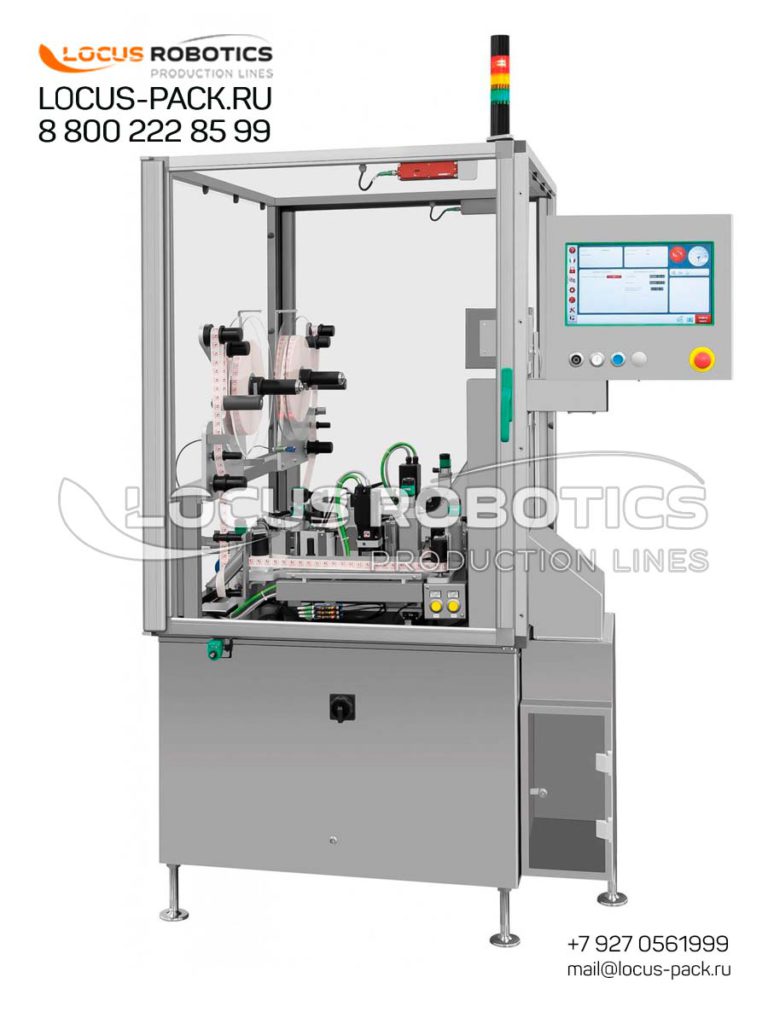

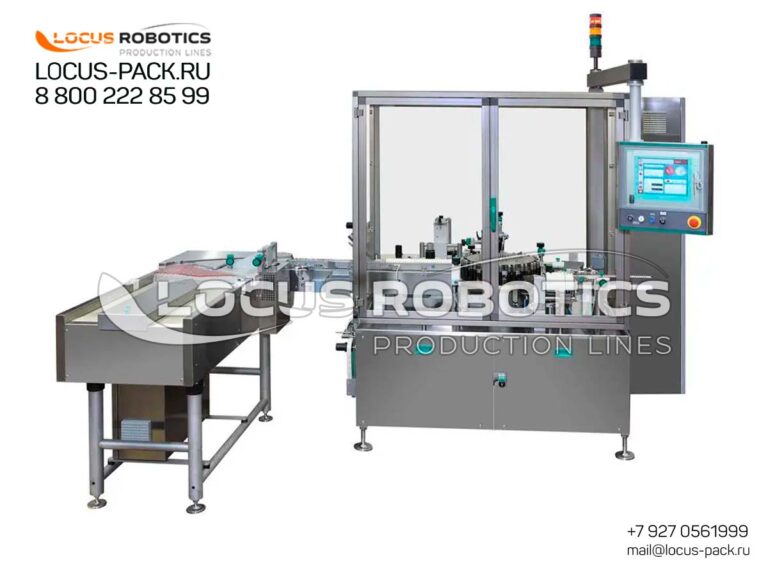

| Linear Labelers | Up to 12,000 cph | Simple self-adhesive labels on uniform containers |
| Rotary Systems | 12,000–24,000 cph | Complex geometries, multi-label patterns, cans/jerrycans |
Critical Limitation: Linear systems require identical containers & simple labels for peak efficiency.
Throughput Leadership
24,000 cph = 3x linear system capacity
Zero Downtime Architecture
Automatic reel splicing
Tool-free format change in <10 min
Pharma-Grade Compliance
316L stainless contact surfaces
Data logging per 21 CFR Part 11
Precision Labeling at 5,000–24,000 Containers/Hour.

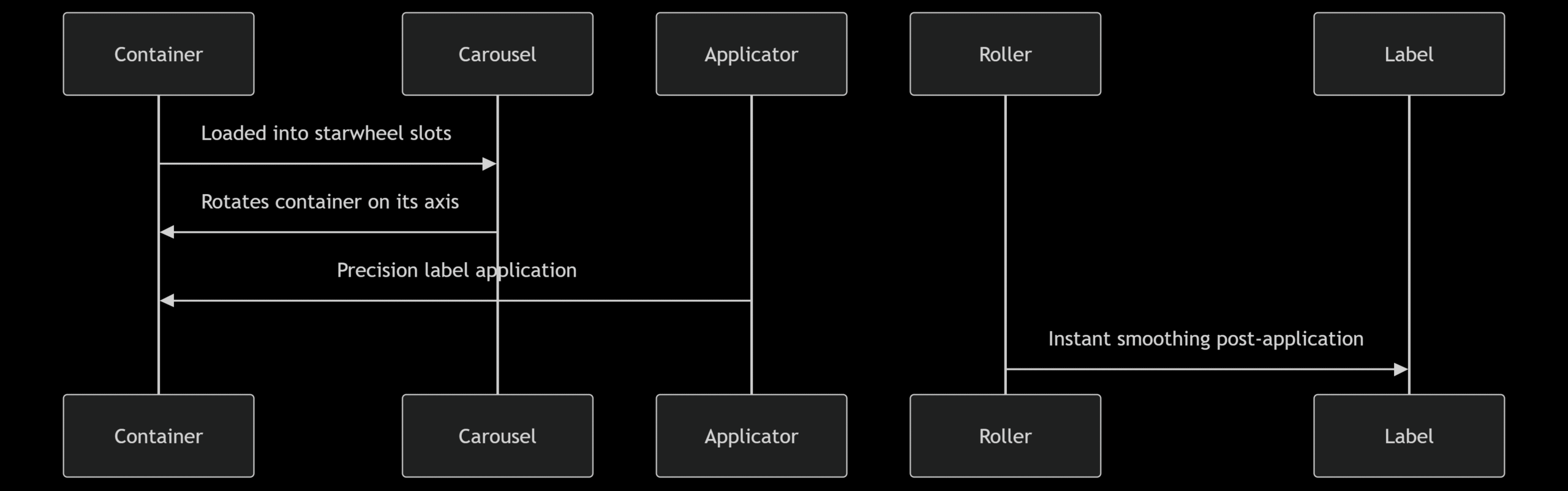

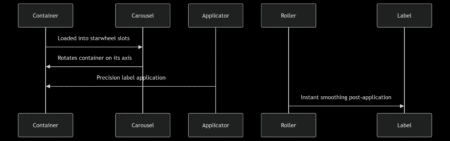

Key Components:

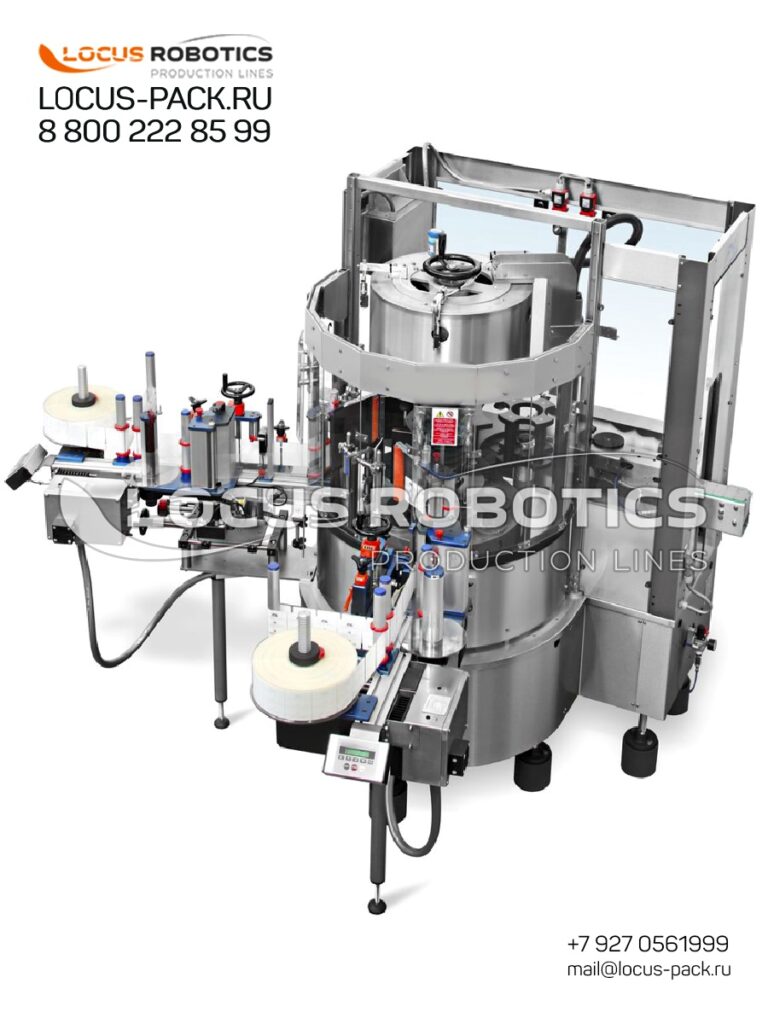

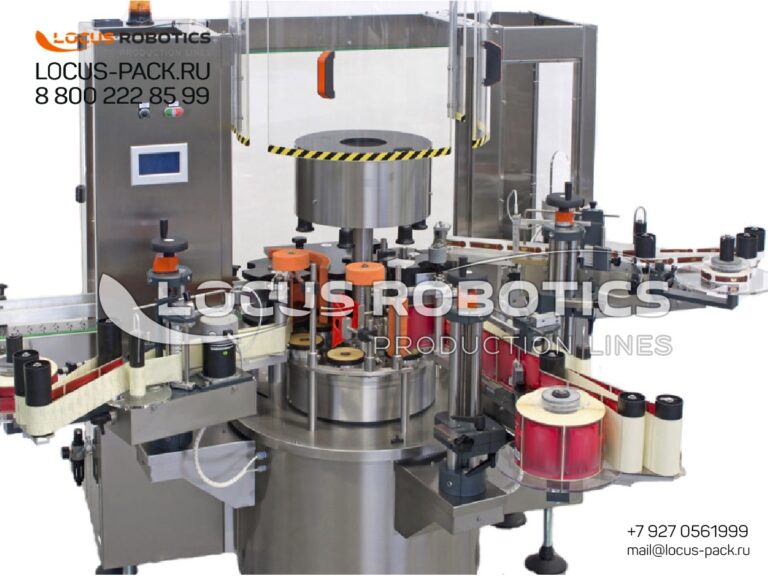

Central carousel turret with container-specific slots
2–5 servo-driven label applicators
Photoelectric sensors triggering label ejection
Integrated smoothing rollers per station

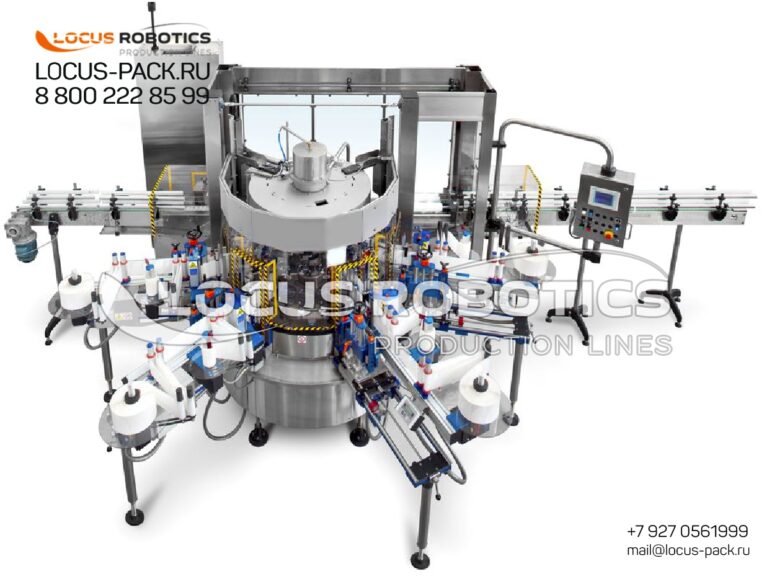

Locus Robotics’ rotary systems leverage proprietary technology unavailable in semi-automatic equipment:
Locus Label™ Series Applicators: Customizable for unique container profiles
Dual-Motion System: Simultaneous carousel rotation + individual container spinning
Advanced Tooling: Specialized grippers for cans, jerrycans, and conical shapes
| Industry | Recommended System | Application Examples |
|---|---|---|
| Pharma/Veterinary/Cosmetics | Linear (≤12,000 cph) | Vial serialization, luxury jar labeling |
| Food/Beverage | Rotary | Liqueur bottles, champagne sleeves, dairy containers |
| Chemicals/VAPE | Rotary | Dish soap containers, agrochemical cans, VAPE liquid bottles |
Horizontal Labeling Note: Linear systems handle vertical or horizontal container positioning – critical for unstable items.
Typical Workflows:
Standalone: Dedicated labeling stations
Inline Integration:
With filling/capping monoblocs
Post rinse-fill-cap tri-blocks
End-of-Line: Cartoning/palletizing systems
| Sector | Custom Features |
|---|---|
| Pharma | Vial serialization, tamper-evident strips |
| Beverages | Ice-bath resistance, condensation-proof application |
| Cosmetics | Luxury finishes: soft-touch, foil-stamped |
| Chemicals | Solvent-resistant adhesives, HMIs in Ex-rated housing |
Synchronized Operation with:
Filling monoblocs
Capping stations
Checkweighers
Protocol Support: OPC UA, MODBUS TCP, PROFINET
Industry Case Studies:
Pharma: Vial labeling @ 12,000 units/hour with 98.90% accuracy
Chemicals: Textured HDPE can labeling for industrial detergents
Configuration:
Locus RotorMaster™ LL-1000
Capacity: 12,000 containers/hour
Containers: Cans (50-500ml), bottles (Ø20-150mm), jerrycans
Featured Application: Vodka bottles with front/back/neck labels
Configuration Description:
Locus RotorMaster™ LL-1000N
Throughput: 24,000 containers/hour
Accuracy: ±0.5mm with laser-guided registration
Featured Case: Vaccine vials @ 12,000 units/hour with 100% vision inspection
Get a custom-designed solution:✉ Email:mail@locuspack.com
📞 Phone: +7 927 056-19-99
Our engineers will:
Assess your container mix and space.
Recommend optimal configuration.
Provide 3D layout and ROI projection.
