High-Speed Closure Handling for Automated Packaging Lines.
Universal Cap & Closure Handling for Demanding Industries.
Engineered for High-Speed Orientation in Challenging Environments.

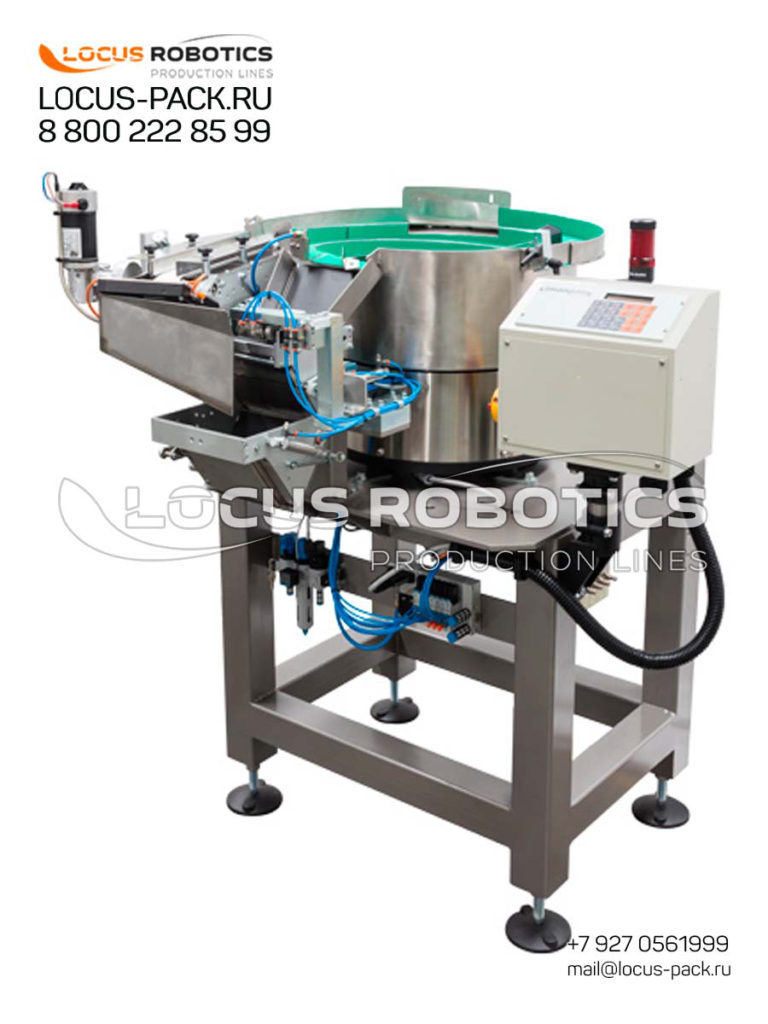

Locus-Robotics’ vibratory bowl feeders deliver reliable orientation and feeding of caps, closures, cork, part and dispensing components for fully automated capping systems or packaging machine. Engineered for 98.2% orientation accuracy at 200+ item/minute across pharmaceutical, chemical, cosmetic, food and consumer goods (FMCG) industries.
| Component | Function | Technical Specification |
|---|---|---|
| Orientation Bowl | Directional part movement via controlled vibration | CNC-machined 304/316SS, custom tooling |
| Drive Unit | Generates electromagnetic directional vibration | 3-phase electromagnetic drive, 0.2-1.5 kW |
| Exit Track | Transfers oriented caps to capping station | Anti-backlash design, adjustable incline |
| Cap Placement System | Applies caps via pneumatic cylinder or mechanical fork | 0.6 MPa air pressure, 2-6 bar operation |
| Vibration Controller | Precision amplitude/frequency adjustment | Digital VFD, ±0.1% accuracy |
| Linear Feed Conveyor | Extends cap delivery path | Vibratory or belt-driven options |
| Hopper w/ Sensor | Bulk feeding with level monitoring | 20-200L capacity, photoelectric sensor |
| Control Cabinet | System operation and monitoring | PLC/HMI, IoT connectivity ready |
| Support Structure | Rigid mounting platform | Height-adjustable, 800-1200mm |
Directional Vibration: Electromagnetic drive creates controlled helical part movement.

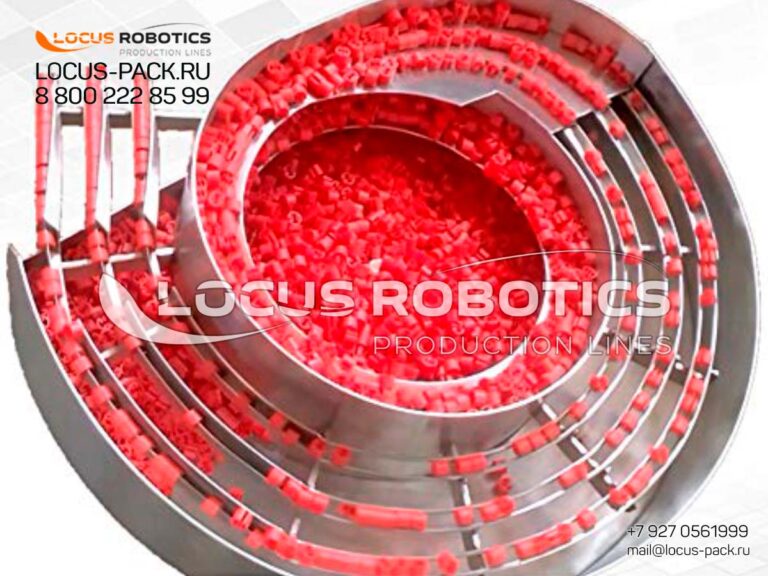

Precision Orientation: Custom tooling (ledges, wiper blades) rejects misaligned caps.
Track Transfer: Correctly oriented caps advance via exit track.
Placement: Pneumatic cylinder inserts plugs / mechanical arm applies screw caps.
Continuous Feeding: Hopper auto-refills bowl via sensor-controlled system.
Proprietary vibration mechanics ensure 98.0% orientation accuracy.
Directional vibration + precision tooling ensure reliable orientation.
| Feature | Locus-Robotics | Standard Feeders |
|---|---|---|
| Speed | 300+ ppm | 150-200 ppm |
| Orientation Accuracy | 99.8% | 95-97% |
| Changeover Time | <5 min (tool-less) | 20-30 min |
| Noise Level | 75 dB | 85+ dB |
| Part Size Range | 3-150 mm | 5-100 mm |
| Industry | Typical Components | Special Features |
|---|---|---|
| Pharmaceuticals | Vial stoppers, Syringe caps | GMP-compliant, Cleanroom-ready |
| Chemicals | Tamper-evident bands | Explosion-proof options |
| Cosmetics | Droppers, Pump actuators | Scratch-free coatings |
| Food | Sauce caps, Spice lids | FDA-compliant materials |
| Electronics | Connectors, SMD components | ESD-safe versions |
| Cap Type | Orientation Method | Max Speed | Industries |
|---|---|---|---|
| Smooth Aluminum Caps | Centrifugal force + wipers | 400/min | Beverages, Spirits |
| PET Screw Caps | Step-ledges & air knives | 350/min | Water, Juices, Chemicals |
| Threaded Aluminum Caps | Magnetic separation | 300/min | Pharma, Automotive |
| Dispenser Caps | Vision-assisted tooling | 250/min | Cosmetics, Household |
| Spray Actuators | Custom pockets & air jets | 200/min | Industrial Chemicals |

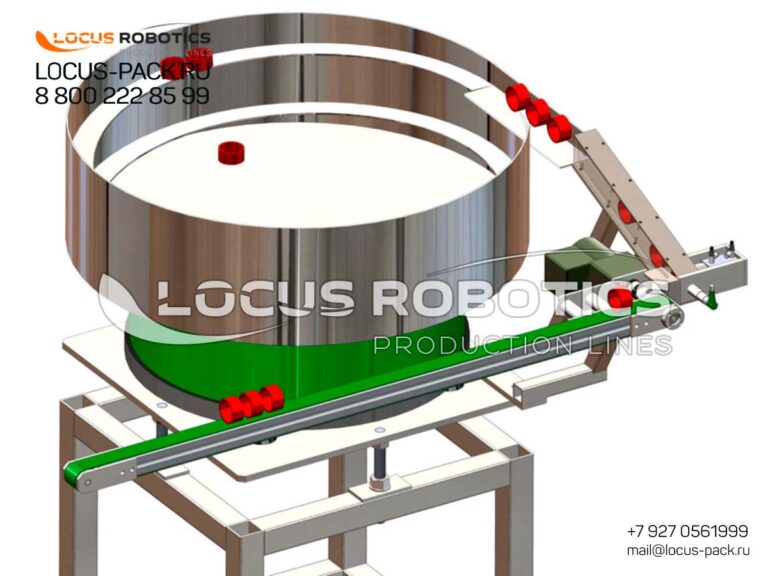

How Vibratory Feeders Work
1. Directional Vibration: Electromagnetic drive creates controlled part movement
2. Custom Tooling: Orientation plates/ledges filter misaligned components
3. Precision Escapement: Correctly positioned parts transfer to exit track
4. Linear Conveyance: Parts move to application point via vibratory track
Key Components:

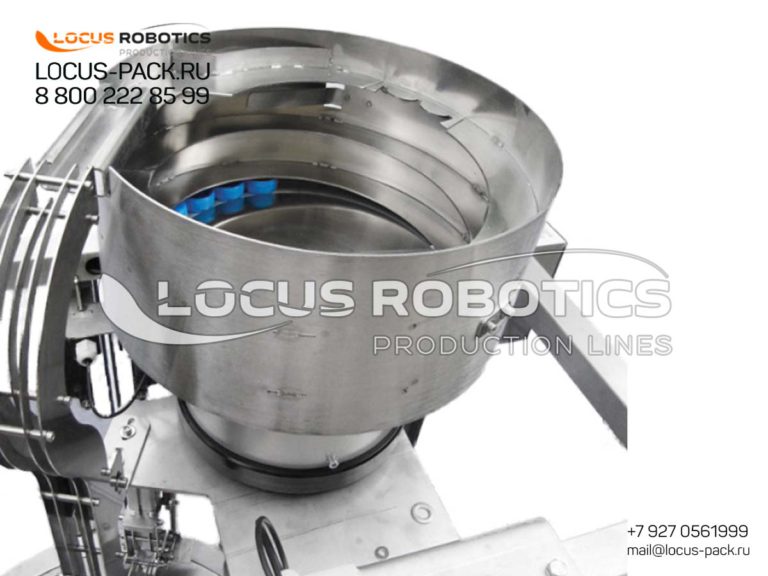

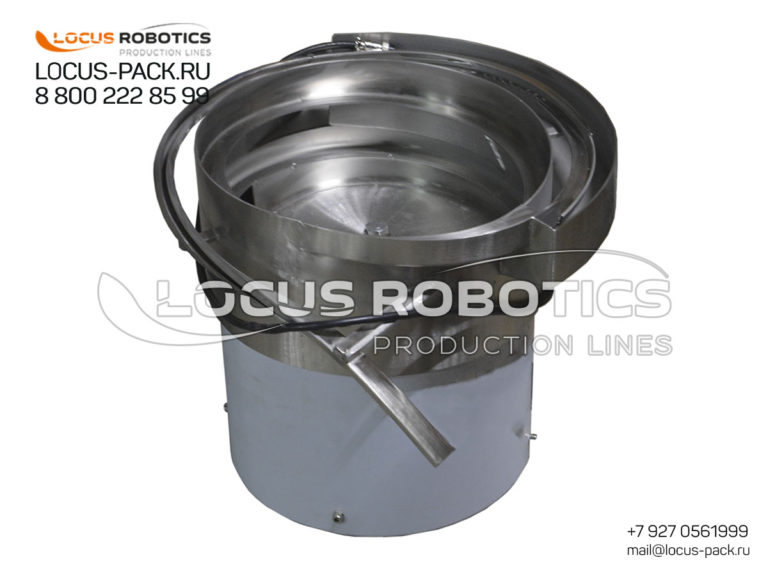

- CNC-machined stainless steel bowl.
- Variable frequency controller.
- Custom orientation tooling.
- Anti-backlash track design.
- IP54-rated control cabinet.
| Feature | Benefit | Competitive Edge |
|---|---|---|
| Universal Tooling | Handles 20+ cap types without hardware change | 75% faster changeover vs. elevators |
| High-Capacity Option | Elevator feeders enable continuous operation (3+ hours autonomy) | Zero downtime for refills |
| Precision Control | Digital vibration adjustment for delicate components | 0% damage to PET threads |
| Smart Monitoring | Predictive maintenance via vibration analysis sensors | 35% longer service intervals |
| Model | CF-10 | CF-10B | CF-10N |
|---|---|---|---|
| Bowl Diameter | 300 mm | 500 mm | 700 mm |
| Cap Capacity | 120/min | 240/min | 360/min |
| Power | 0.5 kW | 0.8 kW | 1.5 kW |
| Air Cons. | 20 l/min | 35 l/min | 50 l/min |
| Noise Level | 72 dB(A) | 75 dB(A) | 78 dB(A) |
| Weight | 85 kg | 140 kg | 220 kg |
| Model | CF-10V | CF-10F | CF-10L |
|---|---|---|---|
| Bowl Diam. | 400 mm | 600 mm | 900 mm |
| Capacity | 120 ppm | 240 ppm | 360 ppm |
| Part Size | 3-25 mm | 10-80 mm | 20-150 mm |
| Power | 0.5 kW | 0.8 kW | 1.5 kW |
| Noise | 70 dB | 75 dB | 80 dB |
Engineered for Challenging Environments
- SE Asia: Humidity-resistant electronics (IP65 enclosures)
- Africa: Voltage-tolerant drives (220V-380V ±20%)
- Eastern Europe: Cold-start capability (-25°C)
- LATAM: Spanish/Portuguese HMI interfaces
Engineered for Your Region
- Voltage Stability: 220V-380V-480V ±20% operation
- Environmental Protection:
- IP65 seals (high humidity)
- Dust-proof actuators (arid climates)
- Cold-start capability (-25°C)
- Material Options:
- 316SS (chemical resistance)
- FDA-grade polymers (food contact)
- ESD coatings (electronics)
Seamless Line Integration
- Pre-engineered interfaces for:
- Monoblocks or Filler Line
- Linear capping stations
- Robotic EOAT systems
- Optional Upgrades:
- Vision inspection station
- Elevator feed system (200L+ capacity)
- ATEX-certified components
- GMP-compliant cleanroom models
- Bolt-on mounting for linear/rotary systems
- Standard communication protocols:
- OPC-UA
- Modbus TCP
- Ethernet/IP
✅ Maximum Flexibility: Handle diverse geometries without hardware changes
✅ High-Speed Performance: Ideal for rotary monoblocks >250 cpm
✅ Gentle Part Handling: Amplitude control prevents damage
✅ Smart Diagnostics: Vibration sensors predict maintenance needs
Our CF-10 handles 200+ caps/minute with tool-free changeover — the optimal solution for high-mix facilities needing pharmaceutical precision at industrial speeds.
Industry Certifications:
• CE Marking • GMP Compliance • ISO 9001:2015 • RoHS
Ready to Automate cap or corks Handling?
Closure Evaluation: Send samples for free compatibility test!
Noise Comparison Tool: See dB reduction vs. your current system!
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Free line configuration for your products, throughput validation testing!
