Pharmaceutical Soft Gelatin Capsule Production Systems
Rotary Die Technology, Liquid & Paste Filling Solutions, Global Validation Support.
GMP softgel encapsulation machine rotary die.
LOCUS ROBOTICS delivers turnkey softgel encapsulation lines featuring rotary die technology for pharmaceutical, nutraceutical, and cosmeceutical applications. Our systems automate:
Gelatin Ribbon Formation
Precision Volumitive Dosing of liquids/pastes
Sealing & Cutting with temperature-controlled dies
Post-Processing: Drying, inspection, bulk packaging
LOCUS ROBOTICS delivers turnkey softgel encapsulation solutions — from equipment supply and FAT/SAT testing to IQ/OQ/PQ validation and commissioning. While softgel production is less established in Russia than hard capsules, our automated systems enable precision manufacturing of nutraceuticals and pharmaceuticals globally.
GMP Softgel Machines — Turnkey Systems.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Output | 5,000 — 100,000 softgels/hour |
| Fill Types | Oils, suspensions, PEG-based solutions, pastes |
| Capsule Sizes | 1-20 oval, round, tube shapes |
| Compliance | cGMP, FDA 21 CFR Part 211, ISO 9001 |
| Construction | AISI 316L contact surfaces, EHEDG-certified seals |
| Aspect | Softgel Systems | Hard Capsule Machines |
|---|---|---|
| Technology | Rotary die encapsulation | Powder/liquid filling |
| Capsule Form | Single-piece sealed gel matrix | Two-part body/cap assembly |
| Output Complexity | Integrated gelatin mass prep & drying | Standalone filling/polishing |
| Common Applications | Oils (fish oil, Omega-3), suspensions | Powders (supplements, APIs) |
GMP capsule drying tunnel.

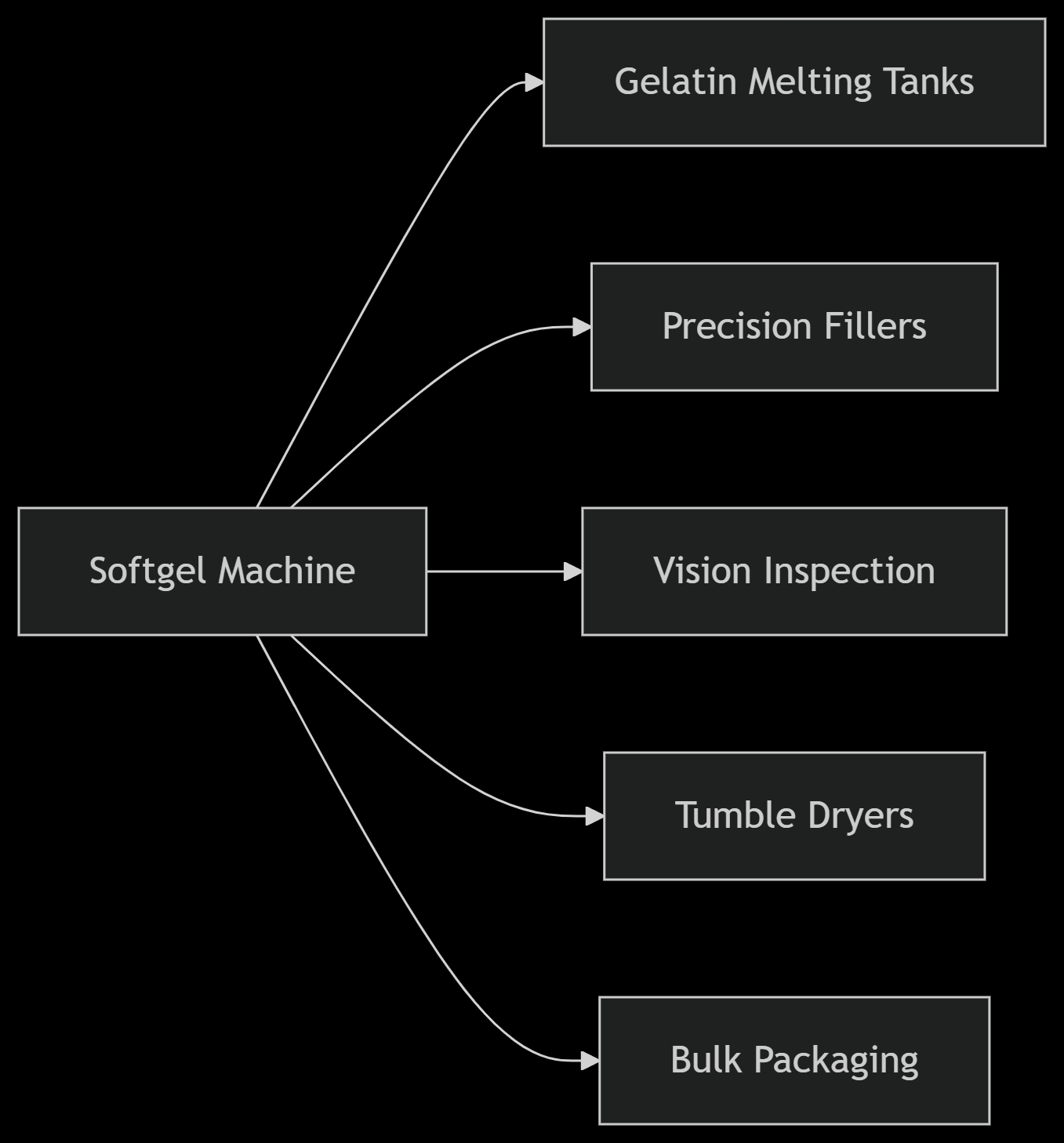

Critical Components:
AISI 316L contact surfaces
EHEDG-certified seals
CIP/SIP capabilities
Optional Add-ons:
Gelatin storage tanks with jacketed heating
Capsule calibrators (thickness/density testing)
Laser marking systems
Die validation stations
Material Preparation
Gelatin mass conditioning (40-50°C)
Active ingredient homogenization
Encapsulation
Dual-layer gelatin ribbon formation
Servo-driven volumetric piston filling (±1% accuracy)
Rotary die sealing at 30-50°C
Post-Processing
Tumble drying (20-25% RH control)
Vision inspection for seam integrity
Bulk packaging in pharma bins
Gelatin Mass Preparation:
Reactors with temperature-controlled mixing (40-60°C)
Ethanol/glycerol plasticizer systems
Rotary Die Encapsulation:
Continuous gelatin ribbon formation
Volumetric filling of actives (±0.5% accuracy)
Sealing/cutting with engraved dies
Post-Processing:
Ethanol wash in drum washing machines
Humidity-controlled tumble drying tunnels (20-30% RH)
100% vision inspection for seam integrity
We provide full lifecycle support:
Factory Acceptance Testing (FAT): Performance verification at our facility
Site Acceptance Testing (SAT): On-site operational validation
GMP Documentation: IQ/OQ/PQ protocols compliant with:
FDA 21 CFR Part 211
EU Annex 11
WHO TRS 986
| Parameter | Specification |
|---|---|
| Output | 5,000 — 100,000 softgels/hour |
| Capsule Sizes | 3-20mm (oval, round, tube) |
| Filling Accuracy | ±0.5% for liquids, ±1.5% for pastes |
| Utility Requirements | 380V/3-phase, 0.7 MPa air supply |
Integrated Temperature Control: Maintains viscosity of heat-sensitive fills (e.g., vitamin E, fish oils).
Quick-Change Tooling: <15 min format changeover for different capsule shapes.
Moisture-Regulated Drying: Critical for tropical climates (Southeast Asia/Africa).
Validation Packages: IQ/OQ protocols for FDA/EU GMP audits.
Turnkey Integration: From gelatin prep to final inspection.
Climate Adaptability: Humidity-controlled drying for tropical regions.
Quick-Change Tooling: <30 min format changeover.
Localized Support: Russian/English-speaking validation engineers.
Cost-effective encapsulation solution East Europe.
Pharmaceutical capsule drying tunnel Southeast Asia.
Humidity-controlled capsule dryer Africa.
Softgel machine for Middle East.
Ready to automate softgel production?
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Free line configuration for your products, throughput validation testing!
Contact Specialists for GMP:
Compliance Roadmap:
CE, EAC, ISO 9001 certifications.
GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
