Specialized Machinery for Lipstick Manufacturing & Packaging
Lipstick Production Equipment: Turnkey Solutions Filling to Packaging
Precision Solutions for Lipstick Production
LOCUS ROBOTICS delivers turnkey systems for manufacturing, filling, and packaging lipsticks, meeting surging demand from import-substitution boom. Engineered for complex cosmetic workflows with unique technical adaptations.
End-to-End Lipstick Production Solutions
LOCUS ROBOTICS delivers automated systems for filling, bullet assembly, capping, and packaging of lipsticks, balms, and compacts. Engineered for precision with ±0.1g accuracy and GMP compliance.
Core Product Lines
| Machine Type | Function | Throughput |
|---|---|---|
| Semi-Auto Fillers | Viscous product dosing into molds | 300-500 units/hr |
| Rotary Monoblocs | Filling → Cooling → Bullet assembly → Capping | 1,200-2,000 units/hr |
| Automatic Labelers | Wrap-around or bottom labeling | 150 packs/min |
| Cartoning Systems | Tray loading → Boxing → Sealing | 100 boxes/min |
| Type | Throughput | Best For |
|---|---|---|
| Semi-Auto Kits | 500-1K units/hr | Startups, multi-SKU producers |
| Automatic Lines | 2K-3K units/hr | Medium-scale brands |
| Robotic Cells | 5K+ units/hr | High-volume OEMs |
Semi auto piston filler lip balms.
Technical Highlights
Industry-Specific Capabilities
High-Pigment Formulas: Scraper-less piston fillers (no clogging)
Vegan/Organic Balms: CIP/SIP-compatible contact surfaces
Luxury Packaging: Customizable for gold/silver casings
Sample Kits: Micro-filling for 0.5-2ml miniatures
Compliance & Customization
Standards: GMP, ISO 22716, FDA 21 CFR Part 11
Materials: 316L SS, PTFE-coated components
Quick-Change Kits: <10 min format switch (stick ↔ compact)
Dual hopper lipstick gear filler hot fill.

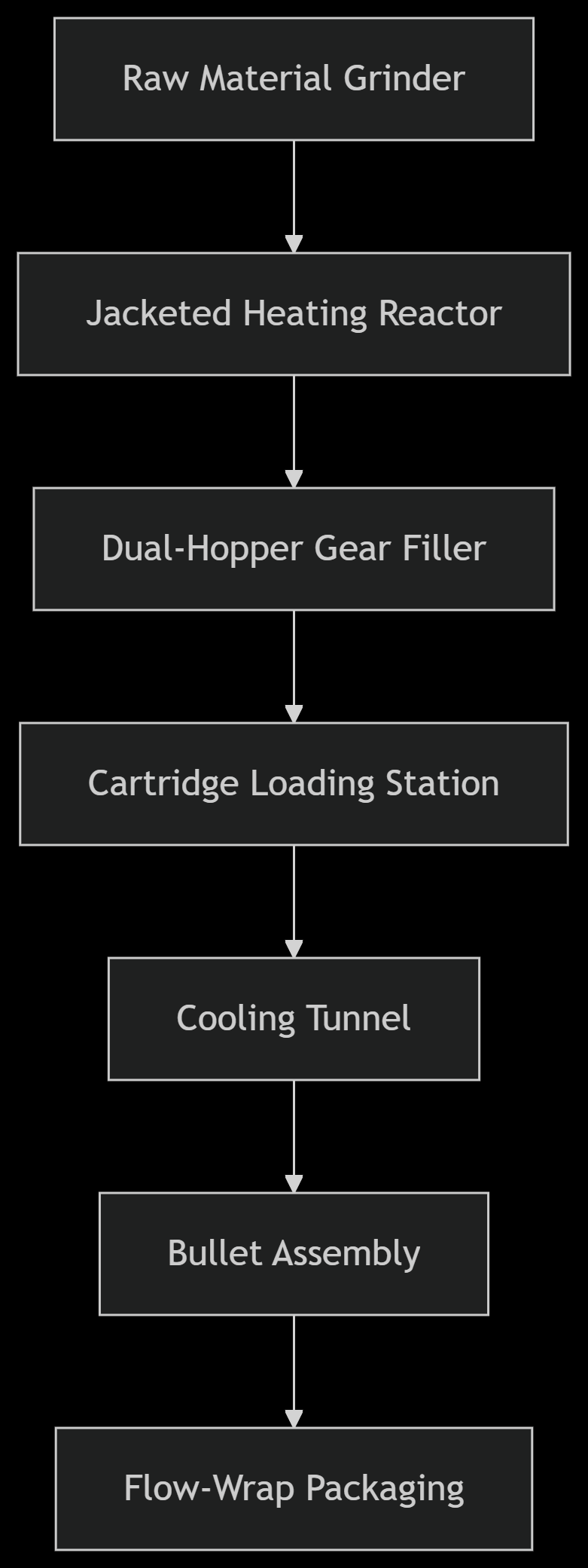

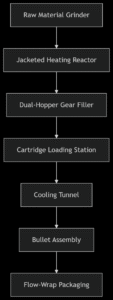

Key Components:
Triple-Roll Mill: Uniform pigment dispersion
Heated Reactor: 60-90°C with stirring (wax/oil blends)
Dual-Hopper Filler: Continuous hot-fill switching (no downtime)
Modular Design: Convert to eyeliners/lip glosses in <30 mins
Option 1: Linear Production Lines
Gear-Type Fillers: Multi-nozzle, ±0.1g accuracy
Inline Cooling: Precision temperature zones
Output: 3,000 units/hr
Footprint: 12m × 3m
Option 2: Rotary Monoblocks
Integrated Process: Filling → Cooling → Capping → Ejection
Patented Cartridge System: Zero product handling
Output: 2,500 units/hr
Space Savings: 40% smaller than linear lines
Fully Automated: Raw material to boxed product
Vision-Guided QC: Cap alignment, fill level, defect detection
Output: 5,000+ units/hr
Features:
CIP/SIP systems
FDA 21 CFR Part 11 data logging
Quick-change tooling (stick ↔ compact)
Challenges in Lipstick Labeling:
Complex tube geometry
Multi-label requirements (front/back/top/bottom)
Hologram application
Rotary monoblock lipstick capping.
Our Solutions:
| Machine Type | Capabilities |
|---|---|
| Semi-Auto | 1-2 labels with manual positioning |
| Auto Line | 4-side labeling + hologram application |
| Custom | 360° wrap + tamper-evident seals |
| Product Type | Recommended Machine |
|---|---|
| Classic Lipsticks | Rotary monobloc with twist capper |
| Lip Balms Tubs | Semi-auto piston filler + screw capper |
| Liquid Lipsticks | Peristaltic filler + brush applicator |
| Luxury Compacts | Automatic tray loading system |
| Feature | LOCUS Advantage |
|---|---|
| Hot-Fill Accuracy | ±0.05g at 80°C (vs. industry ±0.2g) |
| Changeover Time | <15 mins (competitors: 45+ mins) |
| Compliance | GMP/ISO 22716 documentation included |
| Materials | 316L SS contact surfaces, PTFE seals |
Global Compliance Packages:
| Parameter | Value |
|---|---|
| Filling Volume | 0.5ml – 15ml |
| Power | 380V/50Hz or 220V/60Hz |
| Air Supply | 6 bar, oil-free |
| Machine Footprint | From 1.2m² (semi-auto) to 8m² (monobloc) |
4-side labeling machine lipstick tubes.
| Parameter | Semi-Auto | Monoblock | Robotic Line |
|---|---|---|---|
| Output | 800 units/hr | 2,500 units/hr | 5,000+ units/hr |
| Fill Volume | 1-10ml | 0.5-15ml | 0.5-20ml |
| Power | 220V/50Hz | 380V/50Hz | 480V/60Hz |
| Footprint | 6m² | 8m² | 25m² |
| Feature | LOCUS Advantage |
|---|---|
| Accuracy | ±0.05g filling tolerance (vs. industry ±0.2g) |
| Gentle Handling | Patented vibration-free bullet insertion |
| Compliance | Full documentation for EU/US/ASEAN markets |
| Local Support | Russian-engineered → Faster spare parts |
Engineer your lipstick line or scale your lipstick production!
Free line configuration for your products, throughput validation testing!
Contact Cosmetics Packaging Specialists:
Compliance Roadmap:
CE, EAC, ISO 9001 certifications.
GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
ATEX options for chemical solvents.
