Compact Benchtop Automatic Capping Systems

Benchtop Automatic Capping Systems

Compact Automation for Precision Sealing — 1,500+ BPH in Minimal Floor Space.

Key Features & Advantages

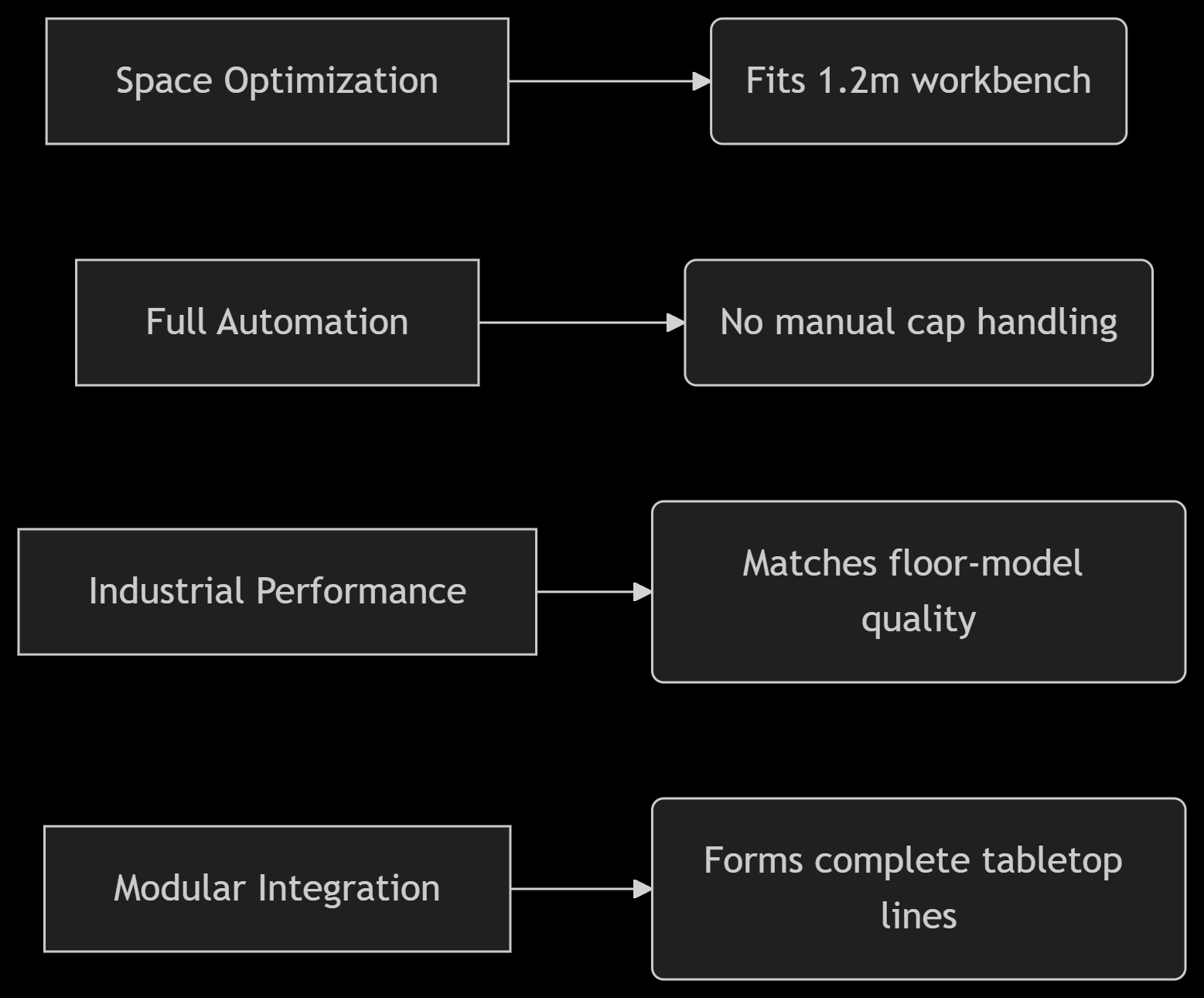

Core Technology & Advantages

Technical Specifications:

Technical Limitations:

• Max throughput: 2,500 BPH

• Container size: Up to 2L capacity

• Cap diameter: 15-120mm

---

Three Core Configurations

---

Upgrade Options

1. Vibratory Cap Orienter

   • Enables true automation (operator only loads/unloads)

   • Handles 15-80mm caps

2. Inline Expansion Modules

   • Tabletop fillers: Piston/peristaltic dosing

   • Label applicators: Wrap-around/top-labeling

   • Accumulation tables: Ø300-500mm rotary discs

3. Industry-Specific Kits

   • Pharma: Cleanroom-compatible shrouds

   • Chemicals: Solvent-resistant coating

Cap Compatibility & Sealing Methods

• Threaded Caps:

  • PET screw caps

  • Aluminum ROPP closures

  • Continuous thread (CT) lids

• Press-On Seals:

  • Flip-off caps (K1-K3)

  • Crown seals

  • Guala™ security bands

• Specialized:

  • Dispenser pumps

  • Trigger sprayers

  • Twist-off caps

  • Dispensopak systems

---

Industry-Specific Configurations

---

Space-Saving Automation for Small-Batch Production — 1,500+ BPH on a Standard Worktable.

Integration & Operation

Workflow:
Bottle Infeed → Auto-cap Orientation → Precision Capping → Torque Verification → Outfeed

Key Components:

1. Vibratory cap bowl feeder

2. Servo-driven capping head

3. Rejection station for failed seals

4. HMI with recipe memory (100+ profiles)

Achieves full automation in 2 sq.ft — ideal for crowded production areas or cleanroom anterooms.

Technical Comparison

---

Industry Applications

• Pharma: Vial sealing (2-100ml)

• Cosmetics: Pump/CRC cap installation

• Chemicals: Small container bunging

• E-Liquids: Child-resistant nozzle fitting

• Food: Sauce bottle capping

Ideal for pilot plants, R&D labs, and contract manufacturers needing GMP-compliant sealing in tight spaces.

---

Complete Tabletop Lines

Sample Configuration:
Piston Filler → Auto Capper → Wrap-around Labeler → Accumulation Table
Components:

• Peristaltic/piston fillers (±0.3% accuracy)

• Top/side label applicators

• Compact reject stations

Competitive Advantages

+ 76% space reduction vs floor models
+ Integrated torque verification
+ Pharma-grade validation packages
- Competitors require separate cap orienters

When to Choose Benchtop Automation:

---

Implementation Package

1. Plug-and-Play Setup:

   • Pre-configured for common caps (specify during order)

   • Operational in <1 hours

2. Upgrade Path:

   • Add vision inspection (+$6k)

   • Integrate with fillers via OPC-UA

3. Support:

   • Remote diagnostics

   • On-site calibration

Sample Configuration:

ACM-200 Pharma Model:

• 1,200 vials/hour

• ±0.03 Nm torque accuracy

• Cleanroom-compatible (ISO Class 7)

• Includes GMP IQ/OQ documentation

Why Choose Benchtop Automation?

+ 80% space reduction vs floor models
+ Full automation at semi-auto cost
+ GMP validation support
- Limited to ≤2L containers
- Not for high-speed bulk lines

Ideal For:

• Startups with space constraints

• Multi-product facilities

• Pilot production/R&D

• Supplementing main lines during peak demand

---

Technical Specifications

Fast Deployment:

Pre-assembled modules

Operational in <24 hours

Scalability:

Start with base capper ($18-35k)

Add fillers/labelers later

Global Compliance:

CE, UL, GOST-R certifications

Precision Terminology:

«Benchtop» not «desktop» (industrial standard)

«ROPP» for roll-on pilfer proof

«CRC» for child-resistant closures

«BPH» consistency throughout

«IQ/OQ» for pharma validation

Contact & Consultation

Space-constrained? Get a custom-designed solution:✉ Email:mail@locuspack.com

📞 Phone: +7 927 056-19-99

Our engineers will:

1. Assess your container mix and space.

2. Recommend optimal configuration.

3. Provide 3D layout and ROI projection.
