Description
LSSC-50 Compact Carton Sealer with Integrated Strapping Machine
LSSC-50 applying steel straps to chemical & Food boxes.
Quick-change strapping head for PP/PET/steel.
Engineering Breakthroughs
-
Triple-Material Strapping: Seamlessly switches between steel (7-16mm), PP (12-16mm), and PET (10-15mm) bands – industry’s widest compatibility.
-
Intelligent Tension Control: Auto-adjusts 50-2,500N force based on load sensors (prevents crushing fragile goods).
-
Hot/Cold Sealing: Uses pressure-sensitive tape or -35°C-rated hot-melt glue for extreme environments.
-
Robotic Integration: KUKA-compatible PLC (Ethernet/IP) for automated warehouses.
Technical Specifications
| Parameter | Value |
|---|---|
| Throughput | 12-25 boxes/min |
| Max Dimensions | 700×600×500mm (L×W×H) |
| Max Load | 150kg |
| Strapping Tension | 50-2,500N (digital control) |
| Sealing Methods | Tape (48-72mm) / Hot-melt (-40°C to 180°C) |
| Power | 4.0 kW (220V/380V) |
Industry-Specific Applications
-
Automotive: Secures engine blocks with steel straps (MIL-STD-810G).
-
Chemicals: Seals+straps UN-certified hazmat drums (ADR/RID compliant).
-
Agriculture: Waterproof sealing + UV-resistant PP straps for ocean freight.
-
E-commerce: Anti-tamper tape + PET straps for high-value electronics.

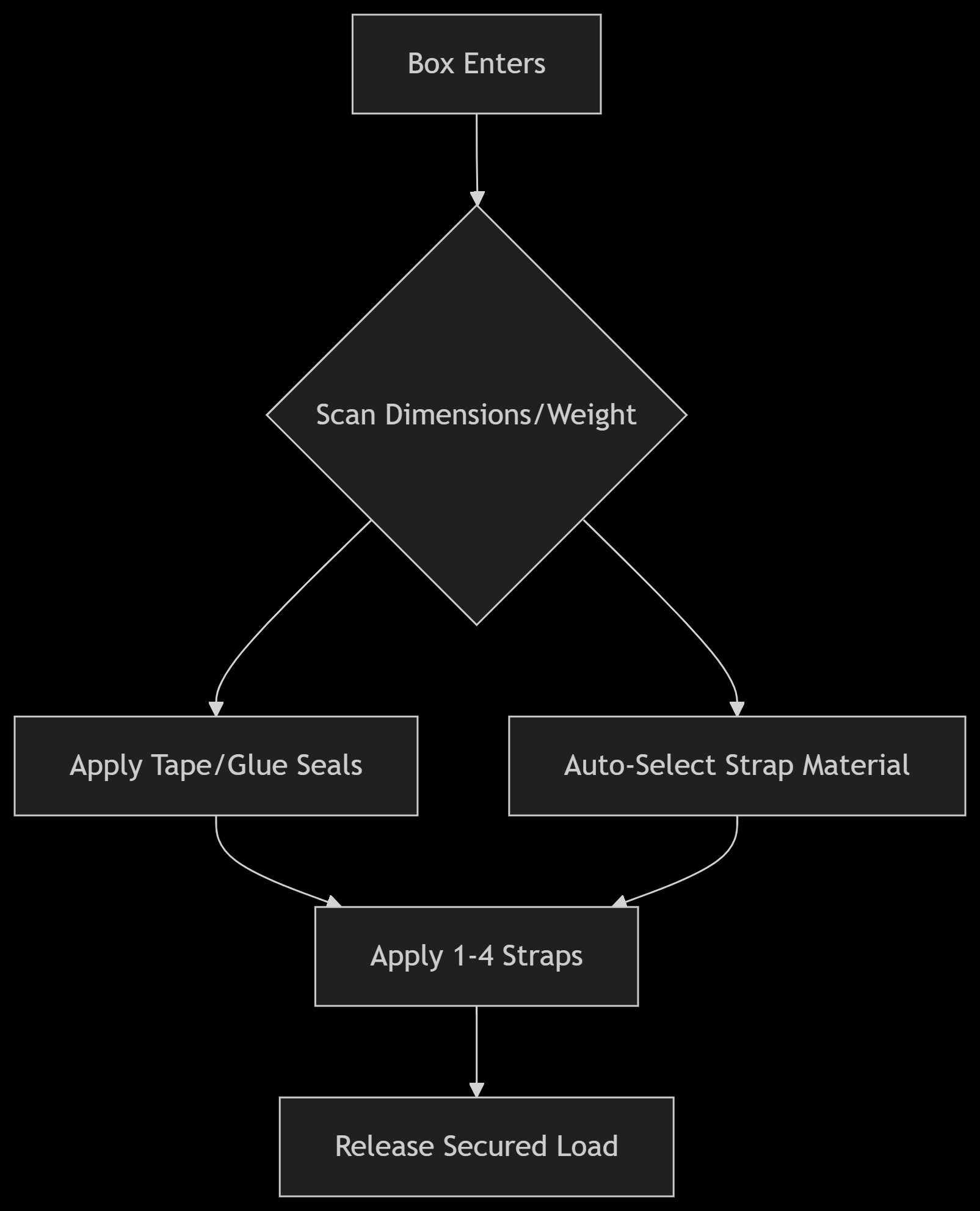

Workflow Integration
Material change: <120 sec | Up to 4 strap patterns (H, Ø, #)
Competitive Advantages
| Feature | Benefit |
|---|---|
| Dynamic Tension | Protects ceramics (50N) while securing machinery (2,500N) |
| Hazardous Certification | ATEX Zone 2 option for chemical plants |
| Future-Proof | IoT-ready (OPC UA, JSON API) for Industry 4.0 |
| Dual-Energy Saving | Regenerative drives + sleep mode cut power 45% |
Regional Adaptation
-
Middle East: Sand-proof rollers; 50°C heat tolerance.
-
SEA/Africa: Salt-resistant strapping heads; tropical glue formulations.
-
Eastern Europe: -35°C hydraulic fluid; GOST Ex-certified.
Compliance & Certifications
-
Safety: CE, ISO 13849 PLd.
-
Strapping: ASTM D3950, ISO 14813.
-
Hazmat: ADR 6.1, UN 4G/X certification.
-
Sealing: FDA 21 CFR 175.105 & 177.1520.
Technical Support
-
Predictive Maintenance: AI-driven wear monitoring via LocusConnect.
-
Global Consumables: Pre-bundled tape/strap kits for 40+ countries.
-
Crisis Response: 24h on-call engineers for export emergencies.
📜 Schedule virtual airflow visualization test.
💡 Mention your: Target market (EU/US/Global South), Active ingredient, Required throughput.
🔬 Schedule virtual factory acceptance test with our engineers.
🏷️ Request Compliance Audit: Free gap analysis with throughput simulation.
Ready to Eliminate Production Bottlenecks?
Need Industrial Production Automation?
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Start small, get a free production layout designed for your growth trajectory. Scale smarter with engineering support!
📥Free line configuration for your products, throughput validation testing!
🎓Contact Specialists for Packaging Equipment:
📄 On-Demand Engineering: Product-specific configurations in 1-2 weeks.
🔧 Spare Parts Kits: Region-specific inventory for <24hr delivery.
🌡️ For a free product compatibility test using your materials.
Compliance Roadmap:
- CE, EAC, ISO 9001 certifications.
- GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
- ATEX options for chemical solvents.
