⚙️ 1. Automated Robotic Soldering Systems
High-Precision PCB Soldering: Machines like the 5-axis robotic soldering system ±0.005mm repeat accuracy, programmable soldering paths, and automatic tip cleaning. Ideal for micro-soldering tasks on circuit boards.
Key Features:
Temperature range: 0–500°C
Solder wire compatibility: 0.5–1.2 mm diameter
Throughput: Supports up to 1,994 soldering points per file.
For High-Reliability Electronics: Systems use precision electromagnetic pumps and nitrogen (N₂) atmospheres to reduce oxidation. Designed for military, automotive, and medical electronics requiring flawless through-hole component soldering.
Technical Highlights:
Modular design: Supports online conveyor integration.
Titanium solder pots: Leak-proof and corrosion-resistant.
Flux control: German jet valves for micro-dot application (<12% solid content).
Dual-Function Packaging & Sealing: While not exclusively soldering-focused, patents describe integrated systems that form, fill, and hermetically seal thermoformed packages (e.g., tubes or cups) for liquids or pastes—relevant for solder paste packaging.
| Model | Type | Key Applications | Unique Features |
|---|---|---|---|
| SL-50 | Robotic Soldering | PCB micro-soldering | 5-axis movement, auto tip cleaning |
| SL-100 | Wave Soldering | Automotive/military PCBs | N₂ atmosphere, Ti solder pot |
| Compact SL-10 | Sealing/Packaging | Solder paste containers | Thermoformed hermetic seals |
Electronics: Robotic systems ensure precision for SMT components and connectors.
Automotive: Wave soldering machines handle high thermal loads in control units.
Packaging: Compact sealers protect solder pastes from oxidation during storage.
Space Requirements: Robotic systems need 1040×680×900 mm floorspace.
Material Constraints: Wave soldering requires low-solidity flux (<12%) to prevent nozzle clogging.
Cost: Automated systems target high-volume production.
For detailed specifications or purchasing, consult suppliers (wave soldering) or robotic system manufacturers via platforms like Taiwantrade.
Entry-level thermal sealers with heated bar technology. Ideal for low-volume poly bags/sachets in labs or small-batch production. Manual operation, compact footprint.

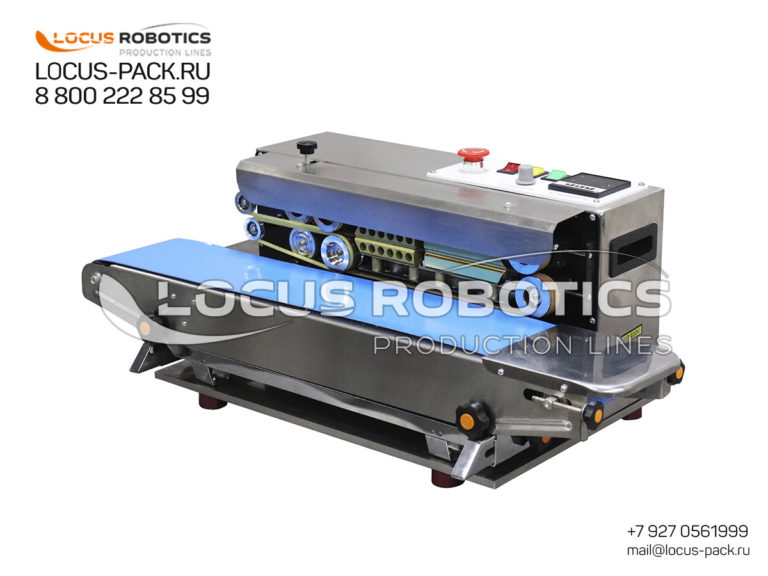

High-speed thermal sealers for integration into semi/full-auto filling lines. Seals woven/non-woven bags at 15-30 packs/min. Compatible with fillers, labelers, cartoners.

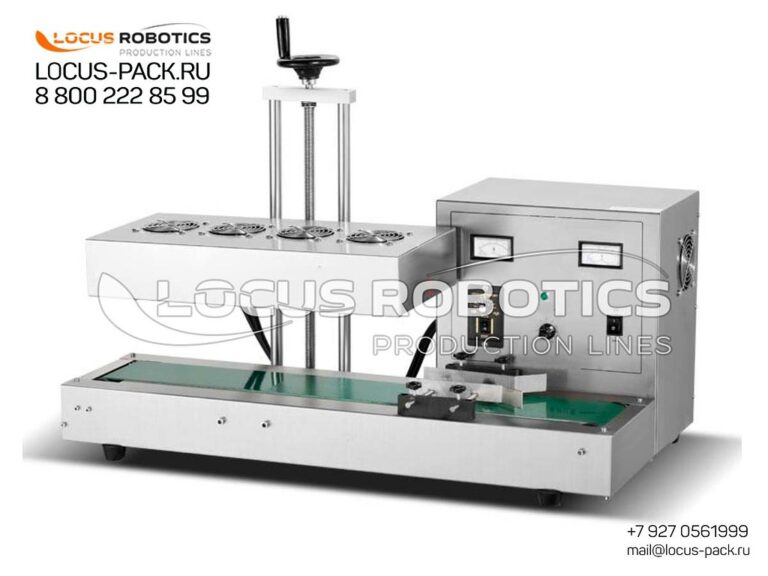

Pre-capping foil seal applicators for pharmaceutical/cosmetic vials. Seals aluminum liners to bottle necks via electromagnetic induction before screw-capping. GMP-compliant.

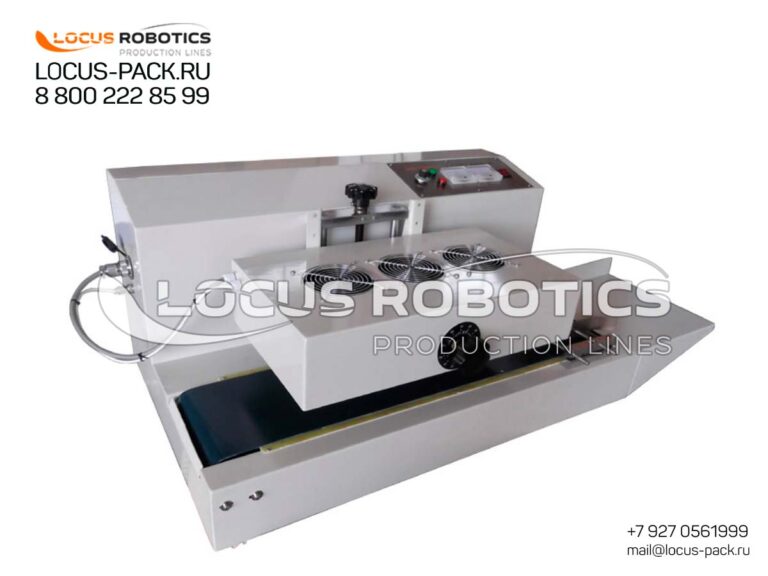

High-throughput systems for bottling lines. Automatically applies tamper-evident foil seals under caps at 100-300 U/min. Pharma/BPA-free compliant.
Steam-based tunnels for shrinking foil safety seals or full-body sleeve labels. Delivers wrinkle-free finishes on irregular shapes. Includes integrated steam generator.
Electric heat-shrink systems for caps/labels. Forced-air technology ensures uniform shrinkage on PET/HDPE containers. Energy-efficient alternative to steam.
| Feature | Industrial Advantage | Target Industries |
|---|---|---|
| Multi-Energy Tech | Single supplier for heat/ultrasonic/induction/steam sealing | Pharma, cosmetics, chemicals, FMCG |
| Scalability | Upgrade from benchtop → inline automation without revalidation | Contract packagers, SMEs → OEMs |
| Material Savings | Foil seals cost 45% less than adhesive labels at scale (critical for chemicals/cosmetics) | High-volume manufacturers |
| Global Compliance | CE, UL, GMP/SFDA-ready configurations available | Export-focused brands |
Pharma/Vet: Induction sealing for pill bottles, vaccine vials (tamper evidence) 💊
Cosmetics: Steam tunnels for sleeve labels on perfume bottles; induction seals for serums ✨
Chemicals: Heat-sealed HDPE bags for detergents; induction-sealed jerrycans for solvents 🧪
Food: Ultrasonic sealing for stand-up pouches (sauces, supplements) 🥫
Steam vs. Electric Tunnels: zero scorching risk with steam (critical for thin films) ♨️→ [Key advantage over electric rivals]
Hybrid Systems: Offer induction sealing + steam tunnels in single line for 360° tamper security 🔒
Energy Transparency: Publish kWh consumption data (builds trust in chemical/commodity sectors) ⚡
