Optimized for Food, Beverage, Pharm, Cosmetic & Chemical Industries.
Engineered for Oversized & Complex Closures in Extreme Conditions.

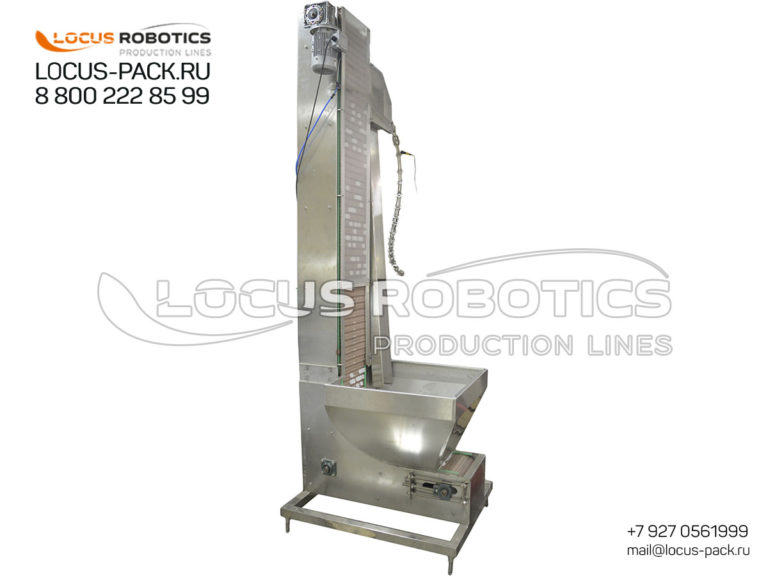

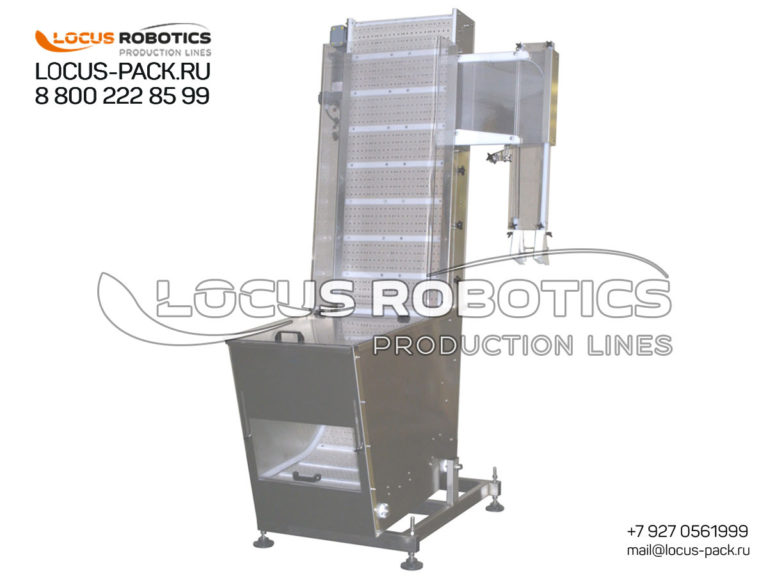

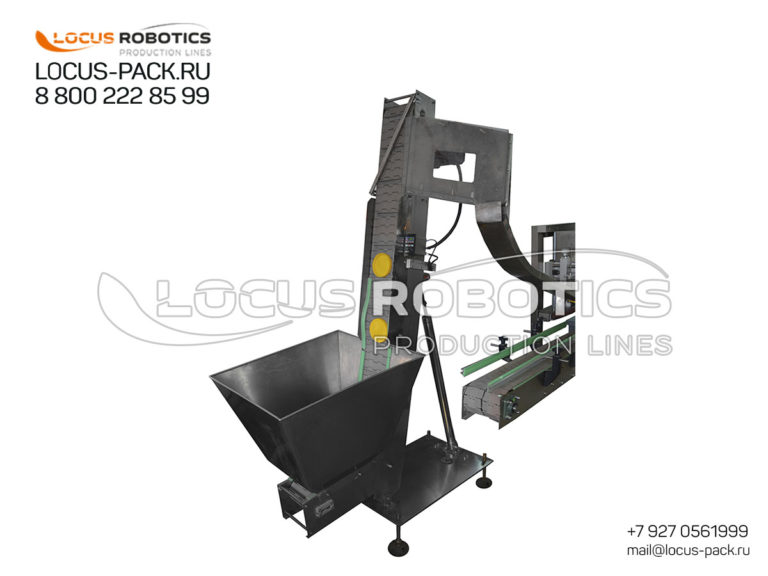

Locus-Robotics’ elevator-type cap orienters deliver high-volume closure handling for demanding production environments. Predominantly used in food processing, spirits distilleries, and chemical manufacturing (household/automotive/industrial), these systems ensure reliable cap orientation at speeds exceeding 6,000 caps/hour.
1. Inclined Conveyor: Notched belt angled for gravity-assisted orientation
2. Precision Alignment: Caps settle into notches in correct position
3. Transfer: Oriented caps advance to cap chute
4. Rejection: Misaligned caps fall back into hopper
Industrial-Grade Closure Elevation Systems
Reliable Handling of Heavy/Tall Caps Where Vibratory Feeders Fail

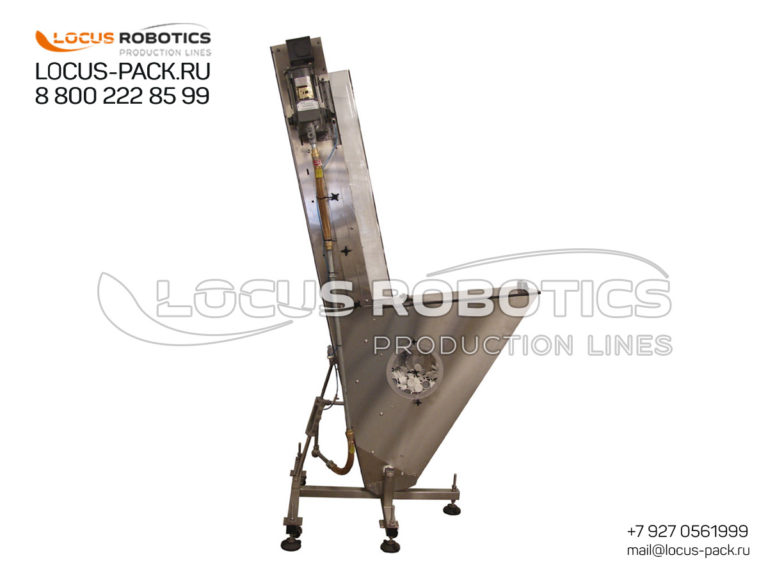

Locus-Robotics' vertical lift cap elevators solve orientation challenges for oversized, heavy, or non-vibratory-compatible closures. Engineered for seamless integration with high-capacity capping lines.
Problem Solved:
❌ Vibratory bowl jams with heavy/tall caps
❌ Damage to delicate closure components
❌ Throughput bottlenecks in chemical/pharma lines
Technical Advantages
| Feature | Locus-Robotics | Conventional Solutions |
| Max Cap Height | 500 mm | <200 mm |
| Cap Weight Capacity | 5 kg per unit | 0.8 kg per unit |
| Orientation Accuracy | ±1.0° | ±2.5° |
| Noise Level | 70 dB | 85+ dB |
| Voltage Tolerance | 220V-380V ±20% | ±10% | (Critical for Africa/SE Asia)
Key Applications:
- Chemical drum lids (10-120L containers)
- Pharma bulk-container closures
- Cosmetic airless pump assemblies
- Industrial pail caps
Precision Elevation Technology
1. Intake Hopper: Bulk loading of closures
2. Scissor-Lift Mechanism: Vertical elevation with anti-jam vibration assist
3. Orientation Gate: Proprietary baffle system corrects alignment
4. Timed Escapement: Servo-controlled release to capping head
Included Systems:
- Overload protection sensors
- Jam detection with auto-reverse
- Quick-change tooling plates
- IP65-rated control cabinet
| Benefit | vs. Vibratory Orienters | vs. Disc Orienters |
|---|---|---|
| Noise Level | 68 dB (45% quieter) | Comparable |
| Capacity | 2-3x larger hopper | 3-5x larger hopper |
| Refill Frequency | Every 1-2 hours | No aux. equipment |
| Throughput | 2,000-12,000 caps/h | 2x higher |
Key Strengths:
Continuous Operation: 2-hour runtime without refills
Minimal Maintenance: No wear-prone vibration components
Gentle Handling: Zero damage to delicate closures
✅ Best For:
- High-volume lines with infrequent changeovers
- Noise-sensitive facilities (e.g., urban distilleries)
- Heavy-duty closures (chemical drums, spirits caps)
⚠️ Limitations:
- Longer changeover (20-35 min for significant geometry changes)
- Requires belt replacement for height/depth variations
Built for Challenging Environments
- Dust-Prone Areas: IP54 sealed actuators (Africa/Middle East)
- High Humidity: Corrosion-resistant coatings (SE Asia)
- Voltage Fluctuations: 220V-380V-480V wide-range operation
- Extreme Temps: -25°C to +55°C operation
| Sector | Typical Applications | Throughput |
|---|---|---|
| Food Processing | Sauce bottle screw caps | 5,000 caps/h |
| Spirits Production | Liquor bottle stoppers | 3,500 caps/h |
| Household Chemicals | Detergent flip-tops | 6,000 caps/h |
| Automotive Chemicals | Jerrycan lids | 4,200 caps/h |
| Industry | Closure Types | Special Features |
|---|---|---|
| Chemicals | Drum lids, Jerrycan caps | 316SS construction, ATEX options |
| Pharmaceuticals | Lyophilization stoppers | GMP-compliant, cleanroom-ready |
| Cosmetics | Airless pumps, Droppers | Scratch-free contact surfaces |
| Food | Pail lids, Industrial caps | EHEDG-certified design |
Our CF-20T series handles 8,000+ caps/hour at 68 dB – the optimal balance of speed and silence for 24/7 beverage lines.
Regional Adaptations:
SE Asia: Humidity-resistant belts (80% RH operation)
Africa: Reinforced bearings for dusty environments
Eastern Europe: Cold-resistant polymers (-20°C)
LATAM: Quick-release mechanisms for labor-efficient changeovers
| Model | CF-20D | CF-20R |
|---|---|---|
| Throughput | 3,200 caps/h | 8,000 caps/h |
| Hopper Capacity | 15,000 caps | 40,000 caps |
| Max Cap Height | 120 mm | 250 mm |
| Changeover Time | 10 min (minor) | 30 min (major) |
| Power | 0.9 kW | 1.8 kW |
| Model | CF-20 Mini | CF-20V | CF-20 |
|---|---|---|---|
| Capacity | 600 caps/h | 1,200 caps/h | 2,400 caps/h |
| Max Cap H | 300 mm | 400 mm | 500 mm |
| Max Cap Wt | 3 kg | 5 kg | 8 kg |
| Power | 1.5 kW | 2.2 kW | 3.7 kW |
| Air Supply | 0.7 MPa | 0.7 MPa | 1.0 MPa |
Seamless Line Integration
- Compatible with rotary monoblocks & trimodules
- Bolt-on mounting for linear/rotary cappers
- Pre-engineered interfaces for:
• Linear conveyors
• Robotic palletizers
Seamless Monoblock Pairing
Pre-engineered interfaces for:
- Linear filling lines
- Robotic placement cells
Standard Protocols:
- OPC-UA communication
- Safety PLC integration (SIL2)
- Mechanical coupling adapters
Design your precision feeding line!
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Free line configuration for your products, throughput validation testing!
