Precision Foil Sealing Systems for Tamper-Evident Packaging
LOCUS ROBOTICS designs high-integrity foil sealers for laminated caps, creating hermetic barriers against contamination, moisture, and tampering. Critical for nutraceutical, and premium food packaging.
LOCUS LABEL delivers specialized equipment for applying decorative laminated neck sleeves — critical for brand differentiation and tamper-evidence in wine, spirits, and champagne markets.
| Function | Technical Implementation | Industry Value |
|---|---|---|
| Brand Enhancement | Full-color custom printing | Shelf appeal & premium positioning |
| Tamper Evidence | Destructive application process | Counterfeit prevention |
| Material Science | PVC/PE/PETG laminates | Conformability to bottle contours |

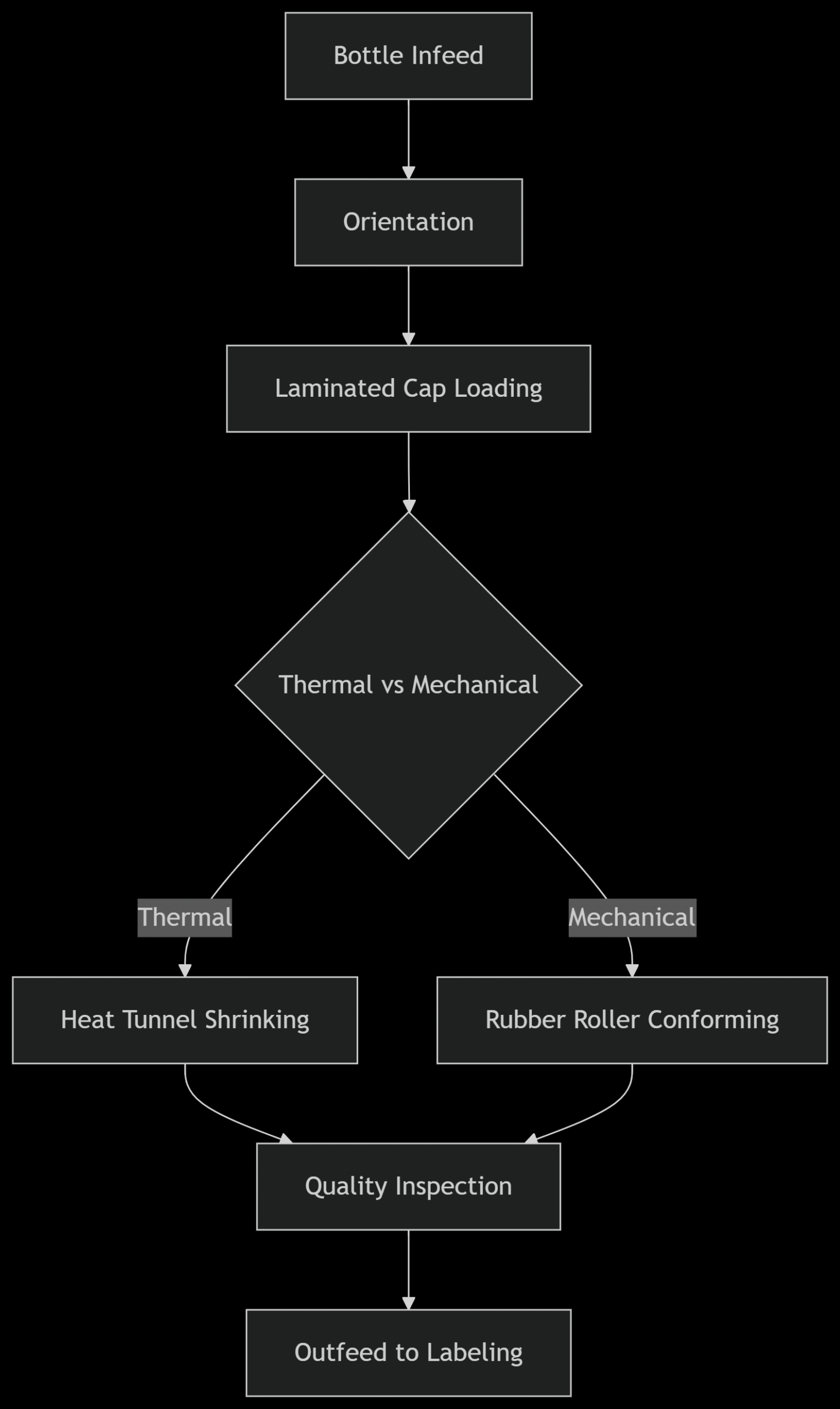

| Application Methods | Thermal shrinking or rubber rollers | Compatibility with all closures |
Neck bands reduce counterfeiting by 78% in premium cognac markets» — IWSR 2023 Report.

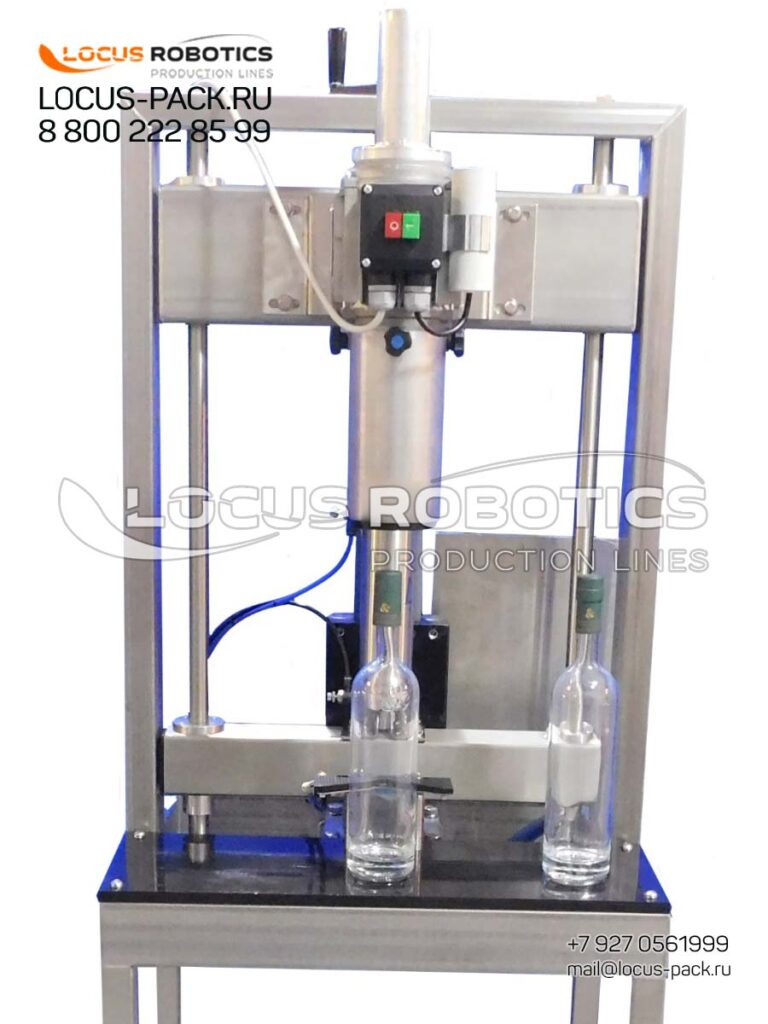

Manual Bench Applicators
Output: 80-250 bottles/hour
Footprint: 0.6m²
Ideal for: Gift sets, special releases
Semi-Auto Stations
Output: 400-600 bottles/hour
Features: Automatic cap feeding

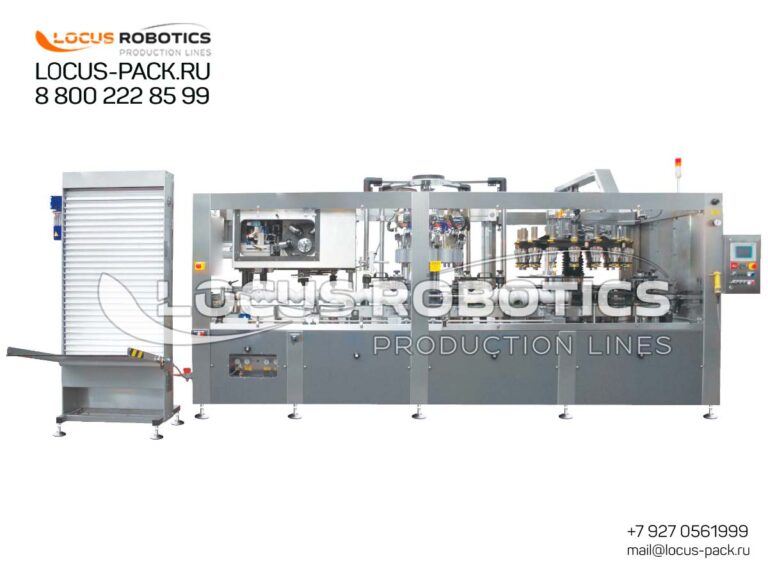

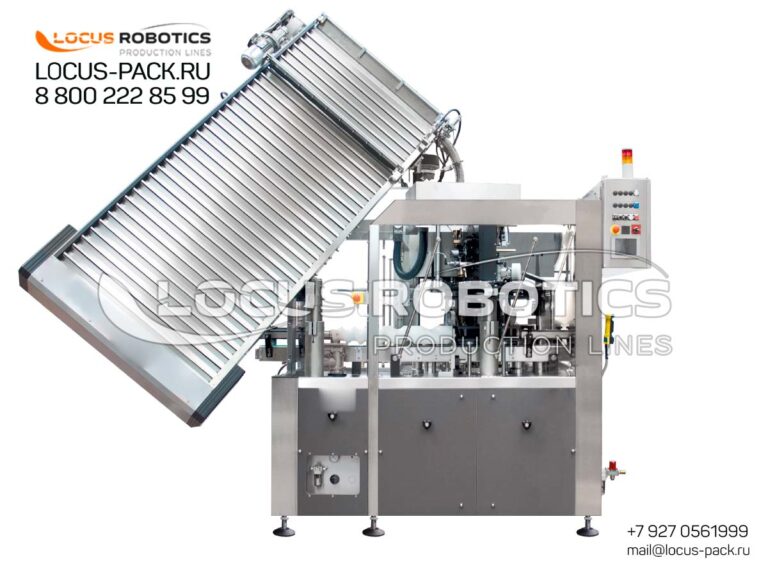

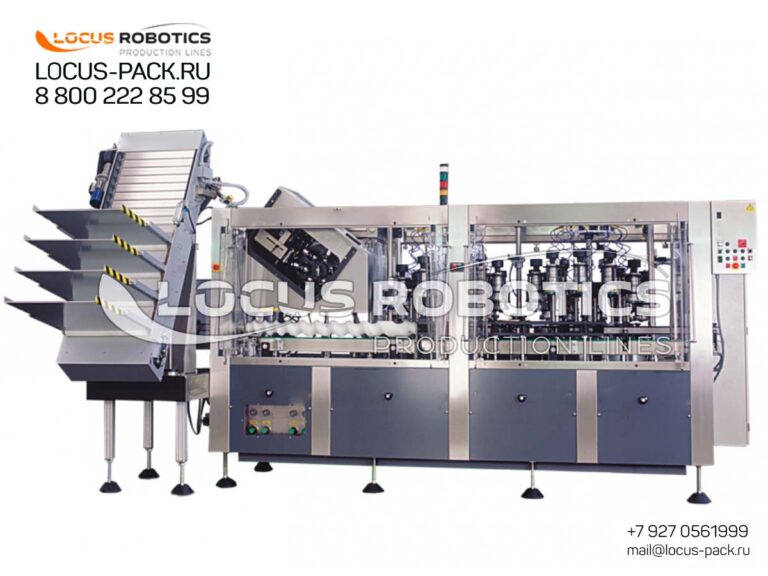

| System Type | Output | Integration Level |
|---|---|---|
| Linear Autoloaders | 1,000-2,000 bph | End-of-line standalone |

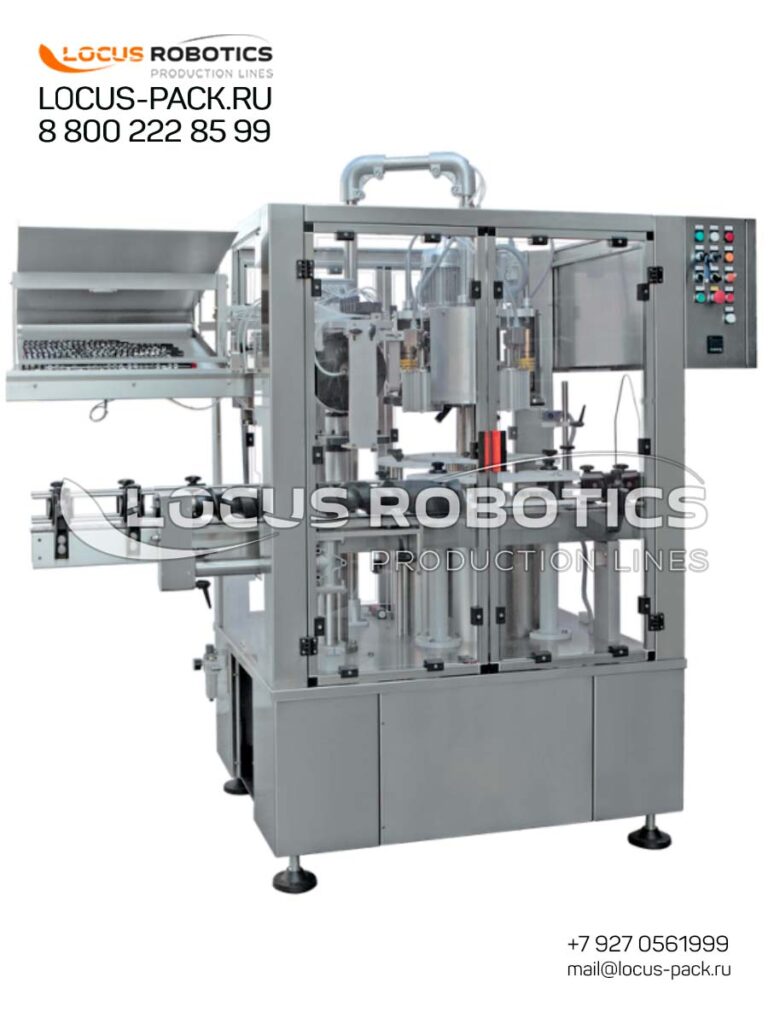

| Rotary Monoblocs | 2,500-5,000 bph | Direct coupling with fillers |
| Trimodule Systems | 5,000-10,000 bph | Full RFS (Rinse-Fill-Seal) integration |
| Sealing Method | Principle | Best For |
|---|---|---|
| Induction Sealing | Electromagnetic foil activation | Plastic containers, pharmaceuticals |
| Thermal Sealing | Conductive heat transfer | Glass jars, metal lids |
| Conduction Sealing | Direct-contact heating | Irregular surfaces |
Key Specifications:
Seal Strength: 5-20 N/cm peel resistance
Temperature Range: 100-350°C (adjustable)
Throughput: 20-220 CPM
Leak Integrity: <10⁻³ mbar·L/s
| Sector | Use Cases | Critical Features |
|---|---|---|
| Pharma | Vial sealing (lyophilized products) | ISO Class 5 cleanroom validation |
| Food & Beverage | Dairy, juices, sauces | EHEDG-compliant designs |
| Chemicals | Solvents, adhesives | Explosion-proof (ATEX) options |
| Cosmetics | Premium creams, serums | Micro-perforation for easy opening |
Benchtop LPCC-10:
1-2 stations
50ml-1L containers
50 CPM output
Floor LPCC-100:
Rotary 4-station table
Handles jars up to 5L
Integrated cap orientation

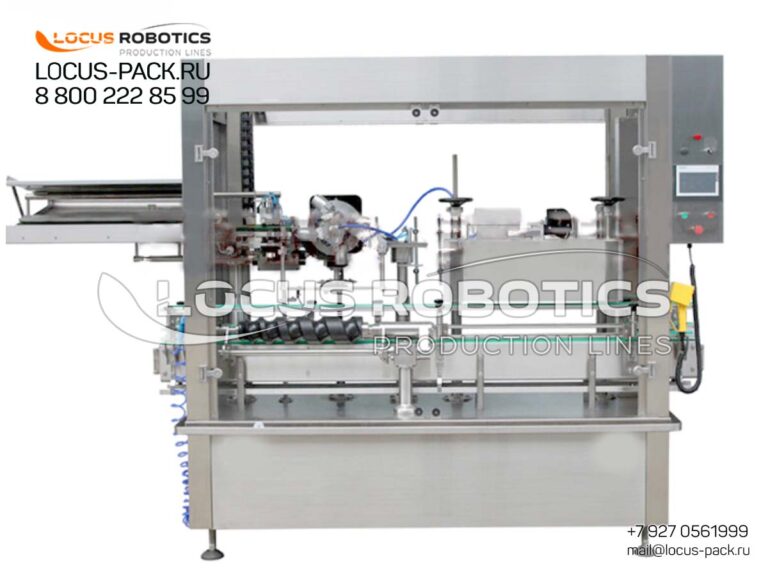

Linear CP-100:
Single-lane, 80 CPM
Inline with fillers
Multi-Lane CP-200:
4 simultaneous seals
200 CPM with vision inspection

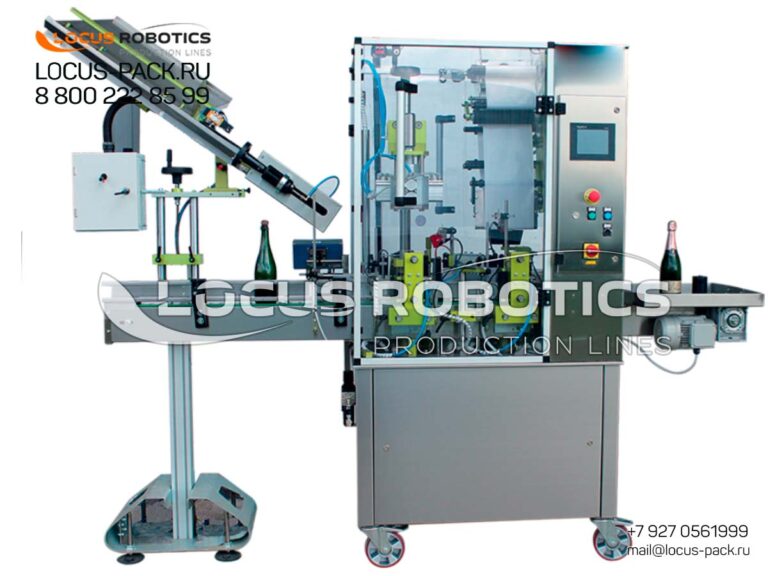

Complete Champagne/Cognac Line Example:
Bottle Rinser → 2. Filler → 3. Cork/Cap Sealer → 4. **Laminator Module** → 5. Excise Labeler → 6. Sleeve Packer
Key Components:
Integrated cap orientation elevators
Infrared thermal tunnels (80-150°C)
Vision systems for band positioning (±0.3mm)
We Provide & Integrate:
Excisemark Applicators: Tax stamp labeling systems
CIJ/Laser Coders: Bottle/base date coding
Track & Trace: GS1-compliant serialization
Flow Wrappers: Shrink bundling for multi-packs
Case Erectors/Sealers: Automatic box formation
Robotic Palletizers: End-of-line depalletizing
| Feature | LOCUS Advantage | Industry Standard |
|---|---|---|
| Seal Uniformity | ±5°C temp control | ±20°C |
| Container Compatibility | 5mm to 5L containers | 30ml-1L |
| Changeover Time | < 5 minutes (magnetic tooling) | 15-30 minutes |
| Tamper Evidence | Laser micro-perforation | Standard tear strips |
Our LPCC-100 achieves 92.40% seal integrity on lyophilized vaccine vials – validated for WHO-PQ certification.
Anti-Counterfeiting Features:
UV-marked foils
Holographic pattern alignment
Advanced Materials:
PCR-recycled laminates
Oxygen-scavenging layers
Aseptic Options:
Sterile foil feeding
Laminar flow hood integration

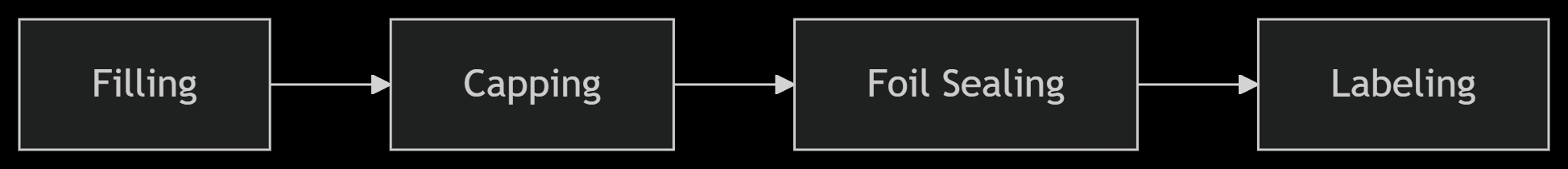

Typical Packaging Lines:
| Parameter | Craft Series | Industrial Series |
|---|---|---|
| Bottle Neck Ø Range | 10-45mm | 12-80mm |
| Band Height | 20-100mm | 15-150mm |
| Temperature Control | Manual | PID ±1°C |
| Power Requirements | 110V | 380V/50Hz |
| Compliance | CE | CE, ATEX, FDA 21 CFR |
| Feature | LOCUS Advantage |
|---|---|
| Closure Compatibility | Works over corks/screw caps/stopper seals |
| Speed Flexibility | 100-10,000 bph on same platform |
| Band Materials | PVC, PETG, OPS, recyclable alternatives |
| Changeover | <20 mins for bottle size change |
| Security Features | UV markings, holographic break-seals |
Recent Installations:
Armenian Brandy Producer: 3,800 bph rotary system with excise labeling
Italian Prosecco House: Thermal applicators for 130+ bottle shapes
Russian Premium Vodka: Full line with track-and-trace integration
Compatible With:
• FDA 21 CFR Part 211 • EU Annex 1 • ISO 15378 • GAMP 5 • HACCP
Full IQ/OQ protocols with temperature mapping reports
Material Testing Lab: 50+ laminate options validated
3D Bottle Scanning: Guaranteed fit for unique shapes
Throughput Warranty: ±3% of contracted speed
Global Service Network: Technicians in 15 spirits-producing regions
Custom Tooling: Free CAD design for unique caps
Performance Guarantee: Seal integrity ≥97.7%
Rapid Deployment: Stock systems ship in 72h
Our systems handle 88 bottle shapes — from Champagne magnums to craft gin flagons — without tooling changes.
