Monobloc Filling & Capping Machinery: Advantages Over Traditional Lines
Integrated Monobloc Machine for Filling & Capping.
Rotary Monobloc Filler-Capper.
Servo-Driven Precision Filler&Crimper Machinery.
High-Viscosity Liquid/Paste Monoblok.
Synchronized Packaging Efficiency
LOCUS ROBOTICS designs rotary monobloc machines that combine filling and capping operations in a single footprint — eliminating transfer conveyors and increasing throughput by 30% vs linear systems. Engineered for:
Pharmaceuticals (vials, bottles).
Food & Beverage (jars, PET bottles).
Chemicals (HDPE containers).
Cosmetics (tare, dispensers).
Our key Advantage: 45% smaller footprint than separate fillers/cappers with equivalent output.
Core Differences & Competitive Advantages
While traditional filling lines use separate conveyer-linked modules, Locus Robotics monoblocs integrate all operational components onto a single compact platform with a unified drive system. Key distinctions:
✅ Space Optimization: All actuators (filling nozzles, cap placers, capping heads) mount directly to a central rotary starwheel.
⚙️ Synchronized Motion: Modules operate in precise harmony with the starwheel’s rotation cycle.
🌐 Performance Benefits: Smother throughput adjustment, reduced mechanical complexity, and minimized footprint (ideal for facilities with space constraints).
| Model | Containers | Speed | Filling Tech | Capping Tech |
|---|---|---|---|---|
| LR-100 | Vials 5-100ml | 80-120 BPM | Peristaltic pump | Rotary chuck |
| LR-200 | Bottles 50-1000ml | 150-200 BPM | Piston filler | Servo spindle |
| LR-400 | Jars 100-5000ml | 300-400 BPM | Net weight | Magnetic torque |
Monobloc Configurations by Locus Robotics
We engineer versatile monobloc solutions including:

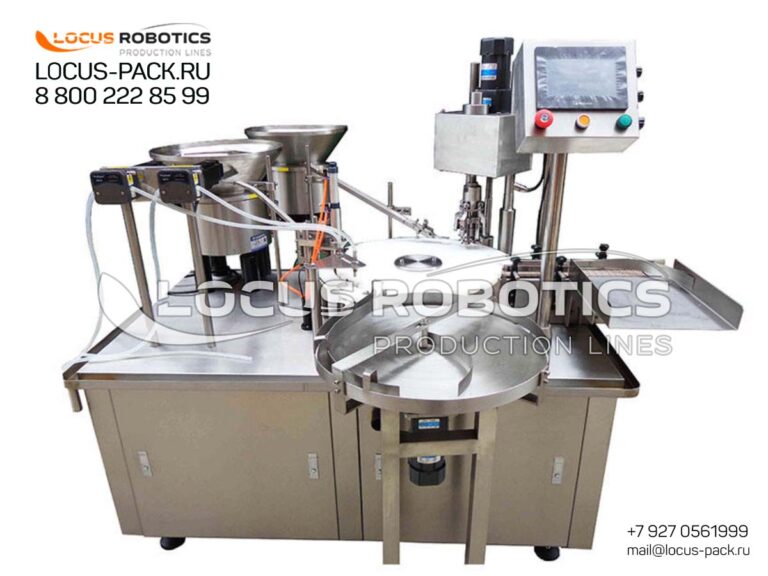

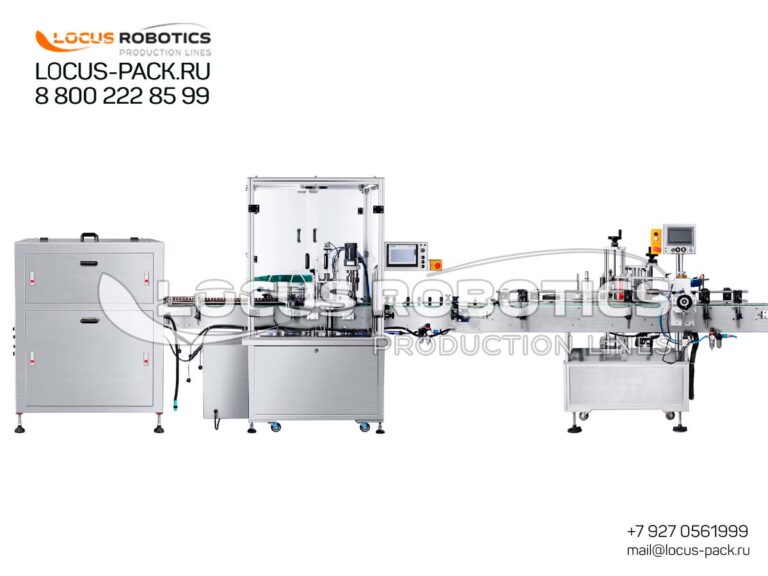

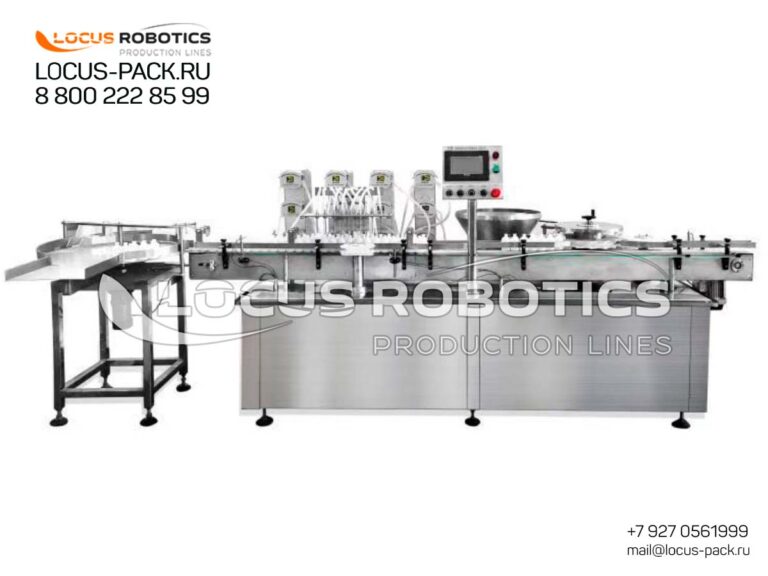

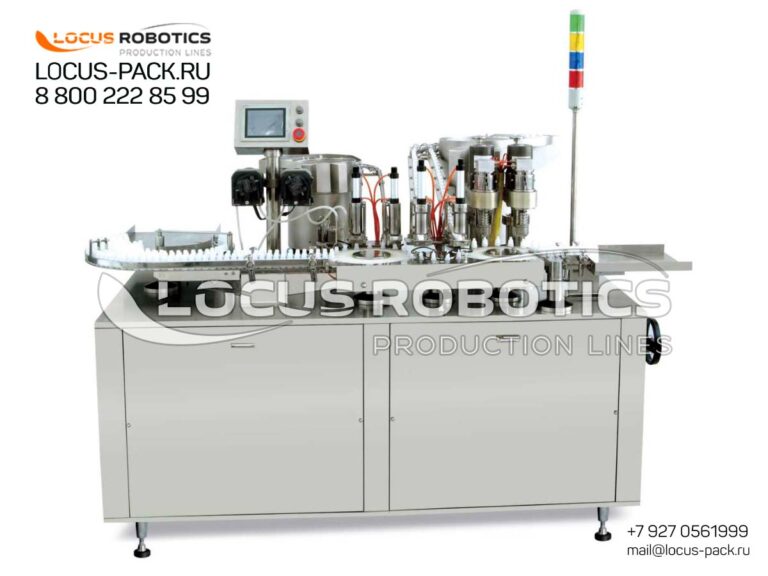

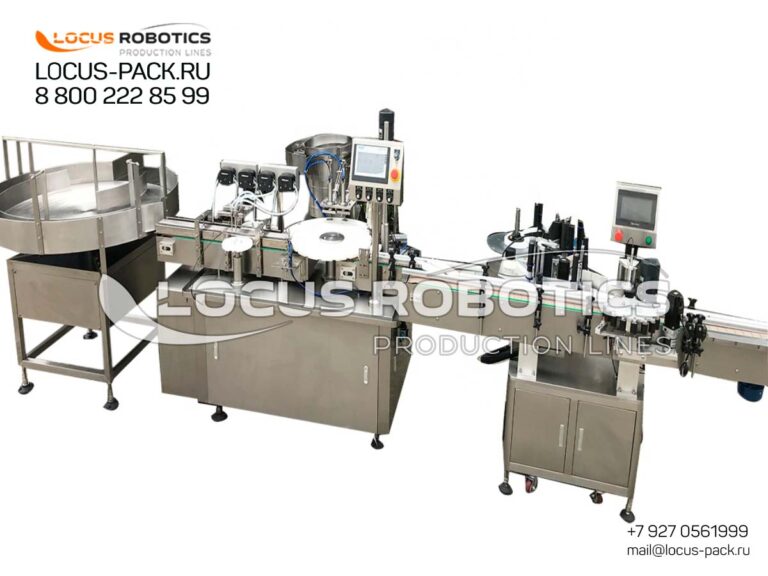

Peristaltic Pump Fillers: For shear-sensitive fluids (vaccines, serums).

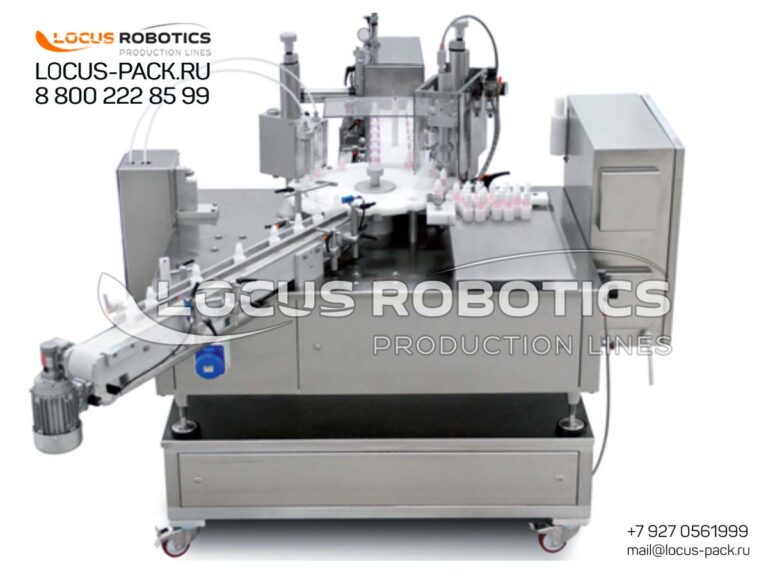

Piston Fillers: High-precision dosing for viscous products (creams, oils).
Benchtop Units: Compact semi-automatic models.
Rotary High-Speed Systems: For beverage/dairy applications (200+ BPM).
Optional Upgrades
Monoblocs can be enhanced with:
Infeed/outfeed accumulation tables
Integrated label applicators

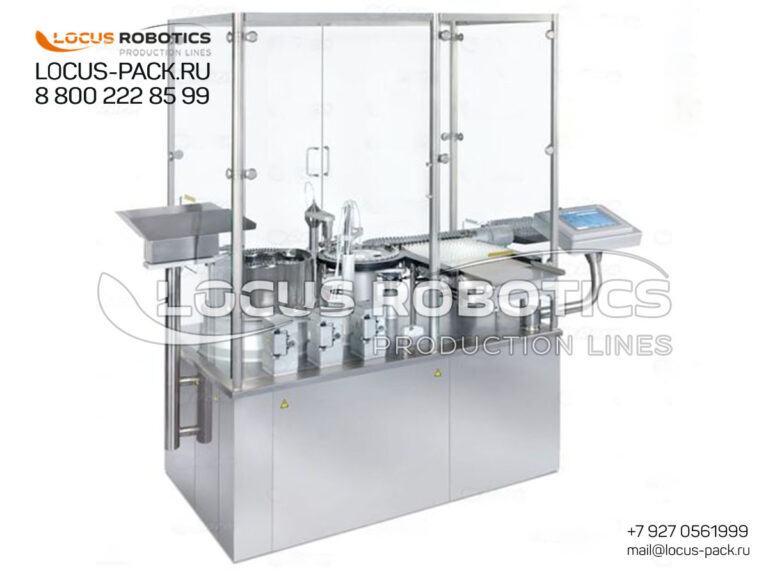

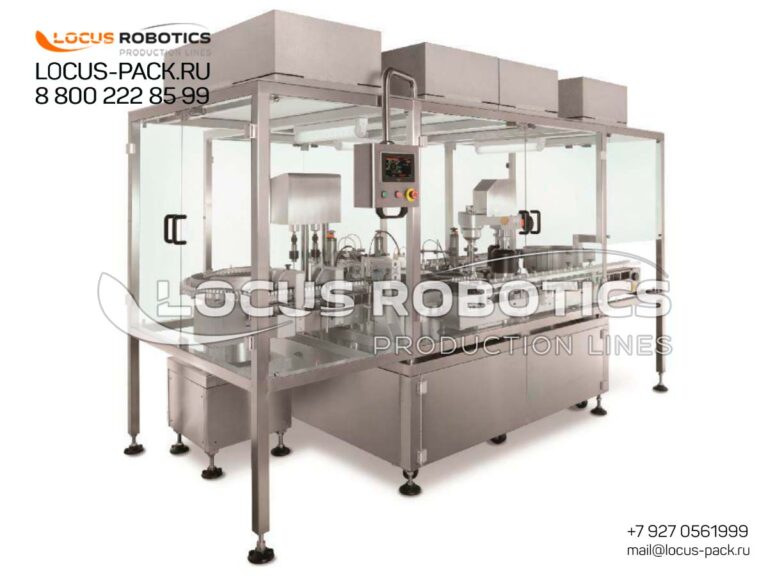

Laminar flow hoods (ISO Class 5 cleanrooms)
Cap orienters for ROPP/screw caps
Industry Applications
Locus monoblocs serve 12+ sectors globally:
Pharmaceuticals: Vial filling (cGMP compliant)
Veterinary: Vaccine bottling
Cosmetics: Tubes & dropper bottles
Food & Beverage: Still/sparkling drinks, dairy, spirits
Chemicals: Household, automotive, agrochemicals
Specialized: VAPE liquids, agricultural solutions
Precision Filling Modules
Liquid Options: Overflow, piston, peristaltic, gravity.
Powder Options: Auger, cup, net weight.
Accuracy: ±0.5% (liquids), ±1% (powders).
Sanitary Design: EHEDG-certified, CIP/SIP ready.
Intelligent Capping Heads
| Closure Type | Technology | Torque Accuracy |
|---|---|---|
| Screw Caps | Servo spindle | ±0.1 Nm |
| Press-On Lids | Pneumatic press | 20-150 kgf |
| Snap Caps | Linear cam | Force-controlled |
| ROPP | Rotary chuck | ±3% sealing integrity |
| Industry | Special Features | Compliance |
|---|---|---|
| Pharma | Isolator compatibility, vial nest handling | GMP Annex 1, FDA 21 CFR |
| Food | Product-lubricated seals, drainable design | USDA, EHEDG |
| Chemicals | EX-proof components, vapor extraction | ATEX Zone 1/21 |
| Cosmetics | Glove-friendly HMI, cosmetic-grade steels | ISO 22716 |
| Parameter | Industry Standard | LOCUS MB Series |
|---|---|---|
| Changeover | 45-90 min | <15 min (tool-less) |
| Yield Loss | 2-5% | <0.8% (patented dribble control) |
| Energy Use | 25 kW | 18 kW (regenerative drives) |
| OEE | 70-75% | 90%+ (IoT predictive maintenance) |
| Southeast Asia | 60Hz power support, humidity-resistant panels, local service in Vietnam/Indonesia |
| Africa | Dust-proof IP66 rating, voltage stabilizers (180V-264V), spare parts Lagos/Johannesburg |
| Latin America | Spanish/Portuguese UI, corrosion-resistant 304L-316L steel, CE/FDA certifications |
| Eastern Europe | GOST-R compliance, -20°C to 45°C operation, EU technical documentation |
— Vials (2-500ml) | Bottles (50ml-5L) | Tare (100-5000ml) | Jerrycans (5-20L).
— Caps: Screw, ROPP, Snap-on, Flip-top.
| Parameter | Range |
| Container Height | 50-350 mm |
| Cap Size | 10-120 mm |
| Power | 15-40 kW (400V) |
| Air Consumption | 600 L/min @ 6 bar |
| Format Parts | Tool-free <5 min |
| Data Integrity | 21 CFR Part 11 |
Upstream/Downstream Compatibility
Upstream:
Rotary rinsers
Vision inspection systems
Downstream:
Labelers (roll-fed/sleeve)
Checkweighers
Control:
OPC-UA integration
MES connectivity
Complete Line Solutions
Basic: Monobloc + conveyor
Intermediate: + Labeling/checkweighing
Turnkey: Full blister-to-carton line
| Benefit | Value |
|---|---|
| Labor Reduction | 2 operators → 0.5 operator |
| Changeover Loss | 90 min → 15 min (88% less) |
| Maintenance | $9k/year → $3k/year |
| Space Savings | 45% smaller footprint |
| Voltage stabilizers for African grids | Tropicalized electronics for SEA humidity | Spanish/Portuguese HMI for Latin America |
🌐 Request Compliance Audit: Free gap analysis with throughput simulation.
Ready to optimize your dosing process?
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Free line configuration for your products, throughput validation testing!
Contact Specialists for Packaging Equipment:
Compliance Roadmap:
