Description

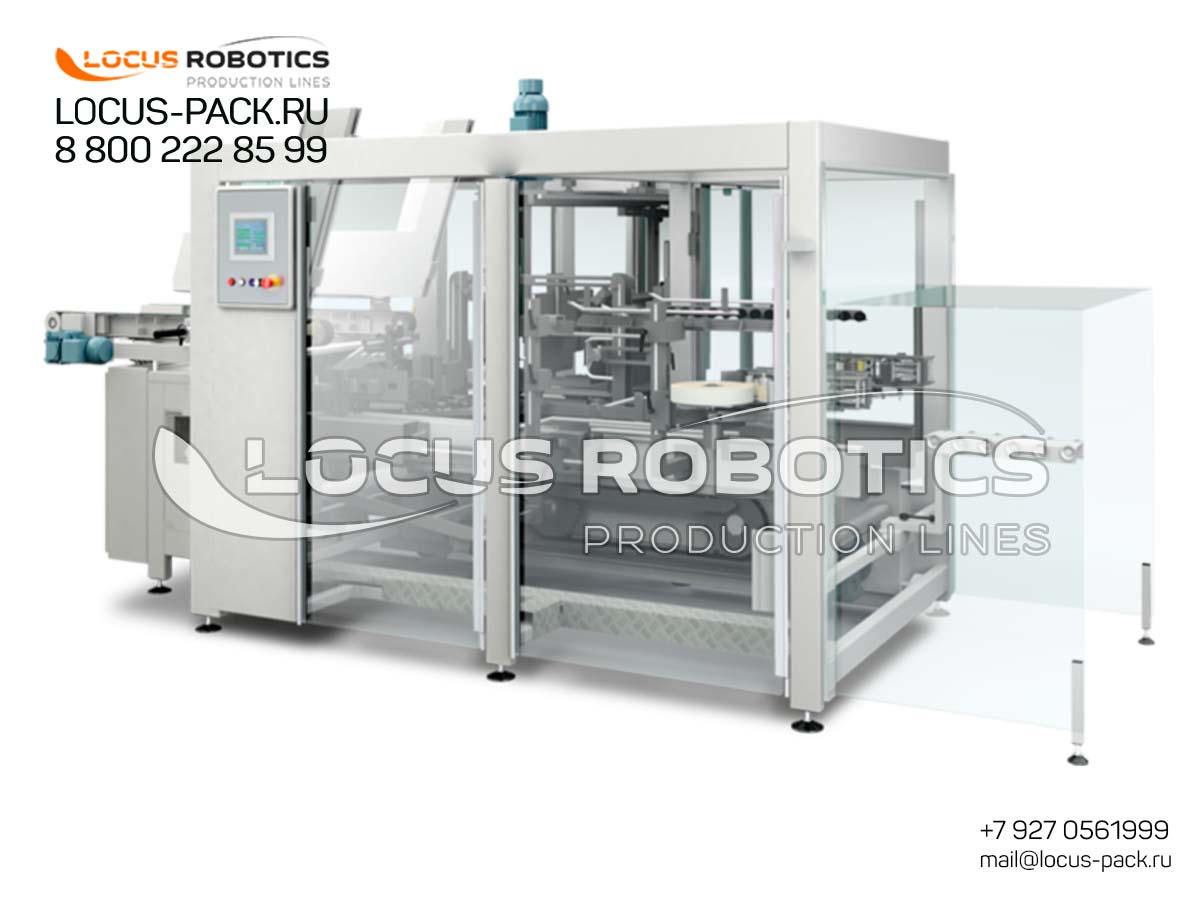

Automatic Linear Case Erector with Side Sealing Function (LSSC-100)
LSSC-100 side-sealing fruit export boxes.
Vertical tape application on corrugated seam.
HMI with box size presets for e-commerce.
Key Innovations
-
Dual-Side Sealing: Applies 48-72mm tape or hot-melt adhesive to vertical seams (12kg/cm² pressure), replacing manual labor.
-
Intelligent Format Change: Adjust box dimensions (L: 150-600mm × W: 100-400mm × H: 80-400mm) in <5 mins via touchscreen.
-
Material Versatility: Handles B/C/E-flute corrugated (200-600 GSM), wax-coated boxes, and pharma-grade cardboard.
-
Tropical Resilience: Operates at 90% humidity/50°C (critical for SEA/Africa) with anti-jam sensors.
Performance Specifications
| Parameter | Value |
|---|---|
| Throughput | 15-45 boxes/min (1,200-2,400/hr) |
| Box Dimensions | 150-600mm (L) × 100-400mm (W) × 80-400mm (H) |
| Sealing Method | Pressure-sensitive tape or EVA hot-melt adhesive |
| Power | 4.2 kW (220V/380V) |
| Air Consumption | 150 L/min @ 0.6 MPa |
Industry Applications
-
Food Export: Seals produce boxes with ventilation slots (tomatoes, berries); withstands condensation .
-
Pharma: Sterile side-sealing for kit packaging (GMP-compliant, ISO Class 8 compatibility) .
-
E-commerce: Automated integration with fulfillment lines via Ethernet/IP PLC .
Operational Workflow
-

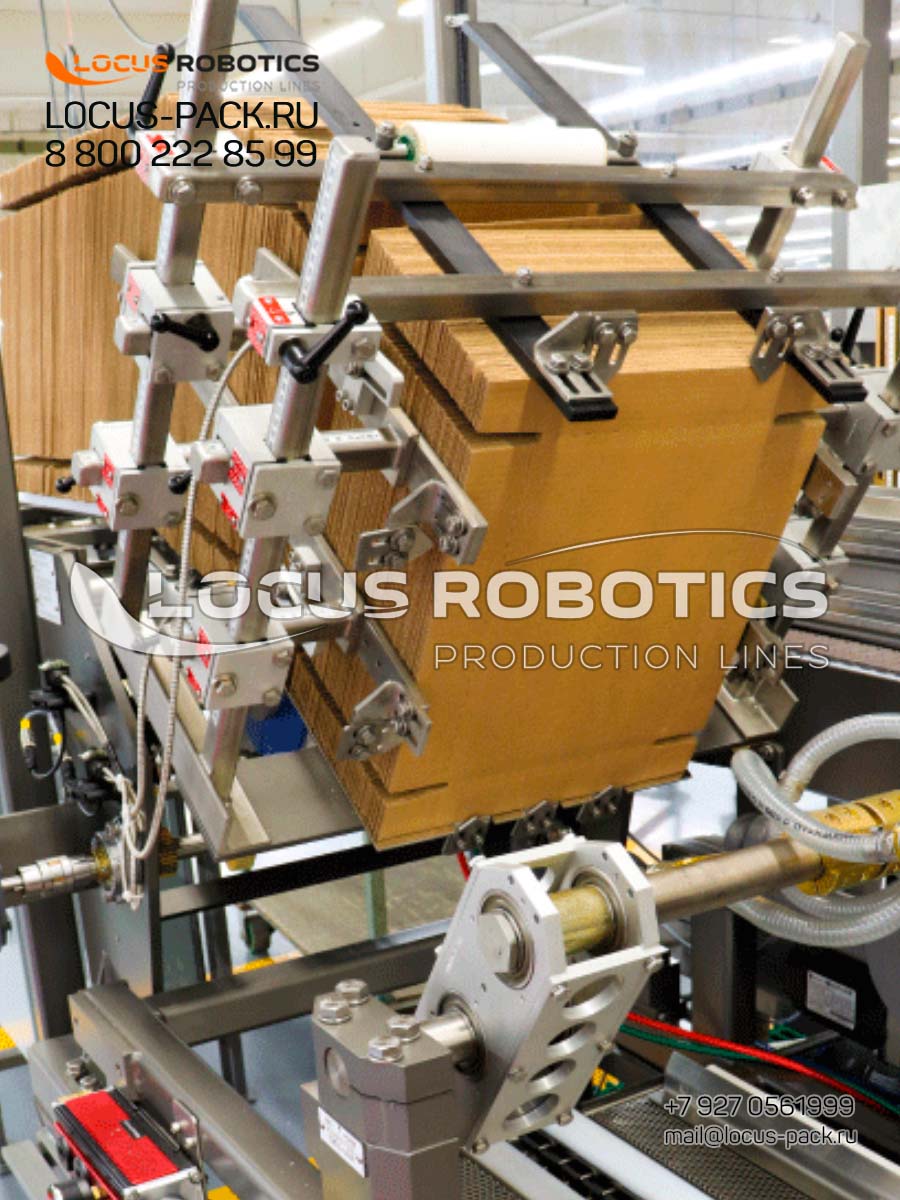

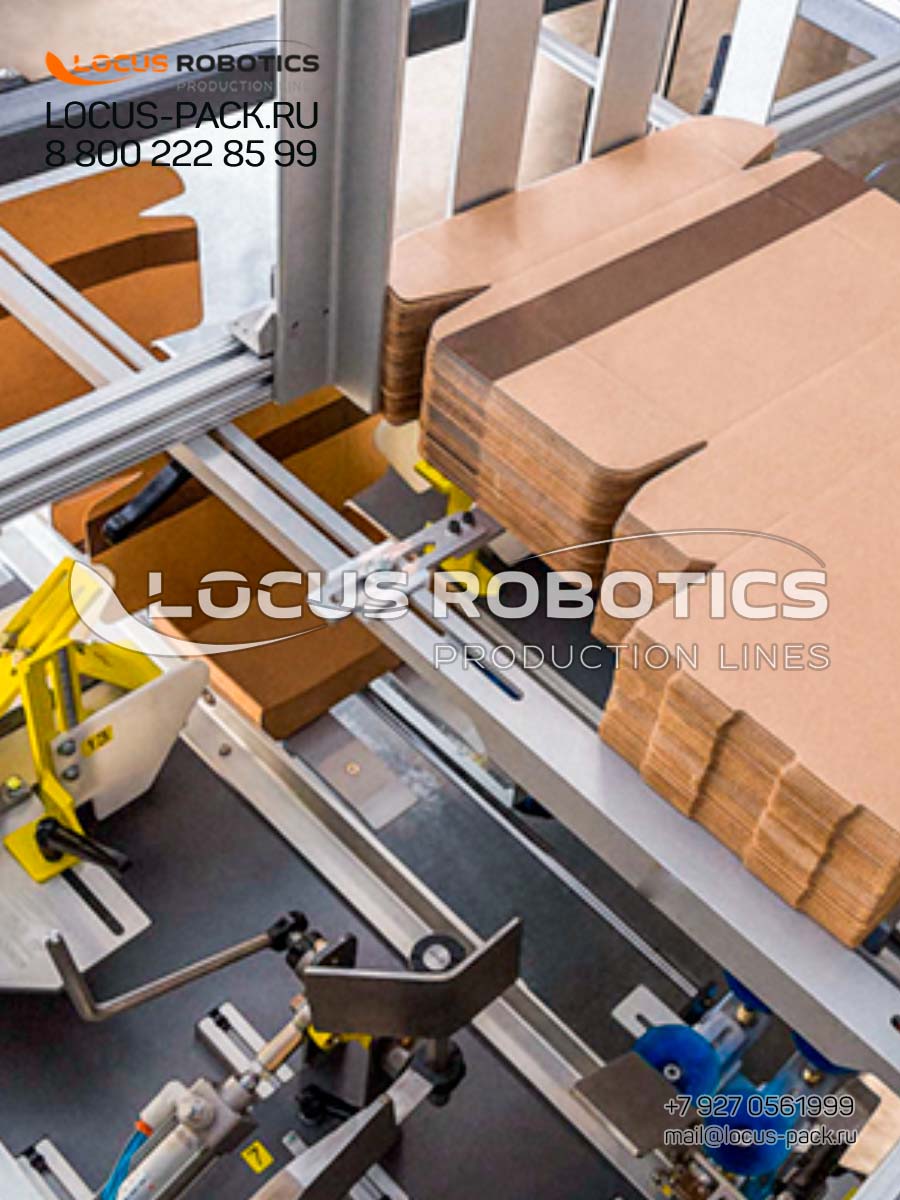

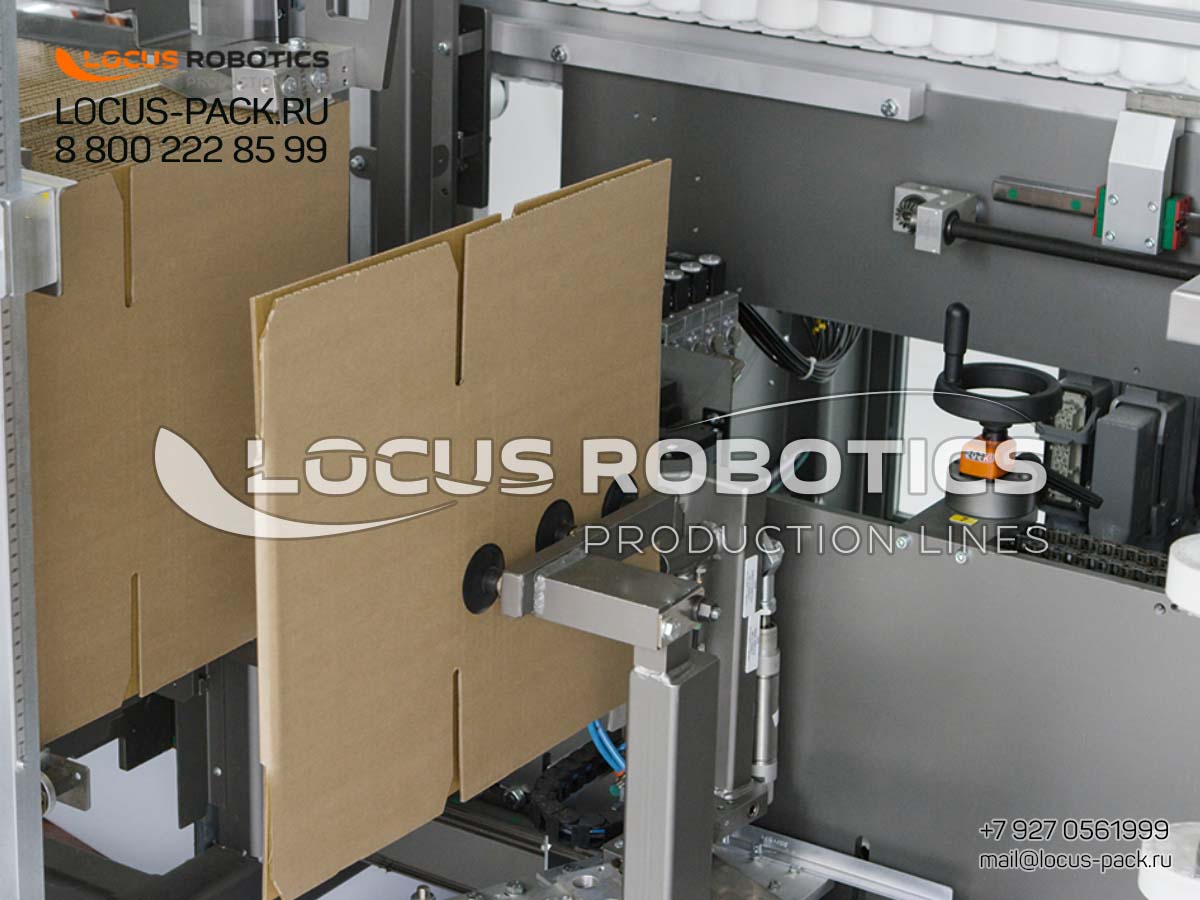

Blank Feeding: Vacuum suction picks corrugated sheets.
-

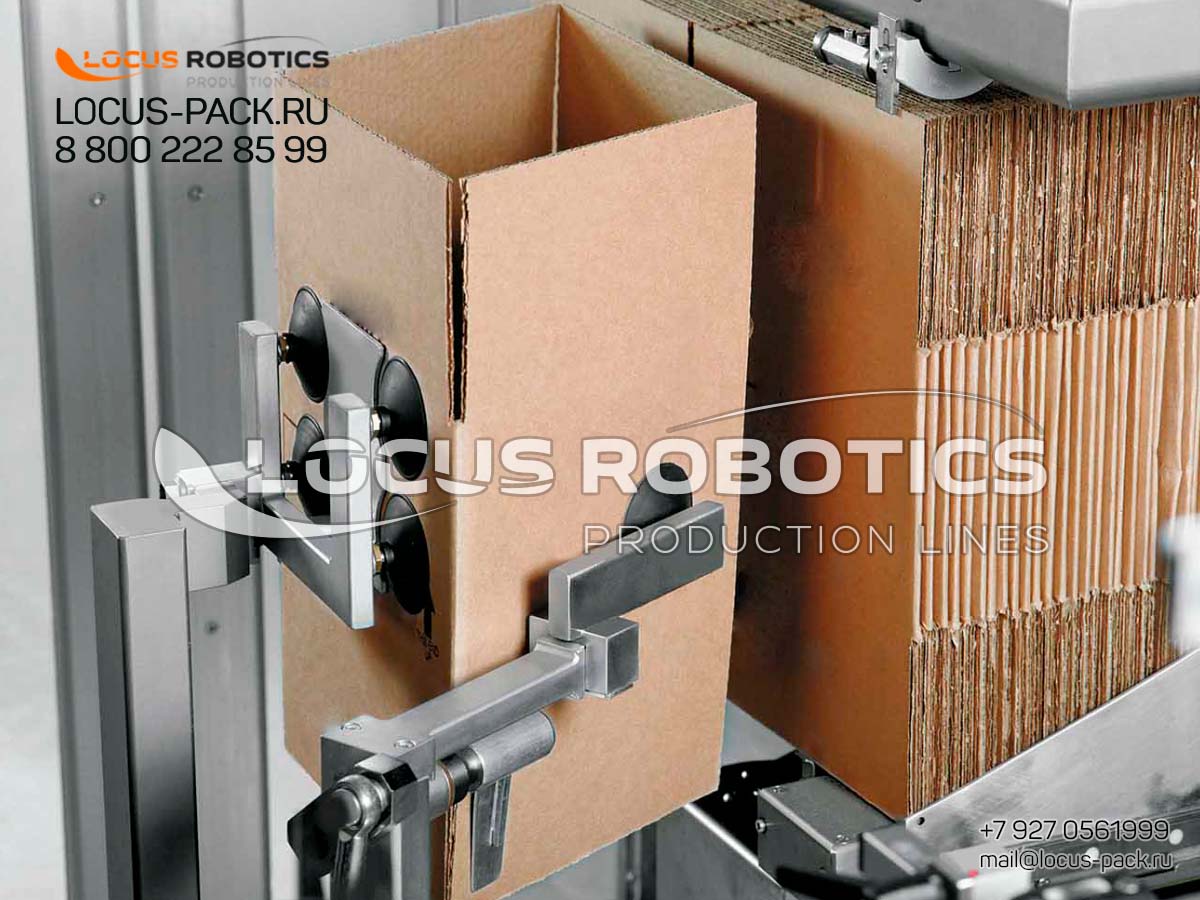

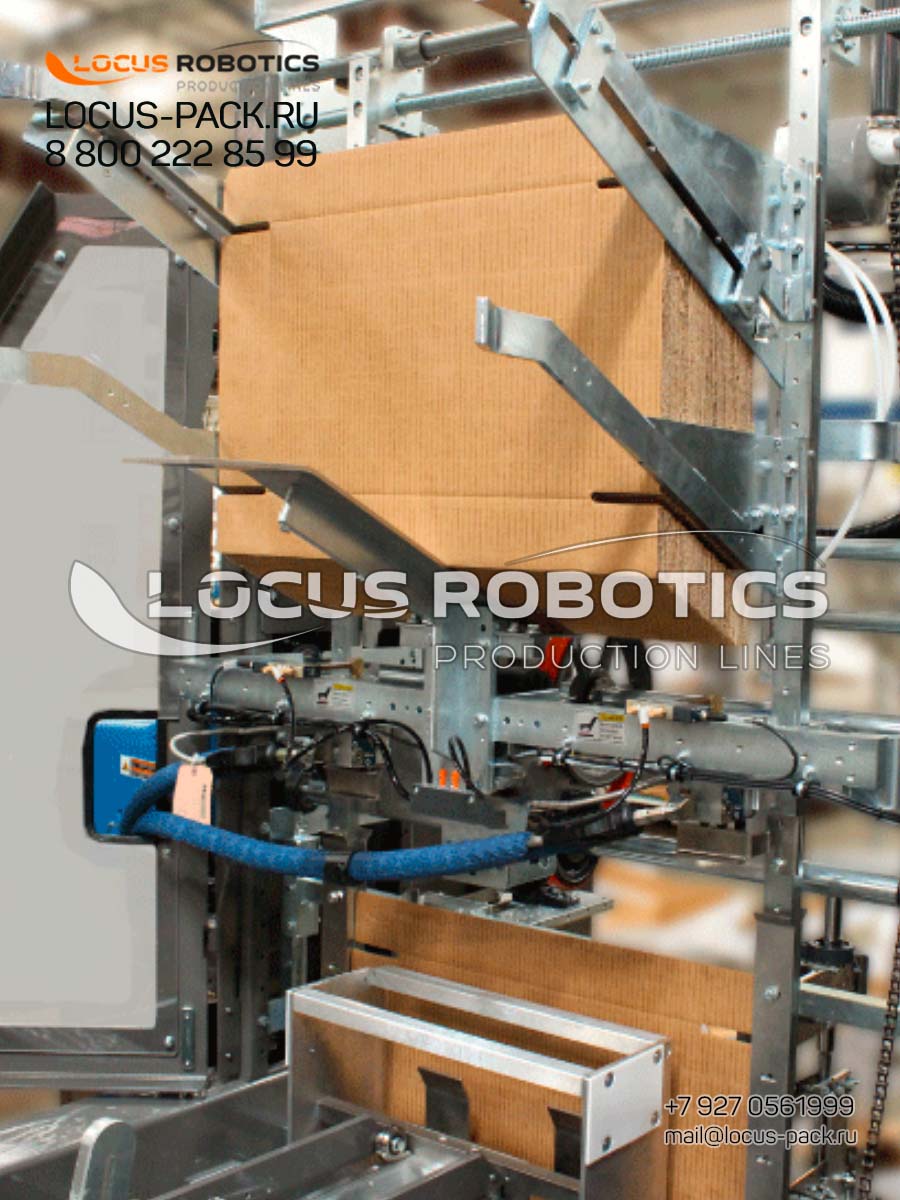

Box Formation: Rotary arms fold + crease cartons.
-
Side Sealing: Dual applicators seal vertical seams.
-

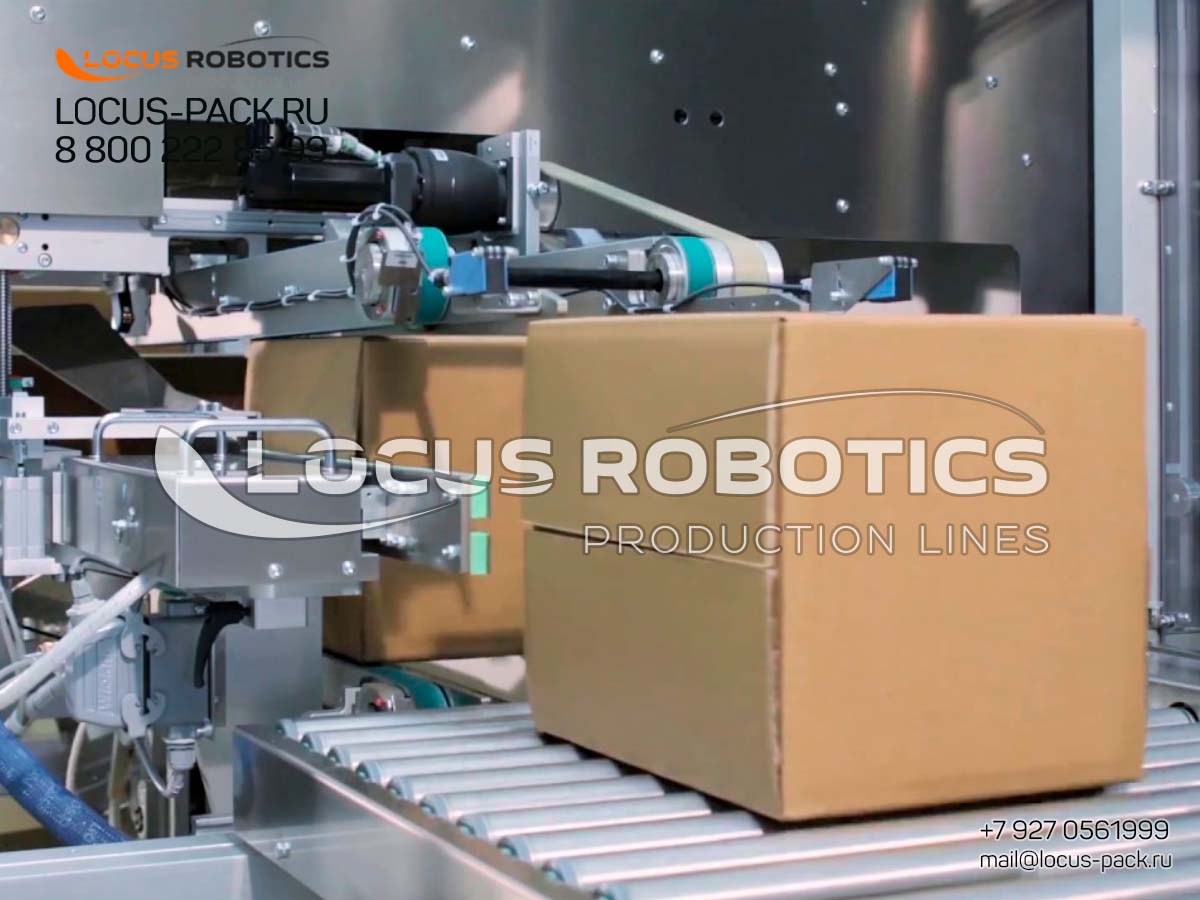

Output: Conveyed to filling/packing station.
Change tape rolls in <90 sec | 1 operator capacity
Competitive Advantages
-
Zero Leakage: Ultrasonic seam inspection ensures 99.2% seal integrity (validated for liquid transport).
-
Energy Efficient: 30% lower power vs. competitors (regenerative drives recover braking energy).
-
Sanitary Design: 316L stainless steel contact points, IP65 rating for washdown.
-
Plug-and-Play: Pre-configured profiles for Amazon FBA, IKEA, and Euro Pool Systems.
Regional Optimization
-
Middle East/Africa: Dust-proof servos and 50°C thermal stability.
-
SEA/Latin America: 220V/50Hz support + multi-language interface (EN/ES/PT).
-
Eastern Europe: GOST 7376-89 compliant; local service hubs in Poland/Romania.
Compliance & Certifications
-
Safety: CE, ISO 13849-1 (PLd).
-
Materials: FDA 21 CFR 177.1520 (food contact), REACH.
-
Design Standards: FEFCO 0201, ECMA Code 50, ISTA 3E.
