Gravity-Fill Monobloc Systems: Simplicity Meets Versatility
Gravity fill capping monoblocks low viscosity bottling systems.
Carousel gravity monobloc labeling integration.
Pumpless Gravity Filling Principle
For cost-effective bottling of low-viscosity products
How It Works:
graph TD
A[Elevated Product Tank] --> B[Pressure-Regulated Flow]
B --> C[Fill Valves with Vacuum Break]
C --> D[Container-Level Sensing]
D --> E[±1% Volume Accuracy]
Pneumatic Gravity Filling: Engineered Simplicity
For problem-free handling of particulate-laden liquids
Key Benefits vs. Complex Systems:
graph LR
A[Shear-Sensitive Products] —> B[Gravity-Fill]
C[Particulate-Laden Liquids] —> B
D[Quick Changeover Needs] —> B
E[Easy CIP Cleaning] —> B
Operational Superiority:
| Feature | Gravity System | Peristaltic/Piston |
|---|---|---|
| Cleaning Time | 10-25 min | 50-60 min |
| Particulate Handling | ✅ Unlimited size | ❌ Clogging risk |
| Maintenance Cost | $120/year | $2,700/year |
| Changeover | <15 min | 30-50 min |
Ideal For Viscosities: 1-200 cP (water, solvents, light oils)
Key Advantages:
Zero Shear Stress: Preserves delicate carbonation/emulsions
Low Maintenance: No pumps or moving parts in product path
Explosion-Safe: ATEX option for solvents (no ignition risk)
Carbonation-preserving filling for sparkling waters & sodas:
Vacuum break technology prevents foaming
CO₂ recovery option available
Integrated deionized water rinse station
ATEX Category 1 Zone 1 certification (explosive solvents)
Conductive grounding system (<10⁶ Ω resistance)
Vapor extraction ports
Spill containment tray
SIP/CIP-ready with 3D coverage verification
Material certificates (EN 10204 3.1)
FDA 21 CFR Part 11 data logging
Change parts storage with RFID tracking
Technical Specifications
| Parameter | Specifications |
| Nozzle Count | 2-12 (modular expansion) |
| Tank Capacity | 30L, 100L, 200L, 300L |
| Viscosity Range | 1-500 cP (water to thick syrups) |
| Particle Size | Up to 5mm diameter |
| Capping Heads | 1-4 (linear), 8 (rotary) |
| Accuracy | ±1% (time-based dosing) |
| Materials | 304L/316L SS, food-grade plastics |
| Parameter | Standard | GMP/ATEX Version |
| Throughput | 3,000-12,000 BPH | 3,000-8,000 BPH |
| Accuracy | ±1% | ±0.7% |
| Tank Capacity | 200L standard | 316L SS electropolished |
| Valve Types | 8-24 gravity valves | Sanitary Tri-Clamp valves |
| Changeover | 15 min | 25 min (CIP cycle) |
Industry-Specific Configurations
Cosmetics
— Products: Scrubs, suspensions, glitter products
— Capping: Flip-top closures, spray triggers
— Special Feature: Transparent product path for visual QC
| Industry | Liquid Types | Capping Solution |
| Beverages | Water, juices, light sodas | Screw caps (28-33mm) |
| Chemicals | Solvents, thinners, detergents | Child-safe closures |
| Cosmetics | Toners, micellar water | Flip-top caps |
| Pharma | Irrigation solutions, buffers | Tamper-evident seals |
| Veterinary | Topical solutions, antiseptics | Spray triggers |
Food Industry
— Products: Dressings, pulpy juices, seed oils
— Capping: Tamper-evident ROPP caps
— Certification: NSF, EHEDG, 3-A compliant
Chemical Sector
— Products: Abrasive cleaners, horticultural solutions
— Capping: Child-resistant closures
— Safety: ATEX option available
Capping Technology Matrix
| Cap Type | Tooling Head | Torque Control |
| Plastic Screw Caps | Spindle Chucks | 0.5-6 Nm |
| Aluminum ROPP | 3-Roller System | Tamper-evident band |
| Crimp Caps | Multi-Lobe Chucks | Hermetic seal |
| Corks | Pneumatic Insertion | Compression depth |
| Snap-On Caps | Vertical Press | Audible click sensor |
Integrated Labeling Solutions
graph TB
A[Labeling Options] —> B[Full-Body Sleeve]
A —> C[Front/Back Labels]
A —> D[Cap Seals]
A —> E[Bottom Labels]
B —> F[Steam Tunnel]
B —> G[Thermal Shrink]
C —> H[Wipe-On Applicator]
C —> I[Air-Blow System]
Competitive Advantages
| Feature | LOCUS Gravity-Fill | Pump Systems | Benefit |
| Product Integrity | Zero shear stress | High shear | Preserves carbonation/emulsions |
| Maintenance Cost | $0.02/1k bottles | $0.15/1k bottles | 85% savings |
| Contamination Risk | No seals/pistons | Multiple wear parts | Reduced microbial risk |
| Energy Use | 0.8 kW | 5.2+ kW | 85% less power |
Workflow Integration

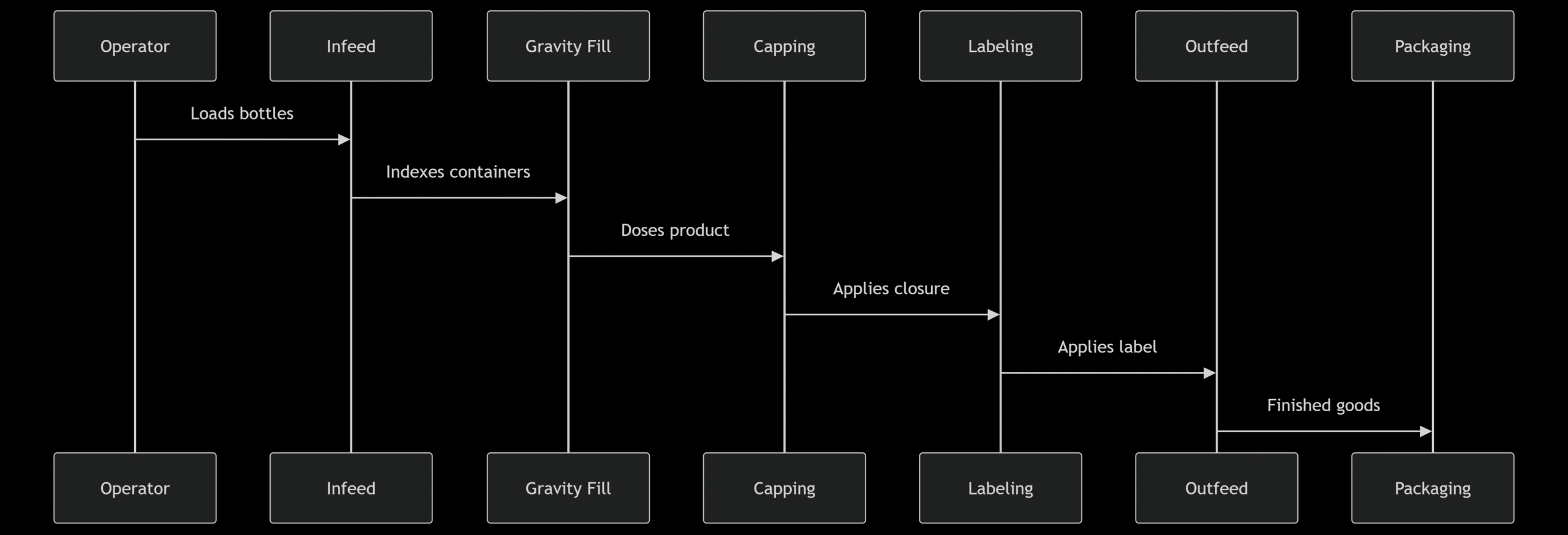

sequence Diagram
Bottle Infeed->>Starwheel: Bottle indexing
Starwheel->>Gravity Valves: Container elevation
Gravity Valves->>Starwheel: Fill completion
Starwheel->>Capping: Screw cap application
Capping->>Labeling: Wrap-around labeling
Labeling->>Outfeed: Packing
Unlike piston/peristaltic systems that jam with seeds or glitter, our gravity-fill technology handles particles up to 5mm diameter — perfect for cosmetic scrubs and fruit pulp beverages.
Tool-free nozzle swaps in <7 minutes
Single-point height adjustment
«One-Touch» recipe recall on HMI
CIP cycles under 25 minutes
Vibratory cap orienters (70-130 caps/min)
Bottle accumulators (15m buffer capacity)
Vision inspection systems
Track & trace aggregation
+ Seamless Add-Ons:
- Inline Carbonation: For sparkling beverages
- Nitrogen Purging: Oxygen scavenging system
- Vision Inspection: Fill level/cap alignment
- Track & Trace: Aggregation coding
| Feature | Gravity Monobloc | Competitor Systems |
|---|---|---|
| Cleaning | Full visibility path | Hidden cavities |
| Downtime | <2% (no wear parts) | 6-9% (seal failures) |
| Energy Use | 0.8 kW | 3.5-5.2 kW |
| Footprint | 2.5m² (8-nozzle) | 4.5m² equivalent |
| Application | ROI Case Study |
|---|---|
| Drinking Water | 12-month payback at 6K BPH vs manual filling |
| Paint Thinners | ATEX version reduced insurance premiums by 35% |
| Pharma Buffers | GMP compliance cut validation time by 55% |
Gravity fill valve particulate flow.
Easy clean gravity system cosmetics.
Gravity monobloc labeling integration food.
Gravity fill valves vacuum break beverage.
Explosion proof solvent filling system.
🌐 Request Compliance Audit: Free gap analysis with throughput simulation.
Ready to optimize your dosing process?
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Free line configuration for your products, throughput validation testing!
Contact Specialists for Packaging Equipment:
Compliance Roadmap:
