Multi-Head Piston Dispensers: Precision Filling for Viscous Products

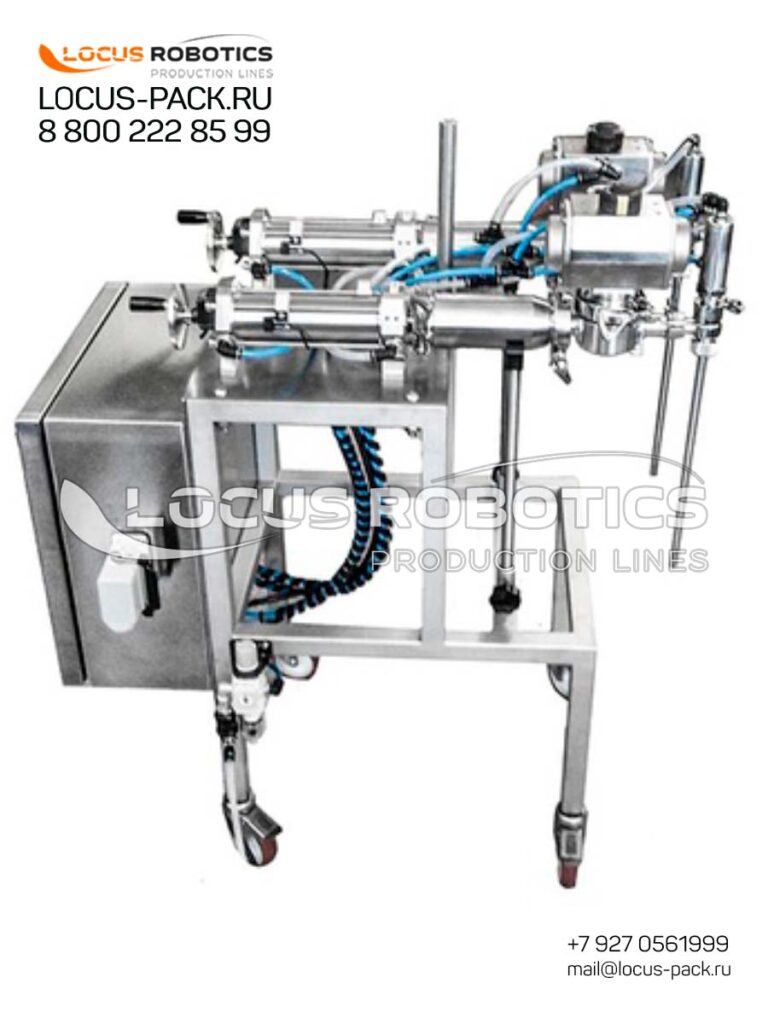

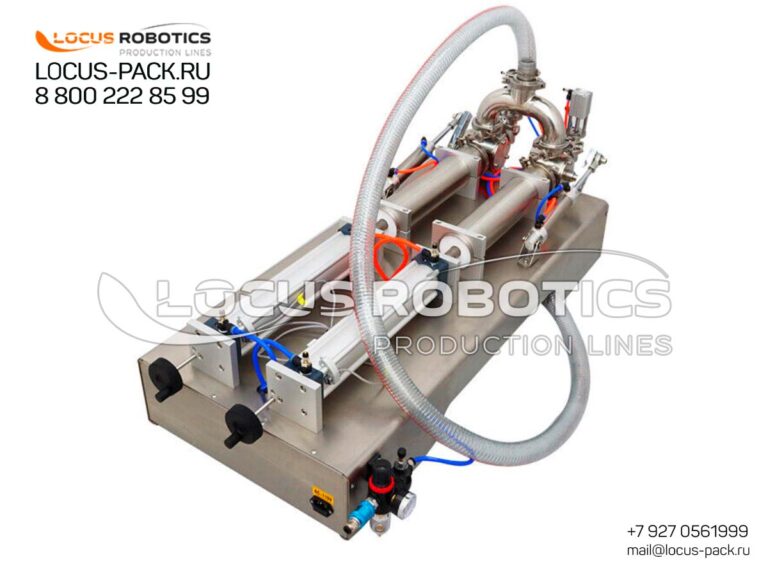

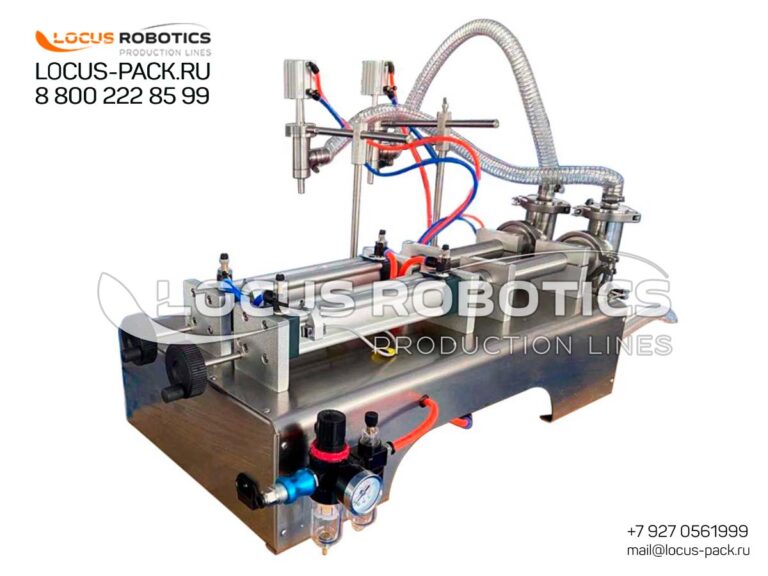

Multi-head piston dispensers feature two or more piston cylinders, with each cylinder operating an independent dosing nozzle. Benchtop configurations typically include 2, 4, or 8 dosing units, with dual-nozzle semi-automatic dispensers being the most popular due to their operational efficiency and 2X productivity versus single-head models.
LOCUS PACKAGING supplies semi-automatic, multi-station piston dispensers for high-accuracy filling of viscous products. Ideal for laboratories and production lines handling creams, adhesives, food pastes, or pharmaceutical gels.
Key Features:

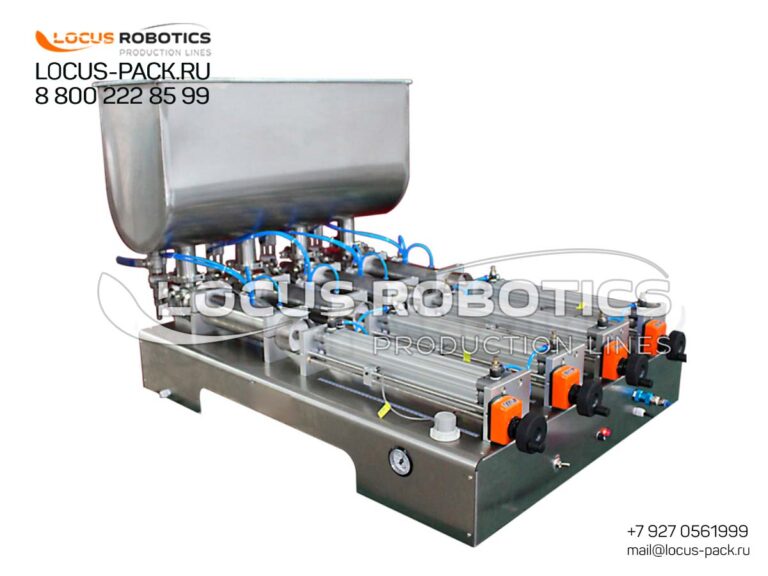

Modular Design: Configure with 2–16 dosing heads for batch processing.
Viscosity Range: Handles products up to 1,000,000 cP (e.g., silicone sealants, peanut butter).
Accuracy: ±0.5% deviation with ceramic/piston cylinders.
Quick-Change Kits: Swap containers in <3 mins (tubes, bottles, cartridges).
Cosmetics: Filling lip gloss, creams, serums, and hair gels.
Pharma: Dispensing ointments & sterile gels.
Food: Portioning sauces, peanut butter, dressings, batter, batters, and fillings.
Chemicals: Packaging sealants, lubricants, adhesives, and acids (including Class I Div. 1).
Industrial: Sealants, lubricants, resin compounds
Technical Highlights:
Materials: SS304/316L, PTFE, ceramic wetted parts.
Dose Range: 0.5ml to 5L per cycle.
Compliance: FDA 21 CFR 117 (food), ISO 9001.

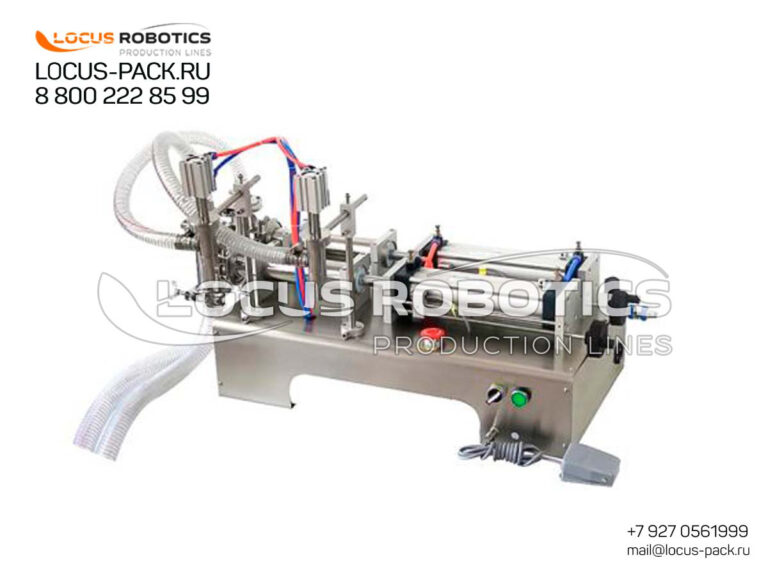

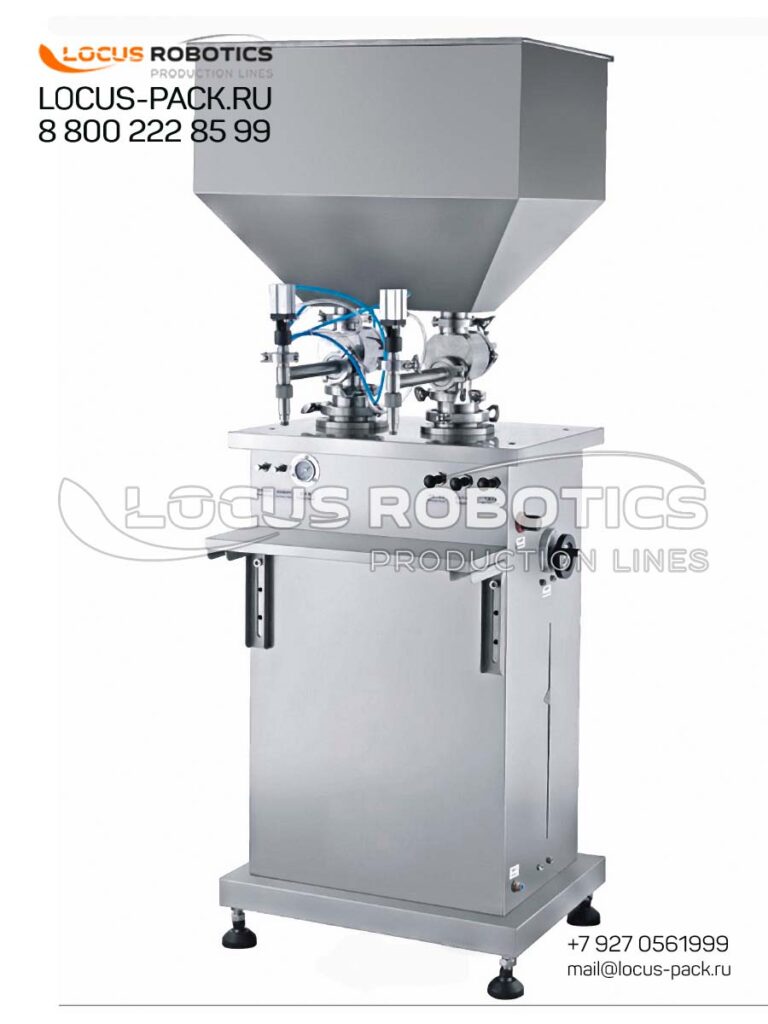

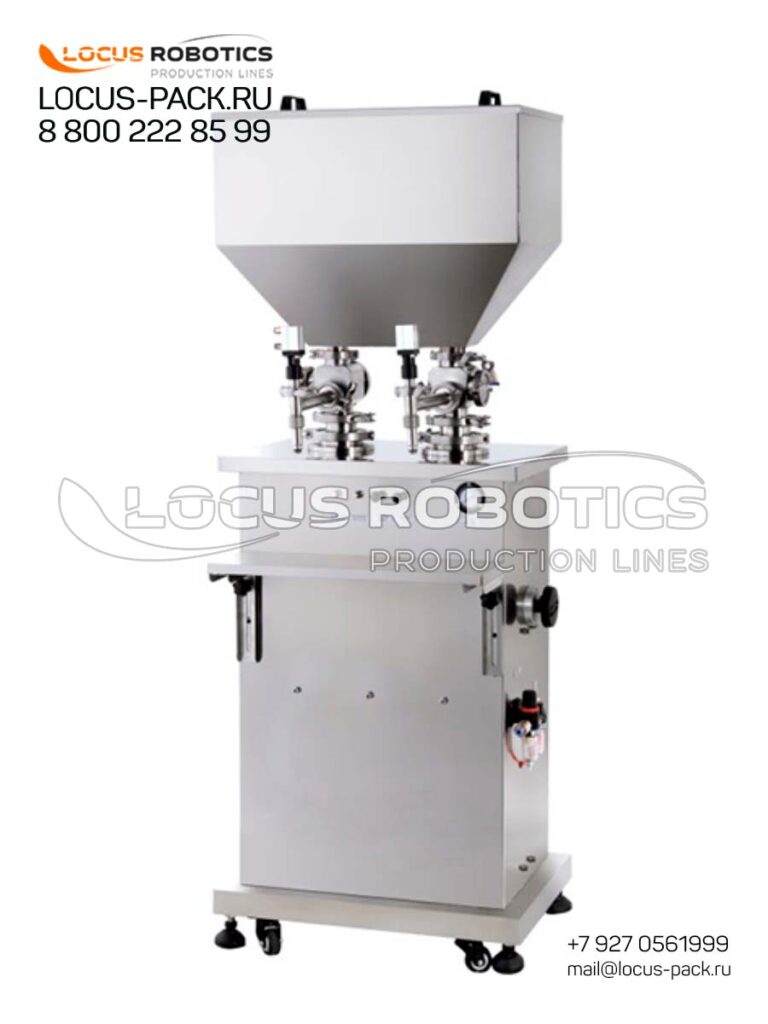

Simultaneous Dual-Container Filling: Operators dose into two containers with one foot-pedal activation
Independent Calibration: Different volumes per cylinder (e.g., 50ml + 100ml) for mixed-container filling
Orientation Flexibility: Vertical or horizontal piston alignment
| Volume Range | Applications |
|---|---|
| 30–300 ml | Cosmetics, pharmaceuticals |
| 50–500 ml | Food sauces, adhesives |
| 100–1000 ml | Industrial chemicals, lubricants |
| 300–3000 ml | Sealants, construction compounds |
| 50–5000 ml | Bulk packaging (drums/IBCs) |

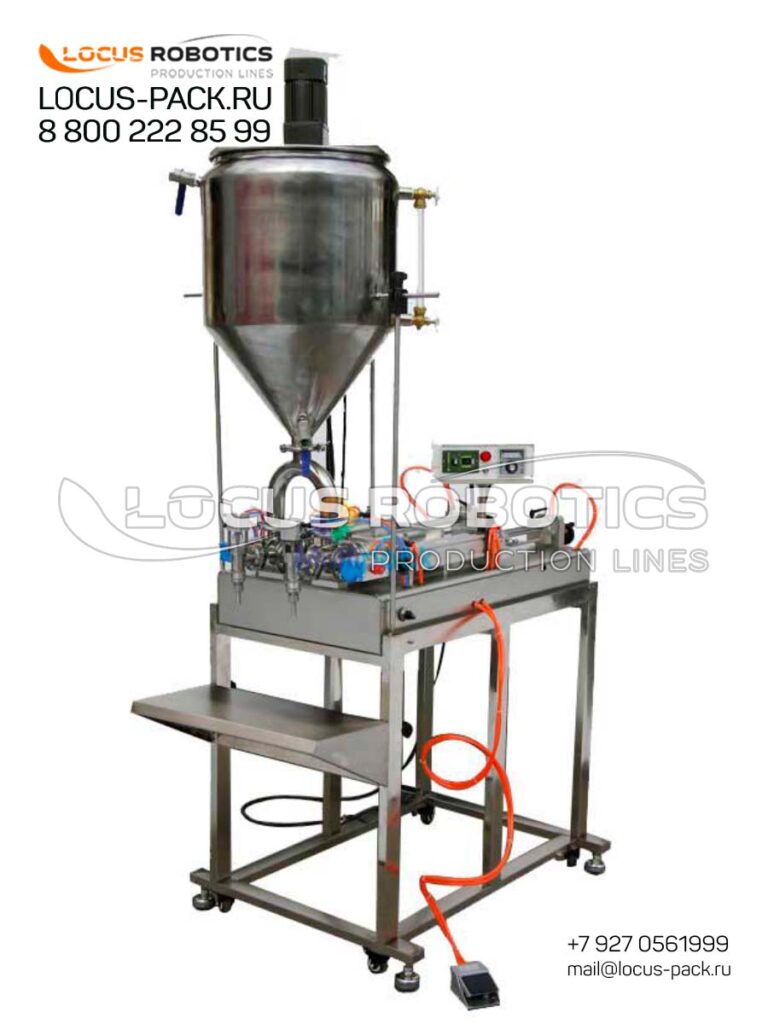

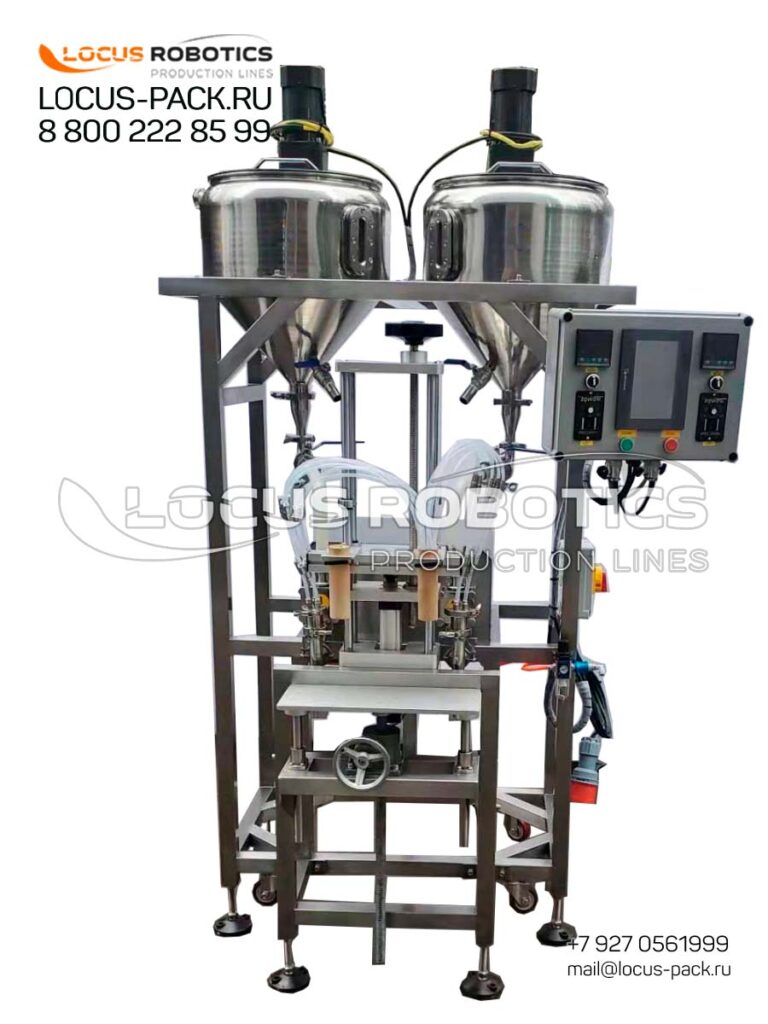

Thermal/water-heated jackets for temperature-sensitive products
Integrated agitators (anchor, helical, or magnetic types)
Zero-residual «drip-free» nozzles
ATEX/EX-certified explosion-proofing for volatile solvents
| Feature | Piston Dispensers | Peristaltic | Gravimetric |
|---|---|---|---|
| Viscosity Handling | Up to 2M cP | ≤50k cP | Any |
| Dosing Accuracy | ±0.5% | ±1–2% | ±0.1–0.3% |
| Pump Required | No | No | Yes |
| Throughput (vs. base) | 2X (dual-head) | 1X | 0.8X |
Material Versatility: SS316L, ceramic, or PTFE-wetted parts

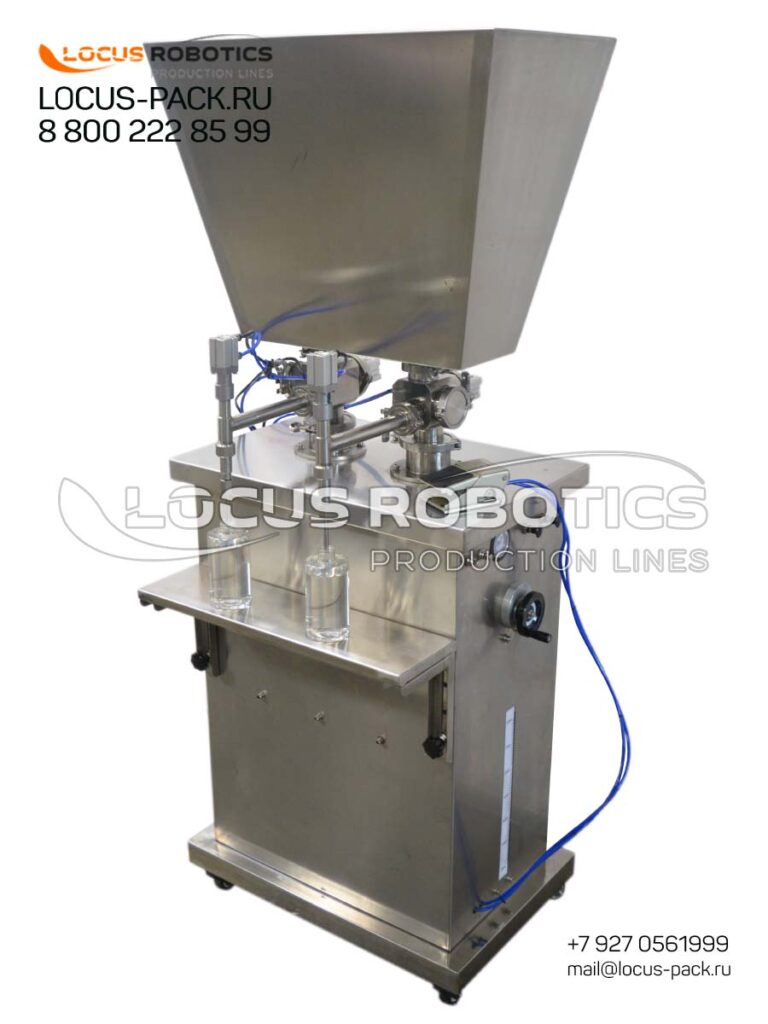

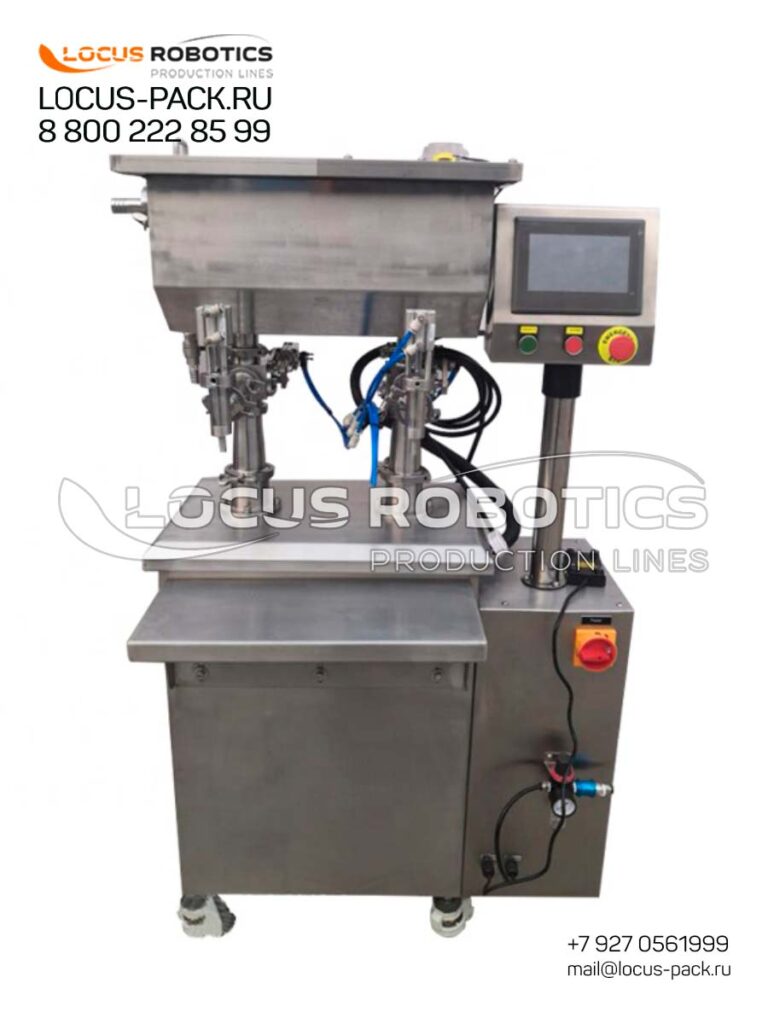

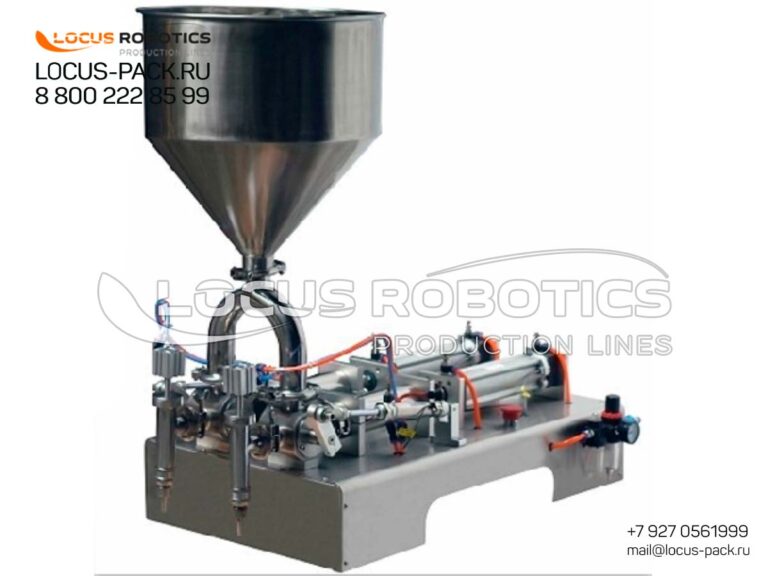

Inline Integration: Compatible with product pipelines (via intake hose) or 20–40L hoppers
Scalability: From benchtop units to automated linear filling systems
Zero-Changeover Loss: Maintain accuracy across liquids, pastes, and suspensions
Our dual-head dispensers output 180 cycles/hour filling 500ml lubricants – no auxiliary pumps needed.
