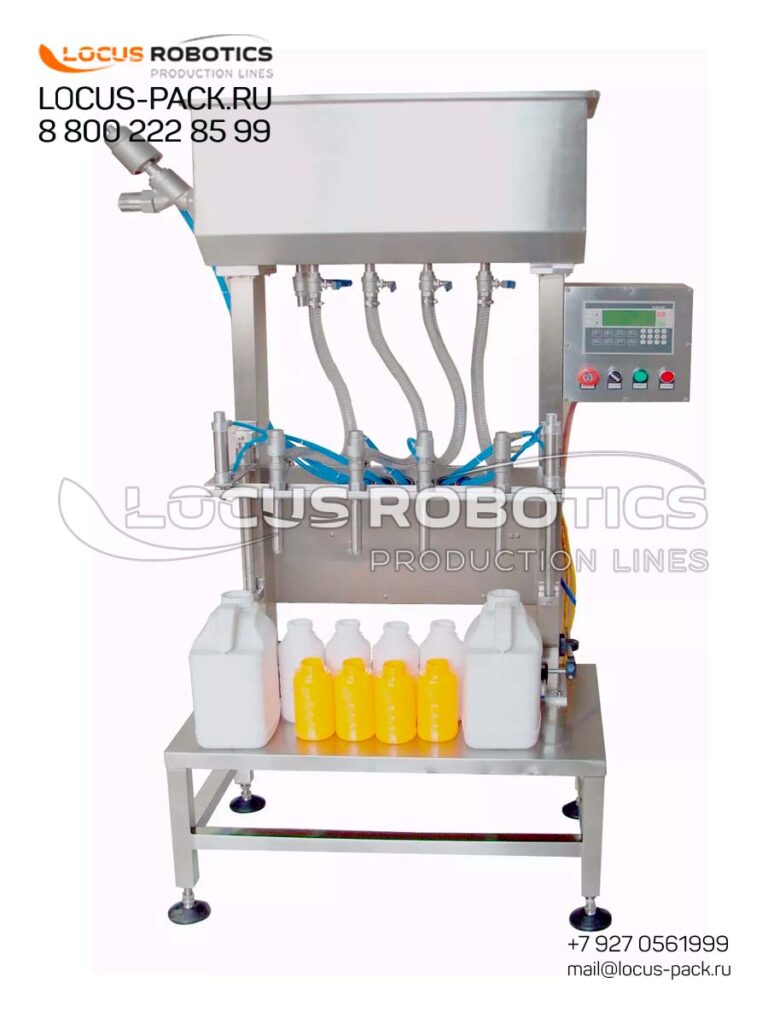

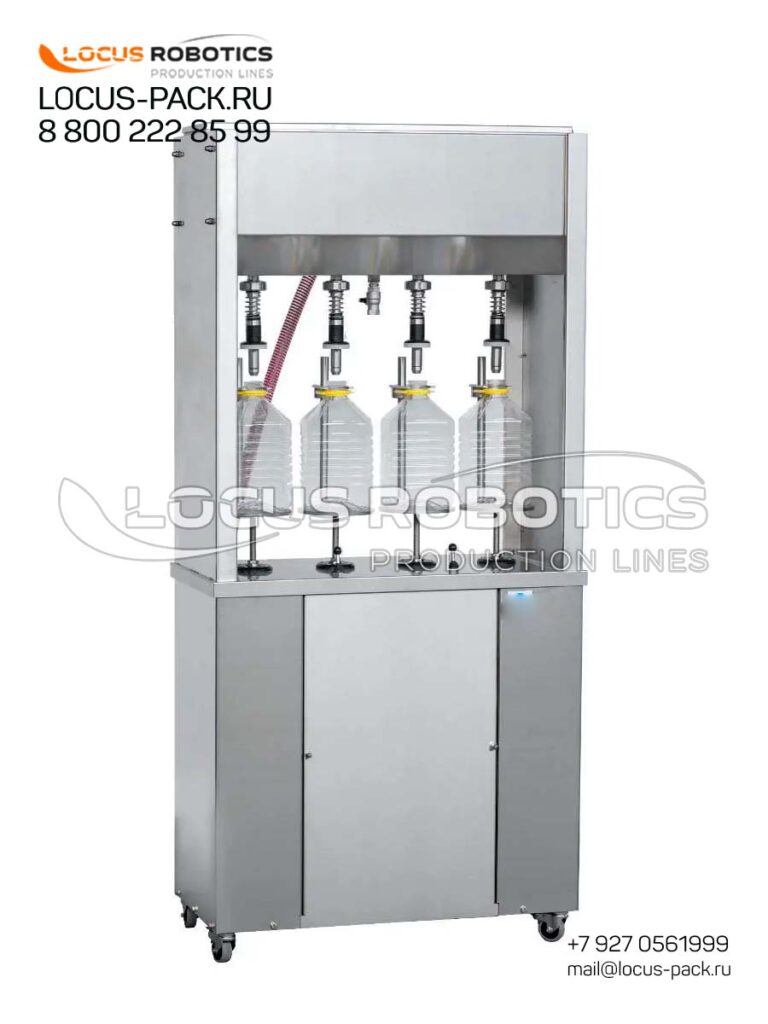

LOCUS ROBOTICS engineers gravity-based filling systems for low-viscosity liquids, offering unmatched simplicity and maintenance-free operation.
✔ Modular Design: 2–16 filling heads (expandable)
✔ Precision Conveyor Sync:
Pneumatic stoppers position containers
Nozzles lower/raise automatically (±0.5mm repeatability)
✔ Throughput: Up to 120 BPM (16-head systems)
Multi-Roller Heads:
6-8 Rollers: For micro-dosing (0.1–10mL, ±0.5%)
3 Rollers: For high-flow (50–5000mL, ±1%)
Quick-Change Tubing: Swap in <30 sec (tool-free)
| Industry | Application | Special Features |
|---|---|---|
| Pharma | Vaccines, injectables | Aseptic tubing, 21 CFR Part 11 logs |
| Chemicals | Solvents, acids | EX-proof, PTFE-lined tubing |
| Food | Syrups, oils | USDA-compliant materials |
Infeed: Servo-driven conveyor with guide rails
Filling Zone:
Peristaltic pumps with auto-nozzle positioning
Load cells for gravimetric verification (optional)
Outfeed: Integrated capping/labeling modules
Optional Upgrades:
Nitrogen blanketing for oxygen-sensitive products
Vision inspection for fill-level checks
| Parameter | Peristaltic Filler | Piston Filler |
|---|---|---|
| Cross-Contamination | Zero (disposable tubing) | Moderate risk |
| Viscosity Range | 1–50,000 cP | 1–20,000 cP |
| Changeover Time | <1 minute | 5–15 minutes |
| Max Dose Volume | Unlimited (continuous) | Limited by cylinder size |
| Model | Heads | Speed | Volume Range | Accuracy |
|---|---|---|---|---|
| LGF-20M | 2 | 15 BPM | 0.1mL–1L | ±0.5% |
| LGF-20L | 8 | 60 BPM | 10mL–5L | ±0.75% |
| LGF-20P | 16 | 120 BPM | 50mL–20L | ±1% |
✔ Zero Contamination – Product only contacts disposable tubing
✔ CIP/SIP Ready – No disassembly for cleaning (FDA/USP Class VI options)
✔ Material Options:
Standard: Santoprene®/Pharmed® tubing
Chemical-Resistant: PTFE-lined for acids/alkalis
EX-Proof: ATEX-certified for flammables
Multi-Stage Filling:
Fast Phase: 90% dose at 500mL/sec
Precision Phase: Final 10% at 50mL/sec (±0.5% accuracy)
Auto-Tubing Prime – Eliminates air bubbles
Drip-Free Cutoff – Patented pinch-valve design
| Model | Nozzles | Speed | Volume Range | Accuracy |
|---|---|---|---|---|
| LGF-20N | 1-2 | 20 BPM | 1mL-1L | ±0.5% |
| LGF-20V | 4-6 | 40 BPM | 10mL-5L | ±0.25% |
| LGF-20R | 8-12 | 60 BPM | 50mL-20L | ±0.1% |
Applications: Vaccines, IV fluids, cell cultures
Features:
Aseptic tubing connections
21 CFR Part 11 compliant data logging
Applications: Flavor extracts, edible oils
Features:
USDA-approved tubing
Overfill recovery system
Applications: Solvents, adhesives, corrosive liquids
Features:
EX-proof control panels
Leak detection sensors
| Metric | Peristaltic Filler | Piston Filler | Gravimetric |
|---|---|---|---|
| Cross-Contamination Risk | None | Moderate | Low |
| Shear Sensitivity | Gentle (Ideal for cells) | High | Moderate |
| Tubing Cost/Year | $100-$300 | N/A | N/A |
Infeed: Bottle unscrambler or conveyor
Filling: Servo-driven pump heads
Outfeed: Vision inspection optional
Optional Upgrades:
Automatic tubing change system
Nitrogen blanketing
🔹 50% Lower TCO – No pumps = reduced OPEX
🔹 Easy Sanitization – Smooth surfaces, no dead zones
🔹 Scalable – Start with 1 nozzle, expand to 24+
✅ 3x Longer Tubing Life – Proprietary roller design reduces wear
✅ Fastest Changeover – Swap tubing in <30 seconds
✅ Broadest Viscosity Range – 1-50,000 cP
Specify Needs:
Liquid type (flammable/foaming/corrosive)
Required accuracy (±1% or ±2%)
Liquid viscosity (1-500 cP ideal)
Container types (bottles, cans, pouches)
