Industrial Turbo Emulsifiers: Precision Multi-Vessel Homogenization Systems
LOCUS PHARM delivers GMP-validated turbo emulsifiers for critical emulsion and suspension manufacturing in pharmaceuticals, cosmetics, and veterinary products. Our systems feature:
Core Technical Capabilities:
Shear Intensity: Up to 18 m/s rotor speed (25,000 RPM)
Vacuum Range: -0.95 bar (eliminates aeration)
Capacity: 10L R&D → 5,000L production
Materials: AISI 316L SS (Ra ≤0.38μm electropolished)
Compliance: FDA 21 CFR 211, EU GMP Annex 1

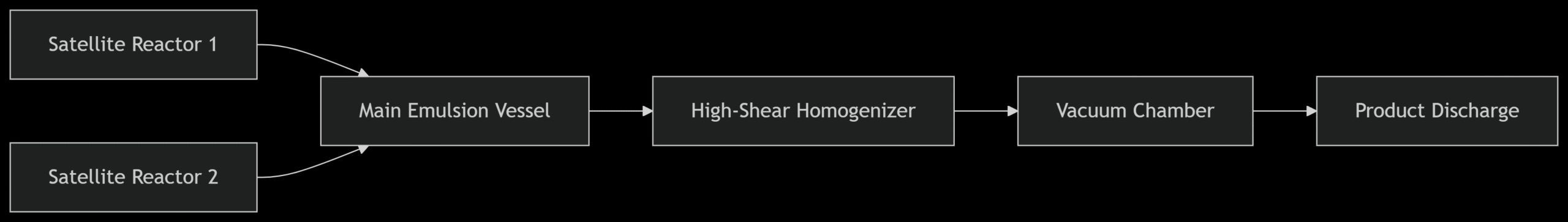

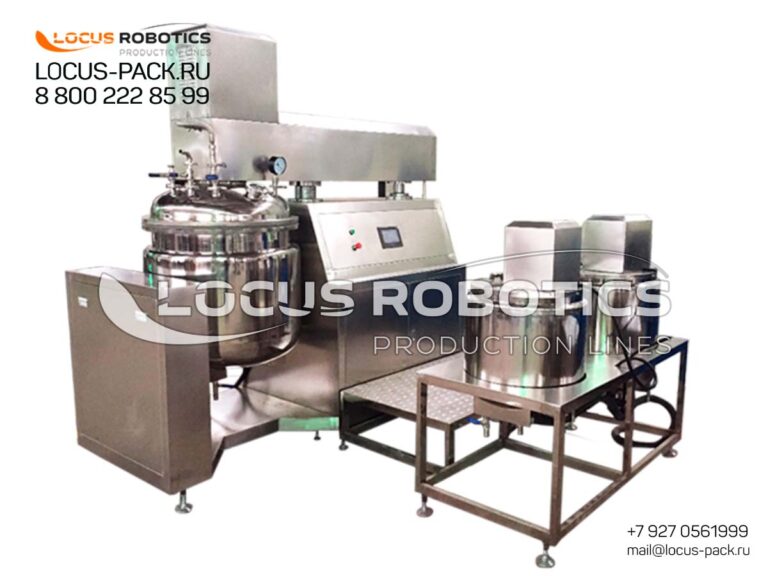

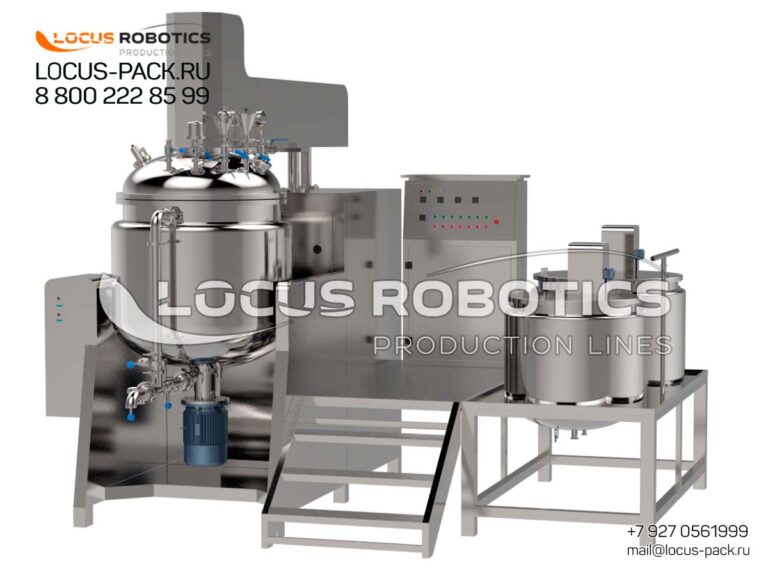

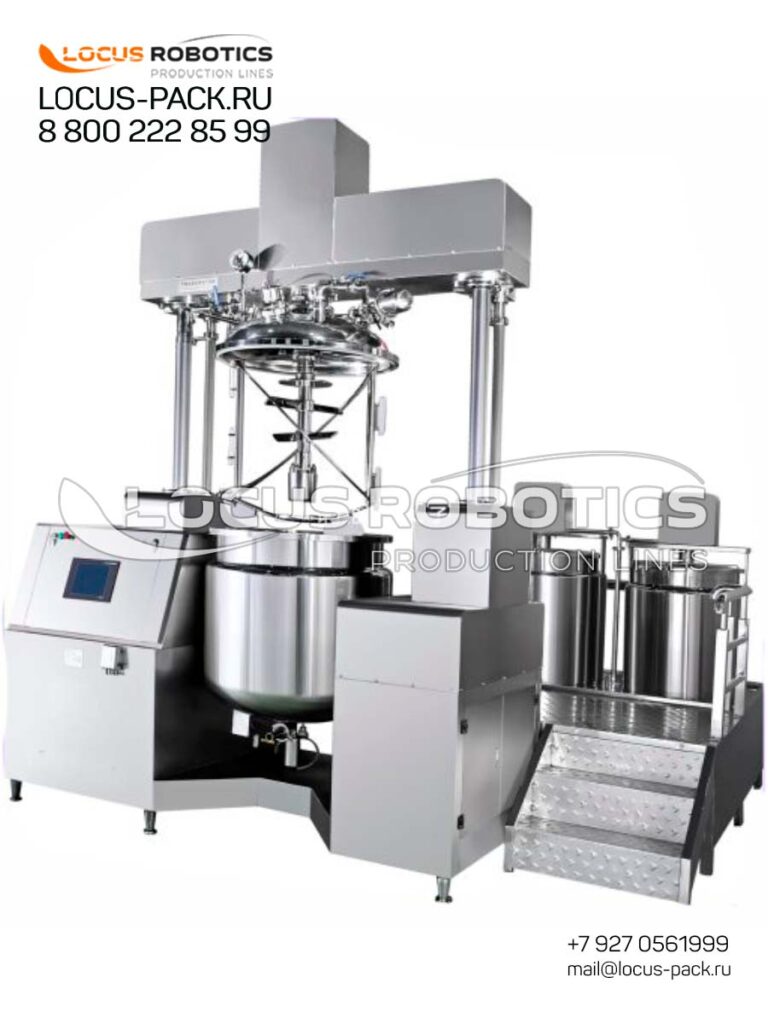

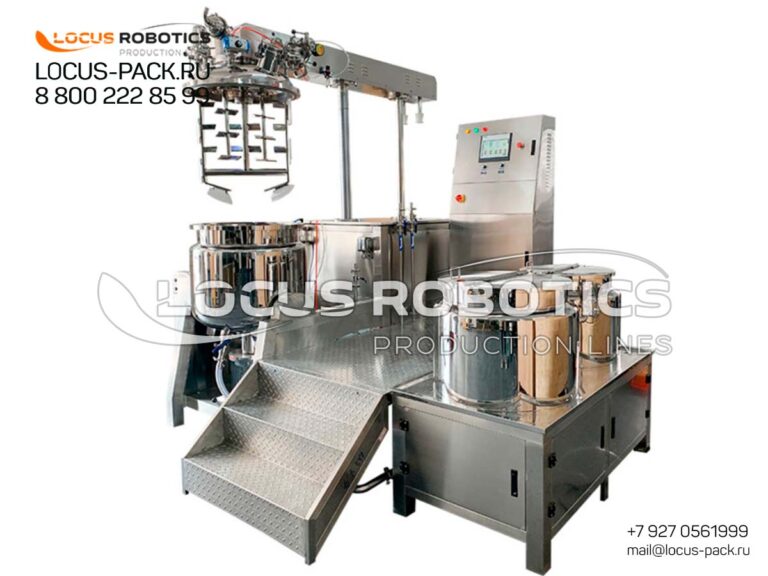

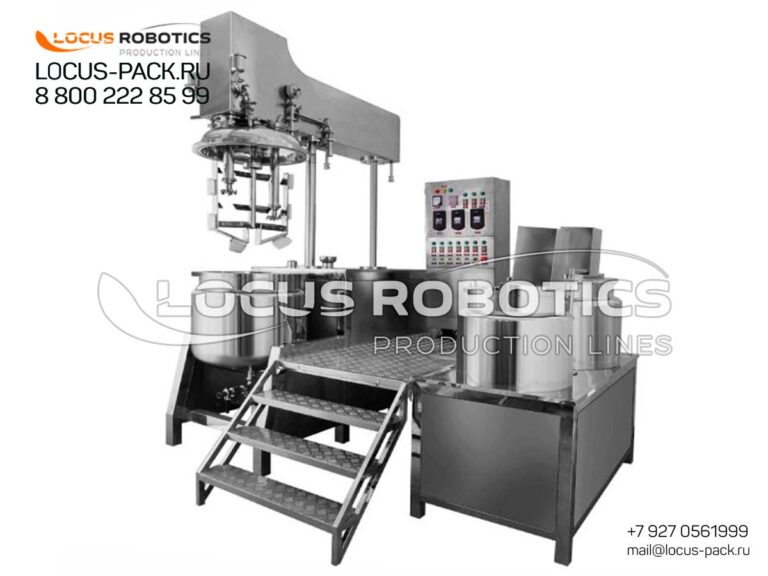

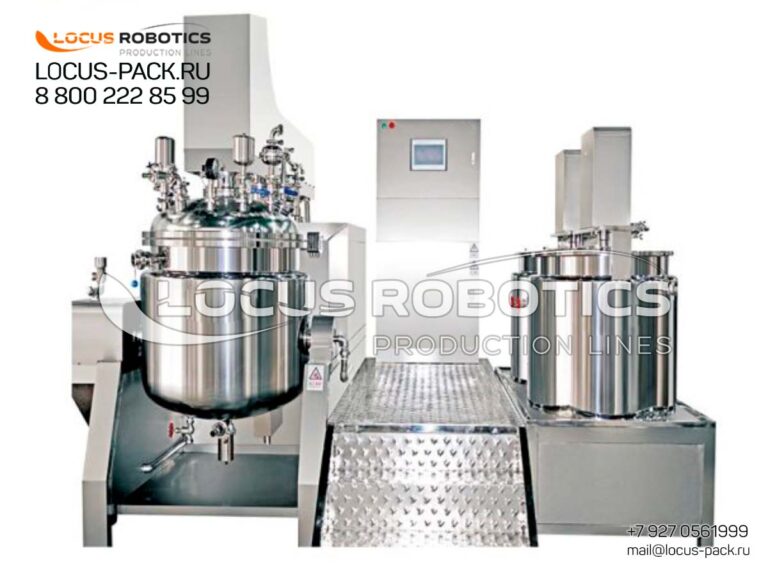

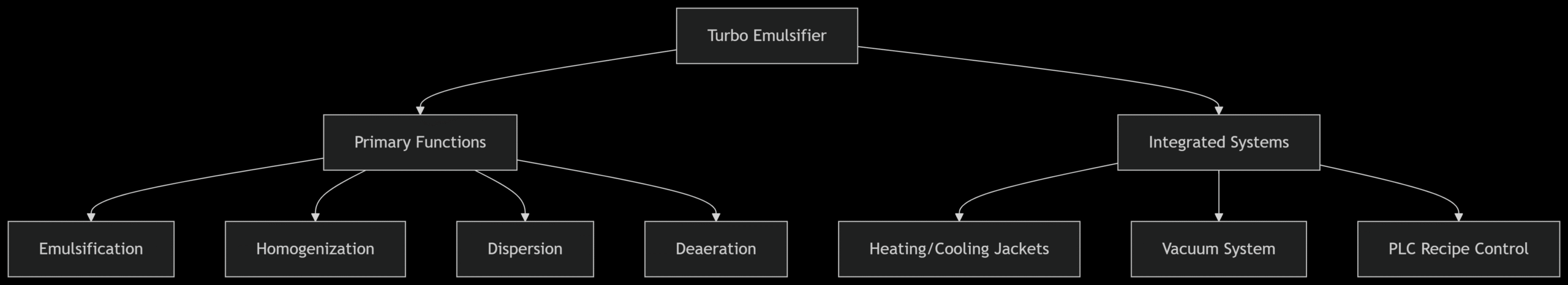

Turbo Emulsifiers are integrated homogenization systems comprising:

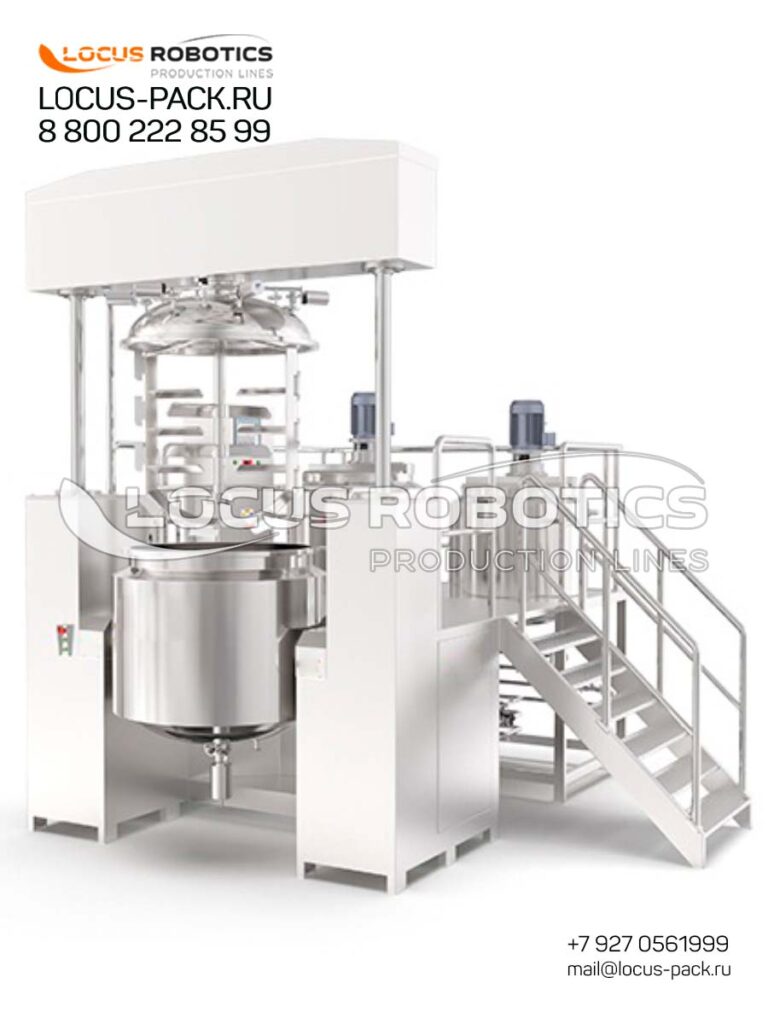

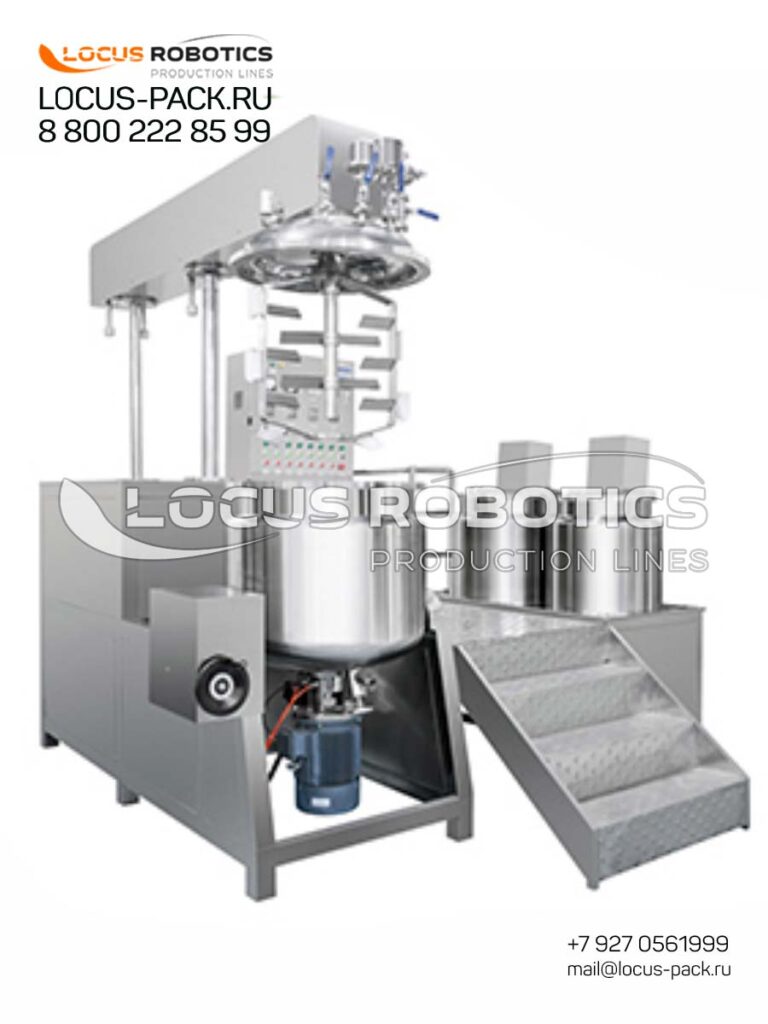

3-4 Reactor Vessels: Primary emulsion vessel (200-5,000L) + satellite ingredient vessels
High-Shear Modules: Rotor-stator homogenizers (18m/s tip speed)
Vacuum System: -0.95bar operation (prevents aeration)
Unified Control: Recipe-based PLC with SCADA integration
| Model Class | Shear Force | Viscosity Range | Key Applications | GMP Features |
|---|---|---|---|---|
| Laboratory | 5-12 m/s | 1-50,000 cP | R&D formulations | Data logging, scale-up studies |
| Pilot Scale | 10-15 m/s | 1-200,000 cP | Clinical batches | CIP/SIP, OEB 4 containment |
| Production | 12-18 m/s | 1-500,000 cP | Commercial manufacturing | ATEX, 3D weld mapping, IQ/OQ/PQ |
| Component | Capabilities | Pharma Grade Features |
|---|---|---|
| Main Reactor | 200-5,000L, conical/elliptical bottom | Ra ≤0.38μm EP 316L SS |
| Homogenizer | 18m/s shear (25,000 RPM), <1μm droplet size | CIP/SIP compatible |
| Vacuum System | -0.95bar, 15m³/h capacity | Leak rate <0.5mbar/min |
| Heating/Cooling | Dual-circuit jacket (-20°C to +150°C) | Clean steam traps |
| Control System | Recipe management (50+ formulas) | 21 CFR Part 11 compliance |
| Industry | Product Examples | Critical Parameters |
|---|---|---|
| Pharmaceuticals | Sterile ointments, vaccine adjuvants | ≤0.1μm particle size, OEB 5 |
| Cosmetics | Nanoemulsions, silicone serums, lipsticks | Z-average <100nm, PDI <0.2 |
| Food | Mayonnaise, mustard, dressings | EHEDG design, HACCP compliance |
| Chemicals | Paint bases, adhesive emulsions | ATEX Zone 1, viscosity >500,000cP |
Agitation Systems:
Top-mounted planetary mixer (0-200 RPM)
High-shear homogenizer (5,000-25,000 RPM)
Temperature Control:
Thermal oil/steam heating jackets
Glycol cooling circuits
Monitoring:
PT100 temperature sensors (±0.1°C)
Radar level transmitters
Pressure/vacuum gauges
Sanitation:
Rotating spray balls (3D coverage)
Clean-in-Place (CIP) protocols
Critical Success Factors:
Homogenizer Selection Guide:
Propeller Mixers: Low-viscosity (<5,000 cP).
Rotor-Stators: Medium viscosity (50,000 cP).
Triple-Stage Turbines: High viscosity (500,000+ cP).
Critical Industries Served:
Pharma: Ointments, sterile suspensions, vaccine adjuvants.
Cosmetics: Serums, nanoemulsions, silicone blends.
Veterinary: Drench suspensions, topical solutions.
Surface Integrity
Electropolished 316L SS (Ra ≤0.38µm) with 100% dye-penetrant tested welds and passivation per ASTM A967
Containment Systems
OEB 5: Double mechanical seals + nitrogen purge
OEB 4: Lip seal systems with containment skirts
Explosion-proof motors (ATEX Category 1)
Validation Package
IQ/OQ/PQ protocols
Material Certificates (EN 10204 3.1)
FAT/SAT documentation
Pharmaceutical-Grade Build:
Passivated 316L SS (ASTM A967)
Dead-leg-free tri-clamp connections
Full material traceability (EN 10204 3.2)
Validation Package:
IQ/OQ/PQ protocols
3D weld mapping
FAT/SAT documentation
Tropicalized Designs:
316L SS with 2.0% Mo content
IP66-rated control panels
Humidity-resistant electricals
Explosive Environments:
ATEX Category 1 motors
Static discharge prevention
Gas monitoring ports
Complete Production Line:
1. Turbo Emulsifier → Filtration → Deaeration → Tube Filler → Cartoner
2. Emulsifier → Filtration → Deaeration → Tube Filling Machine
Technical Synergies:
Reactor platforms for vessels >5,00L
In-line particle size analyzers
Temperature-controlled transfer lines
Emulsion Precision:
Triple-stage rotor/stator achieves Z-average <80nm with PDI <0.15 — enabling 24-month shelf life for vaccine adjuvants (per ICH Q1A).
Energy Efficiency:
Variable-frequency drives reduce power consumption by 35% during phase addition while maintaining -0.95bar vacuum.
Patented blade geometry reduces power consumption by 30% vs. conventional designs while maintaining 20 m/s tip speed.
Scale Flexibility: 50L R&D → 5,000L production systems
Shear Science: 18 m/s tip speeds for nanoemulsions (<100nm)
Material Integrity: 316L SS with 2.0% Mo for chloride resistance
Containment Expertise: OEB 5 solutions for HPAPIs
Process Science: Patented anti-vortex impeller designs
Global Validation: Meets FDA, EMA, PMDA requirements
Certification Highlights:
ISO 14644-1 Class 5
ISO 14644-1 Class 6 cleanability
ASME BPE-2022
ATEX 2014/34/EU
EHEDG EL Class I certification
PED 2014/68/EU
Engineer Your Precision Emulsion Line!
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Free line configuration for your products, throughput validation testing!
Contact Specialists for GMP:
Compliance Roadmap:
CE, EAC, ISO 9001 certifications.
GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
