Pharma maintenance platform 316L SS for tanks, reactors & process vessel
Reactor Platforms are structural access systems enabling safe operation and maintenance of elevated process vessels. LOCUS PHARM designs GMP-compliant platforms.
Key Technical Parameters:
Materials: AISI 304/316L stainless steel (Ra ≤0.8µm finish)
Load Capacity: 300-1,000 kg/m² (customizable)
Height Range: 1m to 15m+ multi-level configurations
Compliance: OSHA/EN 14122 safety standards, GMP hygienic design

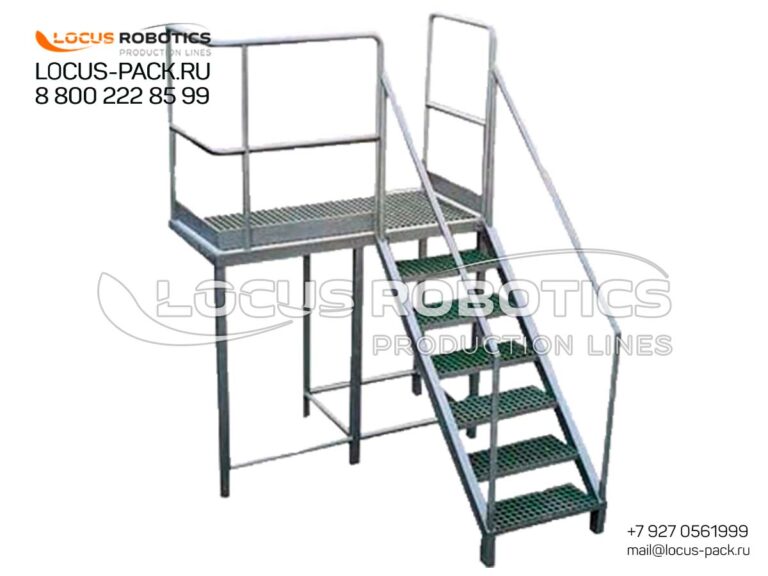

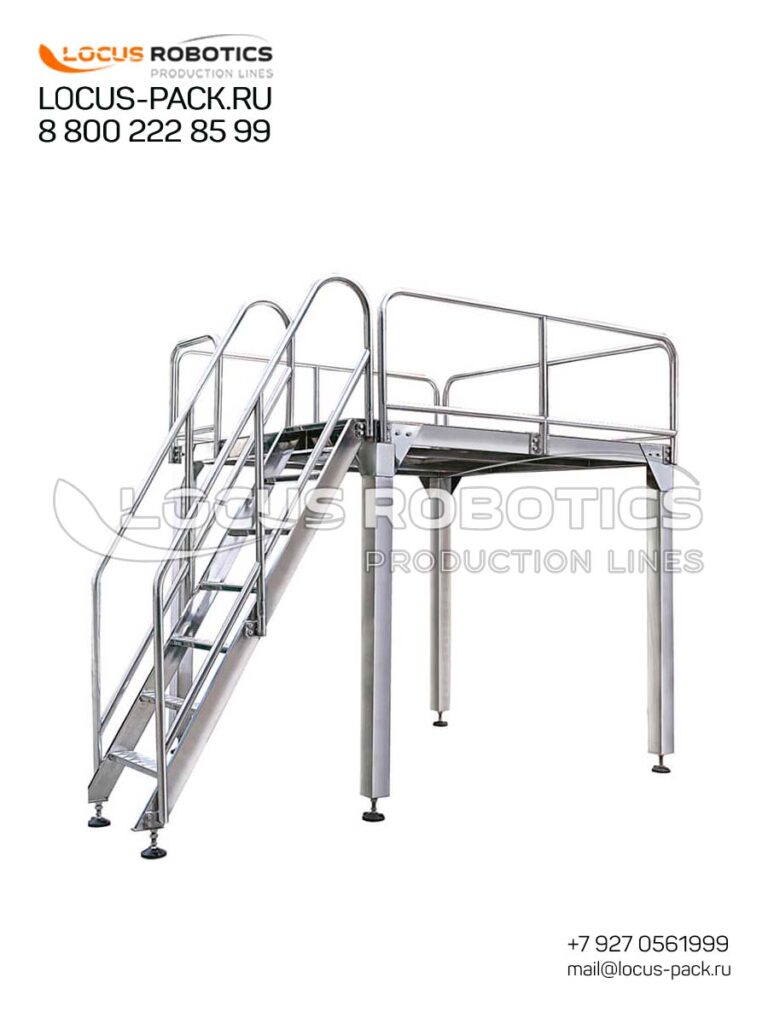

Standard Configuration Includes:
✅ Staircases with anti-slip treads
✅ 1.1m high guardrails with kick plates
✅ Intermediate resting platforms
✅ Tool hoisting provisions
| Feature | Technical Options | Industry Applications |
|---|---|---|
| Structural Type | Fixed, modular, or adjustable height | Batch production facilities |
| Accessories | Crane arms, material lifts, service trays | Large-scale reactors (>2000L) |
| Surfaces | Diamond plate, grating, solid decking | Hygienic (pharma) vs rugged (chem) |
| Safety Systems | Emergency descenders, safety harness points | HPAPI/cytotoxic production |
| Special Features | Retractable sections, vibration damping | Laboratories with space constraints |
Pharma-Specific Requirements:
Electropolished 316L SS (Ra ≤0.4µm)
Radiused corners (R≥10mm) for cleanability
Validation documentation package
Pharmaceutical Platforms:
Passivated surfaces with documented weld logs
Cleanroom-compatible (ISO Class 7)
OEB 5 containment integration
Chemical Platforms:
Acid-resistant coatings (Halar® or PVDF)
Explosion-proof electrical components
Chemical drainage systems
Food-Grade Platforms:
EHEDG-certified designs
USDA-approved materials
Steam-cleaning readiness
| Parameter | Standard Range | Custom Options | Compliance |
|---|---|---|---|
| Platform Height | 1-6 meters | Multi-level up to 15m | EN 14122-3 |
| Deck Load | 500 kg/m² | Up to 1,500 kg/m² | OSHA 1910.23 |
| Stair Angle | 30-35° | 20-50° adjustable | ISO 14122-2 |
| Corrosion Resistance | Salt spray 500+ hrs | Hastelloy® components | ASTM B117 |
Worker Protection Systems:
1.1m high guardrails with mid-rails
Self-closing safety gates
Tool-free adjustable handrails
Yellow safety tread edges (ANSI Z535)
Maintenance Efficiency:
Integrated tool caddies
Retractable service bridges
Overhead hoist beams (up to 2T capacity)
Quick-disconnect modular sections
Regional Adaptations:
SEA/Africa: Tropicalized 316L SS (2.5% Mo)
Middle East: Sand-blasted finish (anti-glare)
Eastern Europe: Insulated platforms for cold climates
Certifications:
CE/PED marking
ASME BPE (pharma)
ATEX 2014/34/EU (chemical)

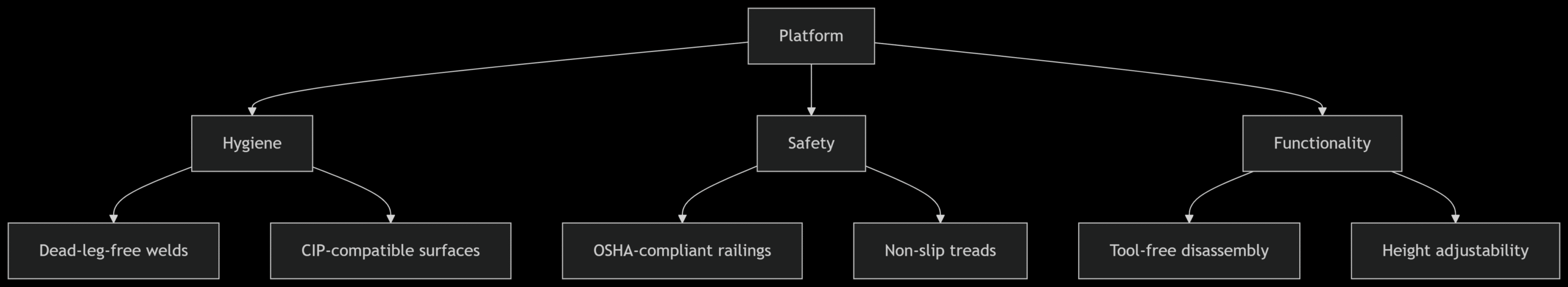

Hygienic Design:
Pharma platforms feature zero dead-leg welds and R≥10mm radii — enabling full CIP cleanability per EHEDG Aseptic Doc 44.
Structural Integrity:
FEA-optimized designs withstand seismic zone 4 loads while maintaining <1mm/m deflection under max load.
GMP Expertise: Full IQ/OQ documentation packages
Material Science: 316L SS with enhanced corrosion resistance
Safety Focus: OSHA/ANSI compliant guard systems
Global Logistics: Site-specific installation teams
Design Your Custom Access Solution!
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Free line configuration for your products, throughput validation testing!
Contact Specialists for GMP:
Compliance Roadmap:
CE, EAC, ISO 9001 certifications.
GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
