Semi-Automatic Carbonated Beverage Monobloc: Rinse, Fill, Cap & Seal
Semi auto 4 function beverage monobloc.
Precision Counter-Pressure Filling Technology
LocusPack's linear monoblocs specialize in carbonated beverages where gas retention is critical. Unlike still beverage fillers, our systems feature:

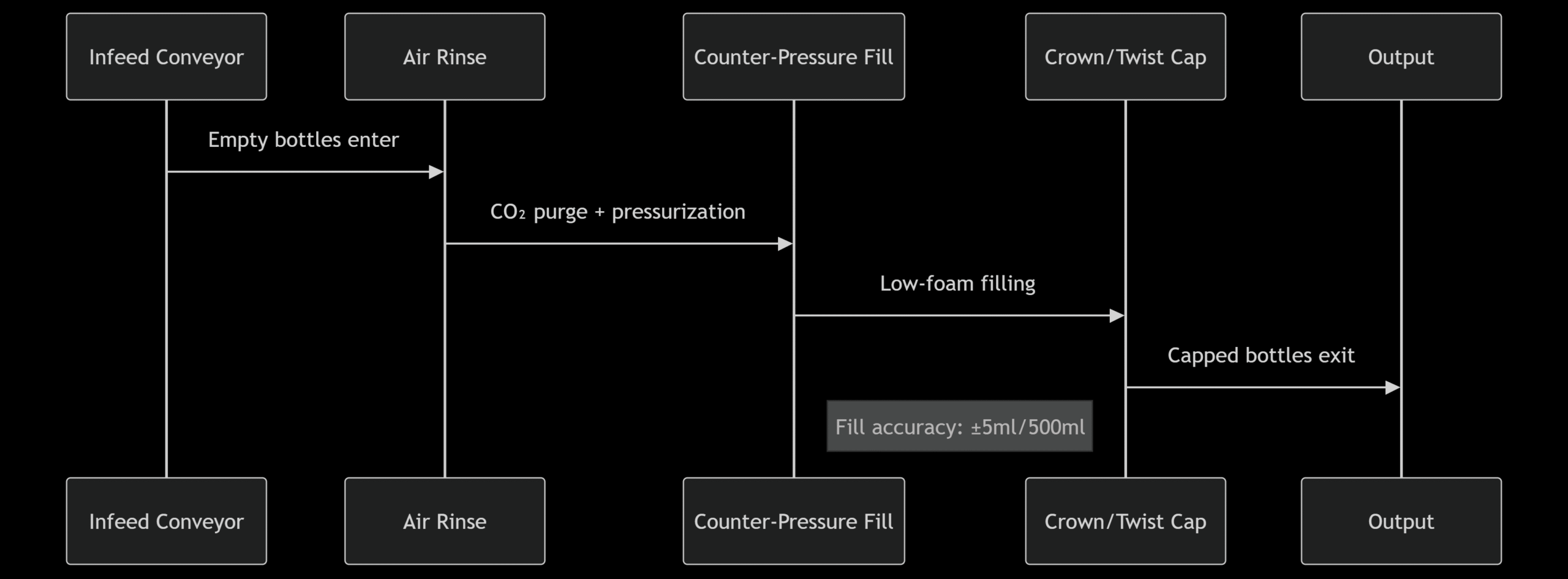

- 3-Stage Counter-Pressure Process
graph LR
A[Bottle Purge] --> B[CO₂ Pre-pressurization]
B --> C[Liquid Filling Under Pressure]
C --> D[Pressure Release]
Oxygen Pickup Control < 0.1 ppm (vs. industry avg. 0.3 ppm)
FoamMaster™ Sensors — Auto-adjust fill speeds based on temperature/viscosity
Why counter-pressure matters: Prevents CO₂ loss during filling — crucial for flavor stability in beer (ASBC Method Beer-23).
| Subsystem | Beer-Specific Features | Benefit |
|---|---|---|
| Filling Valves | Double-seat stainless steel with CIP spray balls | Prevents hop residue buildup |
| Capping | Magnetic crown crimpers or twist-off spindles | Handles both craft & commercial caps |
| Conveying | Gentler star wheels with PET-grip coating | Zero bottle scratching |
| CO₂ Management | Gas recovery system (85% reuse rate) | Saves €14K/year in CO₂ costs |
Beverage Applications & Formats
Compatible Products:
— Beer Types: IPA, Stout, Pilsner, Sour (pH 3.2-4.5 compatible)
— Carbonated Drinks: Seltzers, Kombucha, Craft Sodas (up to 5.0 vol CO₂)
— Packaging Formats:
4-in-1 Compact Solution
For craft beverage startups & small-scale producers

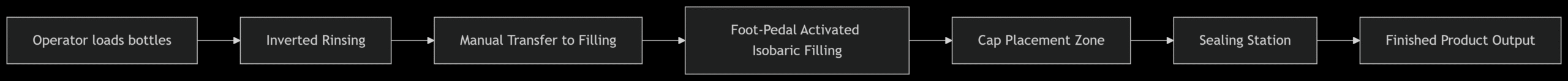

Core Functions:
1️⃣ Inverted Bottle Rinsing - Removes dust/debris from reused glass
2️⃣ Isobaric Filling - Maintains carbonation (CO₂ retention >80%)
3️⃣ Cap Orientation - Vibratory bowl feeds crown/screw caps
4️⃣ Sealing Station - Pneumatic crimping (crown) or torque-controlled capping (screw-top)
Key Advantages vs Competitors:
| Feature | Semi-Auto Monobloc | Full Auto Line | Standalone Filler |
| Footprint | ✅ 1.8m² | 15-25m² | 3.5m² |
| Functions | ✅ 4 operations | 5-7 stations | 1 function |
| Changeover | ✅ <10 min | 45-90 min | 15 min |
| Operator Skill | ✅ Basic training | Technical staff | Medium expertise |
Ideal For:
Sweetened carbonated drinks (sodas, tonics)
Fermented beverages (beer, cider, kvass)
Low-alcohol spritzers (<6% ABV)
Container Specs:
Glass bottles: 200ml-1L
Compatible caps: Crown seals (26mm), screw-tops (28-33mm)
| Parameter | Spec |
|---|---|
| Throughput | 200-600 BPH (operator-dependent) |
| CO₂ Retention | >80% (at 4°C beverage temp) |
| Filling Accuracy | ±1% of volume |
| Power | 220V / 1.5kW |
| Footprint | 1200×1500mm |
| Parameter | LocusPack
LR-400 |
Industry Average | Advantage |
|---|---|---|---|
| Max Speed | 24,000 BPH | 15,000 BPH | 60% higher throughput |
| O₂ Pickup | <0.1 ppm | 0.2-0.5 ppm | Extended shelf life |
| CO₂ Recovery | 80% | 50-70% | Lower operating costs |
| Temp Range | 0-5°C | 2-8°C | Better foam control |
| Changeover Time | 22 min | 35-80 min | QuickChange™ tooling |
Designed for microbreweries scaling production:
Handles bottle variations without change parts
Gentle filling preserves delicate hop aromas
Compact footprint (4.2m × 3.1m) for limited spaces
Hygienic Design: EHEDG-certified surfaces, no fluid traps
Material Compatibility: 316L SS w/ Sanitary 3A fittings
Automation: PLC with recipe memory (55+ profiles)
CO₂ recovery reduces gas consumption by 35%.
Energy-efficient servo drives (IE4 class motors).
Water recycling system available.
| Market | Customization Options | Certifications |
|---|---|---|
| Southeast Asia | Tropical corrosion package (80% RH resistance) | ISO 9001, HALAL |
| Africa | Voltage stabilizer (100-480V auto-switching) | SABS, SONCAP |
| Latin America | Spanish HMI + high-altitude compensation | ANVISA, INVIMA |
| Eastern Europe | Energy recovery system (EU Ecodesign compliant) | CE, EAC |
Perfect For:
Craft soda startups testing recipes.
Microbreweries expanding to bottling.
Farmers markets/local kvass producers.
Beverage co-packers adding small batches.
Cost-Saving Benefit:
Eliminate $82K+ automated line investment — achieve bottling for under $18K with same CO₂ retention as industrial systems.
When scaling from manual bottling, our monobloc delivers 5x throughput without complex automation. Operators manage multiple stations via ergonomic transfer points — no conveyor belts needed.
Pressure-balanced fill heads prevent foaming
Food-grade stainless steel fluid path
Adjustable for 2.0-5.0 vol CO₂ beverages
+ Expandable Configurations:
- Pasteurizer Integration: Tunnel or flash systems
- Can Seaming Module: For 202/206 diameter cans
- Multipack Systems: 4/6-pack basket carriers
- Eco-Friendly Option: CO₂ recovery plant
+ Pair With:
- Bottle washer (glass reuse)
- Label applicator
- Visual inspection system
Isobaric carbonated beverage filling nozzle.
Dual mode crown screw capping.
