Precision Tube Orienting Systems for Automated Packaging Lines

LOCUS ROBOTICS designs and deploys advanced tube orienting systems for automated packaging lines. These precision feeders integrate seamlessly with rotary filling monoblocs, delivering 200+ tubes/minute with sub-millimeter positioning accuracy for pharmaceutical, cosmetic, and industrial applications.

---

Core Product Architecture

---

Technical Specifications

Technical Specifications

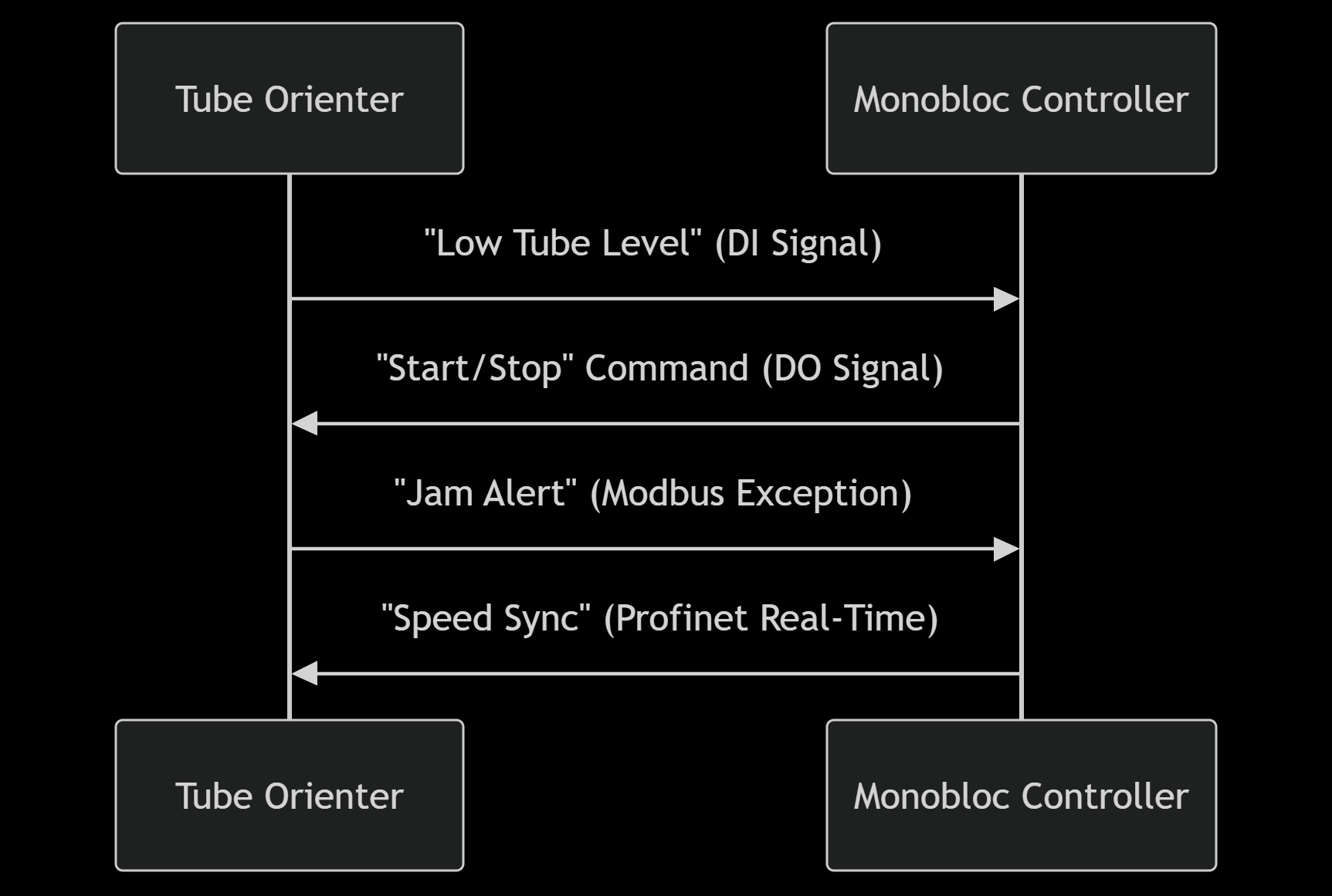

Intelligent Communication Protocol

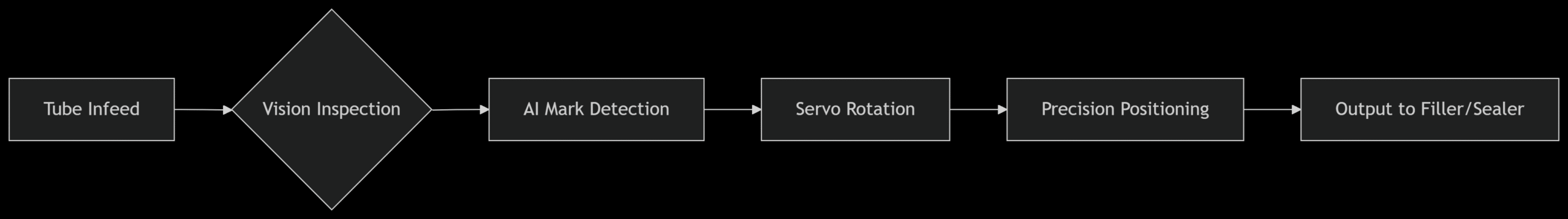

Key Operational Workflow

1. Loading: Operator loads tubes crown-first (manual/cassette/box dump)

2. Initiation: System confirms minimum quantity → enables monobloc startup

3. Singulation: Agitator paddle separates tubes → feed conveyor aligns

4. Transfer: Starwheel indexes tubes to monobloc pockets

5. Synchronization: VFD adjusts speed to match line rhythm (±0.1s)

Key Applications

  Branded Cosmetic Tubes
- 360° hologram alignment for luxury packaging
- 0.2mm repeatability ensures perfect logo positioning

  Pharmaceutical Products
- GMP-compliant orientation validation
- Audit trail per 21 CFR Part 11

  Industrial Chemicals
- ATEX-rated models for explosive environments
- Corrosion-resistant 316L stainless construction

Integration Architecture

Universal Tube Handling

- Materials: Extruded plastic, laminate, aluminum
- Sizes: 10-80mm diameter × 30-300mm height
- Special Formats:
  • Oval cosmetic tubes
  • Fluted pharmaceutical vials
  • Square-profile industrial cartridges

Optional Upgrades

• Integrated Labeling:

  • Wrap-around label applicator with photo-mark sensor

  • 360° orientation verification pre-application

• Automated Replenishment:

  • AGV-compatible loading ports

  • RFID-tagged cassettes for traceability

• Quality Gates:

  • Vision-based tube defect detection

  • Weight verification reject station

---

Competitive Advantages

✅ Tool-Less Adjustment
Quick-change cleats and guides adapt to new formats in <90 seconds

✅ Tool-Less Changeover
Adjust to new tube formats in <90 seconds with quick-release holders

✅ Zero Contamination Design
316L stainless contact surfaces + IP69K washdown rating

✅ Zero Rejection Rate
Patented soft-gripping technology eliminates tube deformation

✅ Predictive Maintenance
Vibration sensors forecast bearing failure 500 hours pre-fault

✅ Vision-Guided Precision
AI-powered cameras detect photo-marks at 500fps — 5x faster than laser sensors

Technical Differentiation

---

Industry-Specific Packages

---

Smart Factory Features

• Digital Twin Integration: Virtual line simulation via Siemens Process Simulate

• Predictive Maintenance: Vibration sensors forecast bearing failure 200hr pre-failure

• OEE Dashboard: Real-time performance tracking with Pareto defect analysis

Performance Benchmarking

         Metric           LOCUS System        Industry Average

   Changeover Time          78 sec                8-12 min             |
   Tube Damage Rate         0.02%                 0.15-0.4%            |
   Energy Consumption       1.2 kW @ 200 tpm      2.5-3.5 kW           |
   Uptime (Annual)          99.6%                 97.8%                |

Smart Factory Integration

• OPC-UA Connectivity: Real-time data exchange with MES/SCADA

• Digital Twin: Virtual commissioning via Siemens NX

• Energy Optimization: Regenerative braking reduces power draw by 18%

Regional Adaptation

• Voltage: Universal 110V-220V-380V-480V AC/DC input

• Climate Kits:

  • Tropical (95% RH operation)

  • Arctic (-30°C startup)

• Compliance: CE, EAC, UL, GOST-R

Market	Customization	Certification
EU	CE-compliant safety gates	EN ISO 13849 PLd
Middle East	55°C ambient cooling	IECEx/ATEX
SE Asia	95% RH corrosion resistance	GMP Annex 1

Why Outperform Competitors

1. AI-Powered Vision
   Detects low-contrast marks invisible to standard systems — reduces misalignments by 88%

2. Gentle Handling
   Patented vacuum grippers with <0.5N force prevent cosmetic tube damage

3. Future-Proof Integration
   OPC-UA native connectivity vs. competitors’ proprietary protocols

Throughput Optimization

      Tube Type         Orientation Time

    35mm Cosmetic          0.28 sec
    50mm Pharma Vial       0.35 sec
    80mm Industrial        0.42 sec
    *Based on 9,000hr production data

Technical Support

Global Deployment Package:

• Harmonic vibration analysis

• Line balancing simulation

• Operator AR training modules
  Service Network:

• 24/7 remote diagnostics via TeamViewer

• 48hr onsite response (global hubs)

• On-site harmonic vibration analysis

• Multilingual engineers (EN/RU/ES/AR)

Achieved 98.64% orientation accuracy with LOCUS systems versus 92.6% on previous equipment
– Premium Global Cosmetics Manufacturer.

---

Why Outperform Competitors

1. Precision Engineering
   Laser-aligned starwheels maintain ±0.1mm positioning vs. ±0.5mm industry standard

2. Future-Proof Connectivity
   Native support vs. proprietary protocols

3. Hygienic Design
   Fully drainable surfaces with <0.8µm Ra finish — critical for GMP

Contact for Engineering Consultation:
