Custom-engineered tanks, reactors & vessels for pharma, cosmetics, chemicals & food. GMP/ASME/PED/BPE/ATEX compliant
Pharmaceutical-Grade Reactors & Processing Tanks: Engineered to Your URS.
LOCUS ROBOTICS specializes in GMP-certified reactors tank, and process vessels for critical applications across pharmaceuticals, cosmetics, specialty chemicals, and food manufacturing. Engineered to your exact User Requirement Specifications (URS), our solutions feature:
Core Specifications:
Materials: AISI 304L / 316L stainless steel (Ra ≤0.38µm mirror finish)
Capacity Range: 10L R&D → 10.000L production scale
Pressure Rating: Up to 12 bar (custom designs to 20 bar)
Geometry Options: Conical or elliptical bottoms with ASME BPE compliant welds
GMP-Critical Features:
➤ Full 3D weld mapping documentation
➤ Electropolished surfaces (meets FDA 21 CFR Part 211)
➤ Dead-leg-free tri-clamp connections
Our vessels deliver:
Engineered Containment: ASME BPVC Section VIII Div.1 vessels with full PED 2014/68/EU certification
Material Flexibility: 316L/304SS, Hastelloy®, duplex steel, or glass-lined options
Temperature Control: -50°C to +350°C via jacketed/heated designs
Agitation Systems: Hydrofoil impellers, anchor mixers, or high-shear homogenizers
Key Industries Served:
➤ Pharmaceuticals (API synthesis, bioreactors)
➤ Fine Chemicals (hydrogenation, polymerization)
➤ Food & Cosmetics (emulsification, CIP/SIP systems)
| Feature | Technical Capabilities | Industry Applications |
|---|---|---|
| Viewing/Light Ports | 80-150mm borosilicate glass, CIP-compatible | Pharma batch monitoring |
| Fittings | Tri-clamp, DIN 11851, RJT connections | Food transfer lines |
| Agitation Systems | Anchor, turbine, or homogenizer (up to 10kW) | Cosmetic emulsion production |
| Transfer Pumps | Sanitary lobe/CIP centrifugal (1-30m³/h) | Vaccine bulk transfer |
| Flow Control | Mass flow meters ±0.5% accuracy | API synthesis |
| Heating Methods | — Thermal oil jackets (-30°C to +300°C) — Steam/water jackets |
Chemical reactions |
| Pressure Relief | Rupture discs & ASME Section VIII valves | Solvent handling |
| Parameter | Range/Capabilities | Compliance Standards |
|---|---|---|
| Volume | 10L lab → 10,000L production | ASME BPVC, PED |
| Pressure | Full vacuum to 12 bar (custom to 20 bar) | EN 13445 |
| Materials | SS316Ti, Hastelloy C-22, Alloy 625 | FDA 21 CFR, EHEDG |
| Surface Finish | Ra ≤0.4µm (pharma), 0.8µm (industrial) | ISO 8501-1 Sa 2.5 |
| Agitation Power | Up to 15 kW/m³ (high-viscosity) | ATEX 2014/34/EU Zone 1 |
Pharma/Veterinary
Passivated 316L SS with ≥240 grit finish
Validatable CIP/SIP systems
OEB-4 containment options
Cosmetics
High-shear homogenizers (up to 12,000 rpm)
Emulsion stabilization systems
Food & Beverage
EHEDG-certified designs
Integrated filtration (1-40µm)
Carbonation stone fittings (for beverages)
Industrial Chemistry
Hastelloy®-lined reactors
ATEX-compliant pressure control

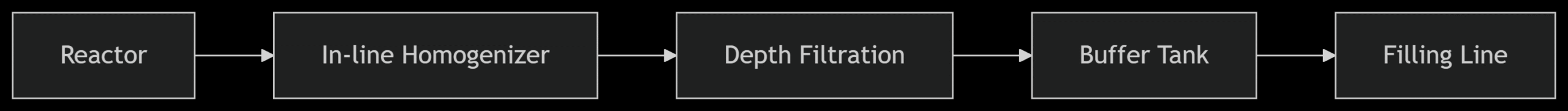

Extend functionality with LOCUS systems:
Example: Vape liquid production line with 0.5µm filtration and nitrogen blanketing.
All pharma vessels include integrated spray balls (3D-rotating type), tri-clamp fittings (ASME BPE standard), and documented weld logs (EN 10204 3.1). Optional leak detection systems for OEB-4/OEB-5 containment.
Regional Adaptations:
Tropicalized models feature external insulation with climatic guard (IP66) and 316L SS hardware for coastal/high-humidity installations in Southeast Asia and Africa.
Surface Integrity:
All pharma contact surfaces achieve Ra ≤0.38µm with 100% dye-penetrant tested welds — exceeding ISPE Baseline Guide 41 requirements.
Material Science:
316L SS vessels include 2.5% molybdenum content for chloride resistance — critical for coastal installations in Vietnam or UAE.
5000L GMP bioreactor with thermo jacket ASME certified.
Anchor impeller for high viscosity mixing 15kW.
10L-10,000L capacities. Request design specs!
Engineer Your Precision Processing Vessel (Reactor)!
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Free line configuration for your products, throughput validation testing!
Contact Specialists for GMP:
Compliance Roadmap:
CE, EAC, ISO 9001 certifications.
GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
