Vacuum-Equipped Rotary Monobloc Systems for DoyPack Pouches
Vacuum Rotary DoyPack Machines: MAP/Gas Flushing 4.0K Pouches/Hour

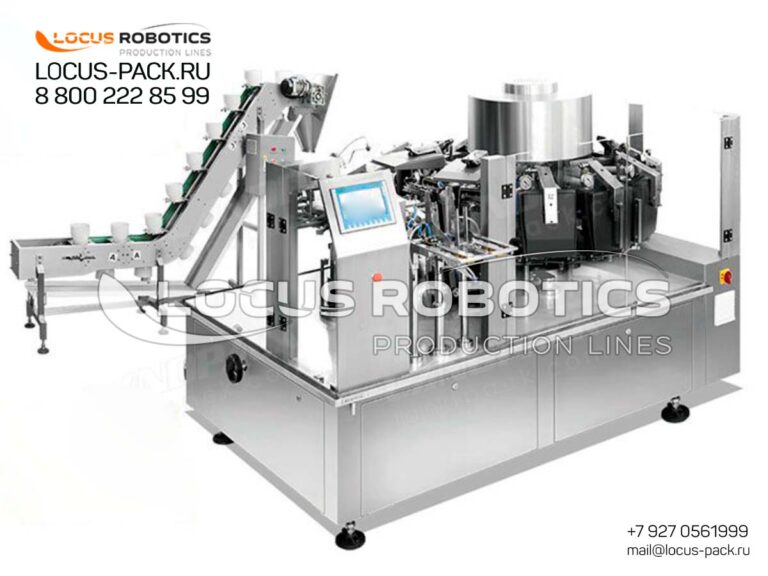

Individual-vacuum-chambers-doypack-machine.
Automated rotary systems with integrated vacuum/gas flushing for oxygen-sensitive products. Extend shelf life up to 400% while maintaining pouch integrity across food, pharma, cosmetic, and tobacco industries.
Vacuum Sealing: 5-50 mbar residual pressure for perishables (meats, cosmetics)
Gas Flushing: N₂/CO₂ injection (O₂ < 0.3%) for oxidation-prone products
Dual-Mode Operation: Switch between vacuum/MAP (modified atmosphere packaging) in < 10 minutes
Advanced Vacuum Technology in Compact Footprint
LOCUS ROBOTICS’ vacuum rotary monoblocs integrate dedicated vacuum chambers into our carousel platform, delivering oxygen-free packaging in a space-saving design. Key advantages:
50% smaller footprint than linear systems
Synchronized dual turntables for continuous processing
5-sec vacuum cycles at ≤50 mbar residual pressure
Gas flushing option (N₂/CO₂) for MAP applications
Critical Applications
| Industry | Products | Atmosphere Solution |
|---|---|---|
| Food | Marinated meats, baby food, coffee | N₂ flushing (O₂ < 0.3%) |
| Cosmetics | Serums, hair dyes, masks | Vacuum sealing (prevent oxidation) |
| Tobacco | Shisha blends (glycerin-moistened) | CO₂ flushing (preserve moisture) |
| Pharma | Ointments, gels | N₂ + vacuum (GMP-compliant) |

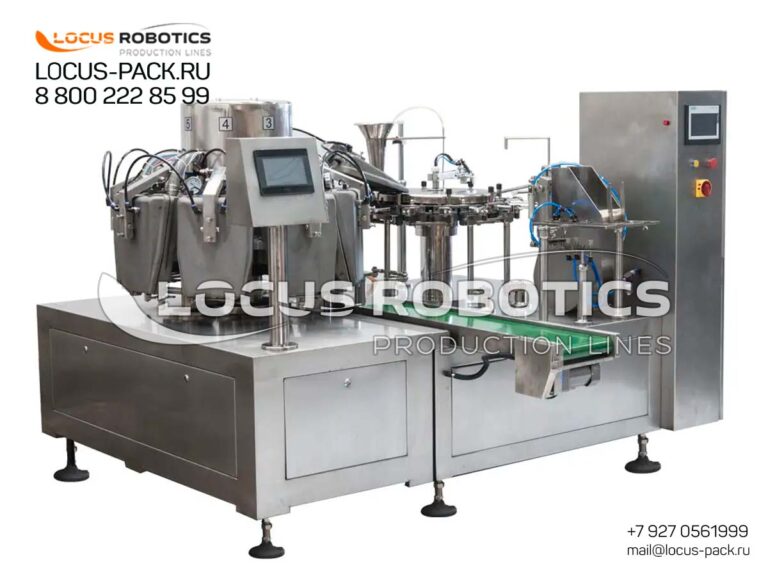

Vacuum-monobloc-doypack-machine-sealing-marinated-meats.
Gas-flushing-system-for-cosmetic-serums-doypack.
Inline-leak-testing-shisha-tobacco-pouches.

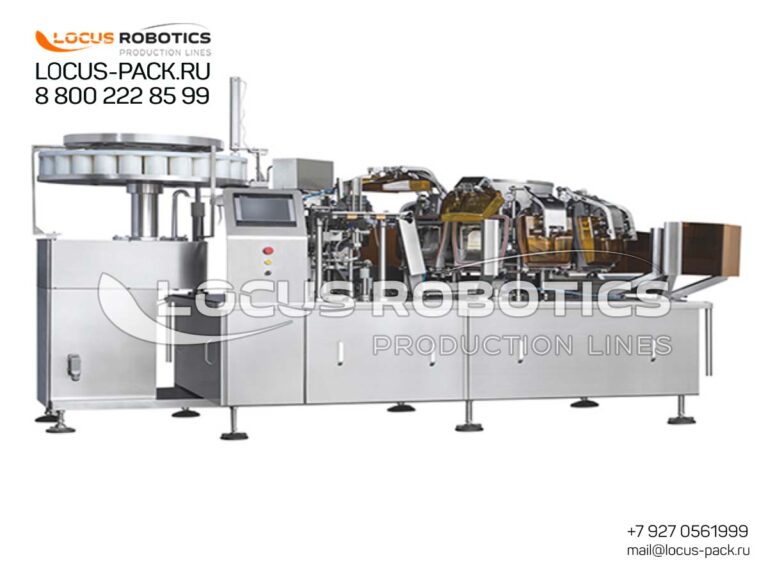

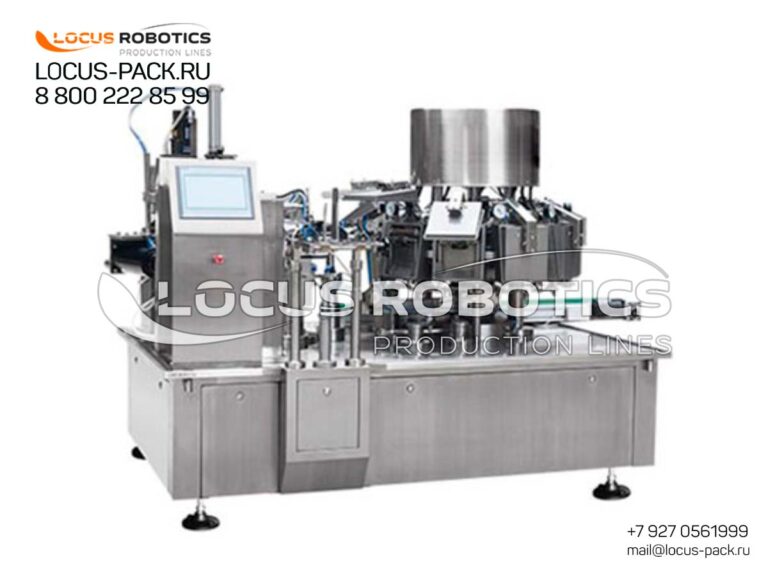

Dual-turntable-vacuum-monobloc-shisha-tobacco-packaging.
Gas-flushing-interface-rotary-monobloc.
| Industry | Products | Preservation Method |
|---|---|---|
| Food | Marinated meats, fermented goods | Full vacuum (≤30 mbar) |
| Tobacco | Shisha blends (glycerin-based) | CO₂ flushing (O₂ <0.3%) |
| Cosmetics | Oxygen-sensitive serums | N₂ flushing + light vacuum |
| Pharma | Topical ointments | Validated MAP (ISO 13485) |
Precision Dosing Systems
Configured for challenging products:

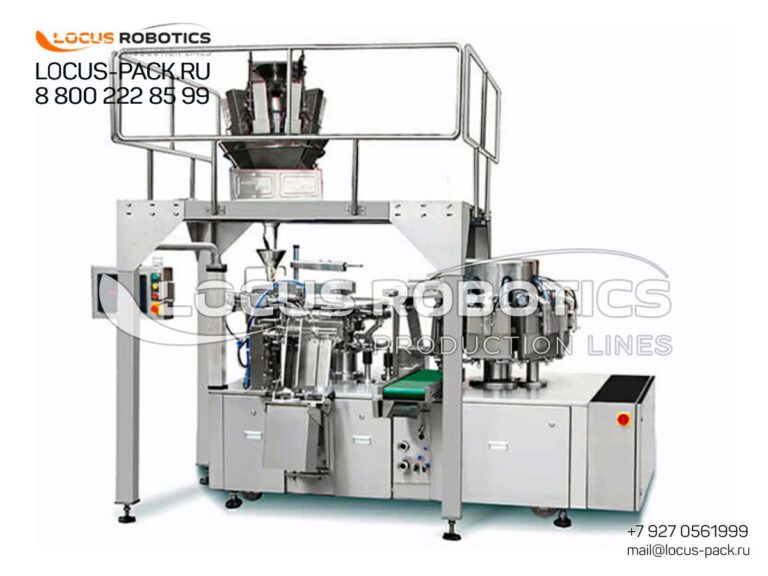

Multi-head weighers: Granular products (spices, fertilizer)
Vibratory trays: Delicate solids (shisha tobacco, dried fruits)
Servo piston fillers: Pastes & thick liquids (cosmetics, adhesives)
Auger systems: Powders with anti-caking systems
Hybrid dosers: Complex blends (e.g., tobacco + glycerin)
Patented Vacuum Workflow
Pouch transfer: Gripper system moves filled pouches to vacuum turntable
Chamber sealing: Individual vacuum cells with pneumatic lids
Atmosphere control:
Option A: Full vacuum (5-50 mbar)
Option B: Gas flush (O₂ customizable 0.1%-2.0%)
Sealing: Dual copper-alloy jaws (150-250°C)
Quality assurance: Pressure decay test pre-discharge
Viscous Liquids: Servo piston fillers (±0.1ml)
Granular Solids: Anti-static augers with load cells
Delicate Products (e.g., shisha tobacco): Hybrid vibratory-pneumatic trays (zero leaf damage)
Abrasives (fertilizers, pigments): Tungsten-carbide coated components
Pouch loading → Orientation
Vacuum Stage: Chamber evacuation (5 sec)
Gas Injection: N₂/CO₂ purge (optional)
Dosing via R&D-validated fillers
Vibration compaction (sluggish products)
Sealing: Double-seam copper jaws
Post-seal pressure testing
Technical Specifications
Vacuum Depth: 5-100 mbar (adjustable)
Gas Consumption: 20 L/min (N₂/CO₂)
Pouch Size: 100ml-5L
Compliance: CE, EAC, ISO 13485 (pharma), HACCP, GMP-ready
Throughput: 400–4,000 pouches/hour (vacuum mode)
Residual O₂: Adjustable 0.1%–2.0%
Seal Integrity: Dual copper-alloy jaws (200–250°C)
Leak Test: Optional inline pressure decay sensor
Modular Upgrades
Automated pouch denester: For continuous feeding
Inkjet coders: Batch/expiry date marking
Excise stamp applicators: For regulated products (tobacco)
Case packers: Direct carton loading
Automated Gas Supply: Integrated N₂ generators
Quality Control: Vision systems for seal inspection
Downstream: Checkweighers ±0.1g accuracy + reject conveyors
Data Logging: O₂/pressure/temperature monitoring (FDA 21 CFR Part 11)
| Feature | LOCUS ROBOTICS | Competitors |
|---|---|---|
| Vacuum Speed | 5 sec cycle | 8–12 sec |
| Gas Consumption | 30% less N₂/CO₂ | Industry standard |
| Delicate Handling | Patented vibration dampers | Product damage risk |
| Compliance | Full GMP documentation | Basic CE only |
| Feature | LOCUS Advantage |
|---|---|
| Footprint | Compact rotary design: 2.5m² vs 6m²+ for linear systems |
| Changeover | <15 mins between vacuum/MAP modes |
| Delicate Handling | Anti-compaction vibration for leaf integrity (shisha) |
| Validation | IQ/OQ protocols included |
Food: EHEDG-compliant seals, allergen control protocols
Tobacco: Excise stamp integration (FCTC compliant)
Global: CE, UKCA, EAC, FDA facility registration support
Compliance Highlights:
CE, EAC, ISO 9001 certifications.
GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
ATEX options for chemical solvents.
