High-Precision Dosing Solutions for Viscous & Non-Newtonian Fluids.
Industry-Standard Dosing Technology for Viscous & Aggressive Products.
Our closed-loop servo-piston systems deliver pharmaceutical-grade accuracy (±0.30%) across extreme viscosity ranges (1-100,000 cP) through:
Zero Dead-Volume Design: Sanitary cylinders with polished internals
Coaxial Anti-Drip Nozzles: Spring-loaded retraction with product cut-off
Smart Stroke Control: Adaptive algorithms for shear-sensitive products
Quick-Change Tooling: <10 min format conversions
Precision volumetric displacement without product degradation.
Our modular piston-dosing systems deliver unmatched versatility across extreme viscosity ranges (1-100,000 cP) and chemical aggressiveness through:
Material Flexibility: Simple seal/swapping enables compatibility with acids, solvents, and food products
Precision Mechanics: ±0.3% accuracy independent of product density changes
Robust Construction: Hardened cylinders for abrasive slurries
Proven Reliability: Field-tested in harsh industrial environments
| Parameter | Piston Filler | Peristaltic | Flow Meter |
|---|---|---|---|
| Viscosity Range | 1-100,000 cP | 1-15,000 cP | 1-3,000 cP |
| Accuracy | ±0.25% | ±1.5% | ±0.1% |
| Shear Sensitivity | Low | High | Moderate |
| Particulate Size | 5mm | 1mm | 0.5mm |
| Maintenance Cost | $0.15/1k units | $0.80/1k units | $0.40/1k units |

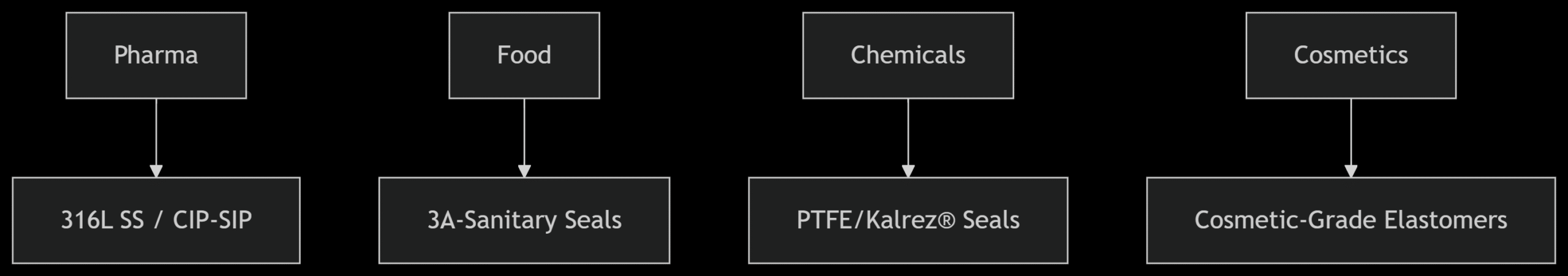

| Sector | Critical Applications | Specialized Features |
|---|---|---|
| Pharmaceuticals | Ointments, gels, suspensions | CIP/SIP, 316L construction, GMP compliance |
| Food | Pastes, dressings, nut butters | 3A-sanitary, EHEDG-certified |
| Chemicals | Sealants, adhesives, lubricants | ATEX-rated, solvent-resistant seals |
| Cosmetics | Creams, serums, waxes | Cosmetic-grade elastomers, low-shear design |
| Advantage | Limitation | Mitigation Strategy |
|---|---|---|
| Universal viscosity handling | Labor-intensive cleaning | Quick-release clamps (45% faster disassembly) |
| Chemical resistance | Limited dosing range per cylinder | Multi-size cylinder kits |
| High-precision dosing | Potential drip residue | Coaxial anti-drip nozzles |
| Affordable maintenance | Format change downtime | Pre-configured cylinder banks |
| Cylinder Size | Dose Range | Max Throughput* |
|---|---|---|
| 30-300ml | Shot glasses to perfume bottles | 1,200 BPH |
| 50-500ml | Food sauces to chemicals | 900 BPH |
| 100-1,000ml | Industrial cleaners to oils | 700 BPH |
| 500-3,000ml | Jerrycans to pails | 500 BPH |
| 1,000-5,000ml | Drums to IBCs | 300 BPH |
| *Per nozzle at 5s cycle time |
Key Innovations:
Multi-Stroke Technology: Micro-dosing down to 0.1ml
Viscosity-Adaptive Control: Auto-adjusts stroke speed
Clean-In-Place: Tri-clamp connections, disassembly-free cleaning
Material Options: Ceramic cylinders for abrasives, PTFE seals for solvents
✅ Unmatched Viscosity Handling: Pumps peanut butter to essential oils
✅ Gentle Product Treatment: <3% shear degradation vs. progressive cavity pumps
✅ Explosion-Safe Operation: ATEX/IECEx options for solvents
✅ Data Traceability: Batch reports with 21 CFR Part 11 compliance
We achieved 97.2% fill accuracy with silicone sealant — impossible with our previous gear pump system.
– Production Engineer, ChemTech Industries
| Metric | Improvement |
|---|---|
| Changeover Time | 65% reduction (30 min → 9 min) |
| Product Giveaway | $38k annual savings (0.5% vs 2.5% waste) |
| OEE | 15% increase through predictive maintenance |
Control Systems:
Basic: Manual stroke adjustment with reed sensors
Advanced: PLC-controlled servo actuators with position feedback
Premium: Recipe management with auto-calibration
| Feature | Locus Robotics | Industry Standard |
|---|---|---|
| Nozzle Design | Zero dead-volume coaxial | Standard straight bore |
| Seal Options | 12+ material grades | 3-5 options |
| Cylinder Change | Tool-free <3 min | 15+ minutes |
| Drip Control | <0.1ml residual | 0.5-1ml residual |
We run acids by day and food oils by night — just swap the seals in 20 minutes.
– Production Supervisor, ChemiPack Ltd.
Product Change: Swap seal kit (<20 min)
Format Change: Install pre-calibrated cylinder bank (<3 min)
Operation: Auto-stroke with reed sensor position control
Cleaning: Disassemble with quick-release clamps

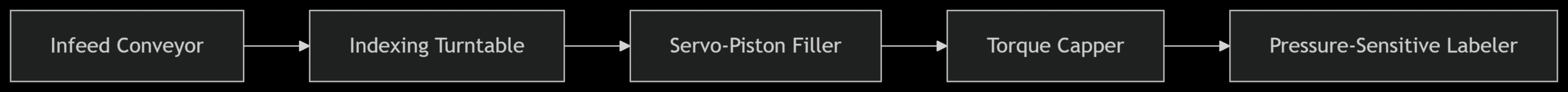

Design your maximum-efficiency production line:
