Precision Cap & Closure Feeding Systems for Automated Packaging Lines

Precision Feeding & Orientation Systems for Automated Lines

Complete Cap, Closure, and Bottle Handling Solutions.

Engineered for 97.4% Orientation Accuracy in Demanding Environments.

Locus-Robotics designs and manufactures specialized orientation and feeding equipment for caps, closures, and containers – critical components enabling fully automated production lines. Our systems eliminate manual handling, ensuring seamless integration with filling/capping monoblocks.

Cap/Closure Orientation Systems

1. Vibratory Bowl Feeders

2. Vertical Lift Elevators

3. Centrifugal Disc Orienters

4. Robotic Vision-Guided Systems

Complete Closure Handling Solutions
From Vibratory Bowls to Robotic Systems

Locus Group manufacturing specialized cap and closure feeders that automate orientation and delivery to capping stations. Critical for eliminating manual handling in fully automated lines.

Technology Portfolio:
— Vibratory Bowl Feeders: High-speed orientation for standard closures
— Elevator Systems: Vertical handling of heavy/tall caps (5-50cm)
— Centrifugal Disc Feeders: Gentle treatment of delicate components
— Robotic Pick-and-Place: Vision-guided precision for complex geometries

Industry-Specific Configurations:

| Industry               |            Cap Types Handled             | Special Features |

| Pharmaceuticals| Serum stoppers, Child-safe caps | GMP-compliant,
| Chemicals | Drum lids, Jerrycan closures | Chemical-resistant 316SS build |
| Cosmetics | Droppers, Airless pumps | Silicone-free contact surfaces |

Bottle Orientation Technologies

• Rotary Disc Unscramblers

• Inversion-Based Systems (flip-type orientation)

All systems are custom-engineered for your specific application – from pharmaceutical vials to chemical drums.

Vibratory Feeder Components

1. Vibration Drive Unit

2. Orientation Bowl with Custom Tooling

3. Exit Track (Precision Escapement)

4. Amplitude Control Module

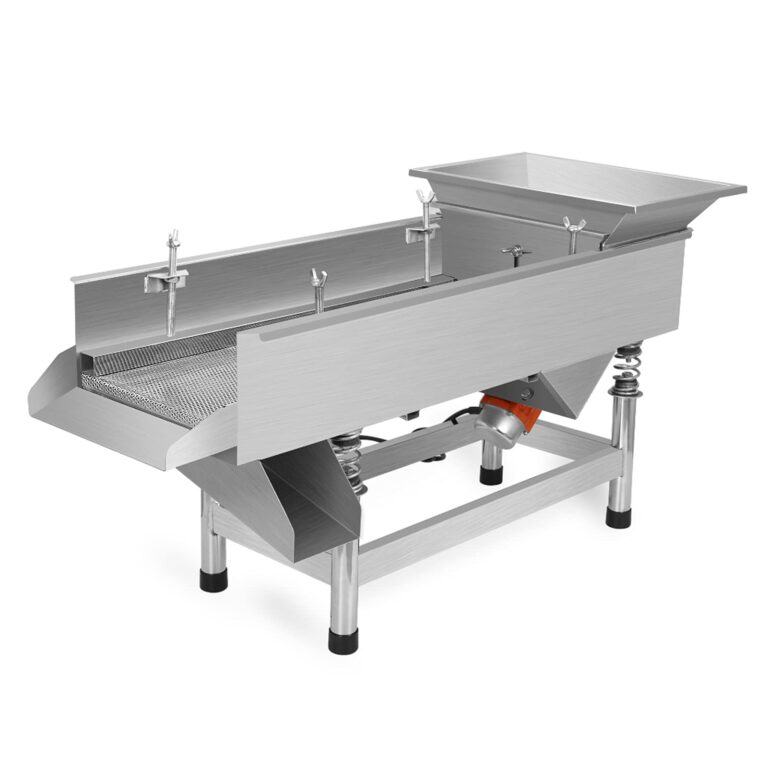

5. Linear Feed Conveyors

6. Cap Placement Mechanism (Press/Screw Application)

7. Structural Frame

8. Control Cabinet (PLC/HMI Interface)

9. Overfill Sensors

10. Bulk Replenishment Hopper

Operating Principle:

Directional vibration and custom tooling (magnets, orientation plates) align closures. Misoriented items fall back into the bowl; correctly positioned caps advance via the track to application heads.

Technical Differentiators

Why Our Feeders Outperform
✅ Anti-Jam Technology: Patented vibration modulation (up to 300 caps/min)
✅ Quick-Change Tooling: <5 min format changeover with no tools
✅ Global Power Ready: Handles 110V-480V ±20% fluctuations
✅ Smart Monitoring: IoT-enabled predictive maintenance (Africa/LATAM optimized)

Precision Mechanics:
1. Directional Vibration: Custom magnet arrays and orientation plates
2. Intelligent Rejection: CNC-machined baffles filter misoriented caps
3. Zero-Drop Escapement: Servo-controlled release to capping heads

Integration Capabilities

Seamless Monoblock Integration
Works with all major filling/capping systems:
- Linear conveyors
- Rotary monoblocs
- Robotic placement cells

Included Interfaces:
- OPC-UA communication protocol
- Mechanical coupling adapters
- Safety interlocks (PLd Cat.3)

Region-Specific Selling Points

Built for Your Market
- SE Asia: Humidity-resistant electronics (80% RH rating)
- Africa: Sand/dust protection (IP54 enclosures)
- Eastern Europe: -35°C cold-start capability
- LATAM: Spanish/Portuguese HMI interfaces

Technical Specifications (Table Format)

Why Choose Locus-Robotics?

• Industry-Specific Expertise: Solutions for:
  ✔️ Pharma (vial stoppers, child-safe caps)
  ✔️ Chemicals (jerrican lids, heavy-duty closures)
  ✔️ Cosmetics (droppers, pump assemblies)

• Global Readiness: Voltage-tolerant designs (±20%) for unstable grids

• Zero Changeover: Tool-free adjustment for multi-SKU lines

• Guaranteed Integration: Seamless pairing with monoblocks

Our systems handle 300+ closures/minute with 98.2% orientation accuracy – the automation backbone for high-speed packaging lines.

Ready to Eliminate Manual Cap Handling?
➤ Request Feasibility Study: Send your cap samples for free orientation test

Design your precision feeding line!
