Automatic Tube Filling-Sealing Monoblocs
LOCUS ROBOTICS Group manufactures, supplies, commissions, and deploys automatic tube filling machines for plastic and aluminum tubes. Both automatic fillers and semi-automatic monoblocs feature rotary indexing design — enabling fully automated processing with minimal operator intervention while ensuring consistent end-product quality.
Locus Robotics’ automatic monoblocs deliver integrated tube filling, capping, and sealing in one synchronized operation. Engineered for pharmaceutical creams, cosmetic gels, and industrial adhesives, our servo-driven systems handle aluminum crimping and laminate heat-sealing without tool changeovers – achieving outputs up to 400 tubes/minute with ±0.5% fill accuracy.
| Tube Type | Sealing Mechanism | Key Components | Output |
|---|---|---|---|
| Extruded Plastic | Thermal sealing (copper-heated jaws) | Mechanical crimping units | Up to 1,200 tph |
| Laminate | Ultrasonic sealing (generator-based) | Pneumatic clamping systems | Up to 1,200 tph |
| Aluminum | Precision crimping | Steel rollers with servo drive | Up to 1,200 tph |
Standard monoblocs process either plastic OR aluminum tubes due to fundamentally different tooling requirements.
Laminate Tubes
Ultrasonic sealing preferred for multi-layer/foil-lined constructions
60% faster cycle times vs thermal methods for thick-walled tubes
Extruded Plastic Tubes
Copper-heated jaws ensure consistent thermal sealing
Aluminum Tubes
Dual crimping options: Servo-driven rollers or pneumatic compression heads
Standard: Single-nozzle rotary systems (1,200 tubes/hour)
Premium: Quad-nozzle configurations with:
Dual tube orienters
High-capacity automated hoppers
Integrated rejection systems
Automatic models feature tube orientation systems absent in semi-automatic units.
| Sector | Products Filled | GMP Compliance |
|---|---|---|
| Cosmetics | Creams, gels, masks, toothpaste | ISO 22716 |
| Food | Mustards, pâtés, sauces, mayonnaise, cheese spreads | FDA Food Contact |
| Pharma/Veterinary | Ointments, healing compounds | GMP, 21 CFR Part 11 |
| Industrial Chemicals | Sealants, adhesives, protective coatings | ATEX Option |
Standard: Piston fillers with product hoppers
Specialized Options:
Gear pumps: For high-viscosity products <10ml (±0.3% accuracy)
Peristaltic pumps: Shear-sensitive formulations
- Product Handling:
• Hopper agitator • Product level sensors • Heating jackets
• Interchangeable piston cylinders • Product feed pumps
- Tube Processing:
• Pre-fill hot-air purging • Euroslot punching unit
• Decorative seam embossing • In-line steam preheating

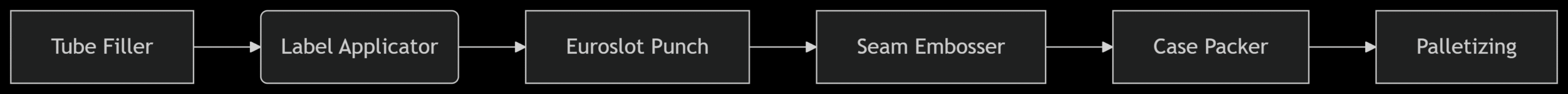

- Downstream Integration:
• Self-adhesive label applicators • Case packers (carton loading)
Precision Performance
- Throughput: 80-400 tubes/min (model-dependent)
- Accuracy: ±0.5% gravimetric filling
- Tube Compatibility:
- Laminate (15-50mm Ø)
- Aluminum (10-40mm Ø)
- Co-extruded plastic
Industry-Specific Compliance
- Pharma: GMP, FDA 21 CFR Part 11 data logging
- Cosmetics: ISO 22716, CIP/SIP capable
- Chemicals: ATEX option for explosive environments
Hybrid Sealing Technology
- Simultaneously heat-seals laminate tubes AND crimps aluminum tubes
- Zero changeover time between formats
Loading: Operator fills hopper + loads tubes into orienter
Orientation: Vision-guided tube positioning via photo marks
Pre-treatment: Hot-air purging + internal heating element
Filling: Precision volumetric dosing
Sealing: Material-specific closure (heat/ultrasonic/crimp)
Marking: Alphanumeric embossing on seam
Finishing: Euroslot punching + decorative seam engraving
Output: Discharge via conveyor or chute
Material Flexibility: Processes extruded, laminate, and aluminum tubes
Quick Changeover: <5 minutes between tube formats
Precision: ±0.5% fill accuracy with servo-driven dosing
Scalability: Modular design allows future upgrades
Configure your monobloc:
