Description

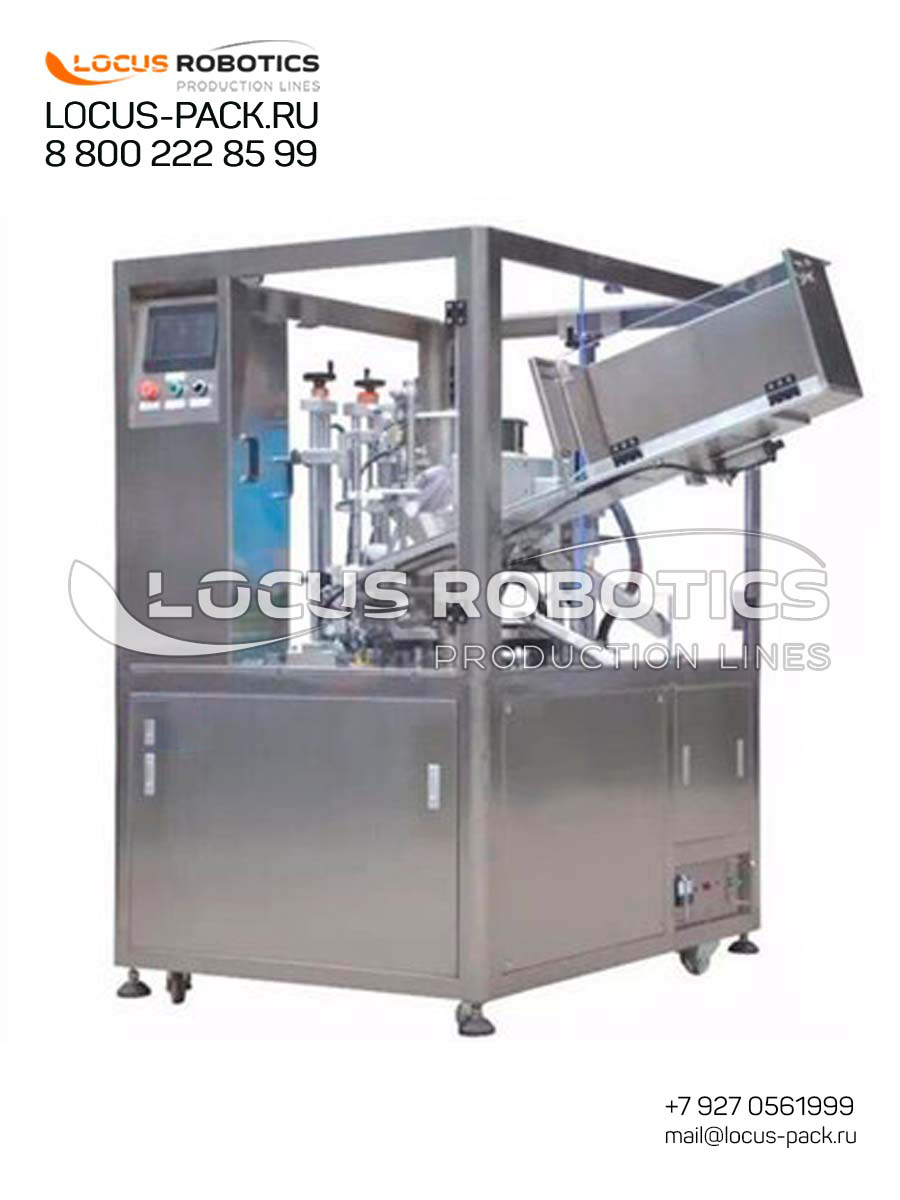

Advanced Automatic Monoblock for Multiple Tube Types — TB-30

Automatic Monoblock TB-30 for Polylaminate/ABL/BPL/Extrusion Tubes | Precision Filling & Sealing.

The TB-30 Automatic Monoblock represents the pinnacle of versatility in tube packaging technology. This sophisticated system is engineered to handle polylaminate, ABL (Aluminum Barrier Laminate), BPL, and extrusion tubes with equal precision, making it the ideal solution for manufacturers working with diverse packaging materials.

Technical Specifications:

• Machine Type: Automatic Tube Filling and Sealing Monoblock

• Production Capacity: Up to 45 tubes per minute

• Filling Accuracy: ±0.5%

• Compatible Tube Types: Polylaminate, ABL, BPL, Extrusion tubes

• Tube Diameter Range: 15-40 mm

• Tube Length Range: 60-200 mm

• Filling Volume Range: 5-200 ml

• Dosing System: Precision piston filler

• Detection System: Photoelectric mark sensor

• Sealing Method: Advanced thermal sealing technology

• Orientation System: Automatic tube orienter

• Power Requirements: 380V/220V, 50/60 Hz, 4-5 kW

• Control System: PLC with touchscreen interface

• Construction: Stainless steel (304/316) contact parts

• Compliance: CE, ISO 9001, GMP standards

Key Features and Benefits:

• Multi-Tube Compatibility: Handles polylaminate, ABL, BPL and extrusion tubes

• Precision Filling: Piston dosing system ensures ±0.5% accuracy

• Advanced Thermal Sealing: Consistent, reliable seals for all tube types

• Automatic Operation: Integrated orientation and feeding systems

• Quick Changeover: Easy transition between different tube materials

• Hygienic Design: Stainless steel construction meets pharmaceutical standards

• User-Friendly Interface: Touchscreen control with recipe storage

• Quality Assurance: Comprehensive monitoring throughout process

Applications:

• Pharmaceutical Products: Medicated creams, ointments, topical treatments

• Cosmetic Products: Creams, lotions, gels, specialty cosmetics

• Food Products: Pastes, condiments, food-grade preparations

• Chemical Products: Industrial compounds, specialty chemicals

• Healthcare Products: Medical preparations, dental compounds
