Description

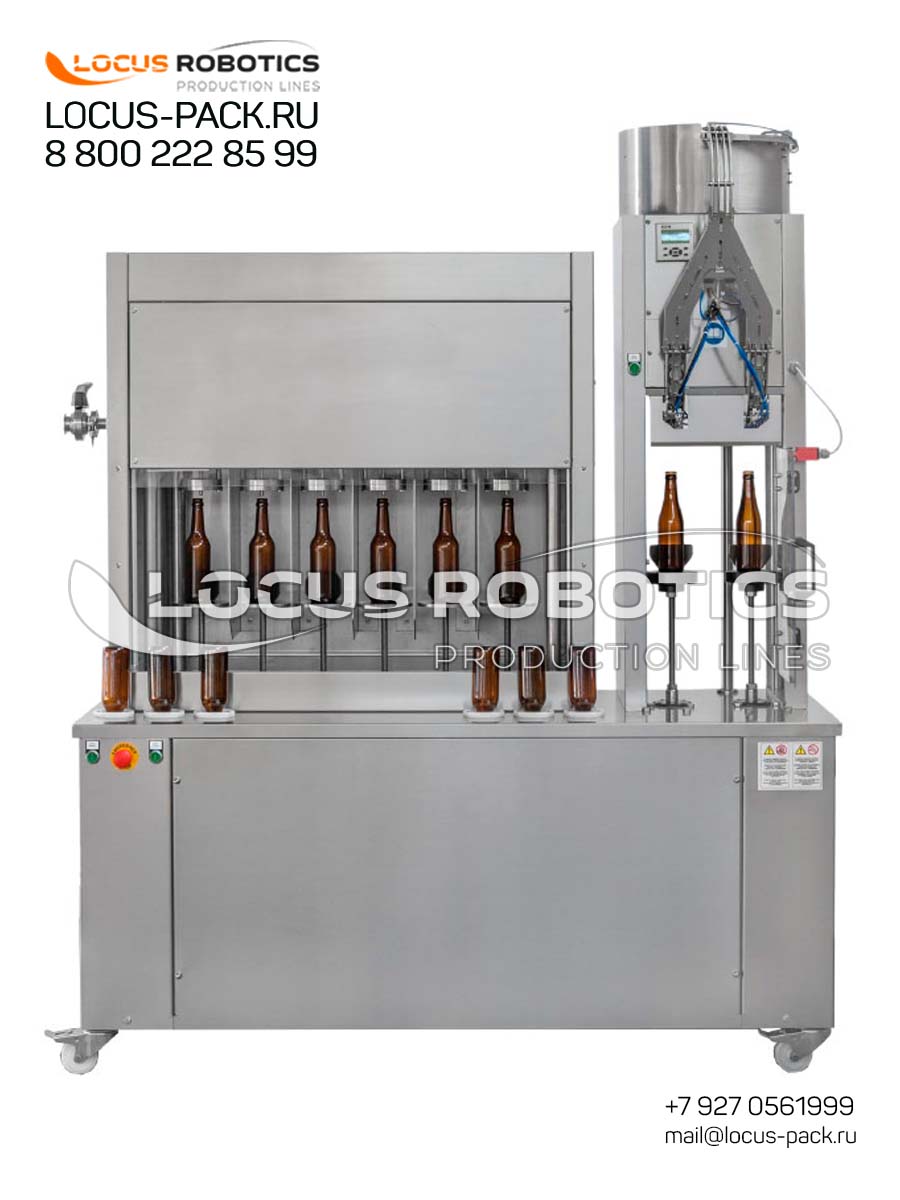

High-Speed Packaging for Carbonated Beverage Lines

LR-400 Automatic Rotary Monoblock is designed as the core component of a modern beverage bottling line. It transforms the separate, often inefficient processes of filling and capping into a single, synchronized, and high-throughput operation. This machine is built for manufacturers in Southeast Asia, Africa, the Middle East, and Latin America who require international-grade performance, durability for local operating conditions, and the technical support to ensure continuous production. By choosing a rotary monoblock, you eliminate transfer delays, reduce bottle handling, and achieve a significant boost in overall line efficiency (OEE).

Engineered for Quality & Efficiency: Isobaric Filling & Precision Capping

• Advanced Isobaric Filling System: At the heart of the LR-400 is its precision rotary isobaric filling system. Each filling valve on the rotating carousel performs a critical sequence: 1) Sealing against the bottle neck, 2) Pre-pressurization of the bottle with CO₂ to match the tank pressure, 3) Gentle, turbulent-free filling under counter-pressure, and 4) De-pressurization before release. This process is essential for preventing CO₂ loss (keeping drinks fizzy), controlling foaming (minimizing product waste), and drastically reducing dissolved oxygen (DO) levels to extend shelf-life.

• High-Speed Rotary Crown Capper: Synchronized with the filler, the rotary crown capping station receives bottles and applies aluminum crown caps (pilfer-proof caps) at line speed. The system typically includes a cap sorter/orienter and precision capping heads that consistently apply the correct crimping force for a hermetic, tamper-evident seal that meets international beverage standards.

Technical Specifications & Design Features

• Machine Type: Fully Automatic Rotary Monoblock (Filling + Crowning).

• Operation: Fully automatic, synchronized with conveyor in-feed and discharge.

• Filling Technology: Rotary Isobaric (Counter-Pressure) Filling Valve System.

• Number of Filling Valves: Configurable (24, 32, 40, 48 valves) to match target output.

• Output Speed: Ranges from approximately 6,000 to 30,000+ bottles per hour (BPH), depending on valve count, bottle size, and product.

• Filling Accuracy: Typically within ±3.5 ml or better, ensuring consistent fill levels and maximizing yield.

• Bottle Types: Designed for glass bottles of various sizes (200ml to 1L+) with standard crown finish (PCO 1881, etc.).

• Construction: Hygienic, heavy-duty design with all product zone parts in AISI 304 or 316L Stainless Steel. Features polished surfaces, enclosed panels, and easy drainage.

• Control & Automation: Advanced PLC with large color Touchscreen HMI. Provides full control over filling parameters (time, pressure, levels), production data logging, recipe management, and fault diagnostics.

• Key Features:

  • CIP (Clean-in-Place) System: Optional integrated CIP circuit for automated cleaning and sanitation, reducing downtime and ensuring hygiene.

  • Low Maintenance Design: Long-life bearings, food-grade lubricants, and easily accessible service points.

  • Product Recovery: System minimizes product loss during bottle ejection or stop cycles.

  • Gas Recovery: Options to recover CO₂ during the depressurization phase, improving gas efficiency.

Target Applications & Compatible Products

The LR-400 is the ideal solution for packaging a wide spectrum of carbonated beverages:

• Carbonated Soft Drinks (CSD): Cola, lemon-lime sodas, orange soda, tonic water.

• Beer & Malt Beverages: Lager, ale, stout, non-alcoholic beer.

• Cider & Hard Seltzers.

• Sparkling Water & Flavored Sparkling Water.

Integration & Support for Global Operations

The LR-400 is not just a machine; it’s part of a packaging solution. It is designed for seamless integration upstream with bottle rinsers/air cleaners and downstream with pasteurizers/tunnel warmers, labelers, and packers. We provide comprehensive line engineering support to ensure optimal layout.

Crucially, for our target markets, we back the LR-400 with a robust support ecosystem: regional spare parts hubs, multi-lingual technical support (EN/AR/ES/etc.), on-site commissioning by experienced engineers, and operator training programs. This ensures maximum uptime and a smooth ramp-up to full production, whether you’re in Nigeria, Vietnam, Colombia, or Egypt.
