Description

Engineered for Aseptic Pharmaceutical Production

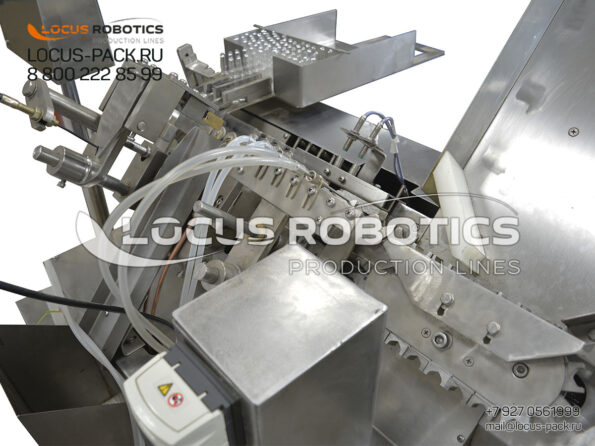

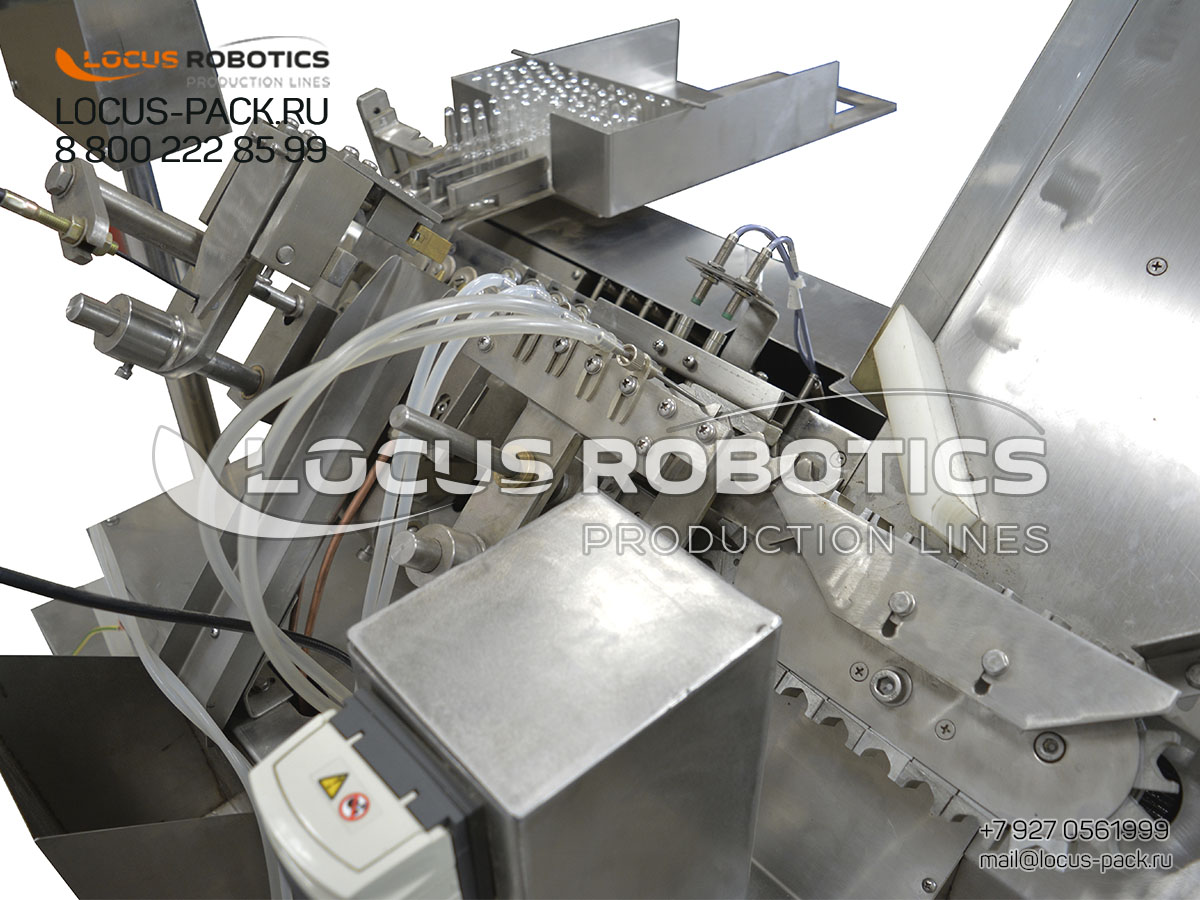

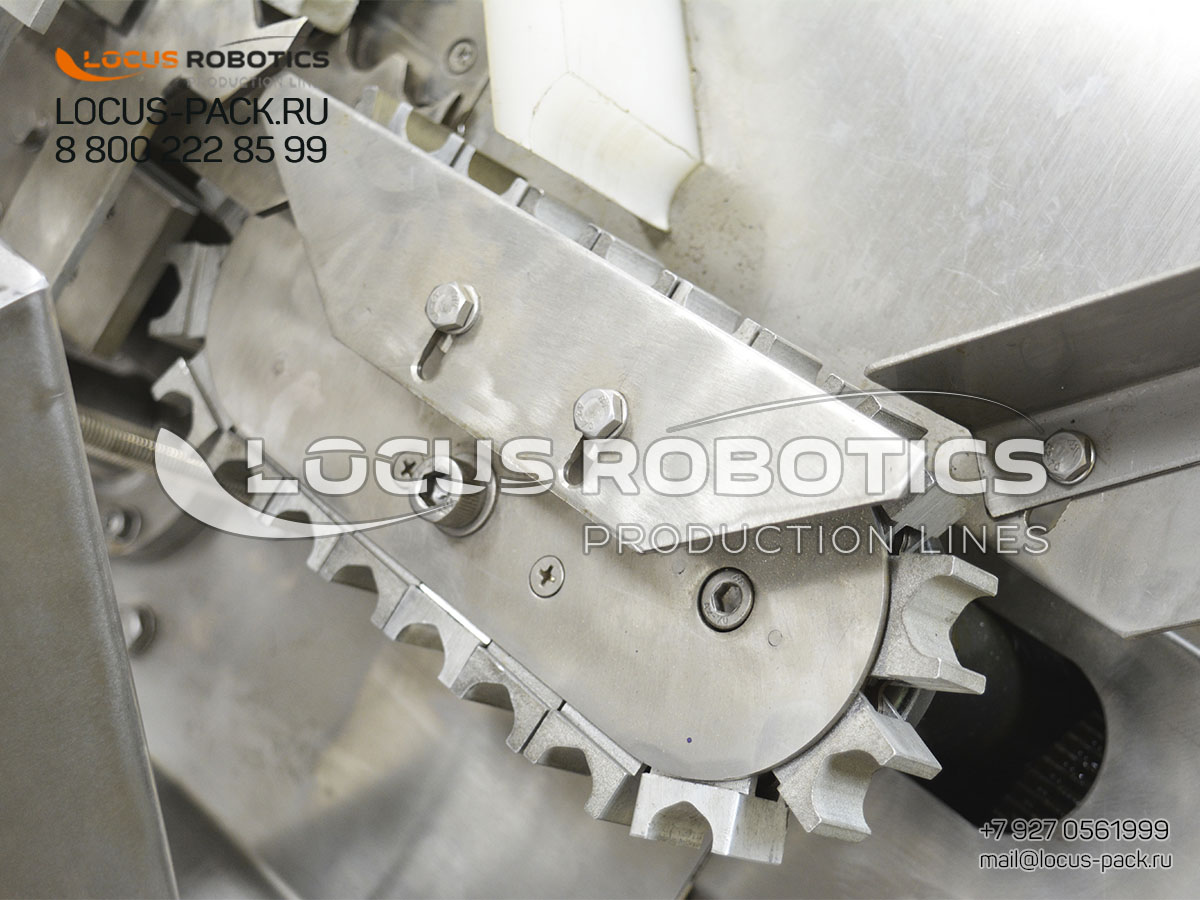

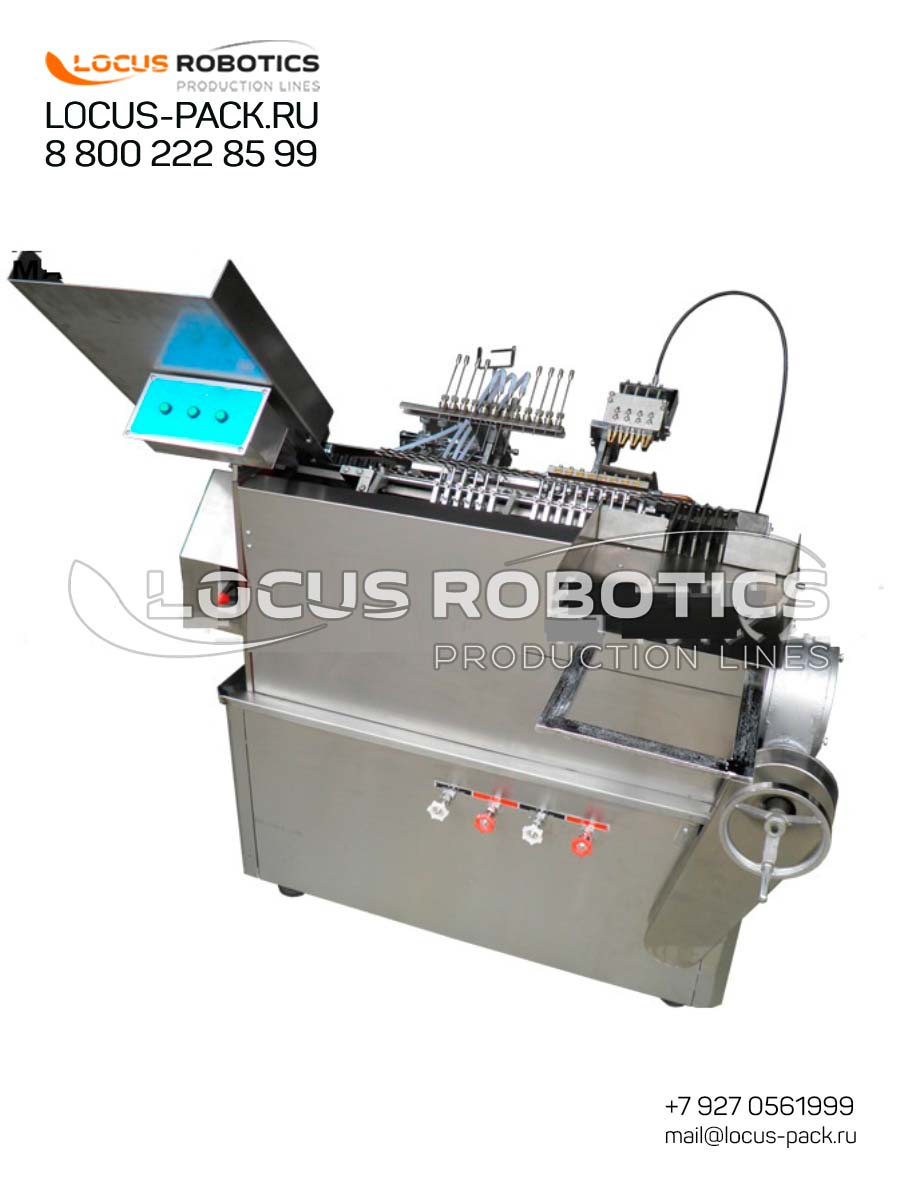

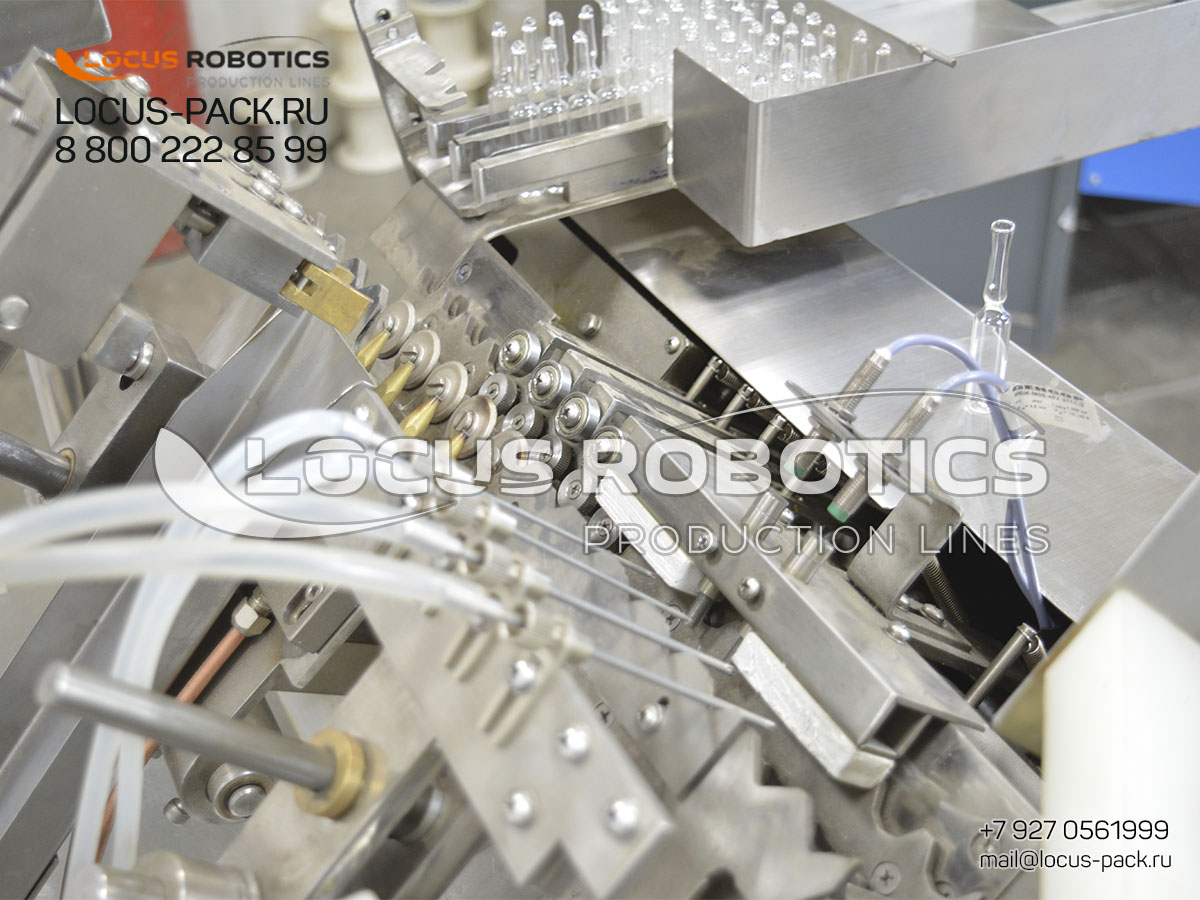

The A-50 Automatic Monoblock is a turnkey solution for the demanding requirements of aseptic fill-and-finish operations. Its robust, integrated design is built to handle the most sensitive sterile products, providing a reliable and efficient process from empty ampoule to hermetically sealed final product. This machine is indispensable for manufacturers of injectable drugs, vaccines, diagnostics, and biotech solutions.

Key Features/Benefits

• Integrated Sterile Processing: Combines precision liquid filling and hermetic ampoule sealing in a single, automated system to minimize contamination risk.

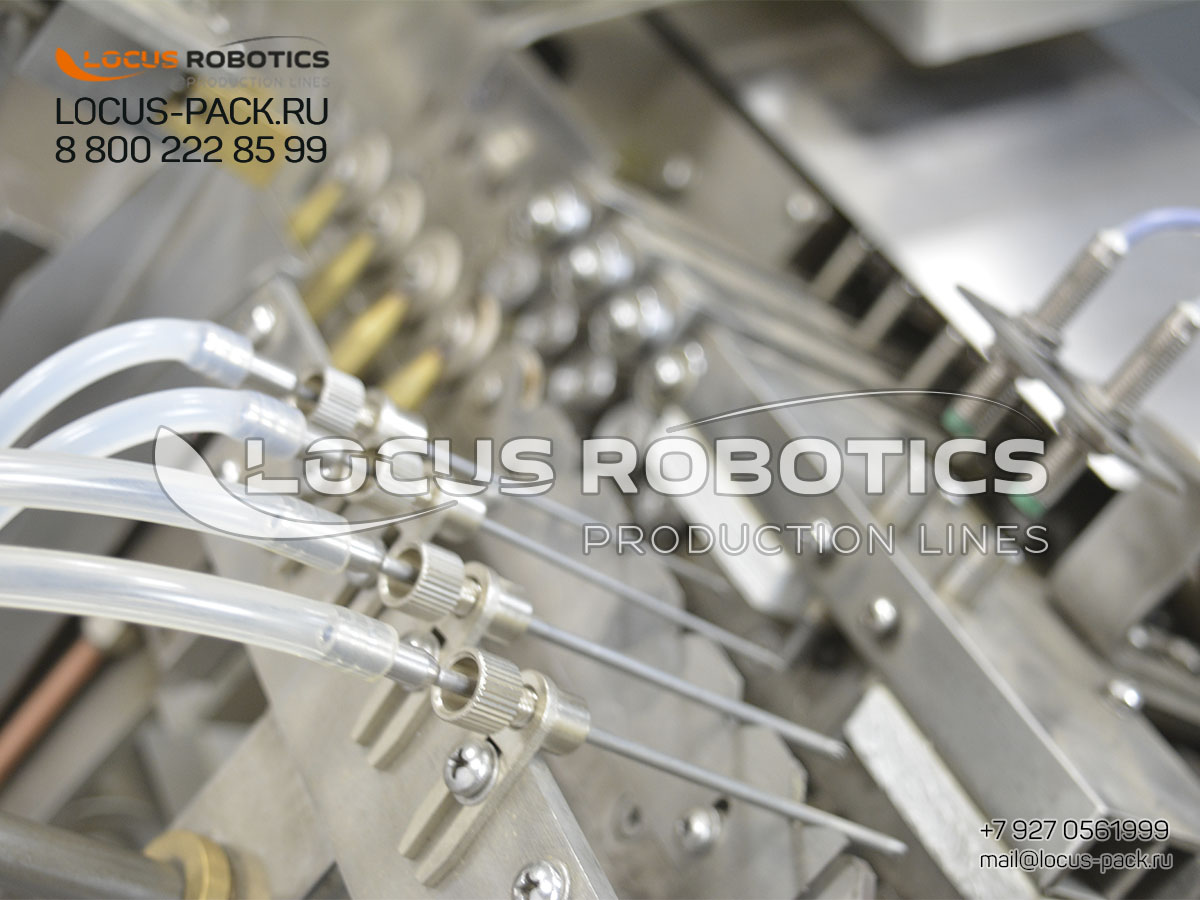

• High-Precision Filling System: Guarantees accurate dosing with minimal deviation, which is critical for valuable and potent sterile pharmaceuticals.

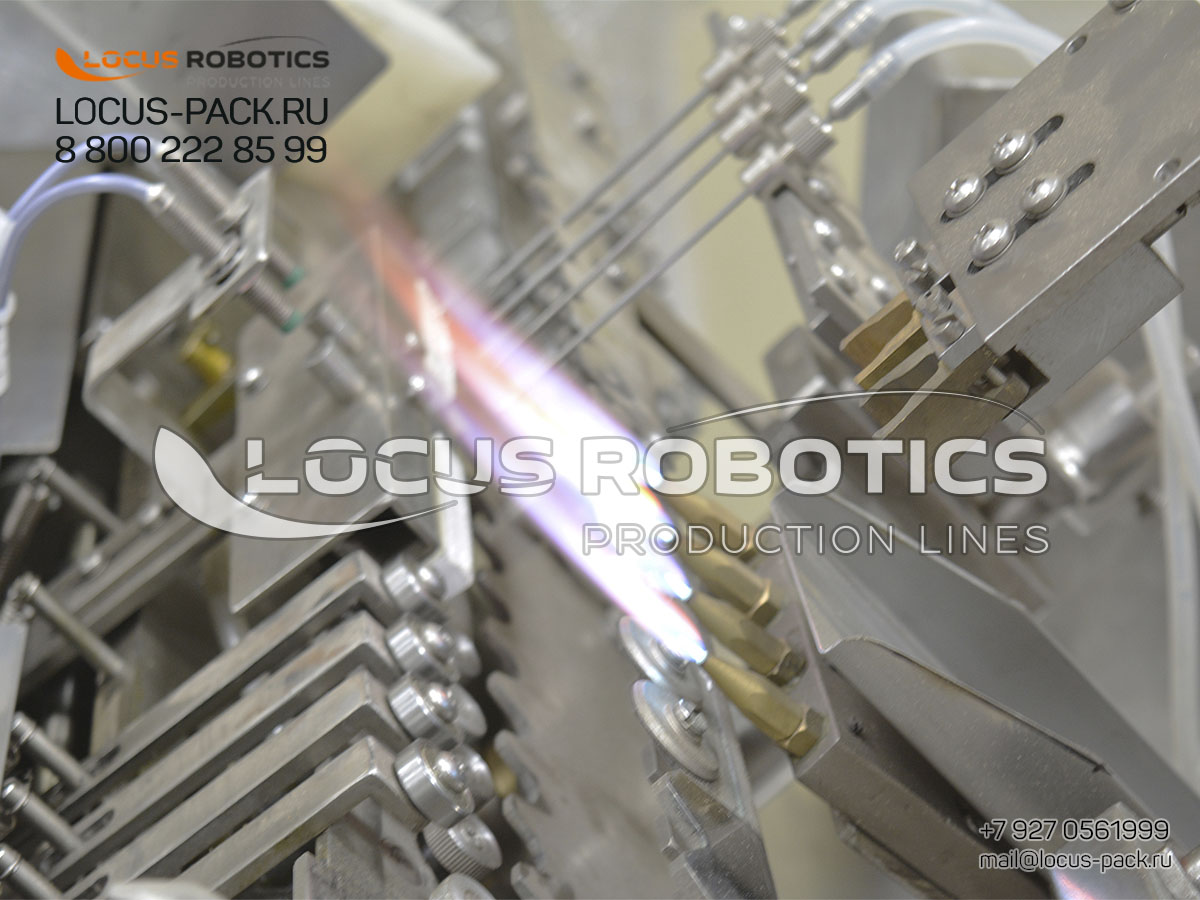

• Hermetic Sealing Technology: Creates a secure, tamper-evident seal on glass ampoules, ensuring product integrity and long-term sterility.

• GMP-Compliant Design: Constructed with high-grade stainless steel (AISI 304/316L) and cleanline design for easy sterilization and validation.

• «No Ampoule, No Fill» Technology: Sensors prevent product discharge unless an ampoule is present, eliminating waste and maintaining machine cleanliness.

Technical Specifications & Performance

• Machine Type: Automatic Monoblock for Ampoule Filling and Sealing.

• Process: Filling of sterile medicines and hermetic sealing of ampoules.

• Filling Accuracy: ≤ ±0.5% (dependent on product viscosity and volume).

• Production Speed: Designed for high-speed output; specific rate depends on configuration.

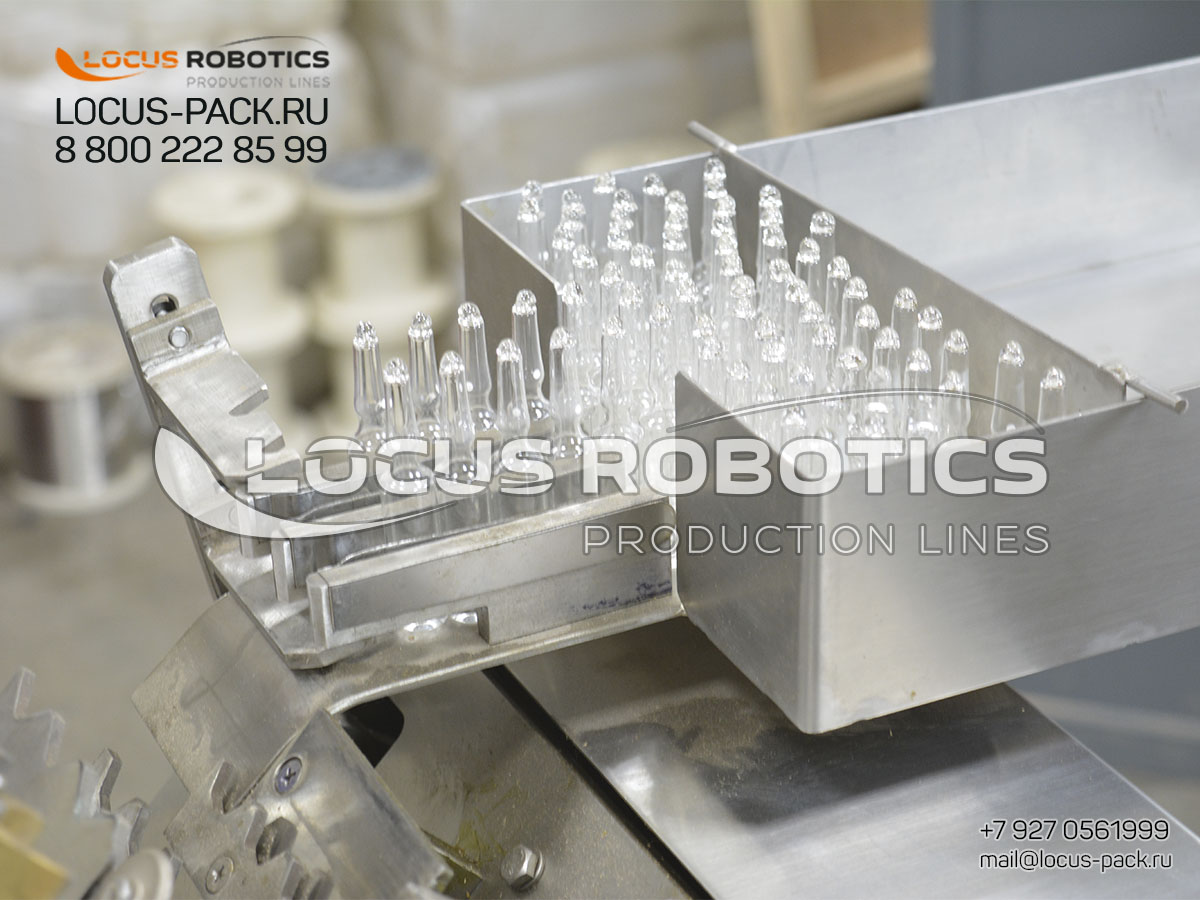

• Ampoule Compatibility: Handles standard glass ampoules, typically from 1ml to 20ml.

• Control System: Advanced PLC with user-friendly Touchscreen HMI for recipe management and parameter control.

Advantages of a Monoblock for Sterile Medicines

• Enhanced Sterility Assurance: The integrated process reduces transfer points and handling, significantly minimizing the risk of contamination.

• Operational Efficiency: A single machine performs multiple functions, streamlining the workflow and boosting overall equipment effectiveness (OEE).

• Process Consistency: Ensures every ampoule is filled and sealed to the same high standard, supporting stringent quality control.

Ideal Applications & Industries

• Pharmaceutical: Injectable antibiotics, vaccines, anesthetics, and other sterile solutions.

• Biotechnology: Sensitive biologicals, cell and gene therapies, research reagents.

• Veterinary Medicine: Animal health injectables and vaccines.
