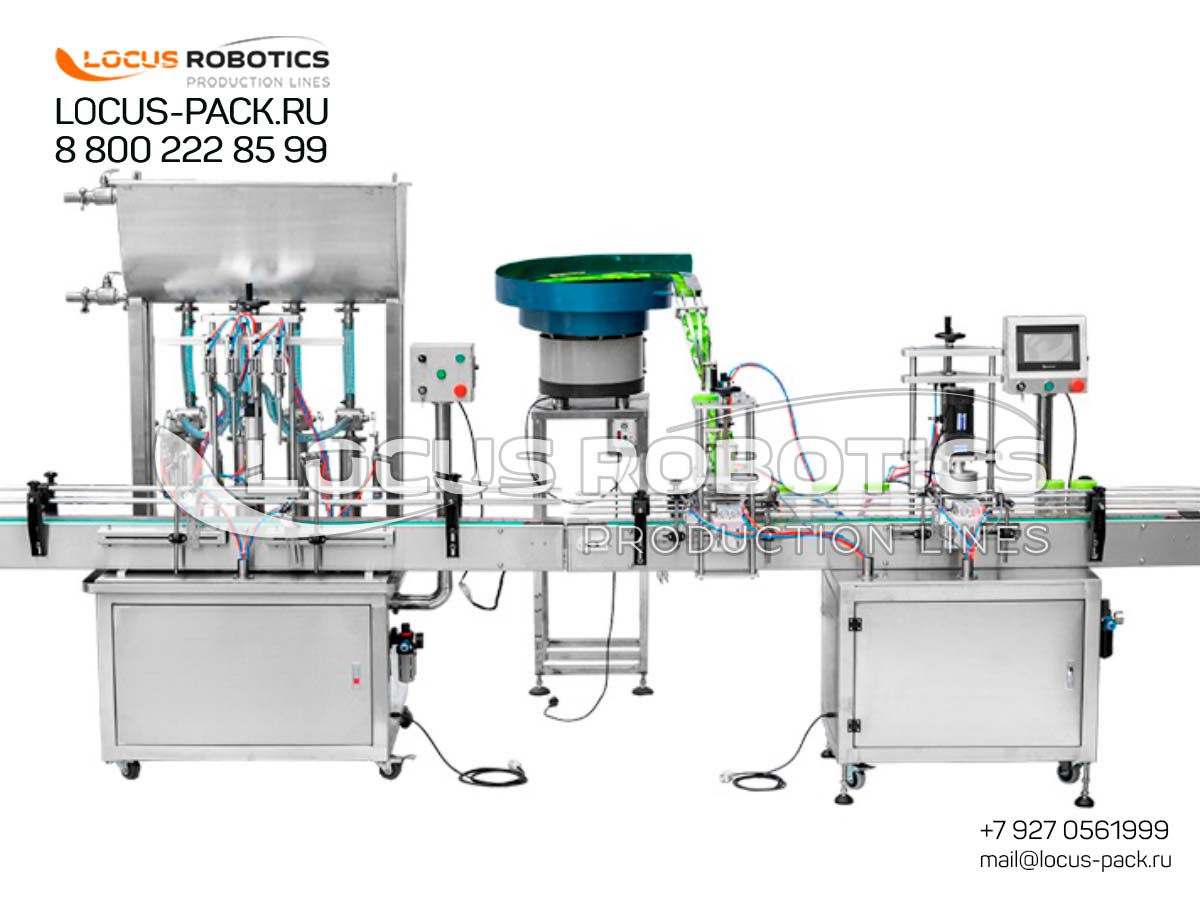

R-200 Automatic Line with Four-Piston Dosing System: High-Capacity Filling, Orienting, and Capping for 100ml to 1000ml Containers

The Engineered Core of Efficient, Mid-Volume Production for Diverse Industries

In the competitive landscape of chemical, cosmetic, and specialty food manufacturing, operational efficiency and packaging reliability are fundamental pillars of profitability and market trust. The R-200 Automatic Line, featuring a synchronized four-piston dosing system, is meticulously engineered to serve as the workhorse for production facilities that have outgrown basic semi-automatic equipment but may not require the extreme throughput of larger, more complex rotary systems. This line masterfully addresses the universal need for precise volumetric control, high uptime, and seamless container handling for the highly common 100ml to 1000ml packaging formats. It represents an ideal capital investment for producers of automotive fluids, construction chemicals, agrochemicals, personal care products, and food sauces who demand a robust, dependable, and adaptable packaging solution that can deliver consistent quality across multiple product lines, reduce labor dependency, and provide a swift return on investment through enhanced throughput and minimized material waste.

Integrated System Design: Synchronized Components for Uninterrupted Flow

The R-200 achieves its high performance through the precise integration of specialized stations, each engineered to perform a critical task within a continuous, automated workflow.

1. High-Output Linear Piston Filler with Four Independent Dosing Heads

• Core Technology & Process: The centerpiece of the line is a heavy-duty linear piston filler equipped with four synchronized piston-cylinder units. This multi-head configuration is engineered for efficiency, allowing the machine to fill four containers simultaneously within a single operational cycle. Each piston operates with independent precision, drawing a measured volume of product—from free-flowing solvents to viscous creams and pastes—from a common product receiver tank that ensures a consistent supply.

• Critical Advantages for Operational Efficiency: This design directly translates to significantly higher production speeds compared to single or twin-head fillers, effectively doubling or quadrupling output without a corresponding increase in floor space. The positive displacement mechanism guarantees excellent volumetric accuracy (typically ±0.5-1.0%) across the entire 100-1000ml range, which is essential for cost control of raw materials and for adhering to strict net content regulations. The inclusion of the integrated receiver tank simplifies product supply logistics and enhances process stability.

2. Automatic Capping with Descending Screwing Head and Vibratory Orienter

• Core Technology & Process: Following the filling station, containers proceed to a sophisticated capping module. A high-speed vibratory orienter first sorts and aligns screw caps from a bulk hopper, feeding them correctly into the system. An automatic capper with a descending screwing head then engages each cap. This head lowers onto the container, centers itself, and applies a pre-set, consistent torque to secure the closure before retracting.

• Critical Advantages for Seal Integrity and Reliability: The descending spindle (chuck) capping mechanism is renowned for its positive sealing action and adaptability to various container heights and cap sizes. It provides superior control over applied torque, ensuring leak-proof seals and proper closure functionality without damaging containers or cross-threading caps. The vibratory orienter automates a traditionally manual and error-prone step, ensuring a continuous, jam-free supply of correctly positioned caps to maintain line speed and uptime.

3. Compact and Robust Construction for Demanding Environments

• Core Technology & Process: The entire line is built with a space-optimized, compact footprint, making it an ideal solution for facilities where production area is at a premium. The chassis and framework are designed for rigidity and long-term durability under continuous operation. As with all R-200 variants, product contact parts are manufactured from AISI 316L Stainless Steel.

• Critical Advantages for Durability and Compliance: The compact design facilitates easier integration into existing production halls and allows for future line expansions. The robust construction ensures stability and minimizes vibration, which is crucial for maintaining the precision of the four-piston filling system. The sanitary, CIP-capable stainless-steel construction not only resists corrosion from aggressive chemicals but also supports compliance with GMP-ready hygiene protocols, enabling safe production of cosmetics and food products and easy cleaning between batches.

Detailed Technical Specifications and Operational Data

Target Industries and Specific Product Applications

This configuration of the R-200 line is exceptionally versatile, serving as a primary packaging solution for:

• Chemical Sectors: Liquid laundry detergents, fabric softeners, dish soaps, all-purpose cleaners, automotive shampoos and waxes, engine treatments, antifreeze, lubricants, agricultural pesticides, herbicides, and liquid fertilizers.

• Cosmetics & Personal Care: Shower gels, shampoos, conditioners, liquid soaps, hand sanitizers, lotions, and hair styling products.

• Food & Beverage: Edible oils, vinegar, sauces, syrups, liquid sweeteners, and dairy-based drinks (with full CIP validation).

• Industrial & Building Materials: Adhesives, sealants, primers, solvents, and other construction-phase chemical products.

Global Support and Scalability Commitment for Growing Enterprises

We provide a foundational partnership to ensure your R-200 line becomes a reliable pillar of your production growth:

• Guaranteed Performance: Operate with confidence under our 24-month comprehensive performance guarantee, covering mechanical, pneumatic, and control system functions.

• Rapid Operational Start: Our «Ramp-Up Assurance» program ensures complete on-site commissioning and operator training within 72 hours in key industrial regions, minimizing your time-to-production.

• Localized Technical Expertise: Receive prompt, expert support from our regional technical hubs in Dubai (MENA), Hanoi (Southeast Asia), and Lagos (Africa), staffed by engineers who understand local market needs.

• Minimized Operational Risk: Pre-positioned, region-specific spare parts kits guarantee emergency delivery of critical components in under 24 hours, protecting your production schedule and maximizing equipment uptime (OEE).

• Compliance and Validation Assistance: We supply the necessary documentation and expert guidance to support your Installation (IQ), Operational (OQ), and Performance (PQ) Qualification processes, which are crucial for supplying regulated industries and major distributors.
