Engineered for Aseptic Pharmaceutical Production: A Closed-Loop GMP Solution

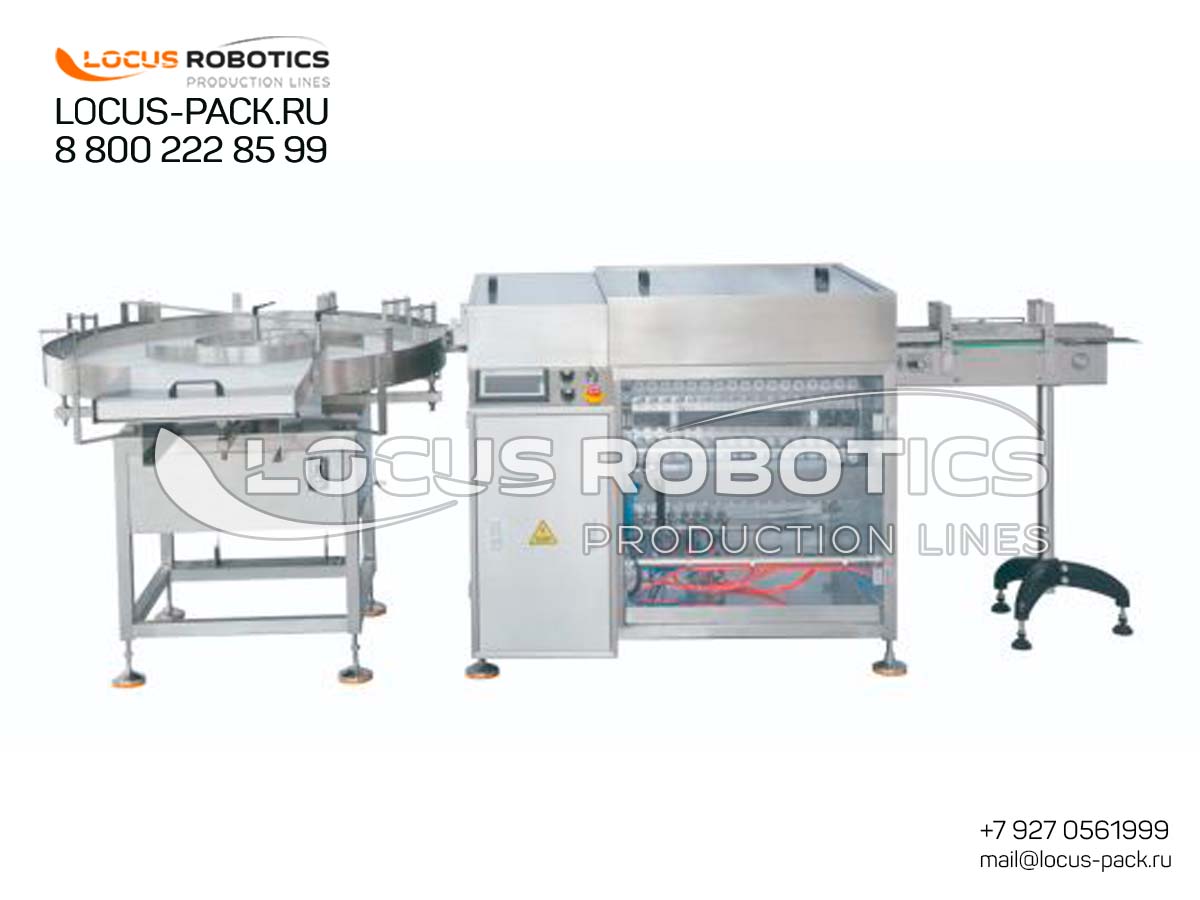

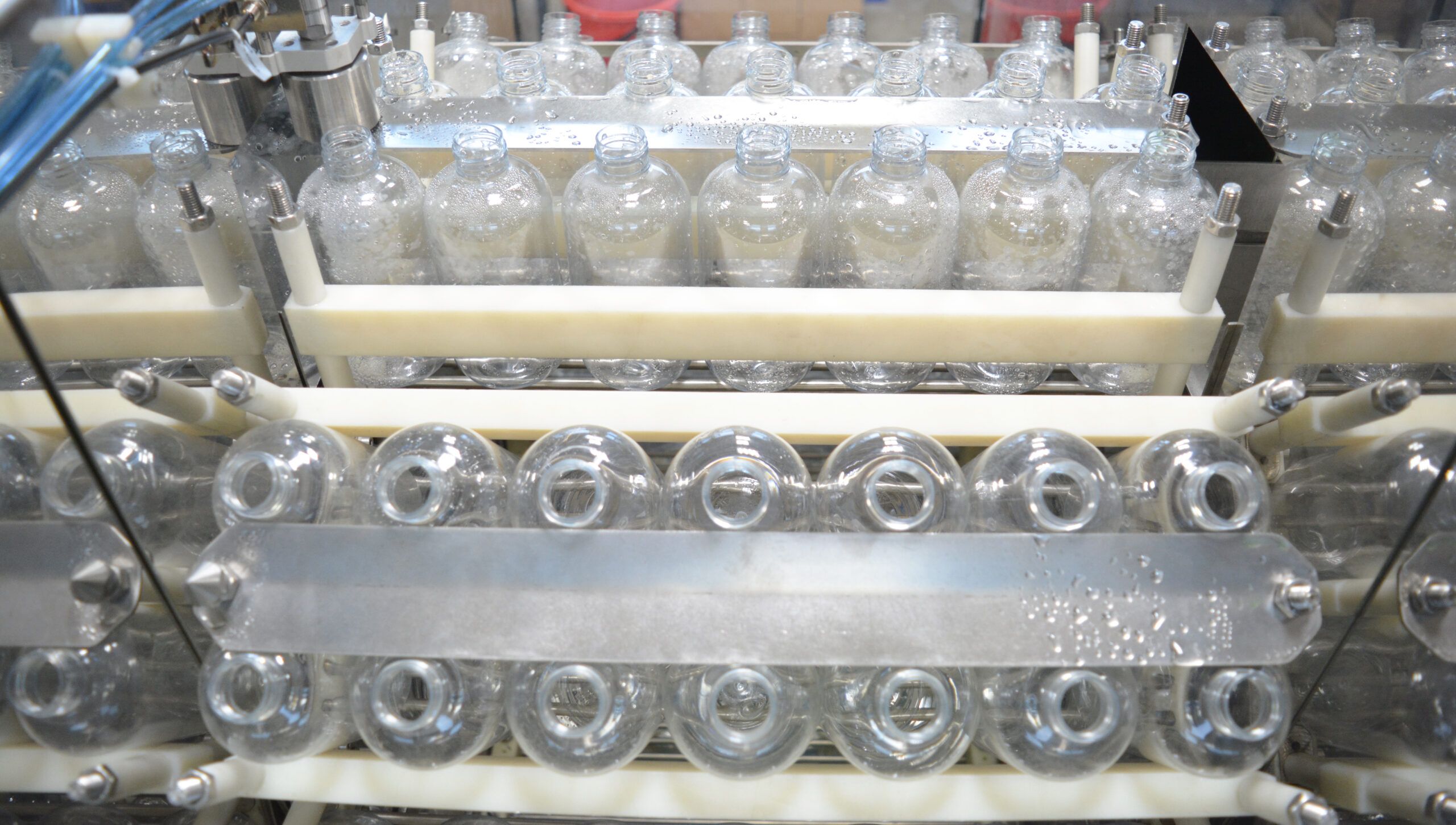

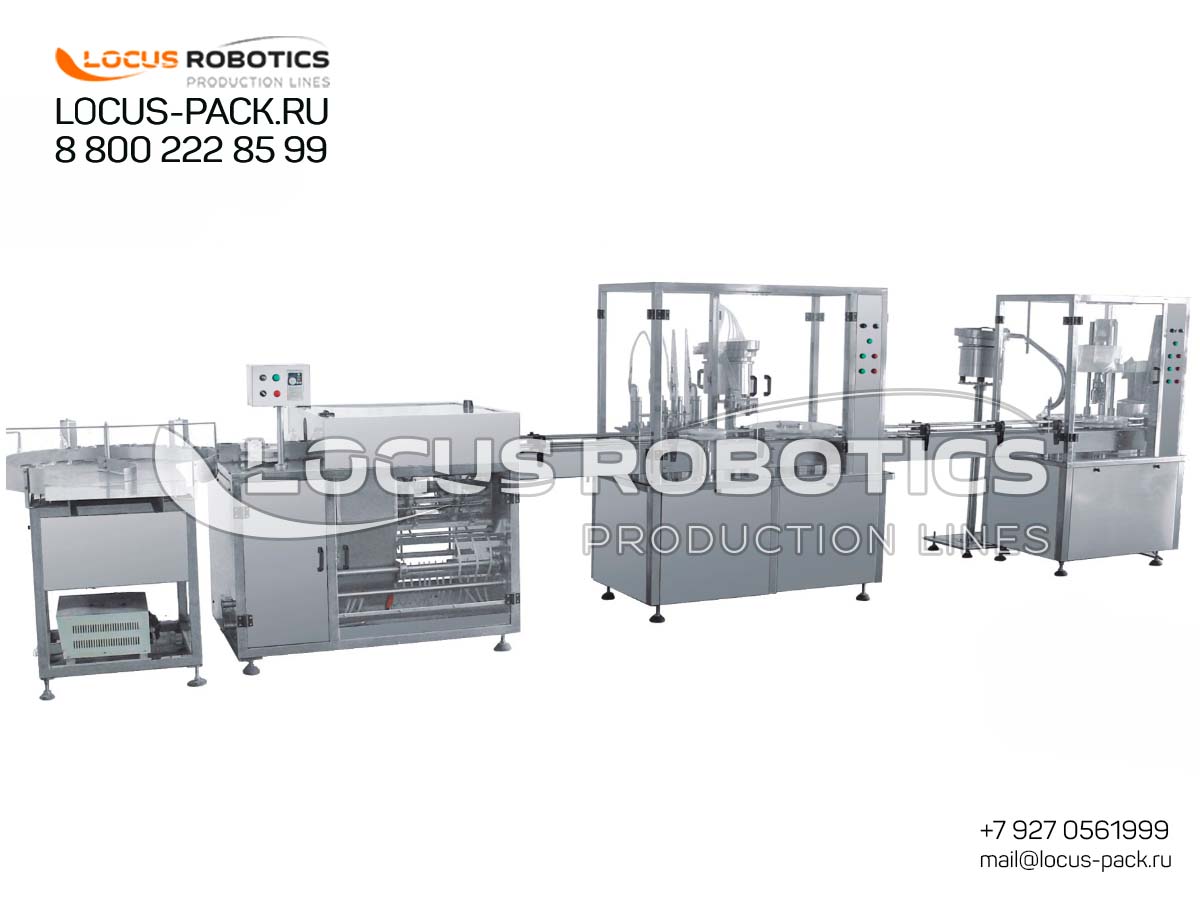

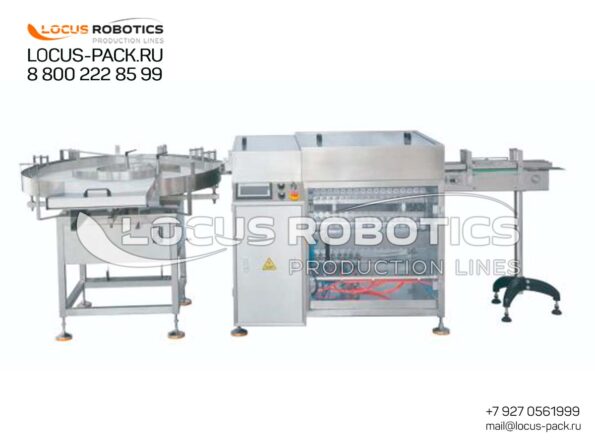

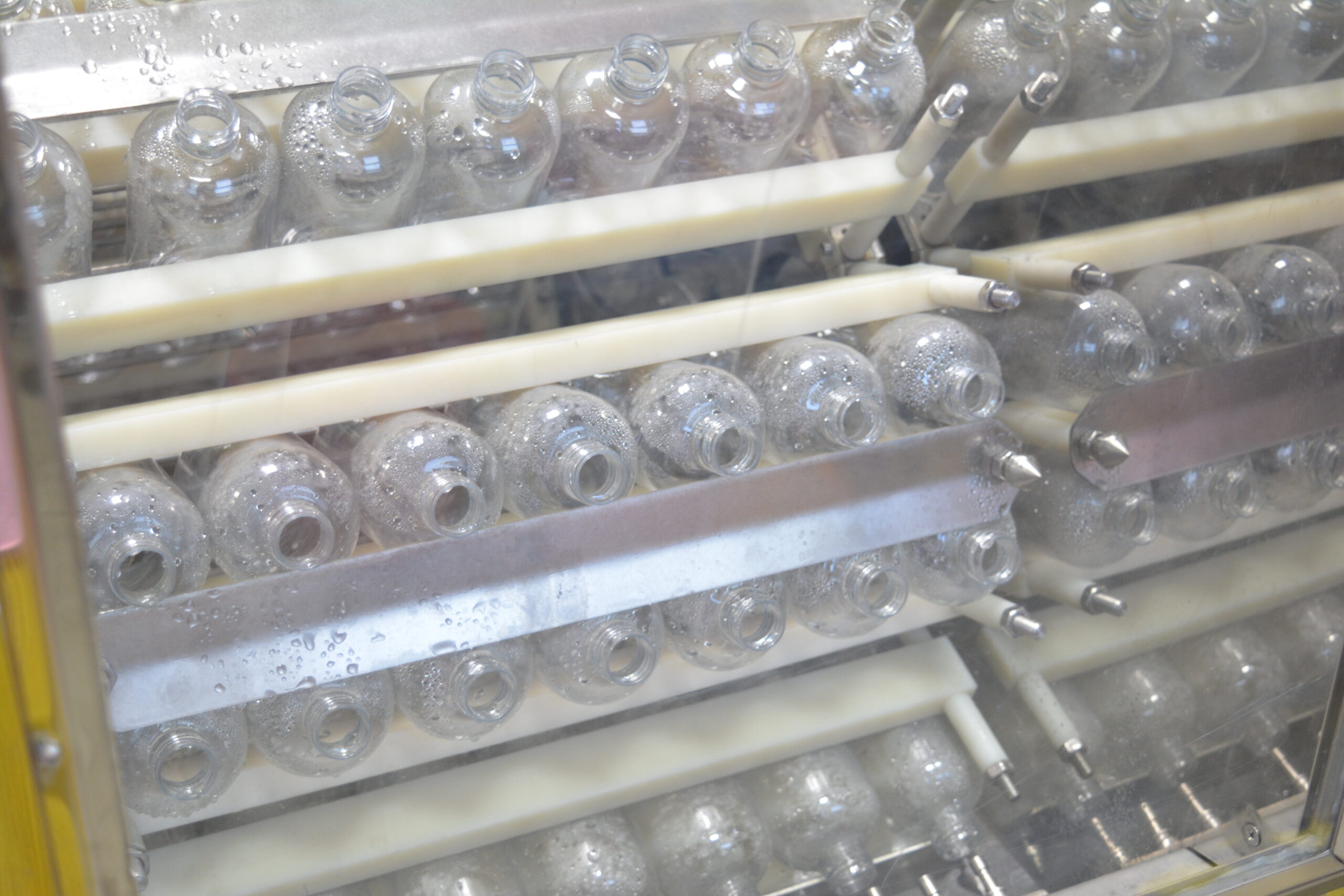

The R-200 is architected around the core principle of reducing interventions and protecting the product pathway. The process initiates with an automatic vial feeding and washing system that employs ultrasonic cleaning, multi-stage rinsing with purified water and Water for Injection (WFI), and a final jet of sterile air for drying, ensuring particulate and endotoxin levels are controlled before filling. Clean vials are then transferred, often via a sterile barrier or within a laminar airflow (LAF) protected zone, to the precision filling station. This station can be equipped with peristaltic pumps for shear-sensitive biologics or ceramic piston pumps for aggressive chemicals, offering filling accuracies of ≤±1% to ensure strict adherence to fill volume specifications, which is critical for dose accuracy and regulatory compliance. Following filling, the vials move to the stoppering station, where a vacuum chamber gently lifts and precisely inserts lyophilization or infusion-type rubber stoppers into the vial neck. The final, critical step is the aluminum cap sealing (crimping) station, where smooth or flip-off aluminum caps are applied and crimped under controlled torque to create a tamper-evident, hermetic seal that maintains container closure integrity (CCI) throughout the product’s shelf life. The entire sequence is orchestrated by a validatable PLC system with electronic batch records, ensuring full traceability of every parameter. This integrated design is fundamentally more secure than standalone machines, as it minimizes open transfers and human touchpoints, which are primary vectors for contamination in aseptic processing.

Technical Deep Dive: Precision Modules for Critical Processes

Beyond the Machine: Validation Support, Global Compliance & Lifecycle Partnership

Implementing a critical line like the R-200 requires a partner with deep regulatory knowledge. We provide a complete validation master plan and documentation suite (DQ, IQ, OQ, PQ protocols) to accelerate your FDA, EMA, or WHO approvals. The machine is designed and documented to meet cGMP, EU Annex 1, and PIC/S guidelines, with all critical components sourced with full traceability. Our «Pharma Ready» service includes factory acceptance testing (FAT) with media fills using your vials and stoppers to de-risk site qualification. We offer on-demand engineering to adapt the line for lyophilization (freeze-drying) loading/unloading, integrated vision inspection for particulate or fill-level check, or containment solutions for cytotoxic products. For global operation, we provide voltage customization (110V-480V) and support installation within ISO 14644-certified cleanrooms. Our dedicated pharmaceutical support network—with life science specialists in Dubai, Hanoi, and Lagos—delivers 24/7 multilingual support, on-site calibration, and region-specific GMP spare parts kits. This end-to-end partnership, backed by our 24-month performance guarantee, ensures your R-200 line is not just a machine, but a validated, reliable cornerstone of your aseptic manufacturing facility for the entire product lifecycle.

📜 Schedule virtual airflow visualization test.

💡 Mention your: Target market (EU/US/Global South), Active ingredient, Required throughput.

🔬 Schedule virtual factory acceptance test with our engineers.

🏷️ Request Compliance Audit: Free gap analysis with throughput simulation.

🔍Ready to Eliminate Production Bottlenecks?

💎Need Industrial Production Automation?

📥Free line configuration for your products, throughput validation testing!
