Description

All-in-One, High-Speed Labeling Solution for Your Bottling Line

Precision Application of Four Critical Labels in One Pass.

Engineered for Reliability and Maximum Uptime.

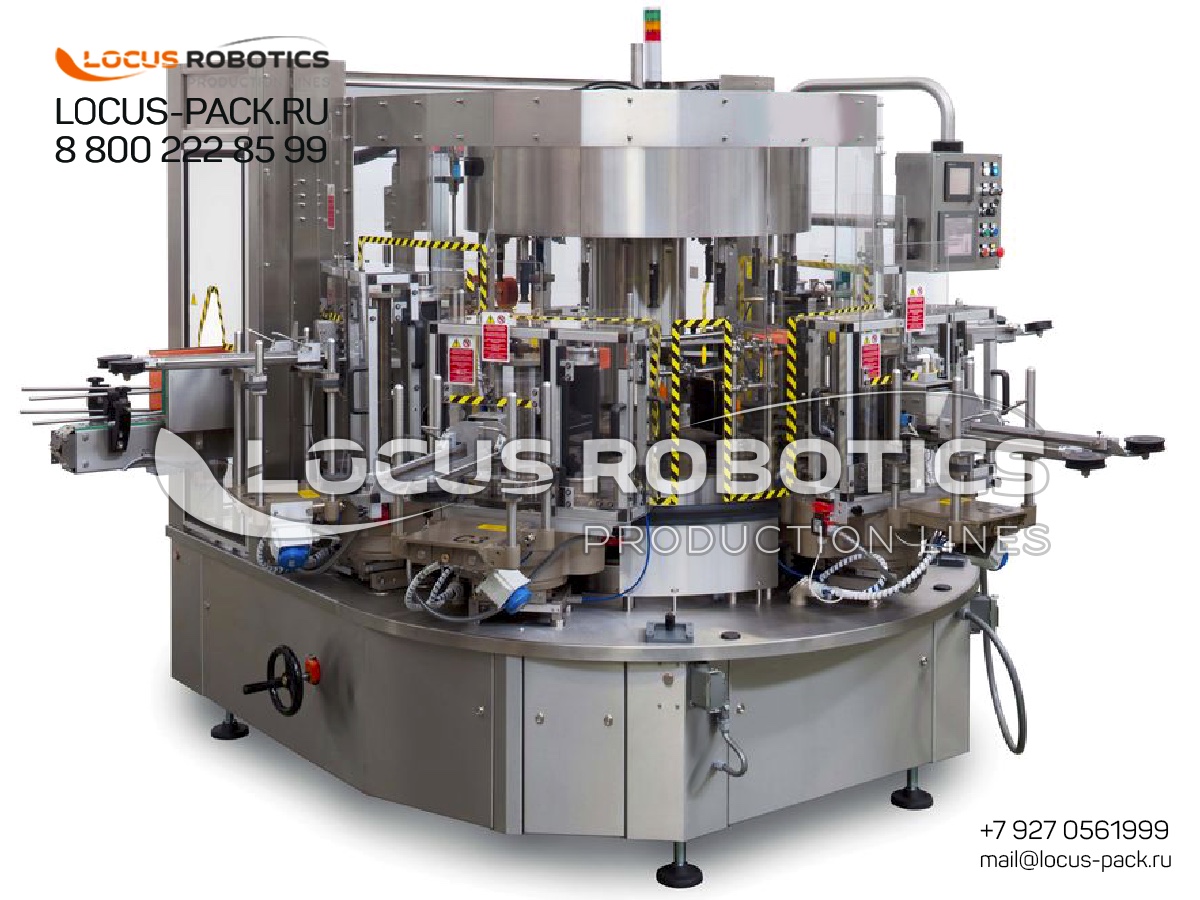

The LL-1000 is not just a labeler; it’s a complete rotary labeling station engineered to eliminate bottlenecks. By integrating four independent labeling heads into one compact, rotating platform, it dramatically reduces complexity and floor space compared to using multiple linear machines. This «monobloc» approach guarantees perfect label registration and alignment on every bottle, cycle after cycle.

Precision Application of Four Critical Labels in One Pass

• Front & Back Body Labels: Ensures crisp, bubble-free application for your primary brand artwork and mandatory information (ingredients, barcodes).

• Neck Label (Foil, PVC, or Paper): Gently and accurately applies decorative collarettes, tamper-evident bands, or foil capsules for a premium finish.

• Excise Stamp / Tax Label: Features a dedicated high-precision applicator for mandatory fiscal marks, crucial for compliance in markets across Southeast Asia, Africa, the Middle East, and Eastern Europe.

Engineered for Reliability and Maximum Uptime

Constructed with a heavy-duty stainless steel frame and plate-type conveyor, the LL-1000 ensures stable bottle transport even at high speeds. The fully enclosed safety guarding with interlock systems protects operators and meets international safety standards (CE). Designed for quick changeover with adjustable tooling, it minimizes downtime when switching between bottle sizes or label types.

Key Technical Specifications & Performance Data

• Max Labeling Speed: Up to 300 bottles per minute (BPM), depending on bottle size and label configuration.

• Applicable Bottle Types: Glass and PET bottles; round, oval, or rectangular shapes.

• Bottle Diameter Range: 40 mm – 120 mm.

• Bottle Height Range: 180 mm – 380 mm.

• Labeling Accuracy: ±0.5 mm.

• Control System: User-friendly PLC with touchscreen HMI for easy setup, recipe storage, and diagnostics.

Industries & Applications: Beyond Just Alcohol Bottles

While perfect for vodka, whiskey, wine, beer, and RTD beverages, the versatility of the LL-1000 makes it suitable for any industry requiring multiple, precise label applications:

• Pharmaceutical & Veterinary: Applying main labels, informational leaflets, and security seals on bottles.

• Cosmetics & Personal Care: Labeling premium perfume, lotion, and shampoo bottles with front, back, and wrap-around labels.

• Food & Specialty Chemicals: For products requiring multiple regulatory or informational labels.

Why Choose the LL-1000 Rotary Labeling System?

We provide more than just a machine. As your partner, we offer comprehensive support including Factory Acceptance Testing (FAT), installation supervision, and operator training. Our global network ensures readily available spare parts and technical support for clients in your target regions, guaranteeing minimal disruption to your production.

Industries & Applications: Beyond Just Alcohol Bottles.

Why Choose the LL-1000 Rotary Labeling System?

📜 Schedule virtual airflow visualization test.

💡 Mention your: Target market (EU/US/Global South), Active ingredient, Required throughput.

🔬 Schedule virtual factory acceptance test with our engineers.

🏷️ Request Compliance Audit: Free gap analysis with throughput simulation.

🔍Ready to Eliminate Production Bottlenecks?

💎Need Industrial Production Automation?

📥Free line configuration for your products, throughput validation testing!
