Description

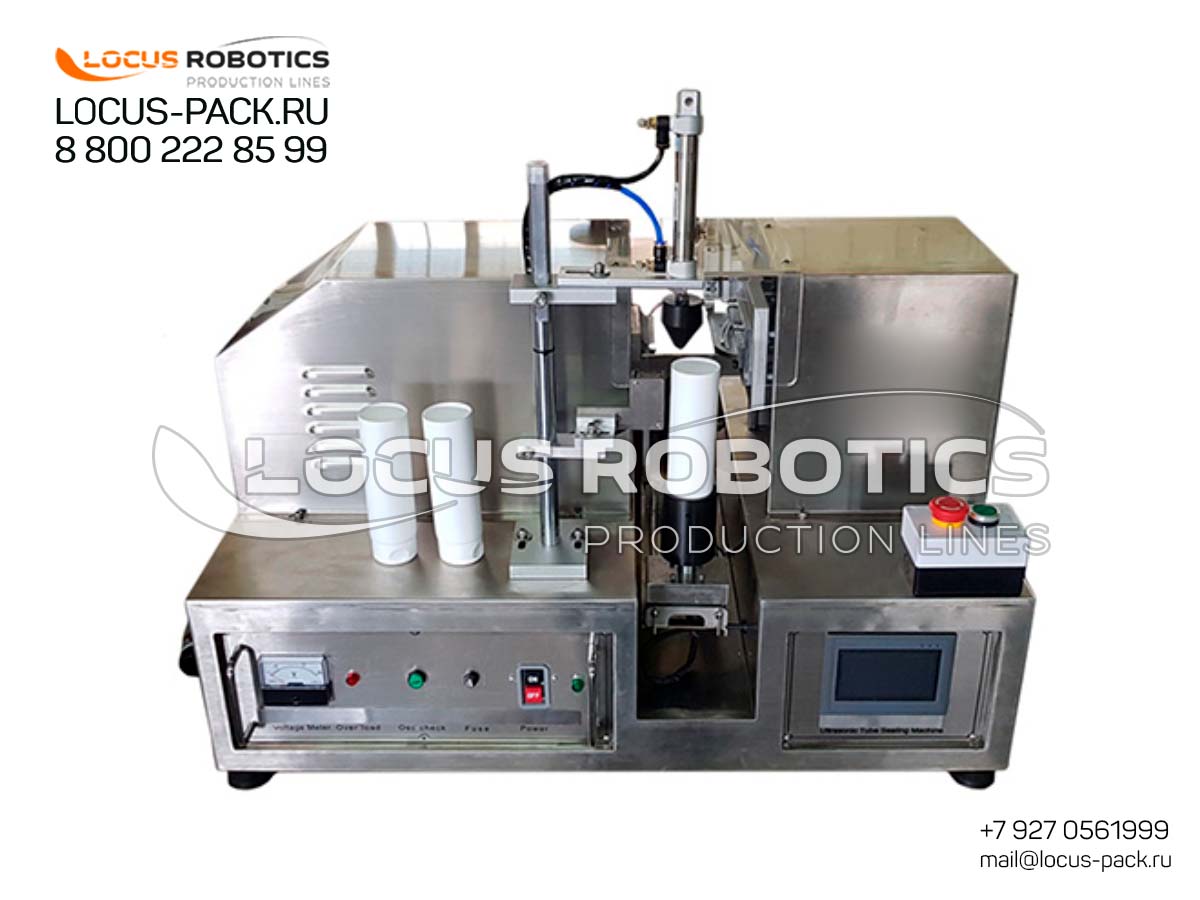

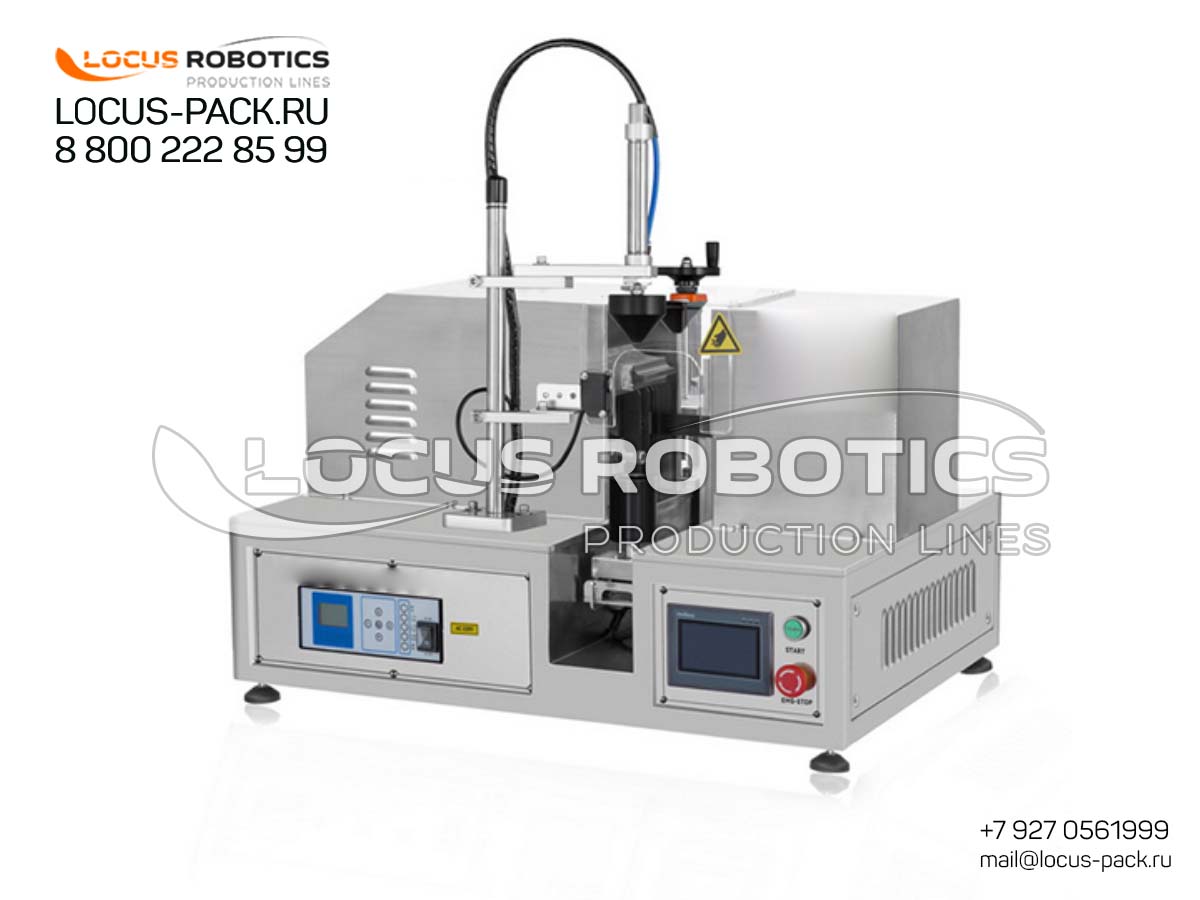

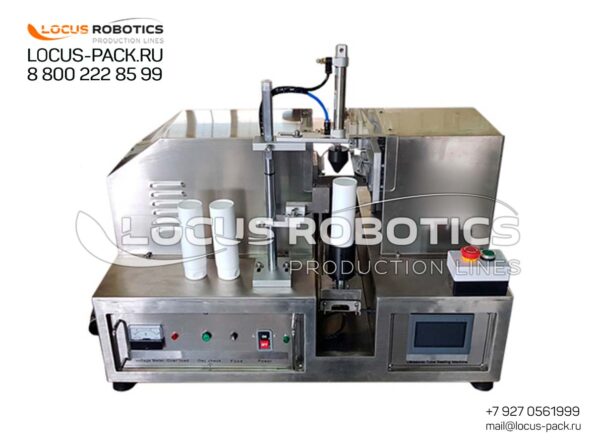

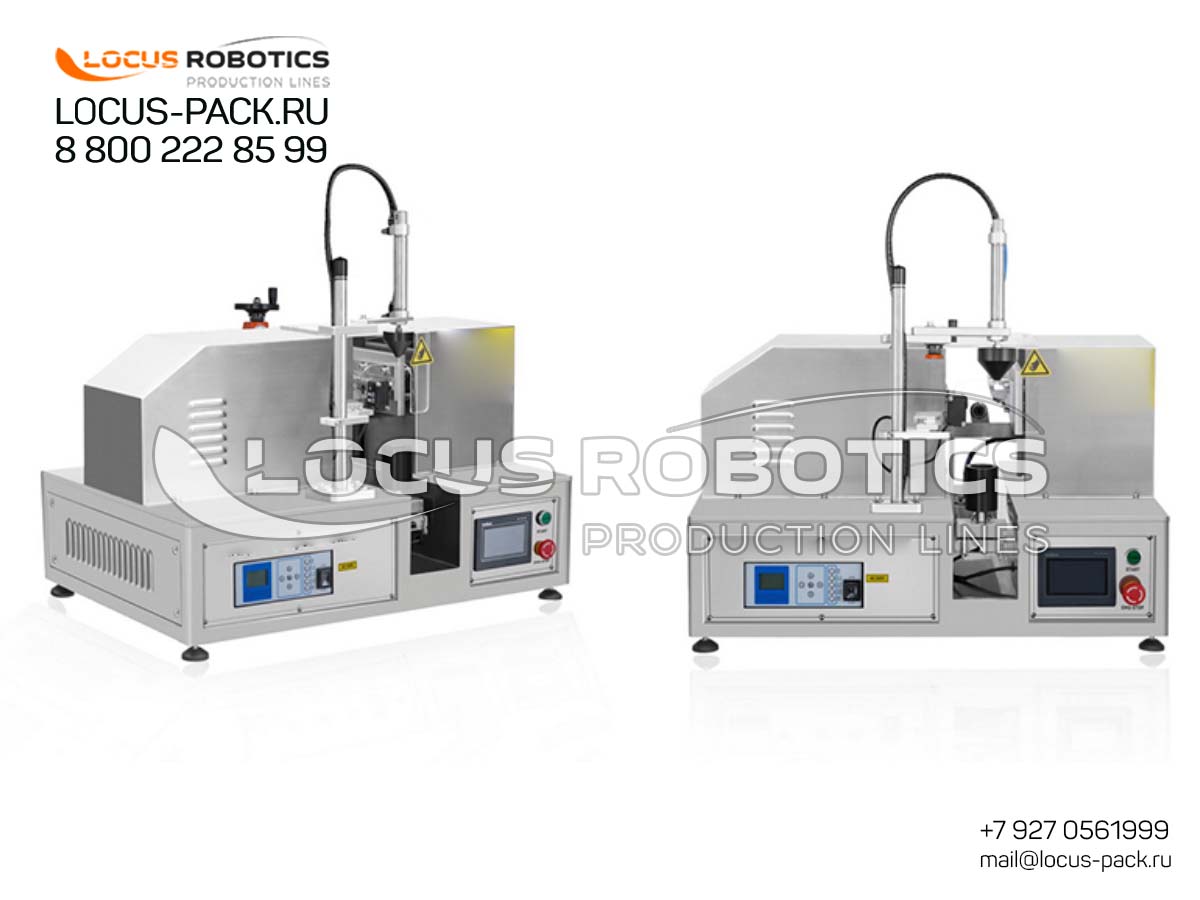

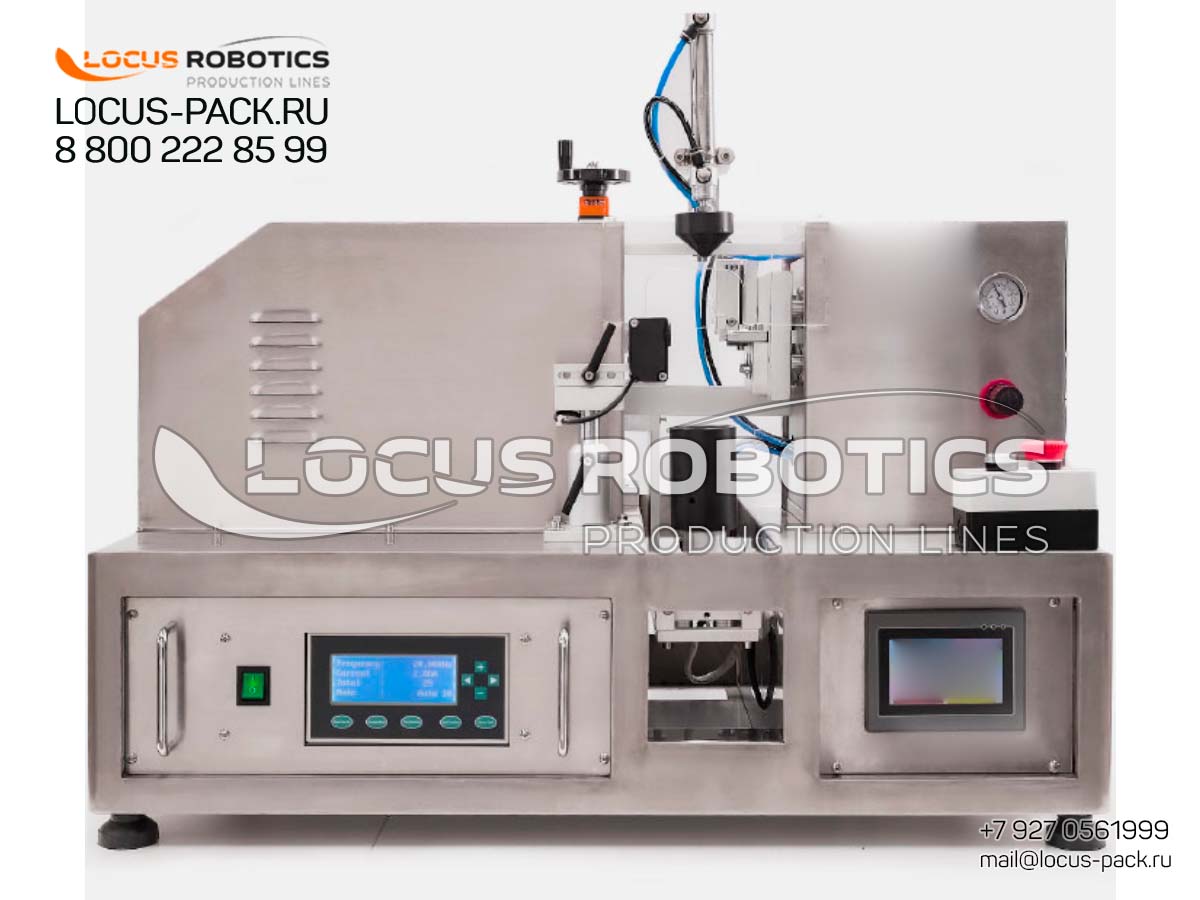

SL-50: GMP-Validated Ultrasonic Tube Sealer with Precision Orientation System
Precision Seam Welding Technology
This semi-automatic tube sealer utilizes ultrasonic energy to create hermetic seals on plastic tubes. Equipped with a high-frequency generator and precision-engineered copper welding horns, it delivers consistent, bubble-free seams for:
-
Extruded tubes (e.g., toothpaste, adhesives)
-
Laminated tubes (e.g., cosmetics, pharmaceuticals)
Photomark Alignment System
Integrated optical sensor detects tube photomarks, while the rotary cup holder automatically rotates and locks tubes into position for:
✔️ Perfect artwork registration
✔️ Zero misalignment defects
✔️ FDA-compliant batch coding
Technical Advantages
| Feature | Benefit |
|---|---|
| Copper welding horns | Optimal energy transfer, 25% longer lifespan vs. standard alloys |
| Rotary positioning | 360° tube orientation in <0.9 seconds |
| 20kHz ultrasonic generator | Consistent seam quality across PE/PP/laminate materials |
Industry Applications
-
Cosmetics: Creams, gels (laminated tubes).
-
Pharma: Ointments, topical solutions.
-
Chemicals: Industrial adhesives, sealants.
Performance Table:
| Parameter | Specification | GMP Advantage |
|---|---|---|
| Sealing Technology | 20kHz Ultrasonic Welding | Cold sealing (no product heating) |
| Orientation Accuracy | ±0.5mm | Prevents misaligned seals |
| Throughput | 500+ tubes/hour | High-speed production |
| Tube Compatibility | 10-75mm diameter Laminated/plastic tubes |
Multi-format flexibility |
| Seal Strength | ≥35N peel resistance | Exceeds ISO 11607 requirements |
| Footprint | 800 × 600 × 400 mm | Compact cleanroom integration |
Critical Technology Advantages
Ultrasonic Sealing & Orientation:
🔊 Cold Sealing Process:
• Zero heat transfer to product
• Preserves heat-sensitive APIs (vitamins, probiotics)
• Eliminates clogging from product residue
🎯 Smart Orientation System:
- Vision-guided cap alignment
- Auto-rejects misoriented tubes
- 360° seam position control
📊 Digital Precision:
• Force monitoring (±1%)
• Energy control (±3%)
• Real-time weld quality feedback
GMP Compliance Features
Pharmaceutical Validation:
✅ Validation Package:
- IQ/OQ protocols (seal strength validation)
- Material certificates (USP Class VI)
- Particulate emission reports
📈 Data Integrity:
• Batch logging (21 CFR Part 11)
• Weld parameter historization
• Calibration traceability
🧼 Sanitary Design:
- Electropolished SS316L (Ra≤0.4μm)
- Tool-free quick-change parts
- Clean-in-Place (CIP) capability
Target Applications
| Industry | Use Cases | Special Features |
|---|---|---|
| Pharmaceuticals | Antibiotic ointments Sterile gels Vaginal suppositories |
LN2-compatible materials Aseptic zone integration |
| Cosmetics | Luxury creams Anti-aging serums CBD products |
Gloss preservation mode Holographic tube support |
| Medical Devices | Ultrasound gel Surgical lubricants Diagnostic reagents |
Medical-grade components ISO 13485 validation |
Competitive Differentiation
Technical Innovations:
🤖 AI-Powered Orientation:
• Deep learning for cap detection
• Self-optimizing alignment algorithms
• Adapts to tube deformation
⚡ Energy Optimization:
- 45% lower power vs thermal sealers
- Instant start/stop (no warm-up)
- Regenerative braking system
🌍 Tropical Package:
• Humidity-resistant electronics
• Anti-fungal coatings
• EMI shielding for unstable grids
Technical Comparison
SL-50 vs. Thermal Sealers:
| Feature | SL-50 Ultrasonic | Thermal Sealers |
|---|---|---|
| Product Heating | None | 40-80°C at seal zone |
| Seal Strength | 35-50N | 20-30N |
| Residue Clogging | Zero risk | High risk with viscous products |
| Energy Use | 1.2 kW | 3.5-5 kW |
| Orientation Accuracy | ±0.5mm | Manual adjustment required |
Trust-Building Elements
Certifications & Support:
🏆 Global Approvals:
• CE • UKCA • EAC • ISO 14644-5
🔧 Lifecycle Services:
- Onsite IQ/OQ validation
- Operator training in 5 languages
- 24/7 technical hotline
✈️ Regional Stock:
Vietnam (Asia) • Türkiye (MENA) •
South Africa (Africa) • Mexico (LATAM)
(72h emergency dispatch)
Why Global Buyers Choose This
-
Africa/SEA: Handles voltage fluctuations (100-240V)
-
Latin America: Spanish/Portuguese HMI options
-
Pharma: Validatable for 21 CFR Part 11 compliance
-
Cosmetics: Zero cosmetic product contamination
Brazilian Cosmetic Brand Reduced Leakage Claims by 94% with SL-50’s Cold Sealing.
Competitor-Inspired Enhancements
-
Added Technical Specs:
-
Horn frequency: 20kHz/35kHz options
-
Seam strength: >2.5 kN/m (ASTM F88)
-
🌐 Request Compliance Audit: Free gap analysis with throughput simulation.
Ready to Eliminate Production Bottlenecks?
Need Industrial Production Automation?
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Start small, get a free production layout designed for your growth trajectory. Scale smarter with engineering support!
Free line configuration for your products, throughput validation testing!
Contact Specialists for Packaging Equipment:
📄 On-Demand Engineering: Product-specific configurations in 1-2 weeks.
🔧 Spare Parts Kits: Region-specific inventory for <24hr delivery.
Compliance Roadmap:
- CE, EAC, ISO 9001 certifications.
- GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
- ATEX options for chemical solvents.
