Description

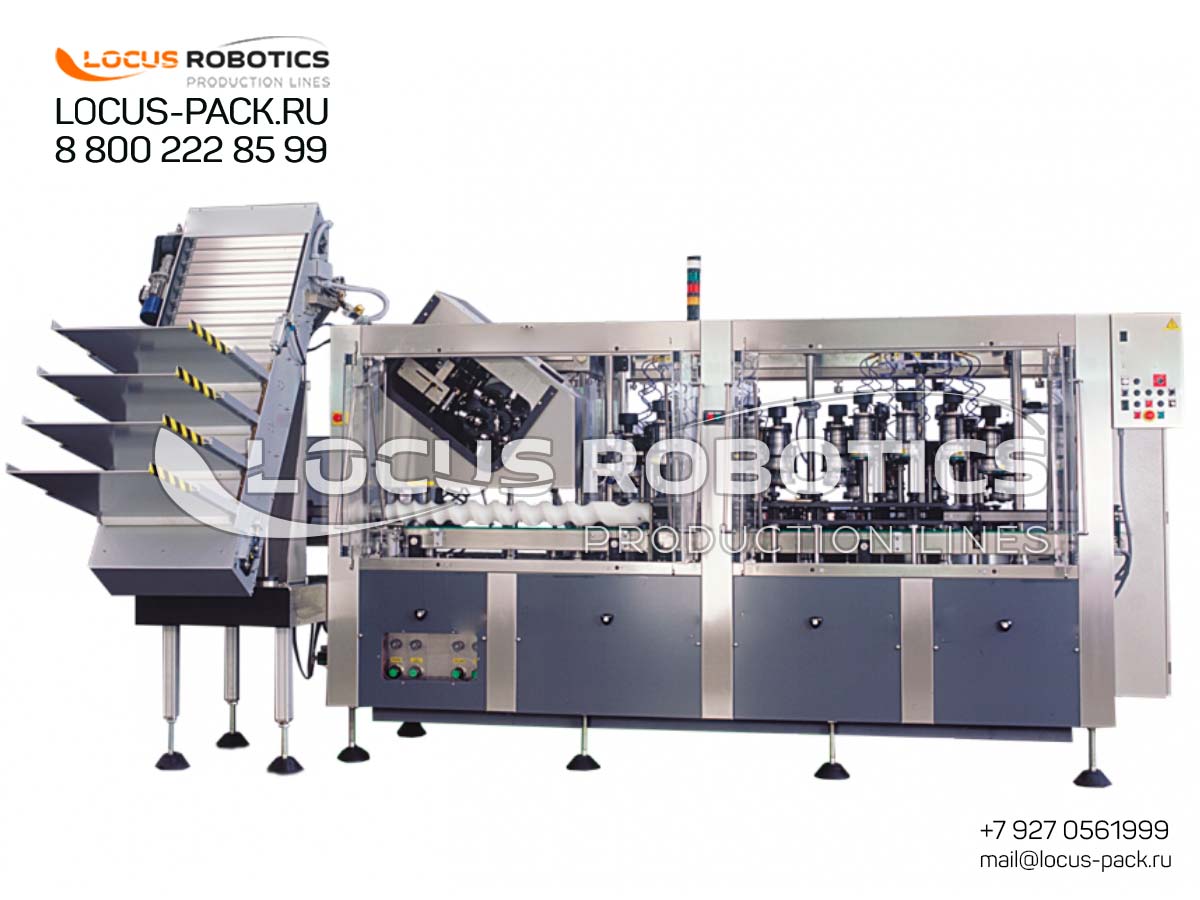

LPCC-500 Automatic Wine Bottling Tri-Block machine applying polylaminate foil caps to glass wine bottles after rinsing and filling

Professional Wine Packaging: Preservation, Presentation, and Perfection.

Integrated Process: Rinsing, Filling, and Hermetic Sealing.

Superior Oxygen Barrier for Extended Shelf Life and Aroma Preservation.

LPCC-500 High-Speed Automatic Tri-Block for Wine Bottles with Polylaminate Cap (Foil) Sealing.

Integrated Process: Rinsing, Filling, and Hermetic Sealing

1. Station 1: Argon/Vacuum Rinsing: Bottles are purged with inert gas (Argon, Nitrogen) or evacuated to remove ambient air, creating a protective atmosphere that prevents oxidation before filling.

2. Station 2: Precision Gravity Filling: Wine is gently filled using a gravity or pressure-gravity filler to minimize turbulence and foaming, further limiting oxygen dissolution. The filling height is meticulously controlled for consistency.

3. Station 3: Polylaminate Cap Sealing: The machine applies polylaminate caps (often with aluminum and PVC/PET layers) with a uniform, tight seal. This provides an excellent oxygen barrier, a tamper-evident feature, and a sleek, professional finish that is favored in the global wine market.

Technical Specifications for the LPCC-500 Tri-Block

• Model: LPCC-500

• Type: Automated 3-in-1 Rotary Monobloc for Wine

• Functions: Inert Gas Rinsing, Gravity Filling, Polylaminate Cap Sealing

• Speed: Up to 60 bottles/min (dependent on bottle size)

• Filling System: Gravity or Pressure-Gravity Filler

  • Filling Accuracy: ≤ ±0.5%

  • Filling Volume: 375ml (split), 750ml (standard), 1.5L (Magnum) — configurable

• Rinsing System: Inert Gas (Argon/Nitrogen) injection or vacuum purge

• Capping System: Precision Spindle for Polylaminate Caps

• Bottle Compatibility: Bordeaux, Burgundy, and other standard wine bottle shapes (glass)

• Power Supply: 380V/50Hz/3Ph (standard, configurable)

• Construction Material: 304 Stainless Steel, 316L SS for all product contact parts

• Control System: Modern PLC with Touchscreen HMI for easy operation and recipe storage

• Certification: CE, Complies with food and beverage industry hygiene standards

Superior Oxygen Barrier for Extended Shelf Life and Aroma Preservation
Polylaminate caps are a modern and highly effective alternative to traditional capsules. The LPCC-500 applies them with precision, ensuring a seal that provides a significantly lower oxygen transmission rate (OTR) compared to some natural materials. This extended barrier directly translates to a longer shelf life, protection against «cork taint» (TCA), and guaranteed preservation of the wine’s delicate volatile aromatics.

Designed for Wineries of All Sizes

• Boutique Wineries: Achieve a level of packaging quality and consistency that matches your artisanal product, without a massive investment in separate machines.

• Large Commercial Wineries: Benefit from the high-speed, integrated efficiency of the tri-block design, which reduces labor costs, minimizes bottling line footprint, and ensures a uniform, high-quality seal across millions of bottles.

• Global Export: The machine is built for global standards, making it ideal for wineries in Eastern Europe, South America, and other emerging wine regions looking to export to premium international markets.

Automatic Rotary Monobloc for Filling, Capping, and Shrinking Polylaminate Caps

This automatic rotary monobloc is a high-speed, integrated packaging system engineered for the precise filling, capping, and heat-shrinking of soft polylaminate caps onto bottles. Specifically designed for distilleries and wineries, it seamlessly combines three critical operations into a single, efficient platform, ensuring a perfect tamper-evident seal and a premium presentation for premium beverages.

The machine features a robust plate conveyor for smooth container handling, a screw feeder for consistent bottle separation, and a large-capacity orienter that ensures polylaminate caps are correctly positioned for application. Specialized capping heads then accurately place and thermally shrink the caps onto the bottle necks, creating a tight, wrinkle-free finish.

These decorative and protective polylaminate caps are the industry standard for high-end wine, vodka, whiskey, brandy, champagne, liqueur, and other spirits, enhancing shelf appeal and guaranteeing product integrity.

• All-in-One Automation: Performs filling, cap application, and heat-shrinking in one continuous, rotary motion, maximizing efficiency and minimizing footprint.

• Premium Tamper-Evident Seal: Creates a hermetic, thermally shrunk polylaminate cap that ensures product safety and premium consumer presentation.

• High-Speed Rotary Design: Engineered for high-volume production lines, ensuring maximum output for spirits and wine bottling.

• Precision Cap Handling: Equipped with a high-capacity cap orienter and specialized capping heads for flawless application without jams.

• Universal Application: Ideal for a wide range of glass bottles used for spirits, wine, and fine liquors.

• Robust Construction: Built with a durable plate conveyor and screw feeder for reliable, long-term operation in demanding environments.
