Description

Precision Engineered for Laboratory, Pilot Plant, and Small-Batch Sterile Production

Micro-Precision Volumetric or Peristaltic Dosing System.

Integrated Benchtop Capping Head with Tool-Free Adjustment.

Compact Footprint and Ergonomic Operator-Centric Design.

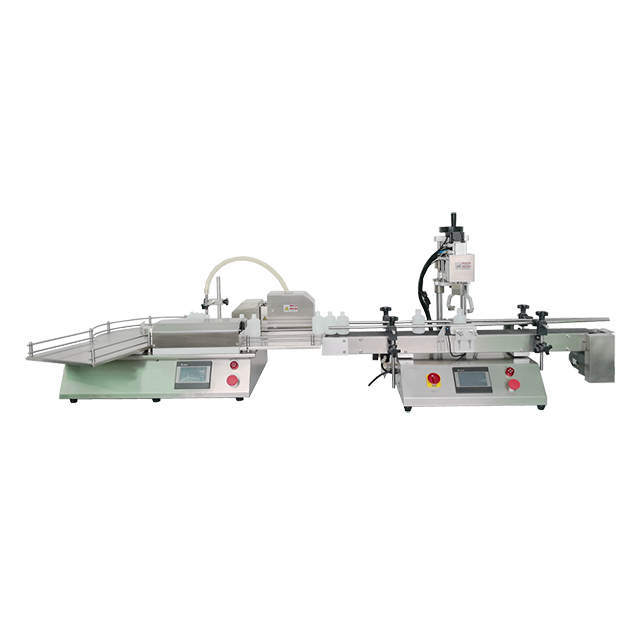

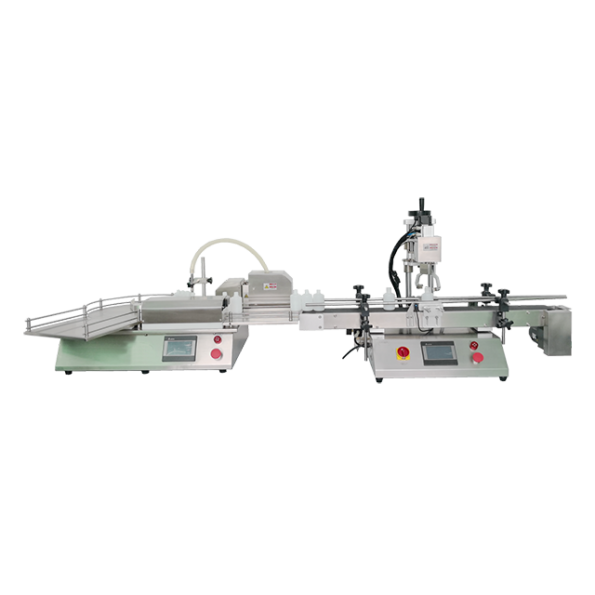

In the realms of research, diagnostics, and specialized small-scale manufacturing, the leap from manual pipetting to reproducible, automated filling is critical for data integrity, product stability, and scaling proofs of concept. The R-100 Benchtop Line is engineered to bridge this gap, offering a level of precision and control typically associated with large-scale equipment in an accessible, compact format. This system is not merely a smaller filler; it is a dedicated instrument for handling oxidizers like hydrogen peroxide, which require careful dosing to prevent degradation, and volatile antiseptics, where evaporation loss must be minimized. Its design prioritizes ease of decontamination, quick changeover between products, and seamless integration into controlled environments. For startups developing new disinfectants, pharmaceutical labs preparing trial batches, or academic institutions translating research into small production runs, the R-100 provides a foundational platform that ensures every milliliter is accounted for and every container is sealed with consistent integrity, directly supporting compliance and quality objectives from the earliest stages of product development.

Technical Specifications: Designed for Accuracy and Chemical Compatibility

• Machine Type: Semi-Automatic / Automatic, Benchtop-Scale Filling and Capping System.

• Primary Applications: Hydrogen Peroxide Solutions (various concentrations), Alcohol-Based Hand Sanitizers & Antiseptics (Ethanol, Isopropanol), Diagnostic Reagents & Buffer Solutions, Enzyme Solutions, Growth Media, Specialty Chemical Standards, Adhesives, and Essential Oils.

• Filling Technology: Configurable with precision peristaltic pump, syringe pump, or micro-piston dosing systems. These technologies are selected for their exceptional accuracy at small volumes (from 0.1ml to 1000ml), gentle handling of shear-sensitive fluids, and ease of cleaning. Peristaltic systems are ideal for sterile applications as the fluid only contacts a disposable tube.

• Dosing Accuracy: Achieves high precision, often better than ±0.5% for volumes above 1ml and ±1% for sub-ml volumes, which is critical for costly active ingredients and formulation consistency.

• Capping System: Integrated, adjustable benchtop capping head. Can be configured for snap caps, screw caps (13-38mm), or crimping seals for vials. Features spring-loaded or torque-controlled mechanisms to apply consistent sealing force without damaging delicate containers like glass vials or small plastic bottles.

• Construction & Materials: Frame: Anodized aluminum or stainless steel. Wetted parts: PTFE (Teflon), FFKM/Kalrez perfluoroelastomer, 316L Stainless Steel, or glass, selected for maximum compatibility with aggressive oxidizers, solvents, and sensitive biologicals.

• Control System: Digital microcontroller or compact PLC with an intuitive interface for setting fill volume, speed, and cycle count. May include features like drip control, purge cycles, and data logging for batch records.

• Footprint & Utilities: Designed to occupy minimal space on a standard lab bench. Typically operates on standard single-phase power (110V/220V) and may require a clean, dry air supply for pneumatic components.

Component Breakdown: A Closer Look at Precision Dosing and Sealing

1. Micro-Precision Volumetric or Peristaltic Dosing System: The heart of the R-100 is its dispensing technology. A peristaltic pump system uses rotating rollers to compress a dedicated tubing, pushing fluid forward without any contact between the pump mechanism and the product—this is the gold standard for sterile, cross-contamination-free operation. Alternatively, a syringe or piston pump offers unmatched volumetric accuracy for very small, precise doses. The filling nozzle often includes anti-drip and lift-off features to ensure a clean separation from the container, crucial for avoiding crystallization around bottle necks with products like concentrated peroxide or salt solutions.
2. Integrated Benchtop Capping Head with Tool-Free Adjustment: Designed for flexibility, the capping module allows quick adaptation to different cap sizes and types. Changing from a 15mm vial snap cap to a 28mm bottle screw cap can often be done in minutes without tools. The sealing action is smooth and controlled, applying just enough force to ensure a tamper-evident or leak-proof seal without crushing or distorting plastic components, which is a common risk with manual capping.
3. Compact Footprint and Ergonomic Operator-Centric Design: Every aspect of the R-100 is designed for use in a lab setting. It fits comfortably under a laminar flow hood for aseptic filling. The workflow is linear and intuitive: an operator places a container on the platform, activates the cycle (manually or via foot pedal), and the machine performs the fill and cap sequence before the container is removed. This ergonomic design minimizes operator movement and fatigue during repetitive batch work, while the use of corrosion-resistant and easy-to-wipe-down materials supports stringent lab cleanliness protocols.

Ideal Applications in Pharmaceutical, Research, and Specialty Chemical Sectors

The R-100 finds its purpose in environments where scale is small but standards are exceptionally high:

• Pharmaceutical & Biotech R&D: Preparing small batches of clinical trial materials, sterile buffers, or cell culture reagents.

• Diagnostic Kit Manufacturing: Dispensing precise volumes of enzyme conjugates, antibodies, or substrate solutions into vials or microtubes.

• Specialty & Fine Chemical Production: Packaging high-value catalysts, analytical standards, or research chemicals for sale.

• Start-Up Disinfectant & Antiseptic Brands: Scaling from manual formulation to first commercial batches with consistent, professional packaging.

• University and Government Research Labs: Automating the packaging of synthesized compounds or experimental formulations for distribution and testing.
  For these users, the line transforms a variable, labor-intensive manual process into a reliable, documented, and scalable procedure, directly contributing to faster development cycles and more robust quality control from the outset.

The Value Proposition: Flexibility, Compliance, and Accessible Automation

The core value of the R-100 lies in its ability to democratize precision automation. It makes advanced, consistent packaging feasible for organizations of any size, eliminating the quality variability of hand-filling. Its modular design and configurable dosing options mean it can adapt to a wide range of future projects, protecting the initial investment. Crucially, by being designed with GMP principles in mind—using cleanable materials, providing repeatable operations, and supporting documentation— it helps institutes and small companies build a culture of quality early on, which is essential for attracting partners, securing funding, or passing regulatory audits. When combined with our global support network—including remote technical assistance and regionally available consumables like peristaltic tubing—the R-100 provides not just a piece of equipment, but a partnership in building a foundation for reproducible, high-quality small-scale production in growth markets worldwide.
