Description

Engineered for High-Volume Production of Automotive Fluids and Industrial Chemicals

In the competitive markets for automotive care and industrial chemicals, packaging efficiency and reliability are directly tied to profitability and market share. The R-200 Universal Line is engineered to be the workhorse of your production facility, capable of running continuous shifts to meet seasonal spikes in demand for products like windshield washer fluid. Its design integrates all critical post-mixing steps—filling, capping, and labeling—into a single, synchronized flow, eliminating bottlenecks and manual handling. This turnkey approach is ideal for both dedicated washer fluid plants and multi-product chemical facilities that require a reliable, high-speed line for bulk liquid packaging. By ensuring precise fills and tamper-evident seals on large, consumer-handled containers, this line protects your brand reputation, reduces product loss, and delivers the operational scalability needed to capitalize on growth opportunities in the global automotive aftermarket.

Specialized for Demanding Formulations: From Standard Washer Fluid to Concentrated Additives

Windshield washer fluid presents unique packaging challenges, often containing methanol, ethylene glycol, surfactants, and dyes, which can be aggressive and prone to foaming. This line is configured to handle these characteristics. The positive displacement piston technology ensures fill accuracy is completely independent of the fluid’s viscosity or foaming tendency. Specialized filling nozzles can be employed to minimize splash and foam generation during the high-speed fill cycle. Furthermore, the construction materials are selected for compatibility with a wide range of chemical bases, from standard summer formulas to concentrated anti-freeze winter blends, making it a versatile asset that can adapt to your full product portfolio and regional seasonal variations.

Complete Line Integration: A Turnkey Solution for Bottling, Sealing, and Branding

The R-200 is not just a filler; it is a complete packaging cell. The pass-through (in-line) design of the capper is a key efficiency feature, allowing bottles to flow directly from the filler to the capper without requiring complex indexing or lifting mechanisms, which maximizes speed and minimizes mechanical complexity. The integrated labeling machine is specifically set up for large, often heavy 5L bottles, ensuring labels are applied squarely and smoothly for a professional retail-ready appearance. This full integration means the line arrives as a pre-configured solution, significantly reducing installation and commissioning time and allowing you to achieve production-ready status faster.

Comprehensive Technical Specifications for Large-Container Packaging

Accurate planning requires detailed data. The table below provides a complete technical profile of the R-200 Universal Line’s capabilities.

In-Depth System Analysis: Precision Dosing, Efficient Capping, and Durable Conveyance

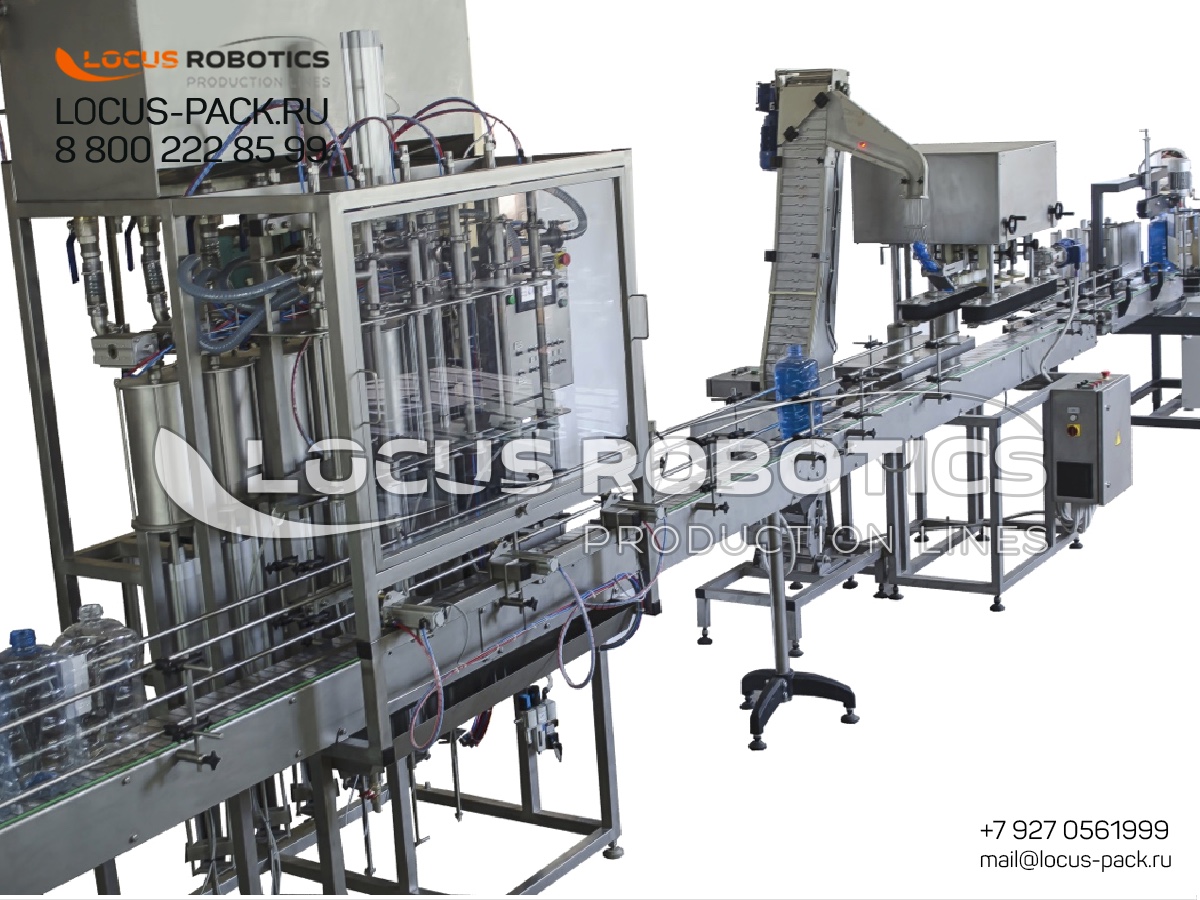

High-Capacity 6-Piston Linear Dosing System for Fast, Accurate Fills

Filling 5-liter containers requires both speed and precision to be economical. The 6-piston linear doser meets this need by utilizing multiple filling heads. The pistons operate in a synchronized sequence, drawing a precise volume of fluid and injecting it into the bottles. This method is far faster and more accurate for large volumes than rotary fillers or single-head systems for this scale. The volumetric principle guarantees that each bottle receives the exact declared amount, which is critical for consumer trust and regulatory compliance, while also minimizing costly product giveaway. The system is designed for quick purge and cleanout, facilitating fast changeovers between different fluid colors or product types.

Pass-Through Automatic Capper with Elevator Cap Orienter for Uninterrupted Flow

The pass-through capper is engineered for efficiency in high-volume environments. Bottles enter the capping section directly from the filler conveyor. Caps are supplied from a large-capacity elevator orienter that stores and correctly aligns hundreds of caps, minimizing refill stops. As each bottle passes through, the capping head picks a cap, places it on the bottle, and applies the correct torque—all without stopping the bottle’s forward motion. This continuous motion design is inherently faster and creates less wear and tear than «stop-and-go» capping systems, contributing to higher overall line efficiency and lower maintenance requirements.

Heavy-Duty Slat Conveyor and Large-Container Labeling Machine

The backbone of the line is a slat conveyor, chosen for its ability to handle substantial weight and its resistance to the wet, potentially corrosive environment of a chemical filling plant. The labeling station is specifically designed to handle the size and weight of 5L bottles. It uses robust mechanisms to pick and apply often large, heavy labels squarely and without wrinkles, which is essential for the professional appearance of a big-ticket retail item. The labeler is fully synchronized with the conveyor speed to ensure perfect placement on every bottle.

Built for Chemical Resistance, Reliability, and 24/7 Operation

This line is built for industrial endurance. The use of AISI 316L stainless steel in tanks, valves, and piping resists corrosion from methanol and other aggressive fluid components. All electrical components are housed in sealed enclosures for protection against moisture. The mechanical design emphasizes durability with high-quality bearings, drives, and guides to ensure reliable operation over multiple shifts. This focus on robust construction minimizes unplanned downtime, which is critical for maintaining supply chains during peak seasonal demand for automotive chemicals.

Optimized for Scalability and Fast ROI in the Automotive Aftermarket and Chemical Industries

For businesses investing in capacity, the R-200 line offers a compelling financial proposition. Its high-speed, automated operation reduces labor costs per bottle dramatically compared to semi-automatic or manual lines. The precision filling cuts product giveaway, saving significant raw material costs annually. The integrated labeling eliminates a separate manual station. Combined with the low maintenance requirements and high uptime, these factors lead to a rapid return on investment (ROI), often within the first 12-18 months of operation for a busy plant. This makes it an astute capital investment for companies looking to solidify or expand their position in the competitive automotive fluids market.

Frequently Asked Questions on Windshield Washer Fluid and Chemical Packaging Lines

• Q: Can this line handle the different formulas for summer and winter washer fluid?

  • A: Absolutely. The line is designed for product flexibility. Changeover between different formulas typically involves flushing the fluid path with water or a neutral cleaner (the CIP-ready design facilitates this) and possibly adjusting fill parameters if the viscosity differs significantly. The same bottles and caps are used, so no mechanical changeover is required, allowing you to switch production runs quickly in response to seasonal inventory needs.

• Q: Is the line safe for use with flammable ingredients like high-percentage methanol?

  • A: Safety is paramount. For formulations with flammable solvents, the line can be engineered as an ATEX-compliant system. This involves using explosion-proof (Ex-rated) motors, sensors, and control panels, along with comprehensive static grounding and bonding protocols. Proper site ventilation is also a prerequisite. This critical customization must be discussed during the project specification phase to ensure a safe operating environment.

• Q: How does the labeler handle the sometimes slippery surface of wet or condensation-prone 5L bottles?

  • A: The labeler is equipped to handle this challenge. It may use a combination of high-tack adhesives specifically formulated for PET plastics and potentially a wipe-on or roller application system that applies firm, even pressure to ensure the label adheres immediately and permanently, even on cold or damp bottles fresh from storage or cooling tunnels.

• Q: What kind of upstream equipment can be integrated with this line?

  • A: This line is designed to be the core of a complete packaging system. It can be seamlessly integrated with upstream equipment such as: Automatic Bottle Unscramblers (to feed empty bottles), Air Rinsers (to clean bottles), and Automatic Coders (for date/batch printing on bottles pre-fill). Downstream, it can feed into Case Packers and Palletizers for full automation.
