Complete Turnkey Solution for High-Speed Beverage Bottling

High-Speed Rotary Air Rinser with Inversion Mechanismю

Pressurized (Isobaric) Rotary Filler for Carbonated Stability.

Precision Rotary Capping Unit with Torque Control.

Integrated Heat Shrink Tunnel for Tamper Evidence & Packaging.

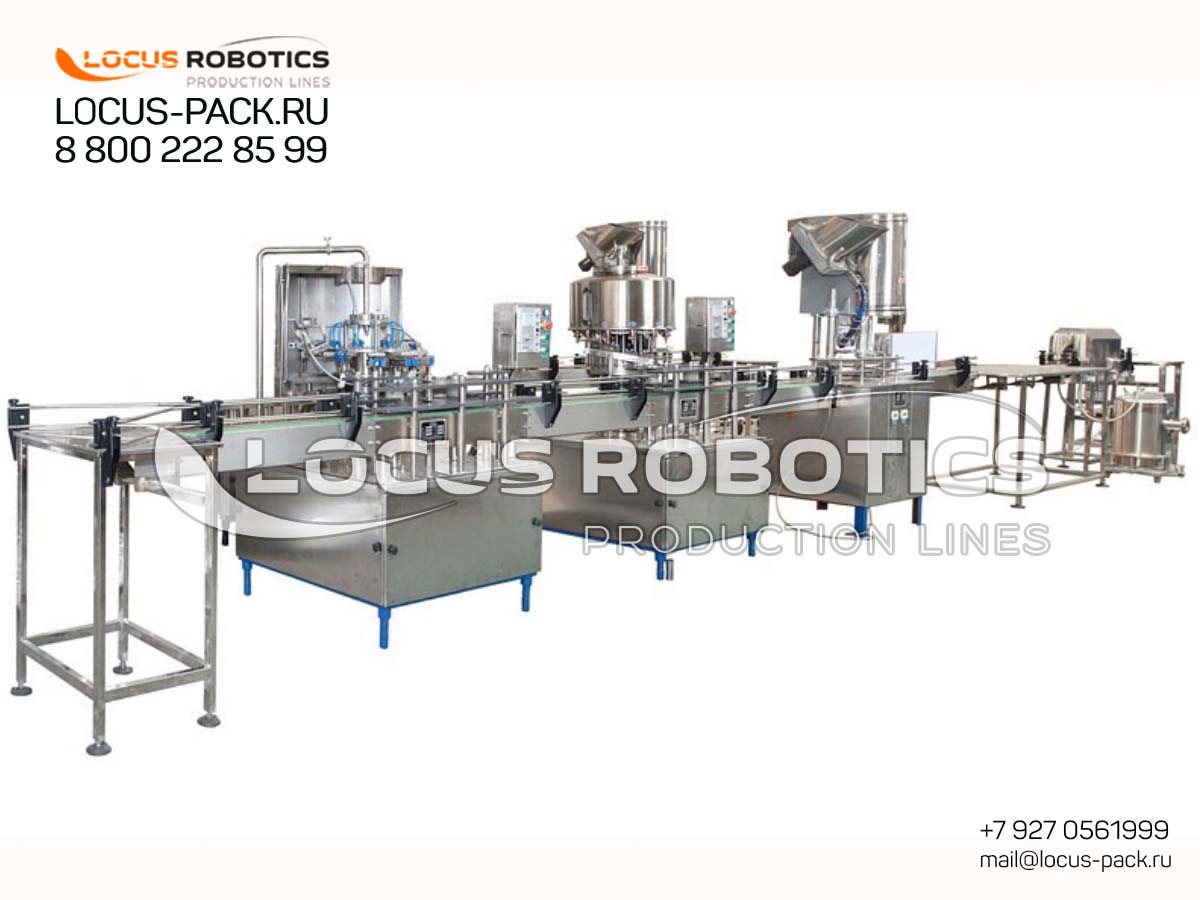

The R-600 Automatic Rotary Monobloc Line represents a significant leap in packaging technology for beverage manufacturers aiming to optimize their production footprint and output. This isn’t merely a collection of individual machines but a holistically engineered system where a rotary bottle rinser, filler, capper, and shrink tunnel are fully synchronized on a single platform. This integrated design is pivotal for operations targeting medium to high-volume production, as it dramatically reduces transfer times, minimizes bottle handling stress, and ensures a consistent, uninterrupted flow that maximizes overall equipment effectiveness (OEE). The line’s core architecture is built around a heavy-duty central carousel, providing exceptional stability and smooth motion transfer—a critical factor for maintaining precision at high speeds. All critical product zones are constructed using AISI 304 (or optional 316) stainless steel, meeting international food-grade hygiene standards. The design incorporates smooth, rounded corners and quick-release clamps to facilitate thorough cleaning and prevent bacterial harborage, aligning with modern sanitation protocols essential for food and beverage production.

Detailed Technical Specifications & Operational Performance Data

• Machine Type: Fully Automatic, Rotary Monobloc (Rinser-Filler-Capper) with Integrated Conveyance and Shrink Tunnel.

• Primary Applications: Carbonated Soft Drinks (Soda, Cola), Beer & Ale, Sparkling Water, Still Water, Ready-to-Drink (RTD) Teas, and Non-Pulpy Juices.

• Processed Container: Standard round PET (Polyethylene Terephthalate) bottles. Can be adapted for lightweight or pre-form designs.

• Comprehensive Bottle Size Range: Efficiently handles 330ml (0.33L), 500ml (0.5L), 1,000ml (1.0L), 1.5L, and 2.0L formats. Changeover between sizes is mechanical and tool-assisted, minimizing downtime.

• System Output Capacity: Designed for a maximum nominal output of 6,000 bottles per hour (BPH). Actual sustainable output depends on final bottle size, product characteristics (carbonation level, viscosity), and cap type.

• Filling Technology: Utilizes a pressurized (isobaric) rotary filling system. This method is essential for carbonated beverages, as it fills the bottle in a pressurized environment equal to the product’s carbonation pressure, preventing CO2 breakout and excessive foaming, which ensures accurate fill volumes and preserves product quality.

• Filling Accuracy: Maintains a high precision level of ±1.5% or better, guaranteed by precision-machined filling valves and a stable pressure management system.

• Capping System: Rotary multi-spindle capping head equipped with electromagnetic clutch torque control. Ensures consistent, application-specific tightening for 28mm, 38mm, and other standard plastic screw caps, providing reliable, leak-proof seals.

• Control & Automation: Centralized automation is managed by a Programmable Logic Controller (PLC) from a leading global brand (Siemens, Allen-Bradley). Operators interact via a high-resolution Human-Machine Interface (HMI) touchscreen panel, allowing for recipe storage, real-time production monitoring, diagnostic alerts, and easy parameter adjustments.

• Key Construction Materials: Main frame: powder-coated carbon steel for rigidity. All product contact parts, piping, valves, and troughs: corrosion-resistant stainless steel (SS304). Pneumatic components from reputed manufacturers like Festo or SMC.

In-Depth Component Breakdown: Engineering for Reliability and Hygiene

1. High-Speed Rotary Air Rinser with Inversion Mechanism: The process begins here. Bottles are loaded onto the rinser carousel, where a unique lifting and inversion mechanism turns them upside down. Multiple high-efficiency nozzles then inject blasts of filtered, oil-free compressed air (or a fine sterilized water mist) into the bottle, forcibly ejecting any dust, loose particles, or residual moisture. This «clean-in-place» first step is crucial for ensuring no contaminants enter the filling zone, directly impacting product shelf life and safety.
2. Pressurized (Isobaric) Rotary Filler for Carbonated Stability: The heart of the line. Bottles enter the sealed filler bowl, which is pressurized with CO2 or sterile air. The filling valves open, and the beverage is filled gently under counter-pressure. This technology is mandatory for carbonated drinks to prevent «fobbing» (violent foaming), which causes product loss and inaccurate fills. The valve design ensures a smooth liquid flow and clean cut-off.
3. Precision Rotary Capping Unit with Torque Control: Filled bottles are transferred to the capping carousel. Caps are sorted and oriented via a cap elevator and chute. Pick-up heads (spindles) collect individual caps and screw them onto the bottles. The integrated torque control system is vital—it applies the exact, predetermined tightening force every time, preventing under-tightening (leaks) or over-tightening (cap or bottle thread damage).
4. Integrated Heat Shrink Tunnel for Tamper Evidence & Packaging: The final stage. Capped bottles, often with a shrink film sleeve already applied loosely, pass through a temperature-controlled tunnel. Carefully directed hot air causes the film (PVC or PETG) to shrink tightly around the cap and bottle neck. This provides a tamper-evident seal, enhancing consumer safety, and can also be used for multi-pack bundling or applying promotional sleeves for vibrant brand graphics.

Target Applications & Key Market Advantages for Growing Producers

This line is the strategic choice for several key business profiles in the global beverage sector:

• Expanding Regional Beverage Brands: Companies in Southeast Asia, Africa, or Latin America scaling up production of local soda, beer, or water brands will find the R-600’s balance of high output and manageable footprint ideal.

• Contract Packaging (Co-Pack) Facilities: Operations that bottle products for multiple clients benefit from the line’s flexibility in handling different bottle sizes and recipes, facilitated by the PLC’s recipe management.

• New Market Entrants & Investors: For entrepreneurs establishing a new bottling plant, the R-600 offers a «ready-to-run» turnkey solution, significantly simplifying project planning and reducing integration risks.
  The core market advantages are multifaceted. First is Operational Efficiency: The monobloc design saves up to 30% floor space compared to separate machines and reduces labor costs. Second is Product Integrity: The isobaric filling and precise capping directly preserve carbonation, taste, and prevent leaks. Third is Brand Enhancement: The professional finish provided by the shrink tunnel adds significant shelf appeal and consumer trust through tamper evidence.

Compliance, Support, and Strategic Value Proposition

The R-600 line is designed and constructed with Good Manufacturing Practice (GMP) principles and relevant food safety standards in mind. While not a medical device, its sanitary design supports HACCP-based food safety plans. For buyers in the target regions, the value proposition extends beyond the machine. It includes comprehensive commissioning, operator training, and a clear spare parts strategy. We emphasize using globally available mechanical and pneumatic components to ensure long-term maintainability, even in remote locations. Choosing the R-600 isn’t just purchasing equipment; it’s investing in a partnership for production growth, gaining a reliable, high-performance asset engineered for the specific challenges and opportunities of emerging beverage markets.
