Description

Authentic Packaging Solution for Craft and Traditional Beverages

High-Precision Rotary Volumetric Filling System.

Rotary Multi-Spindle Capping Machine for Secure Seals.

Linear Glue-Based (Cut-and-Stack) Labeling System.

In a market where brand story and authentic presentation are key differentiators, the R-600 line delivers both operational efficiency and classic aesthetic appeal. This machine is specifically designed for beverage categories where heritage and craftsmanship are central to the brand identity. The choice of a glue-based (cold glue) labeling system for paper labels is a strategic feature, as it provides the unmistakable look and feel of a traditional beverage label—a texture and application quality that pressure-sensitive labels often cannot replicate. The line’s robust rotary design ensures gentle handling of products and containers, preserving the integrity of delicate beverages like naturally conditioned ciders or unfiltered meads. By automating the core packaging processes without compromising on the chosen packaging style, the R-600 enables craft producers to meet growing demand, ensure batch-to-batch consistency, and present their products with the premium, hand-crafted image that consumers in both local and international specialty markets actively seek.

Comprehensive Technical Specifications and Machine Architecture

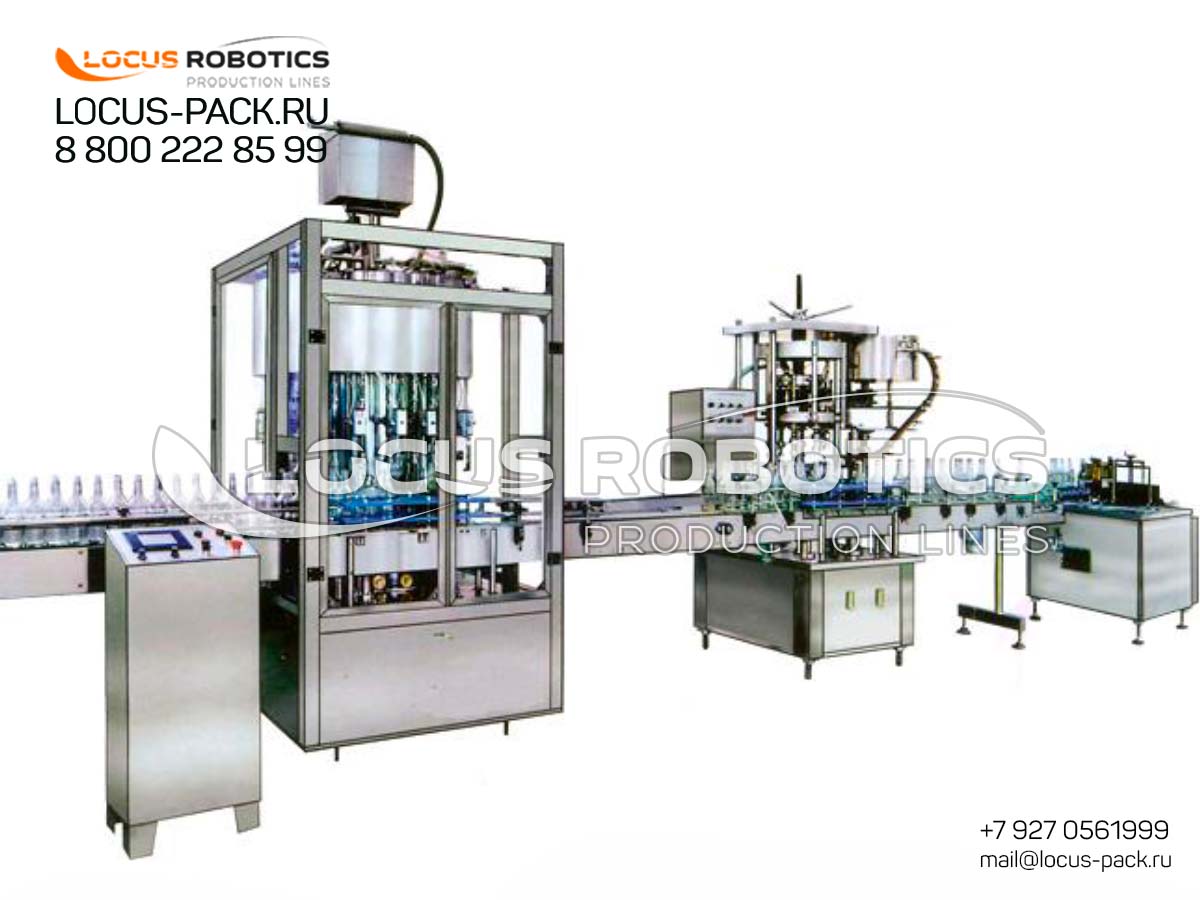

• Machine Type: Fully Automatic, Integrated Rotary Packaging Line (Monobloc Filler-Capper with Inline Labeler).

• Primary Applications: Craft Cider, Perry, Mead (Honey Wine), Natural & Fortified Fruit Wines, Specialty Fruit Drinks (Mors), Non-Alcoholic Craft Beverages, Vinegar, and Premium Oil.

• Container Types: Glass bottles (standard round, Bordeaux, flask). Can be adapted for specific PET or alternative material bottles.

• Core Processes: Rotary Volumetric Filling → Rotary Screw Capping → Linear Glue-Based Paper Label Application.

• Filling Technology: Sanitary rotary filler with piston or pump-driven volumetric dosing. Designed for gentle product handling to protect delicate aromas and carbonation levels (if applicable).

• Capping System: Rotary capper with multiple spindles featuring electromagnetic torque control. Handles a range of aluminum roll-on (ROPP) or plastic screw caps (28mm, 38mm, etc.).

• Labeling System: Linear cold-glue labeler (often called a cut-and-stack labeler). This system picks individual paper labels from a stack, applies a precise pattern of cold glue to the back, and then presses them onto the bottle. It is renowned for its high-speed application and the classic «paper feel» finish.

• Output Capacity: Configured for medium-scale craft production, with typical outputs ranging from 2,000 to 6,000 bottles per hour (BPH), adaptable to specific production goals.

• Control System: Centralized industrial Programmable Logic Controller (PLC) with a multi-language Human-Machine Interface (HMI) touchscreen. Allows for easy recipe changes, production speed adjustment, and maintenance diagnostics.

• Construction: Hygienic design principles with product zones in AISI 304 Stainless Steel. Main frame is constructed from powder-coated carbon steel for stability and corrosion resistance.

Detailed Component Analysis: Filling, Capping, and Labeling Technology

1. High-Precision Rotary Volumetric Filling System: The process begins on a rotating carousel where bottles are indexed under filling heads. Each head uses a precisely calibrated piston or pump to draw a set volume of beverage from the product tank. This method is exceptionally accurate, ensuring every bottle contains the exact same volume, which is critical for cost control, regulatory compliance (especially for alcoholic beverages), and customer satisfaction. The filling valves are designed for a smooth, non-turbulent flow to minimize oxygen pickup, which is vital for preserving the fresh taste of cider and mead.

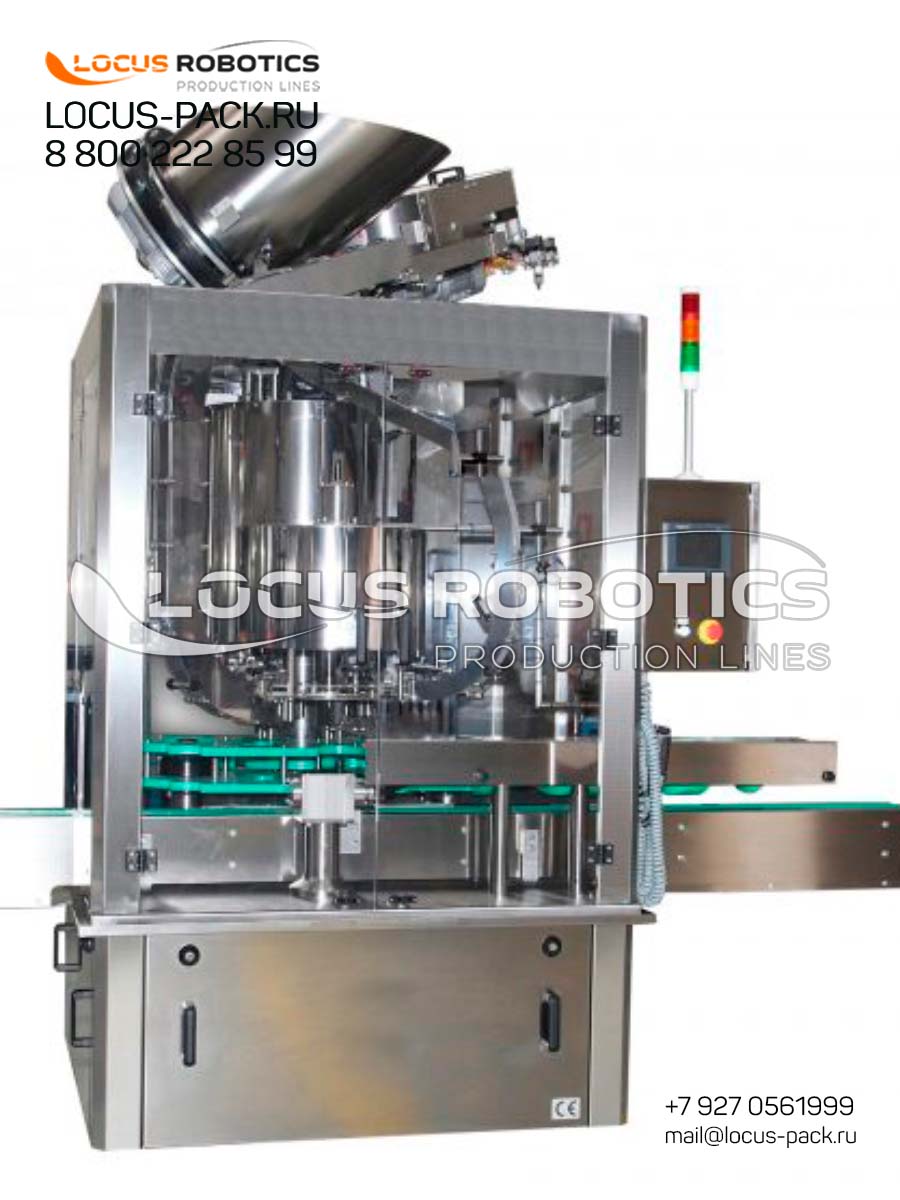

2. Rotary Multi-Spindle Capping Machine for Secure Seals: Filled bottles transition seamlessly to the capping carousel. Here, caps are sorted and fed to individual spinning chucks (spindles). Each spindle descends, picks up a cap, and screws it onto the bottle with a pre-set, consistent torque. The adjustable torque control is crucial—it ensures a tight, leak-proof seal without damaging the cap or bottle threads. For premium products, this station can be configured for aluminum roll-on pilfer-proof (ROPP) caps, which provide an excellent barrier against oxygen and a superior tamper-evident seal.
3. Linear Glue-Based (Cut-and-Stack) Labeling System: This is the defining component of the line. Pre-cut paper labels are loaded into a magazine. A labeling head uses suction cups to pick up a single label, which then passes over a glue roller that applies adhesive in a specific pattern. The label is then wiped or pressed onto the bottle with precision. The cold-glue system allows for the use of standard, cost-effective paper stock and creates a permanent bond. The slight paper overhang and tactile glue lines are characteristic of traditional beverage packaging, offering a distinct marketing advantage for craft brands aiming to stand out on crowded retail shelves.

Target Market Applications and Branding Advantages

The R-600 is the ideal production partner for several key business models:

• Craft Cideries and Meaderies: Businesses scaling up from manual or semi-automatic bottling to meet demand from local pubs, retailers, and export channels.

• Specialty Fruit Beverage Producers: Manufacturers of natural «mors» (fruit drinks), kvass, or other regional traditional drinks looking to modernize production while honoring classic packaging.

• Contract Packers for Specialty Brands: Facilities that service multiple small craft brands, requiring flexible, consistent equipment that can handle different bottle and label sizes while delivering a high-quality finish.
  The branding and operational advantages are significant. Authentic Shelf Presence is achieved through the classic paper label, which resonates with consumers seeking traditional quality. Operational Efficiency is gained by integrating three major steps into one synchronized line, reducing labor, floor space, and product handling. Quality Assurance is built-in through precise filling and capping, which ensures product consistency and reduces the risk of spoilage or leakage during storage and transport.

Reliability, Support, and Strategic Value for Beverage Producers

Investing in the R-600 line means investing in the growth and professionalism of your brand. The machine is built with reliability in mind, using globally sourced industrial components for drives, sensors, and pneumatics to facilitate easy maintenance and spare parts procurement anywhere in the world. We complement the hardware with a comprehensive support package tailored for growth markets, including detailed installation and commissioning, thorough operator and maintenance technician training, and access to a global spare parts network with hubs in strategic regions. For a craft beverage producer, this line is more than machinery; it is a strategic tool that bridges the gap between artisanal production and commercial scalability. It empowers you to increase your output dramatically without sacrificing the handmade aesthetic that defines your brand, allowing you to confidently expand your reach across Southeast Asia, Africa, the Middle East, Latin America, and beyond.
