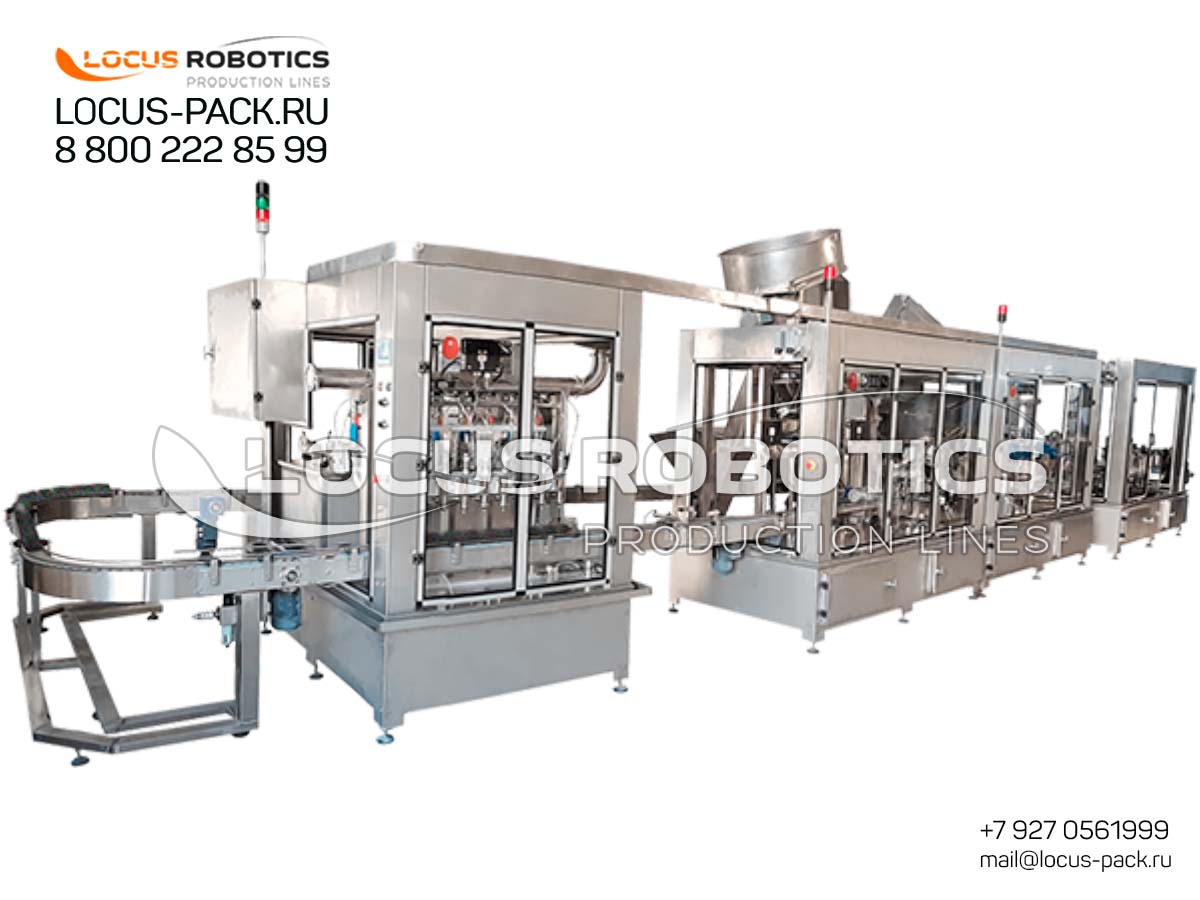

R-300 Universal Series: Automatic Filling, Capping, and Labeling Line for Food Products (Syrups, Jams, Toppings, and Sauces)

Versatile, Hygienic Automation for the Food Processing Industry

Meeting the packaging demands of the food industry requires a machine that is not only precise and efficient but also inherently hygienic and easy to validate. The R-300 Universal Line is specifically configured for food applications, bridging the gap between general chemical handling and the stringent requirements of food production. It adeptly manages products across a wide spectrum of consistencies and sugar contents, which can challenge ordinary fillers. By automating the filling, sealing, and labeling processes, this line ensures portion control, minimizes oxygen exposure, and delivers a consistent, shelf-ready package that enhances brand value. For producers of condiments, dessert products, beverage ingredients, and ready-to-use sauces, this line provides a scalable, reliable, and hygienic packaging solution that supports both quality and growth.

Technical Configuration for Food-Grade Production

The line is built upon a design philosophy that prioritizes cleanability and product integrity at every step.

• Precision Liquid Flow Meter Filling for Diverse Consistencies
  The system utilizes liquid flow meters (Coriolis mass flow meters) at its core. This technology is exceptionally well-suited for food products because it measures product by mass, providing accuracy that is unaffected by changes in viscosity, temperature, or the presence of particulates (such as fruit pieces in jam). This ensures every jar or bottle contains the exact net weight required, crucial for cost control and regulatory compliance. The filling nozzles and valves are designed for smooth, drip-free operation to maintain a clean filling zone.

• Automated Capping and Labeling for Finished Packaging
  Following the fill, containers move to a capping station suitable for various food-grade closures, including screw caps, flip-tops, and pressure-sensitive lids. The capping head applies consistent, adjustable torque to ensure an airtight seal that preserves product freshness and prevents leakage. Finally, a high-precision labeling machine applies front, back, or wrap-around labels. This system can be integrated with vision inspection to verify fill levels and label placement, adding an extra layer of quality control before packaging is discharged.

Target Products & Food Industry Applications

This line is expertly suited for a wide range of liquid and semi-liquid food products:

• Syrups & Toppings: Maple syrup, chocolate syrup, caramel topping, fruit syrups for beverages, ice cream toppings.

• Preserves & Spreads: Fruit jams, jellies, marmalades, honey, nut butters (peanut butter).

• Sauces & Condiments: Cooking sauces, pasta sauces, ketchup, mayonnaise, salad dressings, liquid seasonings.

• Dairy & Beverage Bases: Sweetened condensed milk, drinkable yogurts, liquid coffee concentrates, cocktail mixers.

Key Features for Food Safety & Quality Assurance

• Hygienic, Easy-Clean Design: The line is constructed with easy-access panels, radiused corners, and sloped surfaces to prevent dirt traps. All product contact surfaces are made from AISI 316L stainless steel or food-grade polymers, facilitating thorough cleaning and inspection.

• Validated Cleaning Systems: Designed to support Clean-in-Place (CIP) and, where necessary, Steam-in-Place (SIP) procedures. This allows for efficient, repeatable cleaning cycles that can be documented to meet food safety standards (HACCP, FSMA).

• Precision for Costly Ingredients: Mass-based filling accuracy minimizes product giveaway, which is especially important when packaging products containing expensive ingredients like real fruit, nuts, or premium sweeteners.

• Gentle Product Handling: The filling process is designed to be gentle, minimizing shear forces that could damage delicate emulsions or alter the texture of products containing fruit pieces.

• Data Tracking for Traceability: The PLC control system can record and track batch data, including fill weights and production counts, supporting full traceability from raw material to finished pack.

Global Compliance & Hygienic Design Standards

Deploying food equipment globally requires adherence to specific regional standards.

• Certification Roadmap: The line is designed to meet CE, EAC, and ISO 9001 standards. Crucially, it is engineered to facilitate compliance with food-specific hygienic design benchmarks such as 3-A Sanitary Standards and EHEDG guidelines, which are often required for export to North American and European markets.

• Global Support Network: Access 24/7 multilingual technical support, with service hubs in Dubai (MENA), Hanoi (Southeast Asia), and Lagos (Africa) ensuring rapid response for food production lines where downtime is critical.

• Performance & Hygiene Guarantee: We provide a 24-month performance guarantee and support with validation protocols (IQ/OQ/PQ). The design inherently supports the hygienic operation required for food safety certification.

Technical Specifications

Frequently Asked Questions (FAQs)

• Q: Why are mass flow meters better for food products like jam than piston fillers?

  • A: Mass flow meters measure by weight, so they are not fooled by variations in density caused by temperature changes or air bubbles—common in viscous, aerated foods. They provide consistent net weight fills. Piston fillers measure volume and can be less accurate if the product’s density varies, leading to weight inconsistencies. Mass flow is also gentler on products containing fruit chunks.

• Q: Can this line handle hot-fill products, like jams or sauces that are filled at high temperature for preservation?

  • A: Yes, the line can be configured for hot-fill applications. This requires specific material selections for seals and gaskets (high-temperature FDA-grade EPDM or Viton), insulated piping, and potentially cooling tunnels on the conveyor after capping to prevent label distortion. It is a standard customization we provide.

• Q: What special hygiene certifications does this line have for food production?

  • A: While final certification often depends on the installation and local audit, the line is designed and constructed to meet the core principles of major food safety standards. This includes the use of 316L stainless steel, electropolished finishes, sanitary fittings, and a CIP-capable design. We provide the necessary documentation to support your certification for HACCP, SQF, BRCGS, or similar schemes, and can offer components that are 3-A Symbol Authorized or EHEDG certified upon request.
