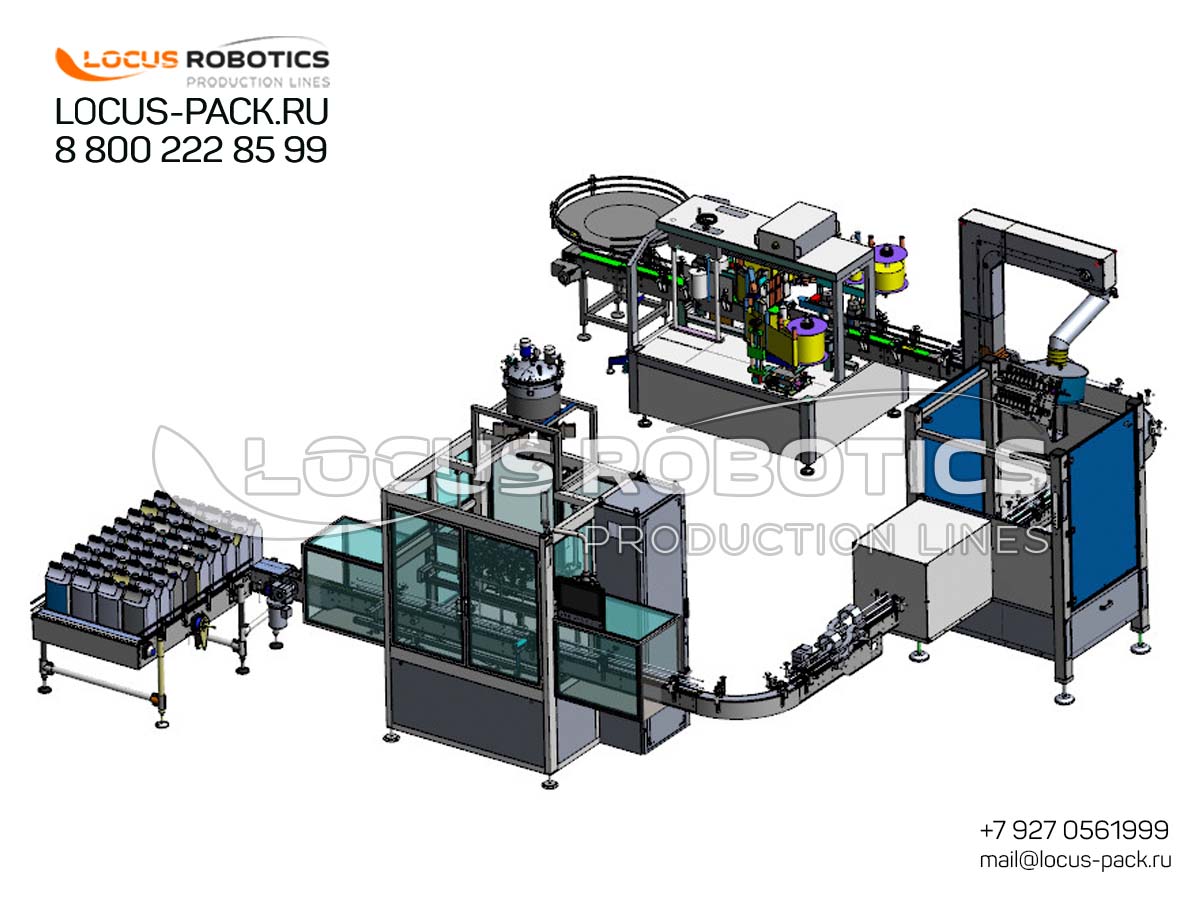

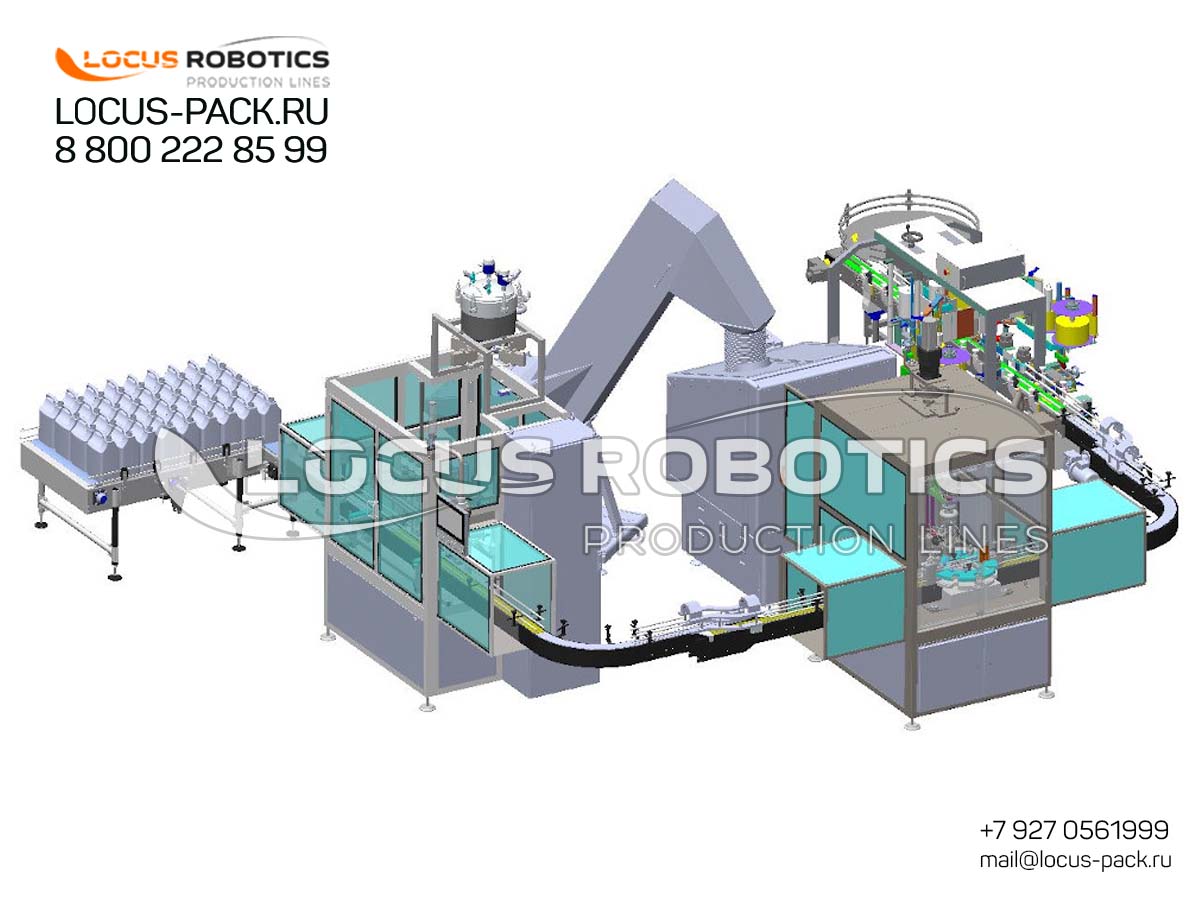

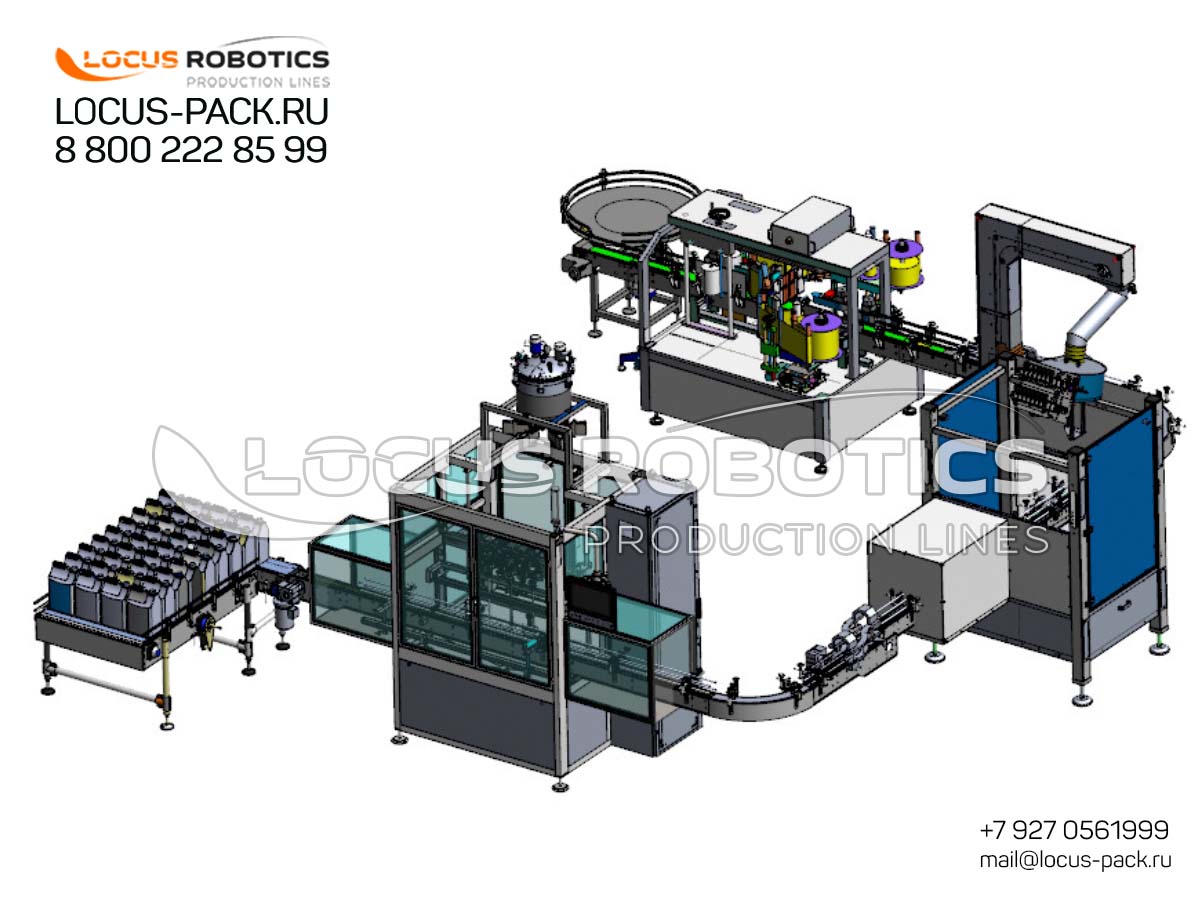

R-300 U-Shaped Complex: Comprehensive Automatic Filling, Capping, and Labeling Line for Aggressive Chemicals with Electromagnetic Flow Meters

A Complete, Contained System for Hazardous Liquid Packaging

Packaging aggressive chemicals—from concentrated acids and solvents to viscous industrial cleaners—requires a system that prioritizes precision, safety, and total process integration. The R-300 U-Shaped Complex is engineered as a turnkey solution that meets this challenge head-on. More than just a filler, it is a fully synchronized packaging cell that incorporates seven key stations into an efficient, closed-loop U-shaped layout. This design minimizes floor space while optimizing operator access and workflow. By automating every step from container infeed to final labeling, the line drastically reduces manual handling, minimizes exposure risks, and ensures unparalleled batch-to-batch consistency. For manufacturers of household, automotive, agricultural, and industrial chemicals targeting global supply chains, this complex provides the complete automation, compliance readiness, and operational resilience needed for competitive, large-scale production.

Detailed Line Configuration & Component Breakdown
The line’s strength lies in its sequential, integrated design. Each component is purpose-built for chemical duty and seamlessly interfaces with the next.

• 1. Container Handling: From Infeed to Accumulation
  The process begins with an Accumulating Conveyor that receives and singulates empty jerrycans, feeding them at a controlled rate into the U-shaped path. At the end of the line, a Discharge Accumulating Table gently collects the finished, labeled containers, ready for manual or automated palletizing, ensuring a smooth product outflow without bottlenecks.

• 2. Core Filling Module: Electromagnetic Flow Meter Technology
  This is the technological heart of the line. Unlike Coriolis meters, Electromagnetic Flow Meters (EMFs) measure the volume of conductive liquids by generating a magnetic field and measuring the induced voltage. They offer exceptional accuracy for a wide range of aggressive, conductive chemicals without moving parts in the flow stream, resulting in minimal pressure drop, high durability, and easy cleaning. This makes them ideal for acids, caustics, and water-based chemical solutions.

• 3. Advanced Cap Handling & Robotic Sealing
  Post-filling, containers move to the advanced capping station. An Orbital Cap Orienter gently and efficiently sorts and aligns bulk caps. A Lift Elevator then presents them to the Robotic Capping Head. This robotic arm provides flexible, precise placement and applies consistent, programmable torque to secure screw caps, ensuring a reliable, leak-proof seal critical for hazardous goods transport.

• 4. Precise Labeling & Finished Product Handling
  The final step is handled by a high-precision Labeling Machine that applies both front and back labels (or wrap-around labels) to the jerrycans. This system ensures perfect alignment and bubble-free application, which is crucial for brand presentation and regulatory compliance (GHS hazard pictograms). The labeled containers are then conveyed to the discharge table.

Universal Chemical Product Compatibility

This complex is engineered for exceptional versatility across the chemical sector:

• Household & Institutional Chemicals: Detergents, disinfectants, bleach, drain cleaners.

• Automotive & Industrial Chemicals: Batteries acid, coolants, brake fluids, industrial degreasers.

• Agrochemicals: Liquid fertilizers, pesticides, herbicides (conductive formulations).

• Construction & Professional Chemicals: Concrete additives, solvents, surface treatment liquids.

Unmatched Technical Advantages & Integrated Design

• Optimal Space Utilization & Workflow: The U-shaped layout reduces the line’s footprint by up to 40% versus linear systems and creates an ergonomic «operator island» for easy monitoring and intervention.

• Superior Filling for Conductive Liquids: Electromagnetic flow meters provide excellent accuracy (±0.5%) for conductive fluids without being affected by changes in density, viscosity, or temperature, ensuring consistent fills.

• Gentle and Reliable Cap Management: The combination of an orbital orienter and robotic capping head ensures high-speed, jam-free cap handling and perfectly applied seals every time.

• Complete Process Integration: From empty container to finished goods, the entire process is automated within one coordinated system, eliminating transfer delays and boosting Overall Equipment Effectiveness (OEE).

• Hygienic and Safe Design: Constructed with AISI 316L Stainless Steel on all wetted parts and designed for Clean-in-Place/Steam-in-Place (CIP/SIP), the line supports stringent hygiene protocols and safe product changeovers.

Global Compliance & Support Infrastructure

We ensure your line operates flawlessly anywhere in the world.

• Certification Roadmap: The complex is designed to meet CE, EAC, and ISO 9001 standards. It is GMP-ready and offers ATEX options for use with flammable solvents.

• Worldwide Support Network: Benefit from 24/7 multilingual support, with local technicians in 18 countries and rapid-response hubs in Dubai (MENA), Hanoi (SEAsia), and Lagos (Africa).

• Performance Guarantee & Rapid Deployment: We provide a 24-month performance guarantee, on-site commissioning in under 72 hours, and region-specific spare parts kits for under 24-hour delivery.

• Custom Engineering: We offer product-specific configuration and rapid customization within 1-2 weeks, including voltage customization (110V-480V) for any market.

Technical Specifications

Frequently Asked Questions (FAQs)

• Q: What is the main difference between electromagnetic flow meters and the Coriolis meters on other R-300 lines?

  • A: Coriolis meters measure mass and are excellent for any liquid, including non-conductive ones like oils and solvents. Electromagnetic meters measure the volume of conductive liquids (water-based acids, caustics). They have no moving parts in contact with the fluid, offering superb durability and low maintenance for aggressive, conductive chemicals. The choice depends on your product’s electrical conductivity.

• Q: How does the orbital cap orienter differ from an elevator-type orienter?

  • A: An orbital orienter uses a vibrating bowl and track to gently align caps through mechanical means, which is extremely reliable and gentle on caps, reducing scuffs and jams. An elevator orienter typically lifts caps vertically from a bulk supply. The orbital system is often preferred for high-speed, high-mix production with delicate or varied cap designs.

• Q: Can this complex handle different sizes of jerrycans, for example, 10L and 20L?

  • A: Yes, it is designed for format flexibility. Changeover involves adjusting guide rails, setting new filling parameters, and potentially changing labeling heads. With quick-change parts and saved PLC recipes, switching between standard sizes like 10L and 20L can typically be done in under 60 minutes.
