Description

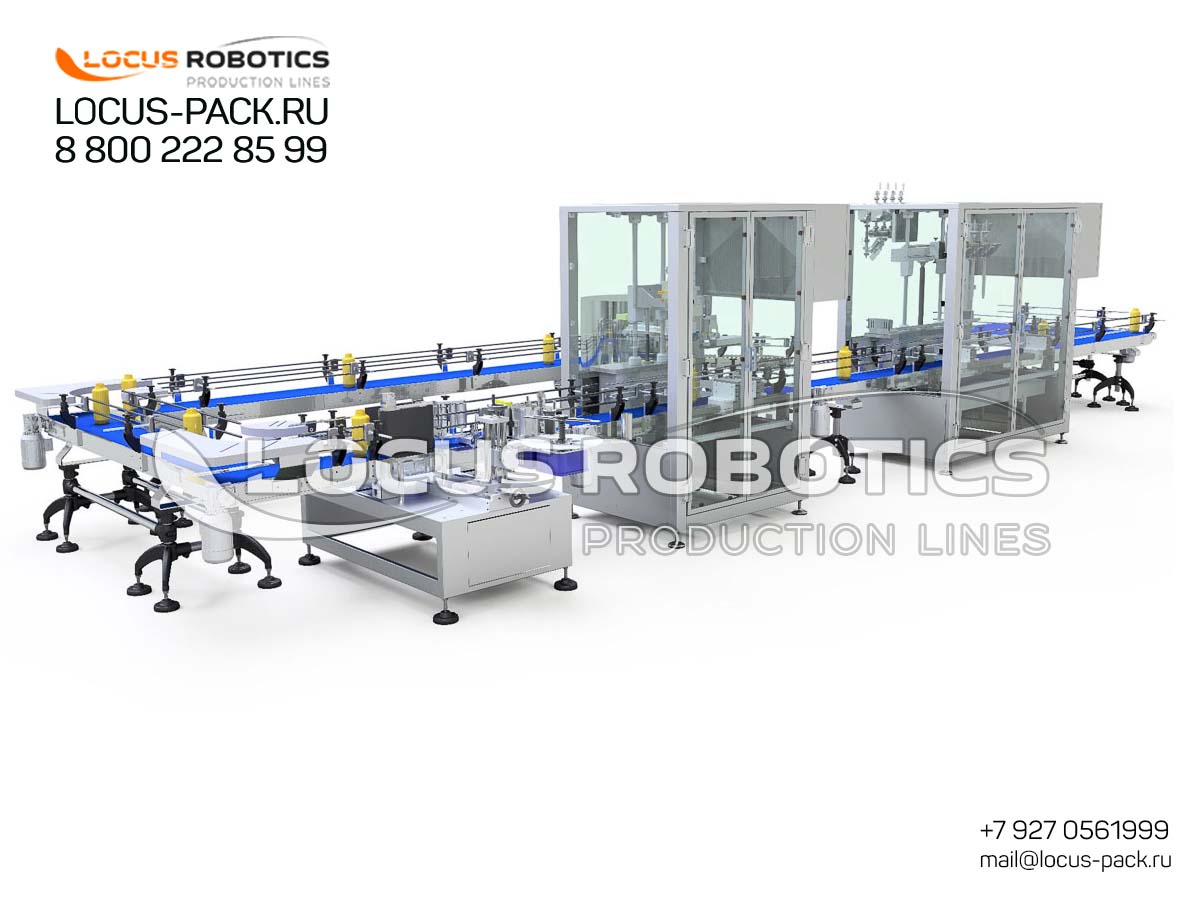

R-300 Series with U-Shaped Conveyor: Automatic Filling, Capping, and Labeling Line for Household Chemicals, Cosmetics, and Liquid Soap

Space-Smart Automation for Diverse Product Portfolios

Modern chemical and cosmetics manufacturing demands flexibility: the ability to quickly switch between different product families—from delicate lotions to heavy-duty detergents—without sacrificing speed or floor space. The R-300 Line with its innovative U-shaped conveyor configuration is the strategic answer to this challenge. This design creates an efficient, closed-loop workflow that minimizes the machine’s footprint while placing all critical operational and monitoring points within easy reach of a single operator station. By combining high-precision filling technology, adaptable capping, and precise labeling into this optimized layout, the line drastically reduces changeover times and material handling, boosting your Overall Equipment Effectiveness (OEE). It is the ultimate solution for fast-moving consumer goods (FMCG) producers, contract packers, and growing brands that need a versatile, reliable, and space-conscious packaging workhorse.

Technical Specifications & U-Shaped Layout Benefits

The defining feature of this line is its U-shaped (or «rotary U-shaped») conveyor system, which guides containers through a logical, compact process flow.

• Accumulating Distributor Conveyor & Precision Filling
  The process begins at the line’s infeed with an accumulating distributor conveyor. This conveyor gently gathers and singulates containers, feeding them into the U-shaped path at a controlled rate. Containers then travel to the liquid flow meter filling station. This technology ensures exceptional accuracy by measuring the mass of the product dispensed, making it ideal for the wide range of viscosities found in cosmetics (serums, creams) and household chemicals (thin disinfectants, viscous gels). The system compensates for product variations in real-time, guaranteeing precise fills and minimizing costly giveaway.

• Descending Capping Head & Linear Labeling System
  After filling, containers proceed around the conveyor bend to the capping station, equipped with a descending capping head. This head lowers to meet the container, applying screw caps, snap-on lids, or pump closures with controlled, adjustable torque to ensure a perfect, consistent seal every time. Finally, containers move to the linear labeling machine. This station can apply front, back, or wrap-around labels with high precision. For regulated markets, it can be integrated with print-and-apply systems for adding batch codes, expiry dates, and multi-lingual information, ensuring full traceability and compliance.

Target Products & Versatile Industry Applications

This line’s versatility makes it a central asset for a broad spectrum of industries:

• Household & Institutional Chemicals: Liquid laundry detergents, fabric softeners, dish soaps, all-purpose cleaners, floor care products.

• Cosmetics & Personal Care: Hand and body lotions, liquid soaps, shower gels, shampoos, conditioners, facial cleansers.

• Automotive & Industrial Chemicals: Car shampoos, windscreen wash, antifreeze, degreasers, maintenance sprays.

• Building & Agrochemicals: (For water-based formulations) Liquid tile adhesives, soil wetting agents, horticultural solutions.

Key Features for Flexible, High-Efficiency Production

• Revolutionary Space Efficiency: The U-shaped conveyor design can reduce the line’s floor space requirement by up to 30-40% compared to a traditional linear layout, freeing up valuable production area for other operations or storage.

• Unmatched Operational Ergonomics: All primary controls, infeed, and discharge points are located within a compact zone. This allows a single operator to efficiently monitor the entire process, perform quick changeovers, and address minor issues without unnecessary movement, reducing labor fatigue and error.

• Rapid Format Changeovers: The line is built for agility. With quick-release change parts for container guides, filling nozzles, and capping chucks, switching between different bottle shapes and sizes can be accomplished in minimal downtime, making it perfect for high-mix production environments.

• Precision for Diverse Formulations: The liquid mass flow meters provide unwavering accuracy regardless of whether you are filling a watery sanitizer or a thick, creamy cosmetic, ensuring product consistency and compliance with filled-volume regulations across your entire portfolio.

• Scalable Performance: While compact, the line does not compromise on output. It is engineered for continuous, reliable operation at speeds that meet the demands of mid- to high-volume production, providing a clear path for capacity growth.

Global Support & Operational Assurance

Your production success is supported by our global infrastructure.

• Localized Expert Support: We provide 24/7 multilingual remote support and have local technicians in 18 countries, with dedicated regional hubs in Dubai (MENA), Hanoi (Southeast Asia), and Lagos (Africa) for rapid on-site assistance.

• Performance Guarantee & Rapid Start-Up: We back our equipment with a 24-month performance guarantee. We ensure a swift launch with on-site commissioning in under 72 hours in key regions and offer region-specific spare parts kits for under 24-hour delivery to maximize your uptime.

• Compliance & Validation Ready: The line is designed to meet CE, EAC, and ISO 9001 standards. It is GMP-ready with 316L stainless steel contact parts and CIP/SIP capabilities, and comes with full IQ/OQ/PQ validation support to simplify your regulatory processes.

Technical Data

Frequently Asked Questions (FAQs)

• Q: What is the main advantage of the U-shaped design over a straight line?

  • A: The primary advantages are dramatically reduced floor space and superior operator ergonomics. The compact «footprint» saves valuable factory space. Furthermore, with the infeed and discharge points close together, a single operator can easily oversee the entire process, monitor quality, and perform changeovers without walking long distances, significantly improving efficiency and control.

• Q: Is this line suitable for a factory with low ceiling height?

  • A: Yes, typically. A U-shaped line is often a better fit for facilities with height restrictions than complex rotary or carousel systems with tall central mechanisms. The individual stations (filling, capping) have a relatively low profile. We can provide specific dimensional drawings to confirm compatibility with your facility.

• Q: How does this line handle very small, lightweight cosmetic bottles?

  • A: The line is highly adaptable. For small or lightweight containers, we configure the conveyor with appropriate guide rails and belt types to ensure stable, tip-free transport. The descending capping head can be precisely calibrated to apply the correct sealing force without toppling delicate bottles. Specific change parts are designed for each container format to ensure smooth running.
